Dewalt DDF2120400 Type 1 Nailer Spare Parts

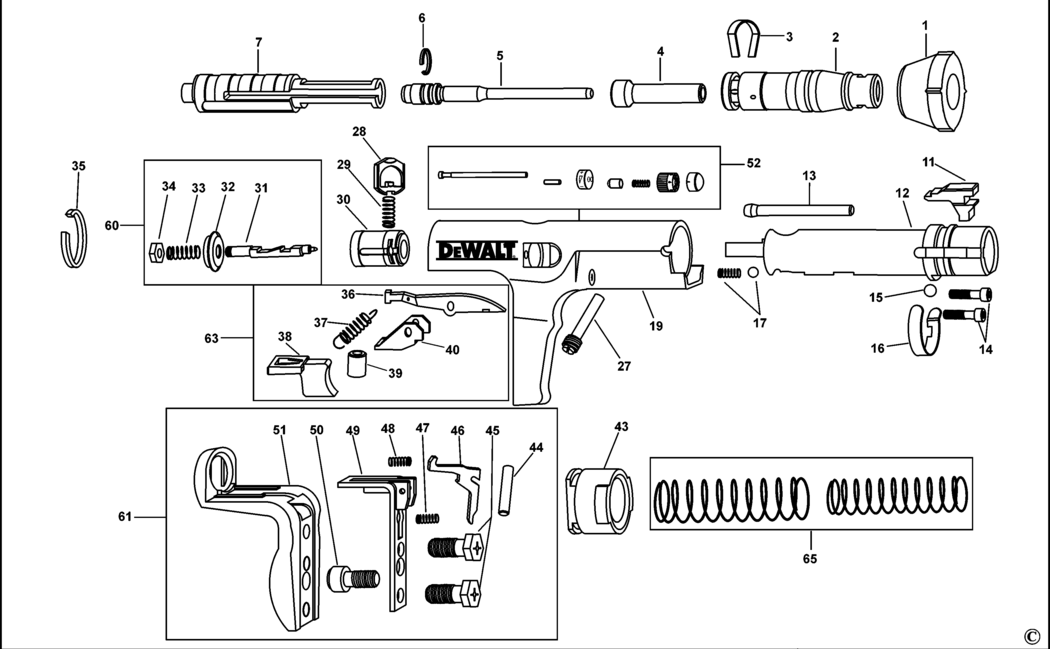

An exploded drawing and spare parts listing for the Dewalt DDF2120400 Type 1 Nailer

	Ex VAT	Inc VAT
1 - STABILISER LEG BDE-52166-PWR.A2 52166-PWR	£15.01	£18.01
2 - BASEPLATE BDE-52110-PWR.A1 52110-PWR	£128.92	£154.70
3 - CLIP BDE-52120-PWR.A2 52120-PWR	£6.06	£7.27
4 - GUIDE BDE-52108-PWR.A1 52108-PWR	£73.58	£88.30
5 - PISTON BDE-52103-PWR.A0 52103-PWR	£67.48	£80.98
6 - PISTON RING BDE-52106-PWR.A2 52106-PWR	£26.47	£31.76
7 - GUIDE BDE-52160-PWR.A1 52160-PWR	£111.45	£133.74
11 - STOP BDE-52112-PWR.A1 52112-PWR	£26.47	£31.76
12 - LINER BDE-52163-PWR.A0 52163-PWR	£197.90	£237.48
13 - PIN BDE-52152-PWR.A0 52152-PWR	£30.98	£37.18
14 - SCREW BDE-52158-PWR.A2 52158-PWR	£1.66	£1.99
15 - BALL STEEL BDE-52122-PWR.A1 52122-PWR	£1.66	£1.99
16 - SPRING CLIP BDE-52136-PWR.A2 52136-PWR	£6.06	£7.27
17 - KIT BDE-52140-PWR.A2 52140-PWR	£11.18	£13.41
27 - PIN BDE-52128-PWR.A2 52128-PWR	£11.18	£13.41
28 - LEVER BDE-52146-PWR.A1 52146-PWR	£16.52	£19.82
29 - SPRING COMPRESSION BDE-52134-PWR.A1 52134-PWR	£1.66	£1.99
30 - SPRING GUIDE BDE-52178-PWR.A2 52178-PWR	£53.46	£64.15
31 - PIN BDE-52148-PWR.A2 52148-PWR	£35.02	£42.02
32 - DETENT BDE-52180-PWR.A1 52180-PWR	£25.12	£30.15
33 - SPRING COMPRESSION BDE-52138-PWR.A1 52138-PWR	£1.66	£1.99
34 - NUT BDE-52156-PWR.A0 52156-PWR	£1.66	£1.99
35 - RING BDE-52172-PWR.A1 52172-PWR	£2.32	£2.78
36 - LEVER BDE-52130-PWR.A1 52130-PWR	£60.46	£72.55
37 - SPRING BDE-52142-PWR.A1 52142-PWR	£12.53	£15.04
38 - TRIGGER BDE-52118-PWR.A1 52118-PWR	£4.83	£5.80
39 - BUSHING BDE-52176-PWR.A1 52176-PWR	£9.69	£11.63
40 - GUIDE BDE-52132-PWR.A2 52132-PWR	£4.83	£5.80
43 - END CAP BDE-52150-PWR.A3 52150-PWR	£15.01	£18.01
44 - PIN BDE-52124-PWR.A2 52124-PWR	£1.66	£1.99
45 - SCREW BDE-52182-PWR.A1 52182-PWR	£1.66	£1.99
46 - LEVER BDE-52170-PWR.A2 52170-PWR	£4.83	£5.80
47 - SPRING COMPRESSION BDE-52174-PWR.A2 52174-PWR	£1.66	£1.99
48 - SPRING COMPRESSION BDE-52154-PWR.A3 52154-PWR	£4.83	£5.80
49 - GLIDE STRIP BDE-52168-PWR.A1 52168-PWR	£25.12	£30.15
50 - SCREW BDE-52184-PWR.A2 52184-PWR	£1.66	£1.99
51 - GRIP BDE-52186-PWR.A1 52186-PWR	£38.48	£46.17
52 - ADJUSTER SA BDE-52159-PWR.A0 52159-PWR	£90.46	£108.55
60 - KIT BDE-52181-PWR.A2 52181-PWR	£45.47	£54.56
61 - REPAIR KIT BDE-52187-PWR.A2 52187-PWR	£119.24	£143.09
63 - KIT BDE-52126-PWR.A1 52126-PWR	£30.98	£37.18
65 - SET BDE-52144-PWR.A2 52144-PWR	£15.01	£18.01
