Dewalt DCN680 Type 1 Brad Nailer 18 Gauge Spare Parts

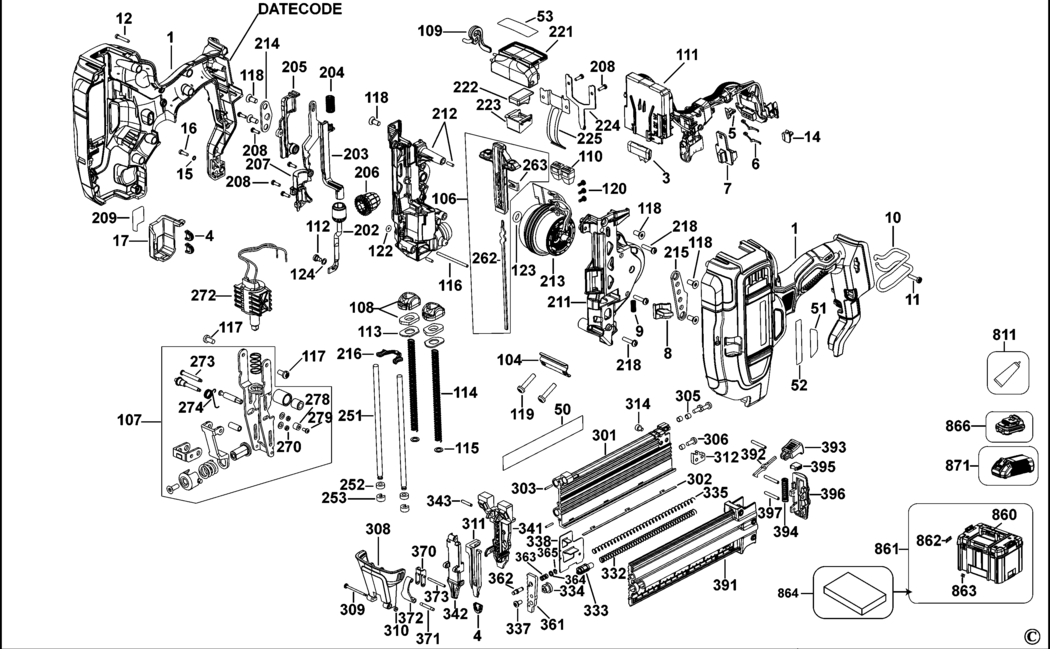

An exploded drawing and spare parts listing for the Dewalt DCN680 Type 1 Brad Nailer 18 Gauge

	Ex VAT	Inc VAT
1 - CLAMSHELL SET BDE-N530570 N530570	£30.08	£36.10
3 - BUTTON LOCK-OFF BDE-N468738.A2 N468738	£1.50	£1.80
4 - NO MAR TIP BDE-N569446.A1 N569446	£2.26	£2.71
5 - LENS BDE-N471571.A0 N471571	£1.50	£1.80
6 - LEAF SPRING BDE-N388602.A4 N388602	£1.50	£1.80
7 - SELECTOR BDE-N466948.A3 N466948	£3.30	£3.96
8 - BUTTON RELEASE BDE-N505465.A4 N505465	£5.88	£7.06
9 - SPRING COMPRESSION BDE-N411486.A5 N411486	£1.50	£1.80
10 - HOOK BDE-N410943.A1 N410943	£3.30	£3.96
11 - SCREW.SPECIAL BDE-330019-52.A67 330019-52	£1.50	£1.80
12 - SCREW BDE-330019-24.A27 330019-24	£1.50	£1.80
14 - LENS BDE-N468840.A2 N468840	£1.50	£1.80
15 - WASHER BDE-N905878.A7 N905878	-
16 - SCREW BDE-174069.A1 174069	£1.50	£1.80
17 - SHROUD BDE-N468112 N468112	£1.50	£1.80
50 - RATING PLATE GB BDE-N498327 N498327	£1.50	£1.80
51 - LABEL BDE-N496807.A0 N496807	£1.50	£1.80
52 - LABEL BDE-N502011.A3 N502011	£1.50	£1.80
53 - LABEL BDE-N515515.A2 N515515	£1.50	£1.80
104 - PLATE BDE-N465881.A0 N465881	£1.50	£1.80
106 - DRIVER SA BDE-N531786.A0 N531786	£51.90	£62.28
107 - CARRIAGE SA BDE-N568371.A1 N568371	£99.47	£119.36
108 - SERVICE KIT BDE-N446577.A6 N446577	£12.17	£14.60
109 - ACTUATOR BDE-N532613.A1 N532613	£1.82	£2.19
110 - CONNECTOR BDE-650974-00.A8 650974-00	£1.50	£1.80
111 - ELECTRONIC & SWITCH GB BDE-N531784 N531784	£157.18	£188.61
112 - SCREW BDE-N499064.A3 N499064	£1.50	£1.80
113 - PLATE BDE-N376891.A7 N376891	£1.50	£1.80
114 - SPRING BDE-N446578.A1 N446578	£19.90	£23.88
115 - WASHER BDE-N383361.A0 N383361	£1.50	£1.80
116 - PIN BDE-N410969.A6 N410969	£1.50	£1.80
117 - SCREW BDE-N491757.A1 N491757	£1.50	£1.80
118 - SCREW BDE-N386788.A0 N386788	£1.50	£1.80
119 - SCREW BDE-N383360.A7 N383360	£1.50	£1.80
120 - SCREW BDE-N403241.A3 N403241	£1.50	£1.80
122 - O RING BDE-N439188.A0 N439188	£1.50	£1.80
123 - O RING BDE-N407991.A3 N407991	£1.50	£1.80
124 - WASHER BDE-N527579.A1 N527579	£1.50	£1.80
202 - TRIP SA BDE-N561939.A1 N561939	£19.90	£23.88
203 - TRIP SA BDE-N587377.A5 N587377	£3.30	£3.96
204 - SPRING COMPRESSION BDE-N378115.A3 N378115	£1.50	£1.80
205 - COVER BDE-N378116.A2 N378116	£2.26	£2.71
206 - ADJUSTER DEPTH BDE-N367663.A5 N367663	£1.50	£1.80
207 - COVER BDE-N367666.A2 N367666	£1.50	£1.80
208 - SCREW BDE-N379045.A3 N379045	£1.50	£1.80
209 - LABEL BDE-N496809.A2 N496809	£1.50	£1.80
211 - FRAME LH BDE-N377231.A6 N377231	£37.35	£44.82
212 - FRAME RH BDE-N496177.A6 N496177	£51.90	£62.28
213 - MOTOR SA BDE-N590301.A3 N590301	£336.69	£404.03
214 - LOCATOR BDE-N378063.A2 N378063	£1.50	£1.80
215 - LOCATOR BDE-N377923.A3 N377923	£1.50	£1.80
216 - RETAINER BDE-N376266.A1 N376266	£1.50	£1.80
218 - SCREW BDE-613619-00.A28 613619-00	£1.50	£1.80
221 - SUPPORT BDE-N378032.A1 N378032	£19.90	£23.88
222 - BUMPER BDE-N515311.A0 N515311	£14.57	£17.48
223 - RETAINER BDE-N515810.A0 N515810	£1.50	£1.80
224 - PLATE BDE-N367683.A7 N367683	£1.50	£1.80
225 - LIFTER BDE-N455371.A7 N455371	£9.41	£11.29
251 - RAIL BDE-N439725.A6 N439725	£4.69	£5.63
252 - BUMPER BDE-N378014.A4 N378014	£1.50	£1.80
253 - CLIP BDE-N402150.A7 N402150	£1.50	£1.80
262 - DRIVER BDE-N455722.A0 N455722	£25.70	£30.84
263 - CLIP BDE-392206-00.A5 392206-00	£1.50	£1.80
270 - GROMMET BDE-391814-00.A39 391814-00	£1.50	£1.80
272 - SOLENOID ASSEMBLY BDE-N446579.A6 N446579	£19.90	£23.88
273 - PIN BDE-633207-00.A7 633207-00	£1.50	£1.80
274 - SPRING TORSION BDE-N377077.A1 N377077	£1.50	£1.80
278 - SLEEVE BDE-N377076.A3 N377076	£1.50	£1.80
279 - SCREW BDE-N491759.A4 N491759	£1.50	£1.80
301 - MAGAZINE BDE-N465442.A0 N465442	£17.48	£20.97
302 - LINER BDE-N468132.A0 N468132	£1.50	£1.80
303 - PIN BDE-180490.A3 180490	£1.50	£1.80
305 - BUSHING BDE-395505-00.A5 395505-00	£1.50	£1.80
306 - SCREW BDE-330045-69.A1 330045-69	£1.50	£1.80
308 - COVER BDE-N469100 N469100	£2.78	£3.34
309 - PIN BDE-N469099.A0 N469099	£1.50	£1.80
310 - GROMMET BDE-N469155.A0 N469155	£1.50	£1.80
311 - CONTACT BDE-N465274.A0 N465274	£10.85	£13.02
312 - BACKPLATE BDE-180500.A2 180500	£1.50	£1.80
314 - SCREW BDE-N476406.A0 N476406	£1.50	£1.80
332 - SPRING BDE-180495.A2 180495	£1.50	£1.80
333 - PUSHER BDE-9R208925.A1 9R208925	£18.91	£22.69
334 - NUT BDE-180238.A5 180238	£1.50	£1.80
335 - SPRING BDE-180496.A3 180496	£1.50	£1.80
337 - SCREW BDE-9R196691.A3 9R196691	£1.50	£1.80
338 - PUSHER BDE-N467369.A0 N467369	£1.82	£2.19
341 - NOSE BDE-N465938.A1 N465938	£38.80	£46.56
342 - DOOR BDE-N464378.A0 N464378	£18.91	£22.69
343 - PIN BDE-181920.A3 181920	£1.50	£1.80
361 - PLATE BDE-175662.A1 175662	£2.78	£3.34
362 - PIN BDE-N466494.A1 N466494	£1.50	£1.80
363 - SPRING BDE-180492.A2 180492	£1.50	£1.80
364 - SPACER BDE-180493.A1 180493	£1.50	£1.80
365 - CIRCLIP BDE-180494.A4 180494	£1.50	£1.80
370 - BRACKET BDE-180553.A1 180553	£1.50	£1.80
371 - PIN BDE-9R205606.A1 9R205606	£1.50	£1.80
372 - SPRING BDE-9R196740.A0 9R196740	£1.50	£1.80
373 - SPIROL PIN BDE-195327.A2 195327	£1.50	£1.80
391 - MAGAZINE BDE-180221.A1 180221	£16.03	£19.24
392 - LATCH BDE-180501.A1 180501	£1.50	£1.80
393 - COVER BDE-9R208926.A2 9R208926	£1.50	£1.80
394 - SPRING BDE-180502.A5 180502	£1.50	£1.80
395 - SUPPORT BDE-180319.A2 180319	£1.50	£1.80
396 - END CAP BDE-175665.A5 175665	£1.50	£1.80
397 - PIN BDE-180503.A2 180503	£1.50	£1.80
811 - LOCTITE 271 BDE-851325.A4 851325	£18.91	£22.69
860 - HANDLE BDE-H1400198008.A70 H1400198008	£3.75	£4.50
861 - KITBOX BDE-N445186.A1 N445186	£71.44	£85.73
862 - LATCH BDE-N409477.A108 N409477	£1.66	£1.99
863 - LATCH BDE-P910190.A134 P910190	£9.41	£11.29
864 - INSERT BDE-N433995.A1 N433995	£41.24	£49.49
866 - BATTERY 18V - 2.0AH - 36WH DCN680-D2 GB BDE-N314783.A12 N314783	£144.10	£172.92
871 - CHARGER 10.8V - 18V GB BDE-N450537.A96 N450537	£157.18	£188.61
