Dewalt DCM565 Type 1 Chainsaw Spare Parts

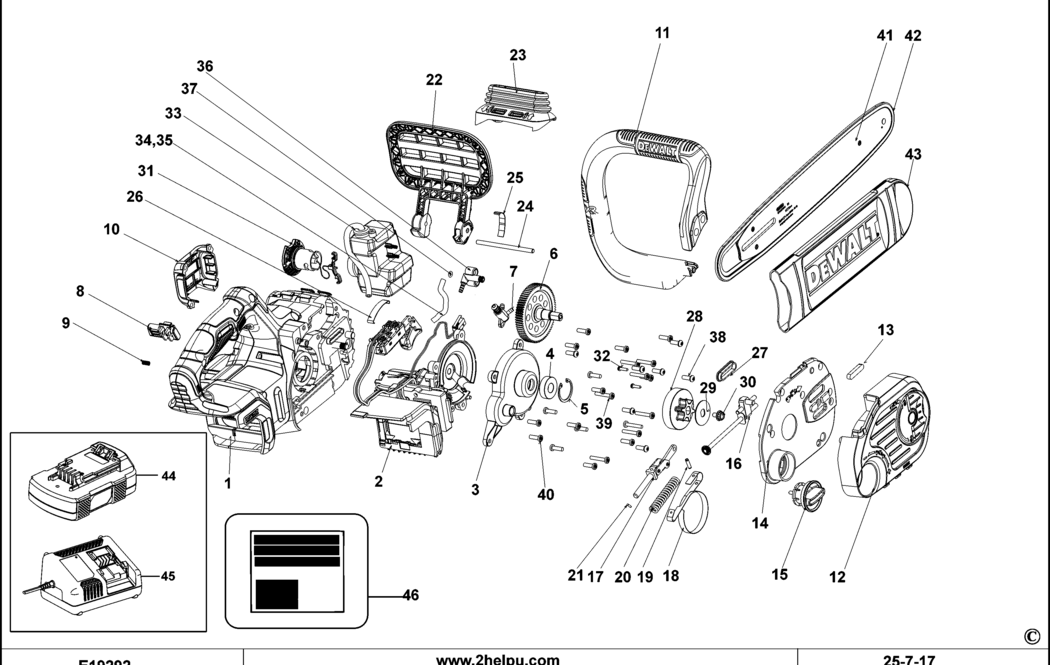

An exploded drawing and spare parts listing for the Dewalt DCM565 Type 1 Chainsaw

	Ex VAT	Inc VAT
1 - HOUSING BDE-N496647 N496647	£38.80	£46.56
2 - MOTOR SA BDE-N539696 N539696	£192.14	£230.57
3 - GEARCASE COVER SA BDE-N503590 N503590	£14.57	£17.48
4 - BEARING BDE-N150961.A8 N150961	£2.78	£3.34
5 - RING BDE-90551022.A0 90551022	£1.50	£1.80
6 - OUTPUT SHAFT SA BDE-N539694 N539694	£19.90	£23.88
7 - PUMP SA BDE-90624557.A3 90624557	£9.41	£11.29
8 - BUTTON LOCK-OFF BDE-N503277 N503277	£1.50	£1.80
9 - SPRING BDE-N433343.A0 N433343	£1.50	£1.80
10 - END CAP BDE-N507146 N507146	£3.80	£4.56
11 - HANDLE BDE-N505189 N505189	£14.57	£17.48
12 - COVER BDE-N723753.A0 N723753	£17.48	£20.97
13 - SEAL BDE-90622086.A3 90622086	£1.50	£1.80
14 - COVER BDE-90609778.A3 90609778	£4.69	£5.63
15 - KNOB BDE-N738912.A0 N738912	£3.30	£3.96
16 - ADJUSTER BDE-90626481.A1 90626481	£14.57	£17.48
17 - BRAKE BDE-N523178 N523178	£12.17	£14.60
18 - STRAP BDE-90638025.A0 90638025	£1.50	£1.80
19 - SPIROL PIN BDE-90627301.A0 90627301	£1.50	£1.80
20 - SPRING BDE-90609777.A0 90609777	£1.50	£1.80
21 - PIN BDE-90594864.A0 90594864	£1.50	£1.80
22 - GUARD BDE-90609587.A0 90609587	£7.18	£8.62
23 - SEAL BDE-N507145 N507145	£4.69	£5.63
24 - PIN BDE-90618528.A3 90618528	£1.50	£1.80
25 - LEAF SPRING BDE-90621730.A0 90621730	£1.50	£1.80
26 - LEAF SPRING BDE-90622670.A0 90622670	£1.50	£1.80
27 - SEAL BDE-90618051.A3 90618051	£1.66	£1.99
28 - SPROCKET BDE-90618228.A3 90618228	£7.85	£9.42
29 - WASHER BDE-90618229.A0 90618229	£1.58	£1.89
30 - BOLT BDE-90639221.A6 90639221	£1.66	£1.99
31 - CAP BDE-90618141.A3 90618141	£4.69	£5.63
32 - SCREW BDE-330019-28.A0 330019-28	£1.50	£1.80
33 - TANK BDE-N539697 N539697	£12.17	£14.60
34 - TUBE BDE-90609542.A3 90609542	£1.50	£1.80
35 - SPRING BDE-90620845.A2 90620845	£1.50	£1.80
36 - PLUG BDE-90104269.A3 90104269	£1.50	£1.80
37 - O RING BDE-90104270.A0 90104270	£1.50	£1.80
38 - SCREW.TEMP BDE-330019-11.A59 330019-11	£1.50	£1.80
39 - SCREW BDE-330019-14.A174 330019-14	£1.50	£1.80
40 - SCREW BDE-330019-12.A49 330019-12	£1.50	£1.80
41 - BAR BDE-N507302 N507302	£34.00	£40.80
42 - CHAIN BDE-N580237 N580237	£18.91	£22.69
43 - SHEATH BDE-N693518.A0 N693518	£3.80	£4.56
44 - BATTERY 18V - 5.0AH - 90WH DCM565P1 GB BDE-N394624.A32 N394624	£192.14	£230.57
45 - CHARGER 10.8V - 18V DCM565P1 GB BDE-N450537.A109 N450537	£157.18	£188.61
46 - RATING LABEL GB BDE-N520898 N520898	£1.50	£1.80
