Dewalt DCD995 Type 1 Cordless Drill Spare Parts

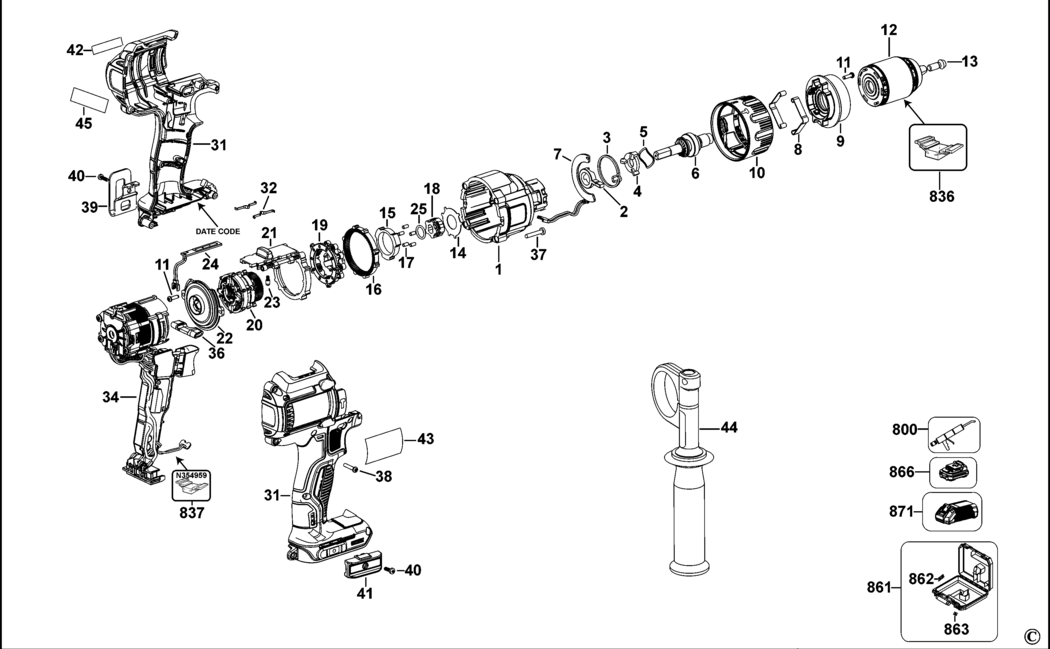

An exploded drawing and spare parts listing for the Dewalt DCD995 Type 1 Cordless Drill

	Ex VAT	Inc VAT
1 - GEARCASE SA BDE-N376087.A1 N376087	£24.39	£29.27
1 - GEARCASE SA GB BDE-N376087.A2 N376087	£24.39	£29.27
2 - LEVER BDE-N146719.A1 N146719	£1.50	£1.80
2 - LEVER BDE-N146719.A2 N146719	£1.50	£1.80
3 - SPRING BDE-N316079.A5 N316079	£1.50	£1.80
3 - SPRING BDE-N316079.A6 N316079	£1.50	£1.80
4 - GEAR BDE-N149367.A5 N149367	£1.50	£1.80
4 - GEAR BDE-N149367.A6 N149367	£1.50	£1.80
5 - WASHER SPRING BDE-N269741.A2 N269741	£1.50	£1.80
5 - WASHER SPRING BDE-N269741.A3 N269741	£1.50	£1.80
6 - SPINDLE SA BDE-N336167.A0 N336167	£16.03	£19.24
6 - SPINDLE SA BDE-N336167.A1 N336167	£16.03	£19.24
7 - SENSOR BDE-N376088.A1 N376088	£19.90	£23.88
7 - SENSOR BDE-N376088.A2 N376088	£19.90	£23.88
8 - DETENT BDE-N165352.A4 N165352	£1.50	£1.80
8 - DETENT BDE-N165352.A5 N165352	£1.50	£1.80
9 - END CAP BDE-N161216.A8 N161216	£7.85	£9.42
9 - END CAP BDE-N161216.A9 N161216	£7.85	£9.42
10 - COLLAR BDE-N172594.A2 N172594	£5.88	£7.06
10 - COLLAR BDE-N172594.A3 N172594	£5.88	£7.06
11 - SCREW BDE-N281559.A4 N281559	£1.50	£1.80
11 - SCREW BDE-N281559.A5 N281559	£1.50	£1.80
12 - CHUCK KEYLESS BDE-N242399.A35 N242399	£30.08	£36.10
12 - CHUCK KEYLESS BDE-N242399.A36 N242399	£30.08	£36.10
13 - SCREW.SPECIAL BDE-N243859.A6 N243859	£1.50	£1.80
13 - SCREW.SPECIAL BDE-N243859.A7 N243859	£1.50	£1.80
14 - PLATE BDE-652378-00.A33 652378-00	£1.50	£1.80
14 - PLATE BDE-652378-00.A34 652378-00	£1.50	£1.80
15 - LOCKING RING BDE-N375852.A10 N375852	£9.41	£11.29
15 - LOCKING RING BDE-N375852.A11 N375852	£9.41	£11.29
16 - GEAR BDE-N375864.A13 N375864	£17.48	£20.97
16 - GEAR BDE-N375864.A14 N375864	£17.48	£20.97
17 - ROLLER BDE-654110-00.A7 654110-00	£1.50	£1.80
17 - ROLLER BDE-654110-00.A8 654110-00	£1.50	£1.80
18 - ANVIL BDE-N375869.A1 N375869	£9.41	£11.29
18 - ANVIL BDE-N375869.A2 N375869	£9.41	£11.29
19 - GEAR SA BDE-N375865.A1 N375865	£9.41	£11.29
19 - GEAR SA BDE-N375865.A2 N375865	£9.41	£11.29
20 - GEAR SA BDE-N375866.A7 N375866	£19.90	£23.88
20 - GEAR SA BDE-N375866.A8 N375866	£19.90	£23.88
21 - SLIDER SA BDE-N375867.A1 N375867	£9.41	£11.29
21 - SLIDER SA BDE-N375867.A2 N375867	£9.41	£11.29
22 - BAFFLE SA BDE-N375868.A13 N375868	£7.85	£9.42
22 - BAFFLE SA BDE-N375868.A14 N375868	£7.85	£9.42
23 - DETENT TO DCODE WK14 2015 BDE-326467-00.A73 326467-00	£1.50	£1.80
24 - NO LONGER AVAILABLE TO DCODE WK14 2015 BDE-000000-00.A30440 000000-00	-
25 - O RING BDE-N309119.A9 N309119	£1.50	£1.80
25 - O RING BDE-N309119.A10 N309119	£1.50	£1.80
31 - CLAMSHELL SET BDE-N157789.A2 N157789	-
31 - CLAMSHELL SET BDE-N157789.A3 N157789	-
32 - LEAF SPRING BDE-N014681.A58 N014681	£1.50	£1.80
32 - LEAF SPRING BDE-N014681.A59 N014681	£1.50	£1.80
34 - MOTOR SA BDE-N389442.A2 N389442	£94.12	£112.94
34 - MOTOR SA BDE-N389442.A3 N389442	£94.12	£112.94
36 - ACTUATOR FWD/REV BDE-N167664.A5 N167664	£1.42	£1.70
36 - ACTUATOR FWD/REV BDE-N167664.A6 N167664	£1.42	£1.70
37 - SCREW.SPECIAL BDE-330019-52.A17 330019-52	£1.50	£1.80
37 - SCREW.SPECIAL BDE-330019-52.A18 330019-52	£1.50	£1.80
38 - SCREW BDE-682211-00.A179 682211-00	£1.50	£1.80
38 - SCREW BDE-682211-00.A180 682211-00	£1.50	£1.80
39 - HOOK BDE-N086039.A13 N086039	£4.69	£5.63
39 - HOOK BDE-N086039.A14 N086039	£4.69	£5.63
40 - SCREW BDE-N042665.A55 N042665	£1.50	£1.80
40 - SCREW BDE-N042665.A56 N042665	£1.50	£1.80
41 - HOLDER BIT BDE-N095778.A30 N095778	£7.18	£8.62
41 - HOLDER BIT BDE-N095778.A31 N095778	£7.18	£8.62
42 - LABEL BDE-N237999.A9 N237999	£1.50	£1.80
42 - LABEL BDE-N237999.A10 N237999	£1.50	£1.80
43 - RATING PLATE GB BDE-N260159 N260159	£1.50	£1.80
44 - SIDE HANDLE BDE-N221312.A2 N221312	£9.41	£11.29
44 - SIDE HANDLE BDE-N221312.A3 N221312	£9.41	£11.29
45 - LABEL BDE-N317859.A12 N317859	£1.50	£1.80
45 - LABEL BDE-N317859.A13 N317859	£1.50	£1.80
800 - GREASE 150 GMS BDE-N017298.A41 N017298	£47.08	£56.49
800 - GREASE 150 GMS BDE-N017298.A42 N017298	£47.08	£56.49
836 - S.T.CHUCK REMOVAL JIG BDE-559661-99.A37 559661-99	£113.07	£135.68
836 - S.T.CHUCK REMOVAL JIG BDE-559661-99.A38 559661-99	£113.07	£135.68
836 - S.T.INSERT BDE-596004-99.A28 596004-99	£25.70	£30.84
836 - S.T.INSERT BDE-596004-99.A29 596004-99	£25.70	£30.84
837 - SERVICE TOOL BDE-N354959.A10 N354959	£24.39	£29.27
861 - KITBOX BDE-N200697.A0 N200697	£34.00	£40.80
861 - KITBOX BDE-N506511.A14 N506511	£37.35	£44.82
861 - KITBOX DCD995NT BDE-N506511.A15 N506511	£37.35	£44.82
862 - LATCH DCD995NT BDE-N409477.A22 N409477	£1.66	£1.99
863 - LATCH DCD995NT BDE-P910190.A22 P910190	£9.41	£11.29
866 - BATTERY 18V - 4.0AH - 72WH DCD995M2 - DCD995M3 GB BDE-N195933.A42 N195933	£218.32	£261.98
866 - BATTERY 18V - 5.0AH - 90WH DCD995P2 GB BDE-N394624.A21 N394624	£192.14	£230.57
871 - CHARGER 10.8V - 18V GB BDE-N450537.A200 N450537	£157.18	£188.61
