Dewalt DCD935 Type 10 Combination Unit Spare Parts

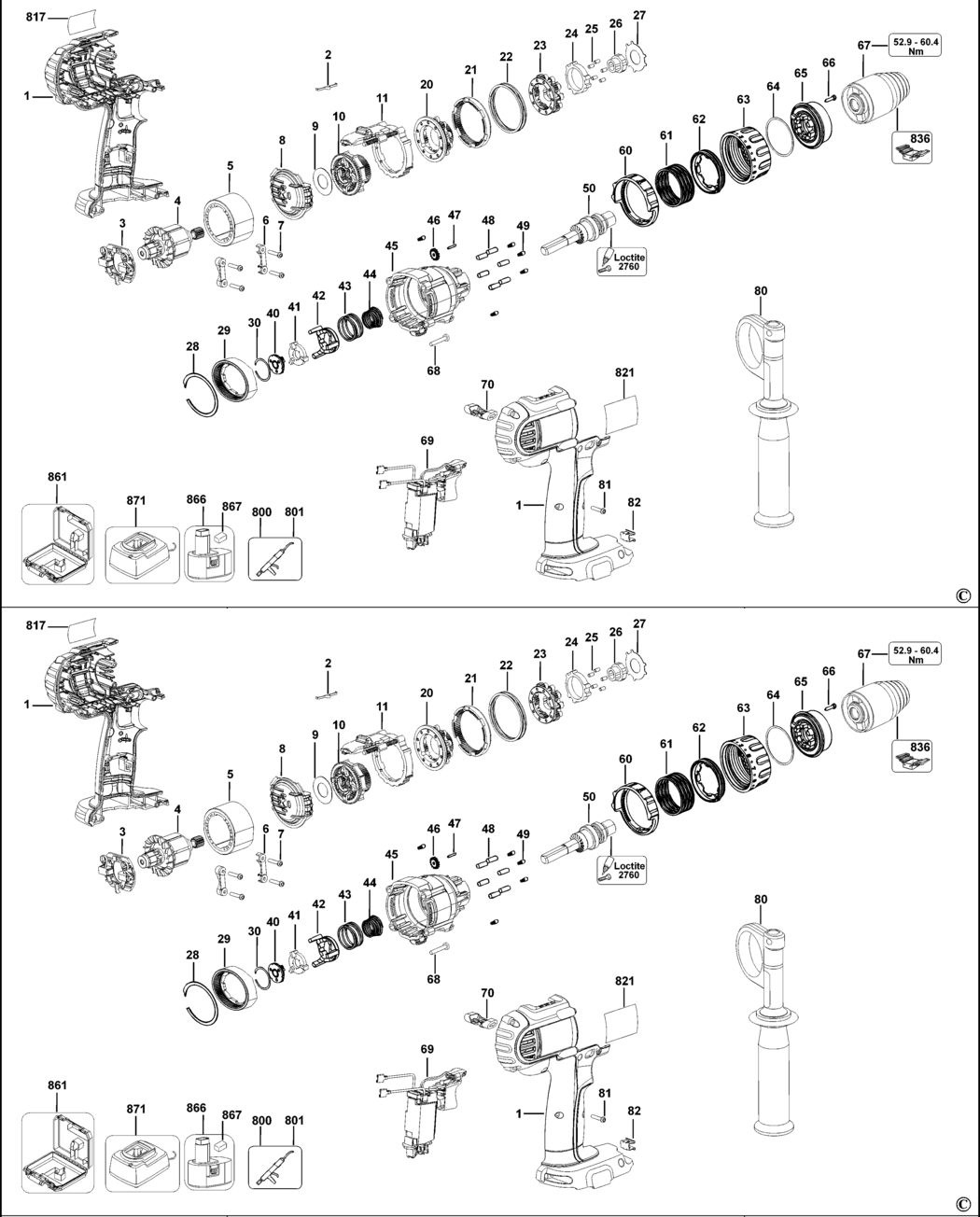

An exploded drawing and spare parts listing for the Dewalt DCD935 Type 10 Combination Unit

	Ex VAT	Inc VAT
1 - CLAMSHELL PAIR BDE-N266523.A2 N266523	£17.03	£20.44
1 - CLAMSHELL PAIR BDE-n012062 n012062	£18.00	£21.60
2 - LEAF SPRING BDE-N014681.A11 N014681	£1.66	£1.99
2 - LEAF SPRING BDE-N014681.A12 N014681	£1.66	£1.99
3 - BRUSHPLATE BDE-N012060.A11 N012060	£9.99	£11.99
3 - BRUSHPLATE BDE-N012060.A12 N012060	£9.99	£11.99
4 - ARMATURE SA BDE-N268000.A4 N268000	£37.35	£44.82
4 - ARMATURE SA BDE-N012053 N012053	£39.97	£47.96
5 - MAGNET SA BDE-N012055.A12 N012055	£41.24	£49.49
5 - MAGNET SA BDE-N012055.A13 N012055	£41.24	£49.49
6 - CLAMP BDE-N007948.A30 N007948	£1.66	£1.99
6 - CLAMP BDE-N007948.A31 N007948	£1.66	£1.99
7 - SCREW.SPECIAL BDE-330019-52.A88 330019-52	£1.66	£1.99
7 - SCREW.SPECIAL BDE-330019-52.A89 330019-52	£1.66	£1.99
8 - BAFFLE BDE-N142938.A22 N142938	£2.78	£3.34
8 - BAFFLE BDE-N142938.A23 N142938	£2.78	£3.34
9 - WASHER BDE-654925-00.A3 654925-00	£1.66	£1.99
9 - WASHER BDE-654925-00.A4 654925-00	£1.66	£1.99
10 - GEAR SA BDE-N016359.A12 N016359	-
10 - GEAR SA BDE-N016359.A13 N016359	-
11 - SLIDER SA BDE-N016366.A2 N016366	£18.00	£21.60
11 - SLIDER SA BDE-N016366.A3 N016366	£18.00	£21.60
20 - GEAR SA BDE-N016360.A0 N016360	£17.03	£20.44
20 - GEAR SA BDE-N016360.A1 N016360	£17.03	£20.44
21 - GEAR BDE-N016367.A9 N016367	£7.01	£8.41
21 - GEAR BDE-N016367.A10 N016367	£7.01	£8.41
22 - SPRING BDE-N038862.A15 N038862	£3.30	£3.96
22 - SPRING BDE-N038862.A16 N038862	£3.30	£3.96
23 - GEAR SA BDE-N016361.A12 N016361	£16.03	£19.24
23 - GEAR SA BDE-N016361.A13 N016361	£16.03	£19.24
24 - LOCKING RING BDE-N016370.A4 N016370	£7.85	£9.42
24 - LOCKING RING BDE-N016370.A5 N016370	£7.85	£9.42
25 - ROLLER BDE-654110-00.A39 654110-00	£1.66	£1.99
25 - ROLLER BDE-654110-00.A40 654110-00	£1.66	£1.99
26 - ANVIL BDE-N016365.A12 N016365	-
26 - ANVIL BDE-N016365.A13 N016365	-
27 - PLATE BDE-652378-00.A8 652378-00	£1.66	£1.99
27 - PLATE BDE-652378-00.A9 652378-00	£1.66	£1.99
28 - SPRING CLIP BDE-650474-00.A1 650474-00	£1.66	£1.99
28 - SPRING CLIP BDE-650474-00.A2 650474-00	£1.66	£1.99
29 - GEAR BDE-N016362.A0 N016362	-
29 - GEAR BDE-N016362.A1 N016362	-
30 - CIRCLIP BDE-650475-00.A24 650475-00	£1.66	£1.99
30 - CIRCLIP BDE-650475-00.A25 650475-00	£1.66	£1.99
40 - CAM BDE-N016368.A4 N016368	-
40 - CAM BDE-N016368.A5 N016368	-
41 - RATCHET FIXED BDE-N016369.A9 N016369	£4.69	£5.63
41 - RATCHET FIXED BDE-N016369.A10 N016369	£4.69	£5.63
42 - LOCKING DEVICE BDE-N080691.A18 N080691	£5.88	£7.06
42 - LOCKING DEVICE BDE-N080691.A19 N080691	£5.88	£7.06
43 - SPRING BDE-650455-00.A7 650455-00	£1.66	£1.99
43 - SPRING BDE-650455-00.A8 650455-00	£1.66	£1.99
44 - SPRING BDE-650448-00.A12 650448-00	£1.66	£1.99
44 - SPRING BDE-650448-00.A13 650448-00	£1.66	£1.99
45 - GEARCASE BDE-N016364.A2 N016364	£37.82	£45.38
45 - GEARCASE BDE-N016364.A3 N016364	£37.82	£45.38
46 - PINION BDE-N111054.A24 N111054	£1.66	£1.99
46 - GEAR BDE-653023-00.A0 653023-00	£1.66	£1.99
47 - PIN BDE-629085-00.A20 629085-00	£1.66	£1.99
47 - PIN BDE-629085-00.A21 629085-00	£1.66	£1.99
48 - PIN BDE-650471-00.A11 650471-00	-
48 - PIN BDE-650471-00.A12 650471-00	-
49 - DETENT BDE-326467-00.A177 326467-00	£1.66	£1.99
49 - DETENT BDE-326467-00.A178 326467-00	£1.66	£1.99
50 - REPAIR KIT BDE-N119912.A6 N119912	£72.28	£86.73
50 - REPAIR KIT BDE-N119912.A7 N119912	£72.28	£86.73
60 - SELECTOR BDE-650460-00.A12 650460-00	£3.39	£4.07
60 - SELECTOR BDE-650460-00.A13 650460-00	£3.39	£4.07
61 - SPRING BDE-655532-00.A18 655532-00	£2.26	£2.71
61 - SPRING BDE-655532-00.A19 655532-00	£2.26	£2.71
62 - NUT BDE-652380-00.A4 652380-00	£2.26	£2.71
62 - NUT BDE-652380-00.A5 652380-00	£2.26	£2.71
63 - COLLAR SA BDE-650459-00SV.A3 650459-00SV	£7.18	£8.62
63 - COLLAR SA BDE-650459-00SV.A4 650459-00SV	£7.18	£8.62
64 - WASHER NYLON BDE-N015955.A11 N015955	-
64 - WASHER NYLON BDE-N015955.A12 N015955	-
65 - END CAP BDE-650491-00.A1 650491-00	£3.92	£4.70
65 - END CAP BDE-650491-00.A2 650491-00	£3.92	£4.70
66 - SCREW BDE-650418-00.A24 650418-00	£1.66	£1.99
66 - SCREW BDE-650418-00.A25 650418-00	£1.66	£1.99
67 - REPAIR KIT BDE-N119912.A4 N119912	£72.28	£86.73
67 - REPAIR KIT BDE-N119912.A5 N119912	£72.28	£86.73
68 - SCREW.SPECIAL BDE-330019-52.A85 330019-52	£1.66	£1.99
68 - SCREW.SPECIAL BDE-330019-52.A86 330019-52	£1.66	£1.99
69 - SWITCH SA BDE-N012051.A1 N012051	£53.92	£64.70
69 - SWITCH SA BDE-N012051.A2 N012051	£53.92	£64.70
70 - ACTUATOR FWD/REV BDE-650414-00.A16 650414-00	£1.66	£1.99
70 - ACTUATOR FWD/REV BDE-650414-00.A17 650414-00	£1.66	£1.99
80 - SIDE HANDLE BDE-N389651.A24 N389651	£11.18	£13.41
80 - SIDE HANDLE BDE-650421-00.A0 650421-00	£16.52	£19.82
81 - SCREW BDE-682211-00.A281 682211-00	£1.66	£1.99
81 - SCREW BDE-682211-00.A282 682211-00	£1.66	£1.99
82 - HOLDER BDE-148354-03.A172 148354-03	£1.66	£1.99
82 - HOLDER BDE-148354-03.A173 148354-03	£1.66	£1.99
800 - GREASE 150 GMS BDE-N017298.A31 N017298	£48.48	£58.17
800 - GREASE 150 GMS BDE-N017298.A32 N017298	£48.48	£58.17
801 - GREASE BDE-429698-00.A105 429698-00	£86.95	£104.34
801 - GREASE BDE-429698-00.A106 429698-00	£86.95	£104.34
817 - BRAND LABEL BDE-N028034.A19 N028034	£1.66	£1.99
817 - BRAND LABEL BDE-N028034.A20 N028034	£1.66	£1.99
821 - NO LONGER AVAILABLE GB BDE-000000-00.A129206 000000-00	-
836 - S.T.CHUCK REMOVAL JIG BDE-559661-99.A49 559661-99	£122.90	£147.48
836 - S.T.CHUCK REMOVAL JIG BDE-559662-99.A26 559662-99	£73.58	£88.30
836 - S.T.CHUCK REMOVAL JIG BDE-559665-99.A7 559665-99	£38.80	£46.56
836 - S.T.INSERT BDE-596004-99.A1 596004-99	£73.58	£88.30
836 - S.T.CHUCK REMOVAL JIG BDE-559665-99.A8 559665-99	£38.80	£46.56
836 - S.T.CHUCK REMOVAL JIG BDE-559661-99.A50 559661-99	£122.90	£147.48
836 - S.T.CHUCK REMOVAL JIG BDE-559662-99.A25 559662-99	£73.58	£88.30
836 - S.T.INSERT BDE-596004-99.A2 596004-99	£73.58	£88.30
861 - KITBOX BDE-652204-00.A6 652204-00	-
861 - KITBOX BDE-652204-00.A7 652204-00	-
866 - NO LONGER AVAILABLE DCD935L2 GB BDE-000000-00.A129207 000000-00	-
866 - BATTERY 14.4V - 2.6AH DCD935B2 + B3 GB BDE-1006627-00.A17 1006627-00	-
867 - CAP BDE-645221-00.A43 645221-00	£1.66	£1.99
867 - CAP BDE-645221-00.A44 645221-00	£1.66	£1.99
871 - CHARGER 7.2V - 18V GB BDE-N015877.A43 N015877	£93.62	£112.35
