Dewalt DCD795 Type 1 C'less Drill/driver Spare Parts

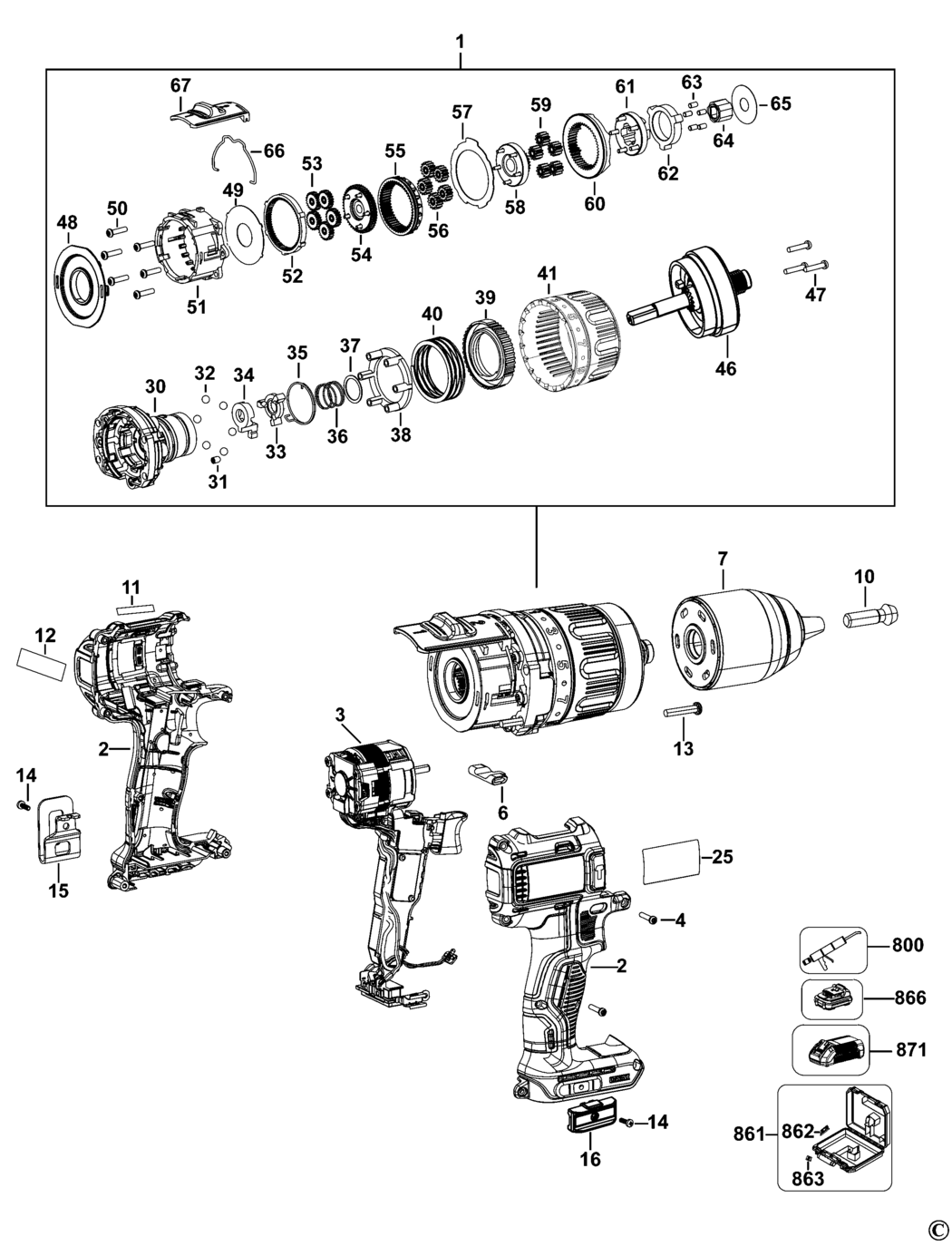

An exploded drawing and spare parts listing for the Dewalt DCD795 Type 1 C'less Drill/driver

	Ex VAT	Inc VAT
1 - TRANSMISSION SA BDE-N287497.A7 N287497	£60.94	£73.13
1 - TRANSMISSION SA BDE-N287497.A8 N287497	£60.94	£73.13
2 - CLAMSHELL SET BDE-N161260.A0 N161260	£18.91	£22.69
2 - CLAMSHELL SET BDE-N161260.A1 N161260	£18.91	£22.69
3 - MOTOR & SWITCH SA BDE-NA123144.A7 NA123144	£77.38	£92.86
3 - MOTOR & SWITCH SA GB BDE-NA123144.A8 NA123144	£77.38	£92.86
4 - SCREW BDE-682211-00.A59 682211-00	£1.50	£1.80
4 - SCREW BDE-682211-00.A60 682211-00	£1.50	£1.80
6 - ACTUATOR FWD/REV BDE-N399342.A0 N399342	£1.66	£1.99
6 - ACTUATOR FWD/REV BDE-N079835.A2 N079835	£1.50	£1.80
7 - CHUCK KEYLESS BDE-N196034.A13 N196034	£41.24	£49.49
7 - CHUCK KEYLESS BDE-N161775 N161775	£41.24	£49.49
10 - SCREW BDE-N092854.A35 N092854	£1.66	£1.99
10 - SCREW BDE-N092854.A36 N092854	£1.66	£1.99
11 - LABEL BDE-N237999.A1 N237999	£1.50	£1.80
11 - LABEL BDE-N237999.A2 N237999	£1.50	£1.80
12 - LABEL BDE-N298039.A33 N298039	£1.50	£1.80
12 - LABEL BDE-N298039.A34 N298039	£1.50	£1.80
13 - SCREW BDE-N377990.A5 N377990	£1.50	£1.80
13 - SCREW BDE-N377990.A6 N377990	£1.50	£1.80
14 - SCREW BDE-N042665.A20 N042665	£1.50	£1.80
14 - SCREW BDE-N042665.A21 N042665	£1.50	£1.80
15 - HOOK BDE-N086039.A49 N086039	£4.69	£5.63
15 - HOOK BDE-N086039.A50 N086039	£4.69	£5.63
16 - HOLDER BIT BDE-N095778.A8 N095778	£7.18	£8.62
16 - HOLDER BIT BDE-N095778.A9 N095778	£7.18	£8.62
25 - RATING PLATE GB BDE-N218974 N218974	£1.50	£1.80
30 - GEARCASE SA BDE-N299719.A7 N299719	£9.41	£11.29
30 - GEARCASE SA BDE-N299719.A8 N299719	£9.41	£11.29
31 - DETENT BDE-326467-00.A153 326467-00	£1.50	£1.80
31 - DETENT BDE-326467-00.A154 326467-00	£1.50	£1.80
32 - BALL BDE-386690-00.A39 386690-00	£1.50	£1.80
32 - BALL BDE-386690-00.A40 386690-00	£1.50	£1.80
33 - RATCHET BDE-N047986.A11 N047986	£3.80	£4.56
33 - RATCHET BDE-N047986.A12 N047986	£3.80	£4.56
34 - RATCHET BDE-N047987.A8 N047987	£4.69	£5.63
34 - RATCHET BDE-N047987.A9 N047987	£4.69	£5.63
35 - SPRING BDE-N047989.A7 N047989	£1.50	£1.80
35 - SPRING BDE-N047989.A8 N047989	£1.50	£1.80
36 - SPRING BDE-N047988.A11 N047988	£1.50	£1.80
36 - SPRING BDE-N047988.A12 N047988	£1.50	£1.80
37 - WASHER BDE-N047985.A8 N047985	£1.50	£1.80
37 - WASHER BDE-N047985.A9 N047985	£1.50	£1.80
38 - PLATE BDE-N063688.A0 N063688	£3.80	£4.56
38 - PLATE BDE-N063688.A1 N063688	£3.80	£4.56
39 - ADJUSTER TORQUE BDE-N036372.A33 N036372	£1.50	£1.80
39 - ADJUSTER TORQUE BDE-N036372.A34 N036372	£1.50	£1.80
40 - SPRING BDE-N077956.A26 N077956	£17.48	£20.97
40 - SPRING BDE-N077956.A27 N077956	£17.48	£20.97
41 - COLLAR BDE-N181497.A7 N181497	£4.69	£5.63
41 - COLLAR BDE-N181497.A8 N181497	£4.69	£5.63
46 - SPINDLE SA BDE-N110039.A16 N110039	£19.90	£23.88
46 - SPINDLE SA BDE-N110039.A17 N110039	£19.90	£23.88
47 - SCREW BDE-682211-00.A61 682211-00	£1.50	£1.80
47 - SCREW BDE-682211-00.A62 682211-00	£1.50	£1.80
48 - ADAPTOR BDE-N148081.A0 N148081	£1.50	£1.80
48 - ADAPTOR BDE-N148081.A1 N148081	£1.50	£1.80
49 - PLATE BDE-N063567.A40 N063567	£1.50	£1.80
49 - PLATE BDE-N063567.A41 N063567	£1.50	£1.80
50 - SCREW BDE-N075506.A18 N075506	£1.50	£1.80
50 - SCREW BDE-N075506.A19 N075506	£1.50	£1.80
51 - GEARCASE BDE-N033869.A0 N033869	£3.30	£3.96
51 - GEARCASE BDE-N033869.A1 N033869	£3.30	£3.96
52 - GEAR BDE-N030988.A8 N030988	£1.82	£2.19
52 - GEAR BDE-N030988.A9 N030988	£1.82	£2.19
53 - GEAR BDE-N030999.A32 N030999	£1.50	£1.80
53 - GEAR BDE-N030999.A33 N030999	£1.50	£1.80
54 - CARRIER SA BDE-N124371.A26 N124371	£7.18	£8.62
54 - CARRIER SA BDE-N124371.A27 N124371	£7.18	£8.62
55 - GEAR BDE-N031079.A26 N031079	£3.80	£4.56
55 - GEAR BDE-N031079.A27 N031079	£3.80	£4.56
56 - GEAR BDE-N031080.A14 N031080	£1.50	£1.80
56 - GEAR BDE-N031080.A15 N031080	£1.50	£1.80
57 - WASHER BDE-N032409.A35 N032409	£1.50	£1.80
57 - WASHER BDE-N032409.A36 N032409	£1.50	£1.80
58 - CARRIER SA BDE-N122400.A0 N122400	£7.18	£8.62
58 - CARRIER SA BDE-N122400.A1 N122400	£7.18	£8.62
59 - GEAR BDE-N031083.A26 N031083	£1.50	£1.80
59 - GEAR BDE-N031083.A27 N031083	£1.50	£1.80
60 - GEAR BDE-N078410.A18 N078410	£3.80	£4.56
60 - GEAR BDE-N078410.A19 N078410	£3.80	£4.56
61 - CARRIER SA BDE-N122401.A39 N122401	£3.30	£3.96
61 - CARRIER SA BDE-N122401.A40 N122401	£3.30	£3.96
62 - LOCKING RING BDE-N022985.A26 N022985	£7.18	£8.62
62 - LOCKING RING BDE-N022985.A27 N022985	£7.18	£8.62
63 - ROLLER BDE-N093416.A8 N093416	£1.50	£1.80
63 - ROLLER BDE-N093416.A9 N093416	£1.50	£1.80
64 - ANVIL ASSEMBLY BDE-N157720.A16 N157720	£3.80	£4.56
64 - ANVIL ASSEMBLY BDE-N157720.A17 N157720	£3.80	£4.56
65 - WASHER BDE-N090435.A13 N090435	£1.50	£1.80
65 - WASHER BDE-N090435.A14 N090435	£1.50	£1.80
66 - WIRE STEEL BDE-N035441.A30 N035441	£1.50	£1.80
66 - WIRE STEEL BDE-N035441.A31 N035441	£1.50	£1.80
67 - SELECTOR SA BDE-N035051.A24 N035051	£2.08	£2.50
67 - SELECTOR SA BDE-N035051.A25 N035051	£2.08	£2.50
800 - GREASE 100 GMS BDE-808386-00.A285 808386-00	£55.30	£66.36
800 - GREASE 100 GMS BDE-808386-00.A286 808386-00	£55.30	£66.36
861 - KITBOX GB BDE-N197072.A0 N197072	£30.08	£36.10
861 - KITBOX DCD795P2-DCD795M2 GB BDE-N312360.A0 N312360	£37.35	£44.82
861 - KITBOX DCD795D2 GB BDE-N312361.A19 N312361	£36.42	£43.70
862 - LATCH BDE-N409477.A33 N409477	£1.66	£1.99
863 - LATCH BDE-P910190.A34 P910190	£9.41	£11.29
866 - BATTERY 18V - 2.0AH - 36WH DCD795D2 GB BDE-N314783.A20 N314783	£144.10	£172.92
866 - BATTERY 18V - 4.0AH - 72WH DCD795M2 + DCD795M1 GB BDE-N195933.A76 N195933	£218.32	£261.98
866 - BATTERY 18V - 5.0AH - 90WH DCD795P2 GB BDE-N394624.A45 N394624	£192.14	£230.57
871 - CHARGER 10.8V - 18V GB BDE-N450537.A150 N450537	£157.18	£188.61

Attribute Name	Value
Brand	Dewalt
