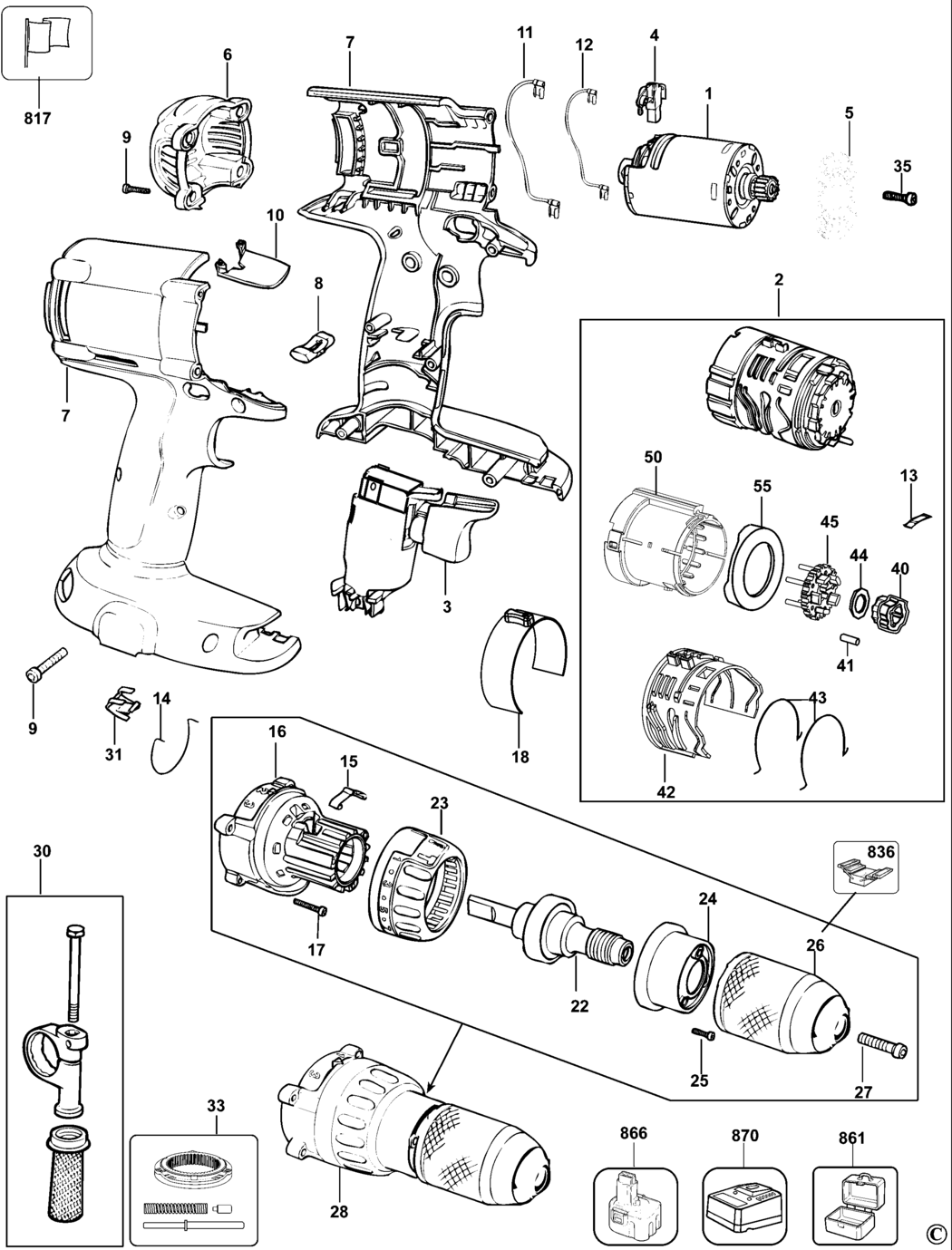

1 - MOTOR SA
BDE-493510-00.A0
493510-00
|
-
|
|
|
|
2 - NO LONGER AVAILABLE
BDE-000000-00.A127806
000000-00
|
-
|
|
|
|
3 - SWITCH
BDE-N030560.A0
N030560
|
-
|
|
|
|
4 - BRUSH PAIR
BDE-493511-00.A37
493511-00
|
-
|
|
|
|
5 - ADAPTOR
BDE-629172-00.A9
629172-00
|
£1.66
|
£1.99
|
|
|
6 - END CAP
BDE-629823-00.A7
629823-00
|
£7.64
|
£9.17
|
|
|
7 - CLAMSHELL PAIR
BDE-493514-00.A0
493514-00
|
£24.39
|
£29.27
|
|
|
8 - ACTUATOR FWD/REV
BDE-633327-02.A4
633327-02
|
£1.66
|
£1.99
|
|
|
9 - SCREW
BDE-682211-00.A265
682211-00
|
£1.66
|
£1.99
|
|
|
10 - NO LONGER AVAILABLE
BDE-000000-00.A127807
000000-00
|
-
|
|
|
|
11 - LEAD PURPLE
BDE-631282-01.A6
631282-01
|
£1.66
|
£1.99
|
|
|
12 - LEAD BROWN
BDE-631283-01.A5
631283-01
|
£1.66
|
£1.99
|
|
|
13 - DETENT
BDE-608060-00.A6
608060-00
|
-
|
|
|
|
14 - SPRING
BDE-399059-00.A7
399059-00
|
-
|
|
|
|
15 - SPRING GUIDE
BDE-395460-00.A31
395460-00
|
£1.66
|
£1.99
|
|
|
16 - NO LONGER AVAILABLE
BDE-000000-00.A127808
000000-00
|
-
|
|
|
|
17 - SCREW
BDE-330019-62.A2
330019-62
|
-
|
|
|
|
18 - SHROUD
BDE-629918-01.A2
629918-01
|
£1.66
|
£1.99
|
|
|
22 - SPINDLE SA
BDE-579727-00.A9
579727-00
|
£18.42
|
£22.10
|
|
|
23 - COLLAR SA
BDE-629462-00.A1
629462-00
|
£7.64
|
£9.17
|
|
|
24 - END CAP
BDE-609133-00.A13
609133-00
|
£1.66
|
£1.99
|
|
|
25 - SCREW
BDE-330019-00.A12
330019-00
|
£1.66
|
£1.99
|
|
|
26 - CHUCK KEYLESS
BDE-N242399.A23
N242399
|
£30.08
|
£36.10
|
|
|
27 - SCREW
BDE-605256-02.A185
605256-02
|
£1.66
|
£1.99
|
|
|
28 - REPAIR KIT
BDE-493576-00.A0
493576-00
|
£91.27
|
£109.53
|
|
|
30 - HANDLE SIDE SA
BDE-939794-02.A57
939794-02
|
£14.57
|
£17.48
|
|
|
31 - HOLDER
BDE-148354-03.A202
148354-03
|
£1.66
|
£1.99
|
|
|
33 - SERVICE KIT
BDE-N021723.A2
N021723
|
£19.40
|
£23.28
|
|
|
35 - SCREW
BDE-156179-01.A5
156179-01
|
£1.66
|
£1.99
|
|
|
40 - ANVIL
BDE-394532-00.A9
394532-00
|
£1.66
|
£1.99
|
|
|
41 - PIN
BDE-330041-43.A3
330041-43
|
-
|
|
|
|
42 - NO LONGER AVAILABLE
BDE-000000-00.A127809
000000-00
|
-
|
|
|
|
43 - NO LONGER AVAILABLE
BDE-000000-00.A127810
000000-00
|
-
|
|
|
|
44 - NO LONGER AVAILABLE
BDE-000000-00.A127811
000000-00
|
-
|
|
|
|
45 - NO LONGER AVAILABLE
BDE-000000-00.A127812
000000-00
|
-
|
|
|
|
50 - NO LONGER AVAILABLE
BDE-000000-00.A127813
000000-00
|
-
|
|
|
|
55 - NO LONGER AVAILABLE
BDE-000000-00.A127814
000000-00
|
-
|
|
|
|
817 - BRAND LABEL
BDE-578037-00.A19
578037-00
|
-
|
|
|
|
836 - S.T.CHUCK REMOVAL JIG
BDE-559661-99.A44
559661-99
|
£113.07
|
£135.68
|
|
|
836 - S.T.INSERT
BDE-559697-99.A25
559697-99
|
£55.30
|
£66.36
|
|
|
861 - KITBOX
BDE-640040-01.A2
640040-01
|
£33.13
|
£39.76
|
|
|
866 - BATTERY 18V - 2.6AH DC920KB GB
BDE-1006628-00.A2
1006628-00
|
£108.20
|
£129.84
|
|
|
870 - CHARGER 240V DC920KB GB
BDE-1006635-00.A4
1006635-00
|
£93.62
|
£112.35
|
|
