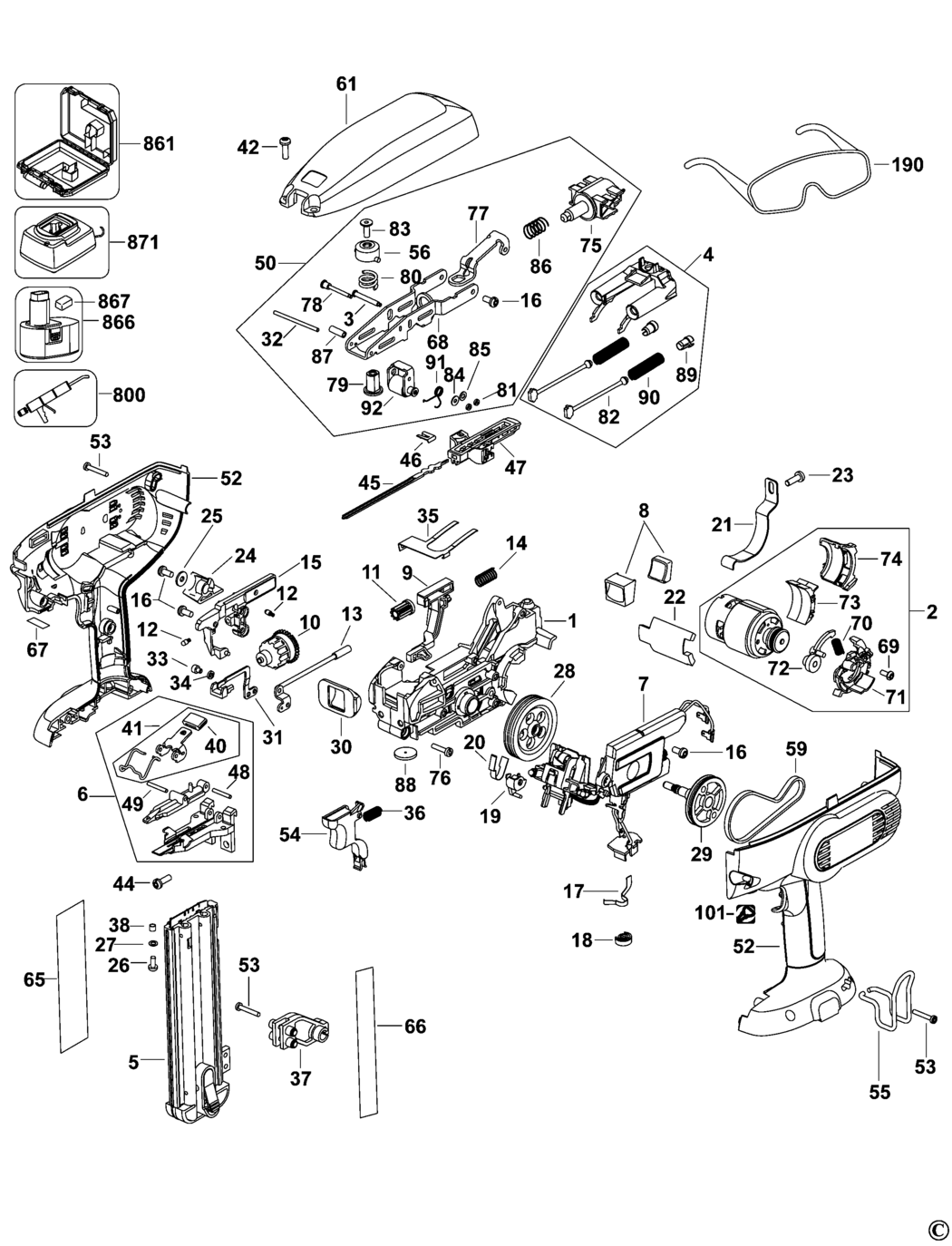

1 - HOUSING SA
BDE-631990-00.A2
631990-00
|
£58.69
|
£70.43
|
|
|
2 - MOTOR & PINION
BDE-647712-01
647712-01
|
-
|
|
|
|
3 - PIN
BDE-633207-00.A6
633207-00
|
£1.66
|
£1.99
|
|
|
4 - RETURN DEVICE ASSEMBLY
BDE-648024-00SV.A2
648024-00SV
|
£34.00
|
£40.80
|
|
|
5 - MAGAZINE SA
BDE-646665-00.A0
646665-00
|
£76.16
|
£91.39
|
|
|
6 - NOSE SA
BDE-646666-00.A2
646666-00
|
£71.44
|
£85.73
|
|
|
7 - CONTROL MODULE SA CUT LOOP ON 12 VOLT
BDE-N010050.A2
N010050
|
£126.63
|
£151.96
|
|
|
8 - DAMPER
BDE-613869-00.A3
613869-00
|
£6.06
|
£7.27
|
|
|
9 - CONTACT
BDE-637597-00.A0
637597-00
|
£4.58
|
£5.49
|
|
|
10 - KNOB
BDE-637596-00.A2
637596-00
|
£2.21
|
£2.65
|
|
|
11 - PINION
BDE-637599-00.A2
637599-00
|
£2.71
|
£3.25
|
|
|
12 - DETENT
BDE-326467-00.A354
326467-00
|
£1.66
|
£1.99
|
|
|
13 - CONTACT
BDE-639284-00.A0
639284-00
|
£14.57
|
£17.48
|
|
|
14 - SPRING
BDE-644507-00.A0
644507-00
|
-
|
|
|
|
15 - COVER
BDE-637601-00.A0
637601-00
|
£4.58
|
£5.49
|
|
|
16 - SCREW
BDE-613619-03.A0
613619-03
|
£1.66
|
£1.99
|
|
|
17 - LINK
BDE-638317-00.A0
638317-00
|
£1.66
|
£1.99
|
|
|
18 - HUB
BDE-639070-00.A0
639070-00
|
£1.66
|
£1.99
|
|
|
19 - LINK
BDE-639246-00.A0
639246-00
|
£1.66
|
£1.99
|
|
|
20 - SPRING
BDE-639247-00.A2
639247-00
|
£1.66
|
£1.99
|
|
|
21 - STRAP
BDE-638678-00.A0
638678-00
|
£1.66
|
£1.99
|
|
|
22 - PAD
BDE-640432-00.A0
640432-00
|
£1.66
|
£1.99
|
|
|
23 - SCREW
BDE-609932-01.A13
609932-01
|
£1.66
|
£1.99
|
|
|
24 - PADDLE
BDE-641296-00.A0
641296-00
|
£2.71
|
£3.25
|
|
|
25 - WASHER
BDE-651644-00.A2
651644-00
|
£1.66
|
£1.99
|
|
|
26 - SCREW
BDE-330045-69.A0
330045-69
|
£1.66
|
£1.99
|
|
|
27 - WASHER
BDE-398218-00.A4
398218-00
|
£1.66
|
£1.99
|
|
|
28 - FLYWHEEL
BDE-631987-00.A0
631987-00
|
£33.13
|
£39.76
|
|
|
29 - PULLEY SA
BDE-631995-00.A0
631995-00
|
£12.17
|
£14.60
|
|
|
30 - BUMPER
BDE-638469-00.A4
638469-00
|
£9.69
|
£11.63
|
|
|
31 - CONTACT
BDE-646254-00.A0
646254-00
|
£3.80
|
£4.56
|
|
|
32 - ROLLER SPINDLE
BDE-330041-61.A0
330041-61
|
£1.66
|
£1.99
|
|
|
33 - SCREW
BDE-330045-68.A2
330045-68
|
£1.66
|
£1.99
|
|
|
34 - WASHER
BDE-98197-03.A9
98197-03
|
£1.66
|
£1.99
|
|
|
35 - PLATE
BDE-650225-00.A0
650225-00
|
£1.66
|
£1.99
|
|
|
36 - SPRING
BDE-653099-00.A12
653099-00
|
-
|
|
|
|
37 - CONNECTOR
BDE-639696-00.A2
639696-00
|
£2.71
|
£3.25
|
|
|
38 - BUSHING
BDE-395505-00.A4
395505-00
|
£1.66
|
£1.99
|
|
|
40 - GRIP
BDE-395093-00.A3
395093-00
|
£1.66
|
£1.99
|
|
|
41 - LATCH
BDE-607178-00.A1
607178-00
|
£7.64
|
£9.17
|
|
|
42 - SCREW
BDE-609932-01.A12
609932-01
|
£1.66
|
£1.99
|
|
|
44 - SCREW
BDE-613619-02.A2
613619-02
|
£1.66
|
£1.99
|
|
|
45 - BLADE SA
BDE-635241-00.A2
635241-00
|
-
|
|
|
|
46 - CLIP
BDE-392206-00.A4
392206-00
|
£1.66
|
£1.99
|
|
|
47 - PROFILE
BDE-632232-00.A0
632232-00
|
-
|
|
|
|
48 - ROLL PIN
BDE-330036-24.A2
330036-24
|
£1.66
|
£1.99
|
|
|
49 - ROLL PIN
BDE-330036-22.A4
330036-22
|
£1.66
|
£1.99
|
|
|
50 - SOLENOID ASSEMBLY
BDE-633204-01
633204-01
|
-
|
|
|
|
52 - CLAMSHELL SET
BDE-648060-01
648060-01
|
£33.13
|
£39.76
|
|
|
53 - SCREW
BDE-330019-05.A48
330019-05
|
£1.66
|
£1.99
|
|
|
54 - TRIGGER
BDE-640344-00.A2
640344-00
|
-
|
|
|
|
55 - HOOK
BDE-632382-00.A4
632382-00
|
£7.01
|
£8.41
|
|
|
56 - SPRING
BDE-644209-00.A2
644209-00
|
£7.01
|
£8.41
|
|
|
59 - BELT DRIVE
BDE-650935-00.A2
650935-00
|
-
|
|
|
|
61 - COVER
BDE-639123-00.A0
639123-00
|
£17.03
|
£20.44
|
|
|
65 - RATING PLATE GB
BDE-N050558
N050558
|
£1.66
|
£1.99
|
|
|
66 - LABEL
BDE-623351-00.A0
623351-00
|
£1.66
|
£1.99
|
|
|
67 - LABEL
BDE-632383-00.A0
632383-00
|
£1.66
|
£1.99
|
|
|
68 - CARRIAGE
BDE-633206-00.A0
633206-00
|
£11.87
|
£14.24
|
|
|
69 - SCREW
BDE-330045-05.A195
330045-05
|
£1.66
|
£1.99
|
|
|
70 - SPRING
BDE-639189-00.A2
639189-00
|
£1.66
|
£1.99
|
|
|
71 - TRANSMISSION ASSEMBLY
BDE-639186-00.A0
639186-00
|
£2.26
|
£2.71
|
|
|
72 - IDLER ASSEMBLY
BDE-647713-00.A0
647713-00
|
£7.85
|
£9.42
|
|
|
73 - GUIDE
BDE-640444-00.A2
640444-00
|
£1.66
|
£1.99
|
|
|
74 - GUIDE
BDE-640455-00.A0
640455-00
|
£1.66
|
£1.99
|
|
|
75 - SOLENOID ASSEMBLY
BDE-633021-01
633021-01
|
£18.91
|
£22.69
|
|
|
76 - SCREW
BDE-613619-00.A31
613619-00
|
£1.66
|
£1.99
|
|
|
77 - SPRING
BDE-644206-00.A0
644206-00
|
£2.21
|
£2.65
|
|
|
78 - PIN
BDE-638872-00.A0
638872-00
|
£1.66
|
£1.99
|
|
|
79 - POST
BDE-644205-00.A2
644205-00
|
£2.71
|
£3.25
|
|
|
80 - SPRING
BDE-644213-00.A2
644213-00
|
£1.66
|
£1.99
|
|
|
81 - GROMMET
BDE-391814-00.A31
391814-00
|
£1.66
|
£1.99
|
|
|
82 - BAND
BDE-392243-00.A10
392243-00
|
-
|
|
|
|
83 - SCREW
BDE-N001440.A2
N001440
|
£2.71
|
£3.25
|
|
|
84 - WASHER
BDE-330016-26.A3
330016-26
|
£1.66
|
£1.99
|
|
|
85 - WASHER
BDE-330016-25.A10
330016-25
|
£1.66
|
£1.99
|
|
|
86 - SPRING
BDE-644210-00.A0
644210-00
|
£1.66
|
£1.99
|
|
|
87 - SLEEVE
BDE-645151-00.A2
645151-00
|
£1.66
|
£1.99
|
|
|
88 - DISC
BDE-624913-00.A0
624913-00
|
-
|
|
|
|
89 - STOP
BDE-392242-00.A2
392242-00
|
£1.66
|
£1.99
|
|
|
90 - SPRING
BDE-392236-02.A2
392236-02
|
£1.66
|
£1.99
|
|
|
91 - SPRING TORSION
BDE-N009845.A0
N009845
|
£1.66
|
£1.99
|
|
|
92 - CARRIER SA
BDE-647895-00.A2
647895-00
|
£51.90
|
£62.28
|
|
|
101 - LABEL
BDE-N015371.A2
N015371
|
£1.66
|
£1.99
|
|
|
190 - SAFETY GLASSES
BDE-629042-01.A9
629042-01
|
£10.57
|
£12.68
|
|
|
800 - GREASE
BDE-5140024-25.A12
5140024-25
|
£63.87
|
£76.64
|
|
|
861 - KITBOX
BDE-650354-00.A0
650354-00
|
£57.22
|
£68.66
|
|
|
866 - NO LONGER AVAILABLE DC602KA GB
BDE-000000-00.A95564
000000-00
|
-
|
|
|
|
867 - SAFETY CAP
BDE-608522-00.A15
608522-00
|
-
|
|
|
|
871 - CHARGER 7.2V - 18V GB
BDE-572576-00.A156
572576-00
|
£110.62
|
£132.74
|
|
