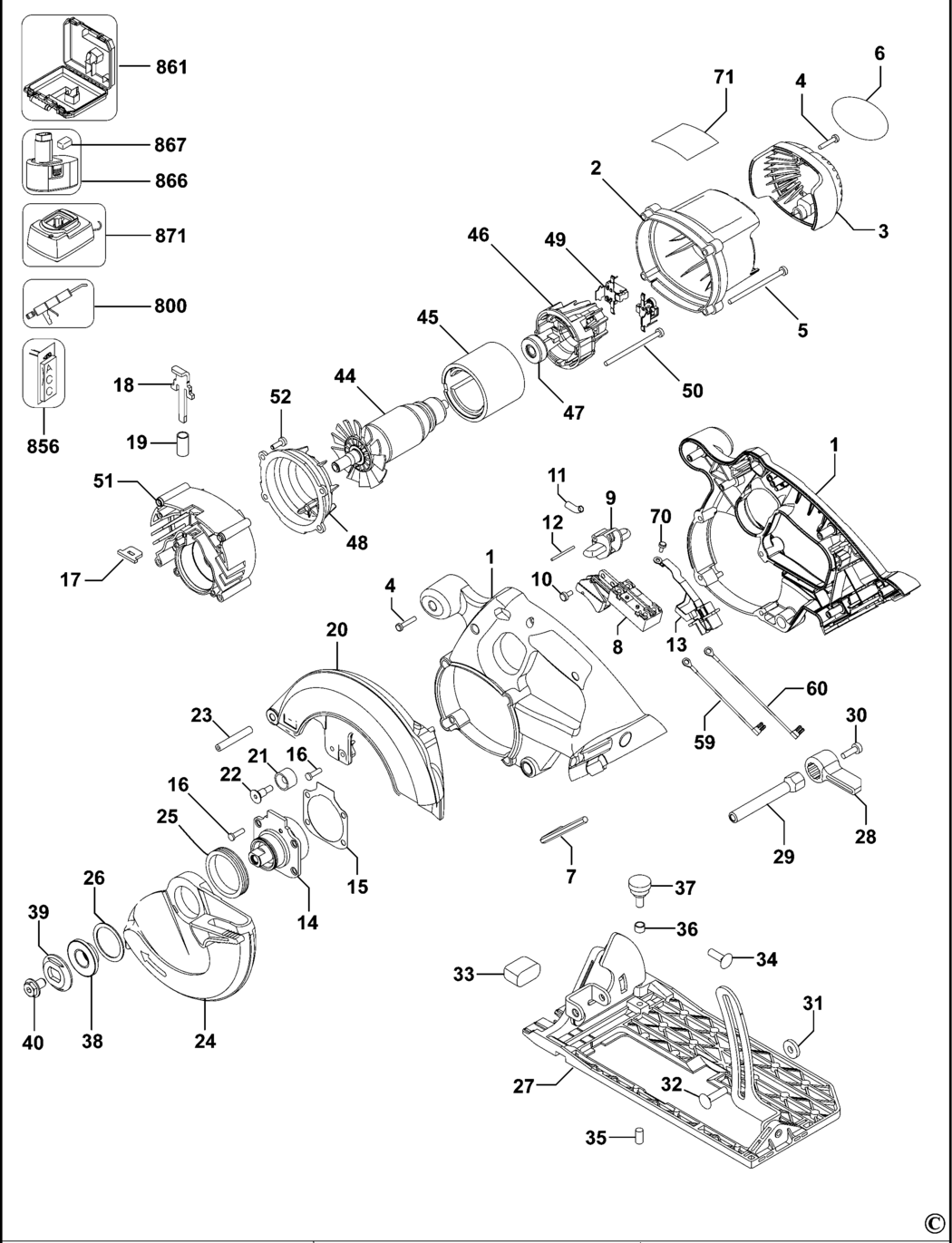

2 - MOTOR COVER
BDE-605062-00.A1
605062-00
|
£7.01
|
£8.41
|
|
|
3 - END CAP
BDE-605063-00.A0
605063-00
|
-
|
|
|
|
4 - SCREW
BDE-90611830.A93
90611830
|
£1.50
|
£1.80
|
|
|
5 - SCREW
BDE-398987-00.A8
398987-00
|
£1.50
|
£1.80
|
|
|
6 - IDENTITY LABEL
BDE-619339-00.A1
619339-00
|
£1.42
|
£1.70
|
|
|
7 - HEX KEY 5 MM
BDE-098000-11.A16
098000-11
|
£1.50
|
£1.80
|
|
|
8 - SWITCH
BDE-613275-00.A1
613275-00
|
-
|
|
|
|
9 - BUTTON LOCK-OFF
BDE-605107-00.A0
605107-00
|
£3.80
|
£4.56
|
|
|
10 - SCREW
BDE-330019-40.A14
330019-40
|
£1.50
|
£1.80
|
|
|
11 - SPRING
BDE-389120-00.A8
389120-00
|
£2.26
|
£2.71
|
|
|
12 - PIN
BDE-388531-00.A8
388531-00
|
£1.50
|
£1.80
|
|
|
13 - PCB SA
BDE-620354-00.A1
620354-00
|
£12.17
|
£14.60
|
|
|
14 - SPINDLE SA
BDE-659417-00SV.A101
659417-00SV
|
£24.39
|
£29.27
|
|
|
15 - GASKET
BDE-605081-01.A0
605081-01
|
£1.50
|
£1.80
|
|
|
16 - SCREW
BDE-613783-00.A11
613783-00
|
£1.50
|
£1.80
|
|
|
17 - WIPER
BDE-605094-00.A0
605094-00
|
£1.50
|
£1.80
|
|
|
18 - SPINDLE LOCK
BDE-629444-00.A4
629444-00
|
£1.50
|
£1.80
|
|
|
19 - SPRING
BDE-58698-00.A32
58698-00
|
£1.50
|
£1.80
|
|
|
20 - GUARD UPPER
BDE-605070-02
605070-02
|
-
|
|
|
|
21 - BUMPER
BDE-N248899.A10
N248899
|
£1.51
|
£1.81
|
|
|
22 - SCREW
BDE-610134-00.A5
610134-00
|
£1.50
|
£1.80
|
|
|
23 - SPIROL PIN
BDE-614048-00.A8
614048-00
|
£2.49
|
£2.99
|
|
|
24 - GUARD LOWER
BDE-611925-00.A0
611925-00
|
£17.48
|
£20.97
|
|
|
25 - SPRING
BDE-N035365.A5
N035365
|
£1.50
|
£1.80
|
|
|
26 - RETAINER
BDE-150383-00.A14
150383-00
|
£1.50
|
£1.80
|
|
|
27 - SHOE SA
BDE-605076-00SV
605076-00SV
|
-
|
|
|
|
28 - LEVER
BDE-605105-00.A13
605105-00
|
£1.82
|
£2.19
|
|
|
29 - SHAFT
BDE-618901-00.A0
618901-00
|
£5.88
|
£7.06
|
|
|
30 - SCREW
BDE-330045-14.A128
330045-14
|
£1.50
|
£1.80
|
|
|
31 - WASHER
BDE-142013-00.A3
142013-00
|
£1.50
|
£1.80
|
|
|
32 - CARRIAGE BOLT
BDE-098128-85.A5
098128-85
|
£1.50
|
£1.80
|
|
|
33 - KNOB
BDE-395889-00.A20
395889-00
|
£3.80
|
£4.56
|
|
|
34 - CARRIAGE BOLT
BDE-N022876.A6
N022876
|
£1.50
|
£1.80
|
|
|
35 - SCREW
BDE-381069-00.A6
381069-00
|
£1.50
|
£1.80
|
|
|
36 - SPRING
BDE-058287-00.A13
058287-00
|
£1.50
|
£1.80
|
|
|
37 - KNOB
BDE-396992-02.A4
396992-02
|
£1.66
|
£1.99
|
|
|
38 - WASHER INNER CLAMP
BDE-650109-00.A1
650109-00
|
-
|
|
|
|
39 - WASHER OUTER CLAMP
BDE-N621119.A10
N621119
|
£3.30
|
£3.96
|
|
|
40 - BLADE BOLT
BDE-648697-00.A3
648697-00
|
£1.88
|
£2.25
|
|
|
44 - ARMATURE SA
BDE-605065-00
605065-00
|
-
|
|
|
|
45 - MAGNET
BDE-611202-00SV.A25
611202-00SV
|
-
|
|
|
|
46 - SUPPORT BEARING
BDE-N171820.A32
N171820
|
-
|
|
|
|
47 - BEARING & SEAL
BDE-391032-00.A17
391032-00
|
£3.80
|
£4.56
|
|
|
48 - BAFFLE
BDE-610124-00.A0
610124-00
|
£1.42
|
£1.70
|
|
|
49 - BRUSHBOX SA
BDE-610126-00.A24
610126-00
|
£7.85
|
£9.42
|
|
|
50 - SCREW
BDE-330019-25.A2
330019-25
|
£1.50
|
£1.80
|
|
|
51 - GEARCASE SA
BDE-605082-00
605082-00
|
-
|
|
|
|
52 - SCREW
BDE-330045-45.A74
330045-45
|
£1.50
|
£1.80
|
|
|
59 - LEAD PURPLE
BDE-N179181.A1
N179181
|
£9.17
|
£11.00
|
|
|
59 - LEAD BLACK
BDE-605108-00.A2
605108-00
|
£3.80
|
£4.56
|
|
|
60 - LEAD PURPLE
BDE-605109-00.A0
605109-00
|
£3.70
|
£4.44
|
|
|
60 - LEAD BROWN
BDE-N178281.A1
N178281
|
£9.17
|
£11.00
|
|
|
70 - SCREW
BDE-384127-01.A7
384127-01
|
£1.50
|
£1.80
|
|
|
800 - GREASE 90 GMS
BDE-870889-02.A581
870889-02
|
£7.85
|
£9.42
|
|
|
861 - KITBOX
BDE-N153976.A8
N153976
|
£78.12
|
£93.74
|
|
|
867 - SAFETY CAP
BDE-608522-00.A33
608522-00
|
-
|
|
|
