Dewalt DC352K Type 1 Cordless Plunge Saw Spare Parts

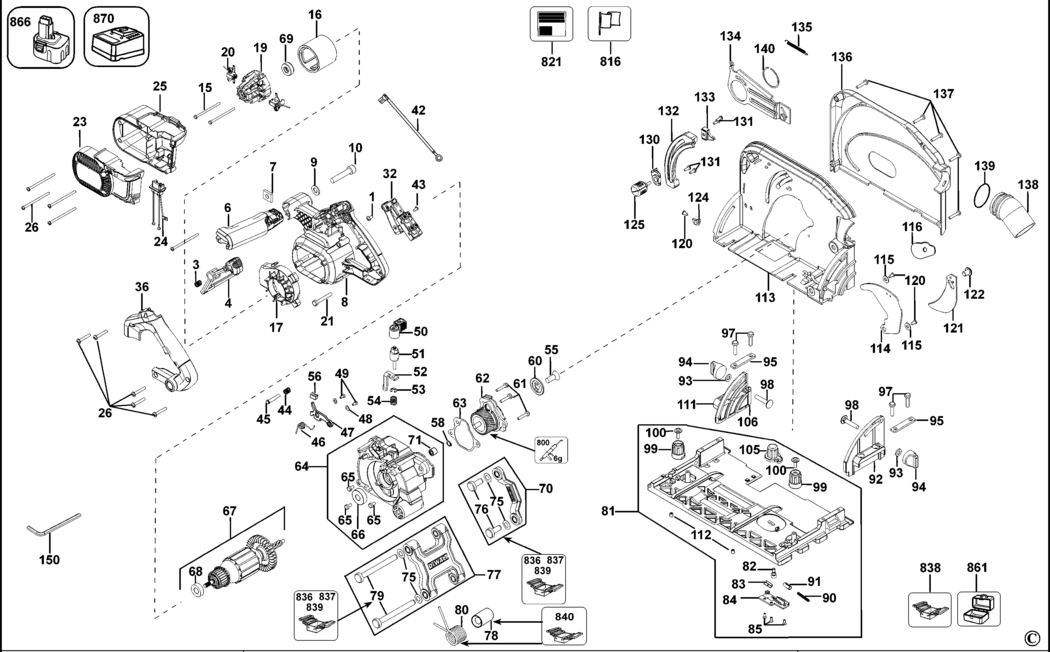

An exploded drawing and spare parts listing for the Dewalt DC352K Type 1 Cordless Plunge Saw

	Ex VAT	Inc VAT
1 - SCREW BDE-330065-04.A49 330065-04	£1.50	£1.80
3 - SPRING COMPRESSION BDE-1007210-00.A5 1007210-00	£1.50	£1.80
4 - LEVER LOCK BDE-1009031-00.A0 1009031-00	£14.57	£17.48
6 - HANDLE BDE-492062-00.A7 492062-00	£9.41	£11.29
7 - PLATE BDE-491035-00.A7 491035-00	£1.50	£1.80
8 - NO LONGER AVAILABLE BDE-000000-00.A128679 000000-00	-
9 - WASHER BDE-1005703-00.A0 1005703-00	£1.50	£1.80
10 - SCREW BDE-949886-38.A2 949886-38	£1.50	£1.80
15 - SCREW BDE-330019-25.A3 330019-25	£1.50	£1.80
16 - NO LONGER AVAILABLE BDE-000000-00.A128680 000000-00	-
17 - NO LONGER AVAILABLE BDE-000000-00.A128681 000000-00	-
19 - SUPPORT BEARING BDE-N171820.A34 N171820	-
20 - BRUSHBOX SA BDE-610126-00.A26 610126-00	£7.85	£9.42
21 - SCREW BDE-330045-18.A35 330045-18	£1.50	£1.80
23 - NO LONGER AVAILABLE BDE-000000-00.A128682 000000-00	-
24 - NO LONGER AVAILABLE BDE-000000-00.A128683 000000-00	-
25 - NO LONGER AVAILABLE BDE-000000-00.A128684 000000-00	-
26 - SCREW BDE-330065-12.A6 330065-12	£1.50	£1.80
32 - SWITCH BDE-397182-00.A0 397182-00	-
36 - NO LONGER AVAILABLE BDE-000000-00.A128685 000000-00	-
37 - SCREW BDE-330065-09.A1 330065-09	£1.50	£1.80
42 - NO LONGER AVAILABLE BDE-000000-00.A128686 000000-00	-
43 - SCREW BDE-1007314-00.A6 1007314-00	£1.50	£1.80
44 - SPRING COMPRESSION BDE-1005371-00.A0 1005371-00	£1.50	£1.80
45 - LOCK PIN BDE-N019153.A1 N019153	£4.69	£5.63
46 - SPRING TORSION BDE-1006028-00.A2 1006028-00	£1.50	£1.80
47 - PLATE BDE-1006829-00.A1 1006829-00	-
48 - WASHER BDE-330016-01.A41 330016-01	£1.50	£1.80
49 - SCREW TORX BDE-1006719-00.A5 1006719-00	£1.50	£1.80
50 - BUTTON BDE-493499-00.A2 493499-00	£1.50	£1.80
51 - PIN BDE-496980-00.A0 496980-00	£17.48	£20.97
52 - PLATE BDE-496979-00.A7 496979-00	£1.50	£1.80
53 - CIRCLIP BDE-370170.A21 370170	£1.50	£1.80
54 - SPRING COMPRESSION BDE-1005444-00.A2 1005444-00	£1.50	£1.80
55 - SCREW BDE-490549-00.A0 490549-00	£1.66	£1.99
56 - LOCK BUTTON BDE-1007193-00.A2 1007193-00	£1.50	£1.80
58 - CIRCLIP BDE-491838-00.A2 491838-00	£1.50	£1.80
60 - OUTER FLANGE BDE-490551-00.A7 490551-00	£7.18	£8.62
61 - SCREW BDE-330045-07.A22 330045-07	£1.50	£1.80
62 - GEAR & SPINDLE SA BDE-1007370-00.A7 1007370-00	£51.90	£62.28
63 - GASKET BDE-491225-00.A2 491225-00	£1.50	£1.80
64 - NO LONGER AVAILABLE BDE-000000-00.A128687 000000-00	-
65 - SCREW BDE-330045-44.A3 330045-44	£1.50	£1.80
66 - BEARING BALL BDE-330003-96.A18 330003-96	£4.69	£5.63
67 - NO LONGER AVAILABLE BDE-000000-00.A128688 000000-00	-
68 - BEARING BDE-330003-60.A183 330003-60	£2.78	£3.34
70 - LINK BDE-1007372-00.A5 1007372-00	£18.91	£22.69
71 - NEEDLE ROLLER BDE-496697-00.A0 496697-00	£2.78	£3.34
75 - WASHER SPECIAL BDE-493529-00.A7 493529-00	£1.50	£1.80
76 - PIN BDE-1007373-00.A0 1007373-00	£7.85	£9.42
77 - LINKAGE SA BDE-1007374-00.A5 1007374-00	£38.80	£46.56
78 - SPACER BDE-1007325-00.A0 1007325-00	£3.80	£4.56
79 - PIN BDE-1007375-00.A0 1007375-00	£14.57	£17.48
80 - SPRING TORSION BDE-491573-00.A0 491573-00	£1.82	£2.19
81 - NO LONGER AVAILABLE BDE-000000-00.A128689 000000-00	-
82 - PIN BDE-490687-00.A2 490687-00	£1.50	£1.80
83 - SPRING CLIP BDE-1005549-00.A2 1005549-00	£1.82	£2.19
84 - COVER BDE-490702-00.A5 490702-00	£1.50	£1.80
85 - SCREW BDE-492088-00.A5 492088-00	£1.50	£1.80
90 - SPRING COMPRESSION BDE-491446-00.A2 491446-00	£1.50	£1.80
91 - SPRING GUIDE BDE-1005053-00.A2 1005053-00	£1.50	£1.80
92 - NO LONGER AVAILABLE BDE-000000-00.A128690 000000-00	-
93 - WASHER M6 BDE-1005704-00.A7 1005704-00	£1.50	£1.80
94 - KNOB BDE-395889-00.A19 395889-00	£3.80	£4.56
95 - RETAINING PLATE BDE-490877-00.A4 490877-00	£1.50	£1.80
97 - SCREW BDE-330045-15.A43 330045-15	£1.50	£1.80
98 - CARRIAGE BOLT BDE-098128-40.A2 098128-40	£1.50	£1.80
99 - KNOB BDE-496804-00.A7 496804-00	£1.50	£1.80
100 - SCREW BDE-496806-00.A0 496806-00	£1.50	£1.80
105 - BUTTON SA BDE-1005943-00.A4 1005943-00	£2.78	£3.34
111 - HINGE BDE-1007976-00.A4 1007976-00	£3.80	£4.56
112 - SCREW.SPECIAL BDE-496698-00.A7 496698-00	£1.50	£1.80
113 - NO LONGER AVAILABLE BDE-000000-00.A128691 000000-00	-
114 - COVERPLATE BDE-491542-00.A7 491542-00	£1.50	£1.80
115 - WASHER M5 BDE-1005219-00.A8 1005219-00	£1.50	£1.80
116 - RETAINER BDE-1007560-00.A2 1007560-00	£1.50	£1.80
120 - SCREW BDE-389235-04.A2 389235-04	£1.50	£1.80
121 - RIVING KNIFE BDE-N018408.A6 N018408	£3.30	£3.96
122 - SCREW BDE-153637-06.A7 153637-06	£1.50	£1.80
124 - POINTER BDE-490829-00.A0 490829-00	£1.50	£1.80
125 - ADJUSTER DEPTH BDE-491151-00.A2 491151-00	£5.88	£7.06
130 - POINTER BDE-491170-00.A4 491170-00	£1.50	£1.80
131 - SCREW BDE-496621-00.A2 496621-00	£1.50	£1.80
132 - SCALE BDE-491149-00.A2 491149-00	£2.78	£3.34
133 - DEPTH STOP BDE-1008510-00.A0 1008510-00	£7.18	£8.62
134 - CARRIER BDE-N018403.A0 N018403	£3.80	£4.56
135 - SPRING BDE-490955-00.A2 490955-00	£1.50	£1.80
136 - GUARD COVER BDE-1006706-00.A2 1006706-00	£44.00	£52.80
137 - SCREW BDE-330045-07.A23 330045-07	£1.50	£1.80
138 - DUST PORT BDE-N025979.A0 N025979	£5.88	£7.06
139 - O RING BDE-323711-58.A1 323711-58	£1.50	£1.80
140 - CIRCLIP BDE-629745-00.A15 629745-00	£1.50	£1.80
150 - HEX KEY BDE-322929.A15 322929	-
800 - GREASE BDE-870889-03.A38 870889-03	£7.85	£9.42
816 - NO LONGER AVAILABLE BDE-000000-00.A128692 000000-00	-
821 - NO LONGER AVAILABLE BDE-000000-00.A128693 000000-00	-
836 - S.T.INSERTION TOOL BDE-559691-99.A2 559691-99	£24.39	£29.27
837 - S.T.SUPPORT JIG BDE-559695-99.A7 559695-99	£19.90	£23.88
838 - SERVICE TOOLING KIT BDE-559698-99.A0 559698-99	£804.38	£965.26
839 - S.T.ASSEMBLY JIG BDE-559696-99.A0 559696-99	£5.88	£7.06
840 - S.T.ASSEMBLY JIG BDE-596002-99.A2 596002-99	£7.18	£8.62
861 - KITBOX BDE-N089663.A5 N089663	£93.62	£112.35
866 - BATTERY 18V - 2.6AH DC352KB GB BDE-1006628-00.A0 1006628-00	£108.20	£129.84
870 - CHARGER 7.2V - 18V DC352KB GB BDE-572576-00.A111 572576-00	£110.62	£132.74
