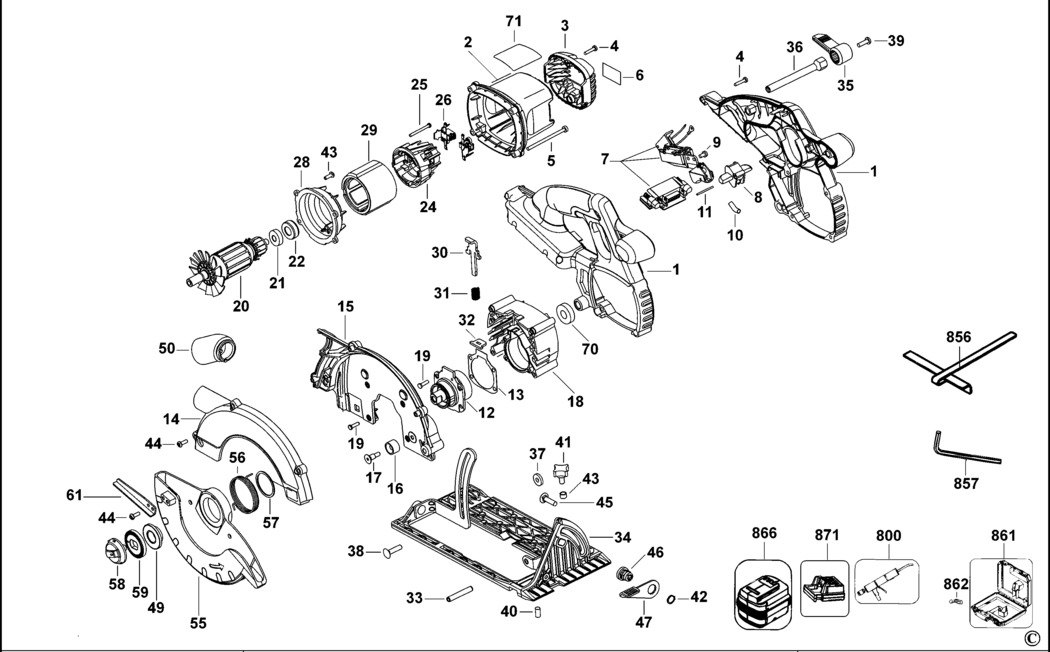

1 - CLAMSHELL SET
BDE-629578-00.A2
629578-00
|
£45.14
|
£54.17
|
|
|
2 - HOUSING MOTOR
BDE-629546-00.A1
629546-00
|
£9.41
|
£11.29
|
|
|
3 - END CAP
BDE-629547-00.A5
629547-00
|
-
|
|
|
|
4 - SCREW
BDE-90611830.A43
90611830
|
£1.66
|
£1.99
|
|
|
5 - SCREW
BDE-398987-00.A6
398987-00
|
£1.66
|
£1.99
|
|
|
6 - BRAND LABEL
BDE-629586-00.A1
629586-00
|
£1.66
|
£1.99
|
|
|
7 - SWITCH SA
BDE-648688-00SV.A0
648688-00SV
|
£65.52
|
£78.62
|
|
|
8 - BUTTON LOCK-OFF
BDE-605107-00.A10
605107-00
|
£3.80
|
£4.56
|
|
|
9 - SCREW
BDE-330019-40.A5
330019-40
|
£1.66
|
£1.99
|
|
|
10 - SPRING
BDE-389120-00.A16
389120-00
|
£2.26
|
£2.71
|
|
|
11 - PIN
BDE-388531-00.A12
388531-00
|
£1.66
|
£1.99
|
|
|
12 - SPINDLE & GEAR SA
BDE-N259499
N259499
|
£37.35
|
£44.82
|
|
|
13 - GASKET
BDE-605081-01.A13
605081-01
|
£1.66
|
£1.99
|
|
|
14 - GUARD COVER
BDE-632302-00
632302-00
|
£29.32
|
£35.18
|
|
|
15 - GUARD UPPER
BDE-632301-00
632301-00
|
£34.00
|
£40.80
|
|
|
16 - SERVICE KIT
BDE-645726-00.A0
645726-00
|
£29.32
|
£35.18
|
|
|
17 - SERVICE KIT
BDE-645726-00.A1
645726-00
|
£29.32
|
£35.18
|
|
|
18 - GEARCASE SA
BDE-629593-00SV.A1
629593-00SV
|
£25.70
|
£30.84
|
|
|
19 - SCREW
BDE-613783-00.A0
613783-00
|
£1.66
|
£1.99
|
|
|
20 - ARMATURE
BDE-N475990
N475990
|
£53.92
|
£64.70
|
|
|
21 - BEARING
BDE-330003-60.A36
330003-60
|
£2.78
|
£3.34
|
|
|
22 - BOOT
BDE-631563-00.A12
631563-00
|
£1.66
|
£1.99
|
|
|
24 - SUPPORT BEARING
BDE-N171820.A7
N171820
|
-
|
|
|
|
25 - SCREW
BDE-330019-25.A26
330019-25
|
£1.66
|
£1.99
|
|
|
26 - BRUSHBOX SA
BDE-636233-00.A2
636233-00
|
£17.48
|
£20.97
|
|
|
28 - BAFFLE
BDE-610124-01.A5
610124-01
|
£4.69
|
£5.63
|
|
|
29 - MAGNET
BDE-N271359.A1
N271359
|
£135.36
|
£162.43
|
|
|
30 - SPINDLE LOCK
BDE-629444-00.A15
629444-00
|
£1.66
|
£1.99
|
|
|
31 - SPRING
BDE-58698-00.A4
58698-00
|
£1.66
|
£1.99
|
|
|
32 - WIPER
BDE-605094-00.A11
605094-00
|
£1.66
|
£1.99
|
|
|
33 - SPIROL PIN
BDE-614048-00.A13
614048-00
|
£2.49
|
£2.99
|
|
|
34 - SHOE SA
BDE-632414-00
632414-00
|
£72.28
|
£86.73
|
|
|
35 - LEVER
BDE-605105-00.A4
605105-00
|
£1.82
|
£2.19
|
|
|
36 - SHAFT
BDE-629663-00.A2
629663-00
|
£5.88
|
£7.06
|
|
|
37 - WASHER
BDE-142013-00.A5
142013-00
|
£1.66
|
£1.99
|
|
|
38 - CARRIAGE BOLT
BDE-098128-85.A4
098128-85
|
£1.66
|
£1.99
|
|
|
39 - SCREW
BDE-330045-14.A19
330045-14
|
£1.66
|
£1.99
|
|
|
40 - SCREW
BDE-381069-00.A1
381069-00
|
£1.66
|
£1.99
|
|
|
41 - KNOB
BDE-396992-02.A7
396992-02
|
£1.66
|
£1.99
|
|
|
42 - RING
BDE-152211-00.A1
152211-00
|
£1.66
|
£1.99
|
|
|
43 - SPRING
BDE-058287-00.A18
058287-00
|
£1.66
|
£1.99
|
|
|
44 - SCREW
BDE-330045-45.A36
330045-45
|
£1.66
|
£1.99
|
|
|
45 - CARRIAGE BOLT
BDE-632409-00
632409-00
|
-
|
|
|
|
46 - NUT
BDE-632410-00
632410-00
|
-
|
|
|
|
47 - LEVER LOCK
BDE-633235-00
633235-00
|
£1.66
|
£1.99
|
|
|
49 - WASHER INNER CLAMP GB
BDE-610046-00.A8
610046-00
|
£5.88
|
£7.06
|
|
|
50 - CHUTE
BDE-391229-00.A4
391229-00
|
£7.64
|
£9.17
|
|
|
55 - GUARD LOWER
BDE-632512-00
632512-00
|
£40.21
|
£48.25
|
|
|
56 - SPRING TORSION
BDE-632413-00
632413-00
|
£1.66
|
£1.99
|
|
|
57 - RETAINER
BDE-388496-01.A1
388496-01
|
£1.66
|
£1.99
|
|
|
58 - BLADE CLAMP
BDE-N376797
N376797
|
£51.90
|
£62.28
|
|
|
59 - WASHER CLAMP
BDE-637209-00
637209-00
|
£37.35
|
£44.82
|
|
|
61 - LEVER
BDE-610088-00.A1
610088-00
|
£1.66
|
£1.99
|
|
|
70 - BEARING
BDE-330003-64.A8
330003-64
|
£4.69
|
£5.63
|
|
|
71 - NAMEPLATE
BDE-640675-00
640675-00
|
£1.66
|
£1.99
|
|
|
800 - GREASE 90 GMS
BDE-870889-02.A265
870889-02
|
£7.85
|
£9.42
|
|
|
856 - GUIDE FENCE GB
BDE-381091-01.A8
381091-01
|
£3.80
|
£4.56
|
|
|
857 - HEX KEY 5 MM
BDE-098000-11.A26
098000-11
|
£1.66
|
£1.99
|
|
|
861 - KITBOX
BDE-633095-00.A0
633095-00
|
£74.15
|
£88.98
|
|
|
862 - SPRING CLIP
BDE-605265-00.A3
605265-00
|
£12.17
|
£14.60
|
|
|
866 - BATTERY 36V - 4.0AH - 144WH DC300KL GB
BDE-N394595.A17
N394595
|
£209.59
|
£251.51
|
|
|
866 - BATTERY 36V - 4.0AH - 144WH DC300M2 GB
BDE-N394595.A18
N394595
|
£209.59
|
£251.51
|
|
|
871 - CHARGER GB GB
BDE-1006633-00.A2
1006633-00
|
£131.95
|
£158.34
|
|
