Dewalt D28493 Type 5 Angle Grinder Spare Parts

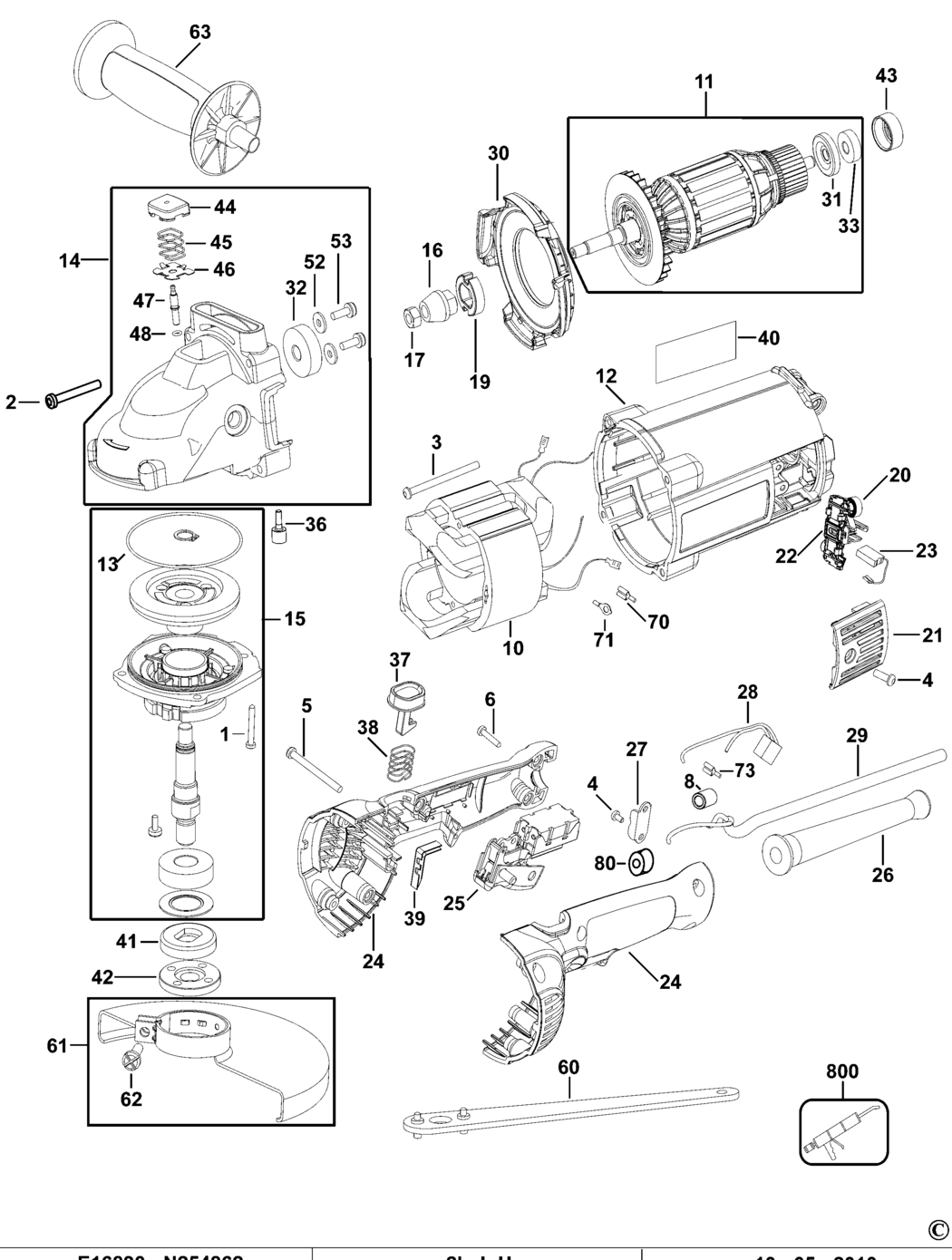

An exploded drawing and spare parts listing for the Dewalt D28493 Type 5 Angle Grinder

	Ex VAT	Inc VAT
1 - SCREW BDE-330045-14.A55 330045-14	£1.66	£1.99
2 - SCREW BDE-330019-26.A51 330019-26	£1.66	£1.99
3 - SCREW BDE-330019-19.A59 330019-19	£1.66	£1.99
4 - SCREW.TEMP BDE-330019-11.A50 330019-11	£1.66	£1.99
4 - SCREW.TEMP BDE-330019-11.A51 330019-11	£1.66	£1.99
5 - SCREW BDE-330019-18.A26 330019-18	£1.66	£1.99
5 - SCREW BDE-330019-50.A94 330019-50	£1.66	£1.99
6 - SCREW BDE-330019-32.A166 330019-32	£1.66	£1.99
8 - SUPPRESSOR BDE-647865-00.A3 647865-00	£1.66	£1.99
8 - SUPPRESSOR BDE-N423473.A4 N423473	£2.78	£3.34
10 - FIELD 115V LX BDE-617004-04.A8 617004-04	£87.82	£105.39
11 - ARMATURE SA LX BDE-638001-01.A5 638001-01	£107.82	£129.39
12 - FIELD CASE BDE-393239-01.A53 393239-01	£14.57	£17.48
13 - O RING BDE-397031-00.A19 397031-00	£1.66	£1.99
14 - GEARCASE SA BDE-N074214.A6 N074214	£44.14	£52.97
15 - GEARCASE COVER SA BDE-N261160.A0 N261160	£44.00	£52.80
16 - PINION BDE-N286560.A1 N286560	£9.41	£11.29
17 - NUT BDE-330015-03.A14 330015-03	£1.66	£1.99
19 - COLLAR BDE-N014393.A1 N014393	-
19 - COLLAR BDE-632702-00.A23 632702-00	£2.78	£3.34
20 - BRUSH SPRING BDE-609987-00.A12 609987-00	£1.66	£1.99
22 - BRUSH HOLDER SA LX BDE-629976-00.A8 629976-00	£5.88	£7.06
23 - BRUSH 120V LX BDE-N025285.A3 N025285	£5.88	£7.06
23 - BRUSH KIT 230V BDE-N495294.A1 N495294	-
24 - HANDLE & COVER LX BDE-636499-01.A4 636499-01	£24.39	£29.27
24 - HANDLE & COVER BDE-636499-00.A17 636499-00	£24.39	£29.27
25 - SWITCH SA BDE-N015071.A0 N015071	£14.57	£17.48
25 - SWITCH SA LX BDE-N035342.A2 N035342	£12.17	£14.60
26 - CORD PROTECTOR BDE-N219433.A8 N219433	£1.66	£1.99
26 - CORD PROTECTOR LX BDE-330005-11.A5 330005-11	£2.26	£2.71
27 - CORD CLAMP BDE-604119-00.A24 604119-00	£1.66	£1.99
28 - CAPACITOR BDE-632218-00.A14 632218-00	£4.69	£5.63
29 - CORDSET LX BDE-562226-68.A2 562226-68	£34.00	£40.80
30 - BAFFLE FAN BDE-631350-00.A30 631350-00	£2.26	£2.71
31 - SHIELD BDE-393238-00.A90 393238-00	£1.66	£1.99
32 - BEARING BDE-N389509.A44 N389509	£3.80	£4.56
33 - BEARING BDE-N110359.A154 N110359	£3.75	£4.50
36 - SCREW BDE-N033051.A51 N033051	£1.66	£1.99
37 - BUTTON LOCK-OFF BDE-636503-00.A30 636503-00	£1.66	£1.99
38 - SPRING BDE-636502-00.A6 636502-00	£1.66	£1.99
39 - COVER BDE-N391190.A8 N391190	£1.66	£1.99
40 - RATING PLATE LX BDE-N254772 N254772	£1.66	£1.99
41 - INNER FLANGE BDE-403150-01.A60 403150-01	£4.69	£5.63
42 - OUTER FLANGE BDE-401678-05.A19 401678-05	£4.69	£5.63
43 - SLEEVE INSULATING BDE-609970-00.A54 609970-00	£1.66	£1.99
44 - CAP BDE-630553-00.A13 630553-00	£1.66	£1.99
45 - SPRING BDE-638328-00.A14 638328-00	£1.66	£1.99
46 - RETAINER BDE-635908-00.A13 635908-00	£1.66	£1.99
47 - PIN BDE-634589-00.A12 634589-00	£1.82	£2.19
48 - O RING BDE-750831.A10 750831	£1.66	£1.99
52 - WASHER BDE-640591-00.A19 640591-00	£1.66	£1.99
53 - SCREW BDE-330045-67.A37 330045-67	£16.03	£19.24
60 - WRENCH PIN BDE-635261-00.A16 635261-00	£4.69	£5.63
61 - GUARD SA BDE-N036843.A7 N036843	£16.03	£19.24
62 - SCREW BDE-330024-23.A18 330024-23	£1.66	£1.99
63 - SIDE HANDLE BDE-651858-01.A23 651858-01	£7.18	£8.62
63 - SIDE HANDLE D28493 BDE-651858-01.A24 651858-01	£7.18	£8.62
70 - TERMINAL BDE-612273-00.A37 612273-00	£1.66	£1.99
71 - TERMINAL BDE-610057-00.A38 610057-00	£1.66	£1.99
73 - TERMINAL BDE-53650-00.A15 53650-00	£1.66	£1.99
800 - GREASE 50 GMS BDE-583534-00.A299 583534-00	£144.10	£172.92
