Dewalt D28493 Type 3 Angle Grinder Spare Parts

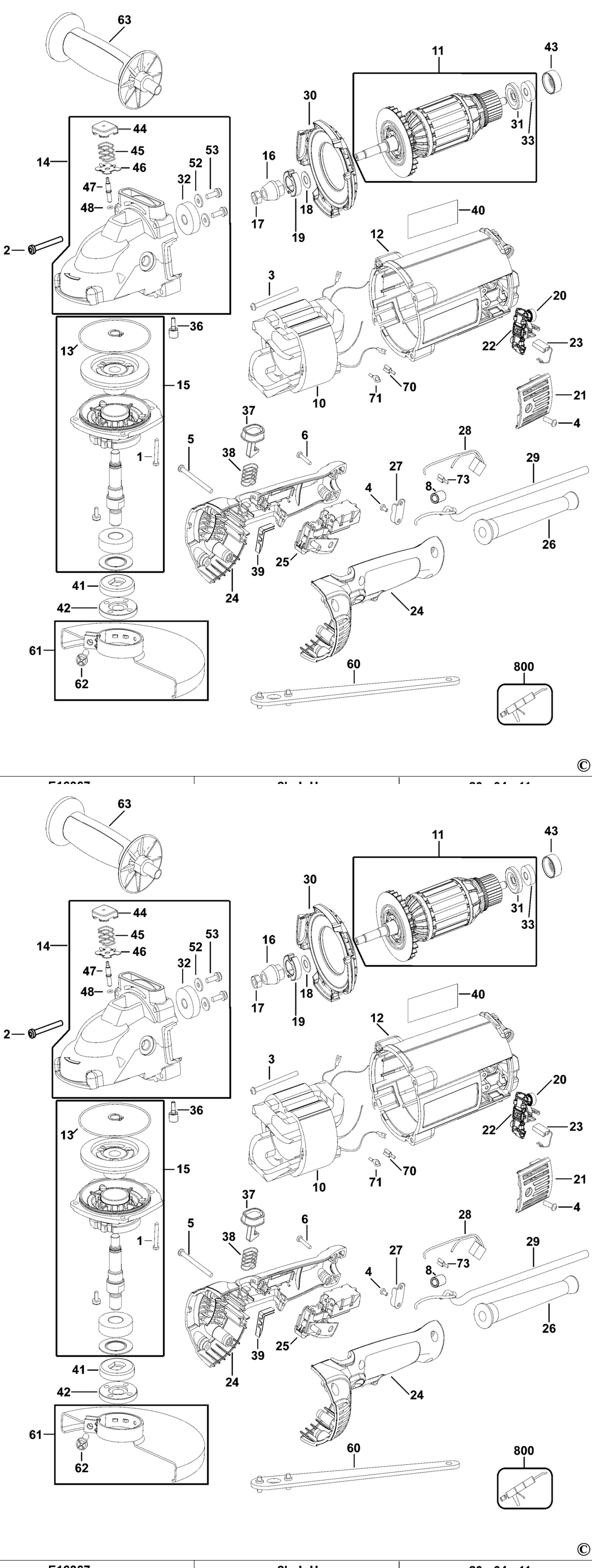

An exploded drawing and spare parts listing for the Dewalt D28493 Type 3 Angle Grinder

	Ex VAT	Inc VAT
1 - SCREW BDE-330045-14.A144 330045-14	£1.66	£1.99
1 - SCREW BDE-330045-14.A145 330045-14	£1.66	£1.99
2 - SCREW BDE-330019-26.A77 330019-26	£1.66	£1.99
2 - SCREW BDE-330019-26.A78 330019-26	£1.66	£1.99
3 - SCREW BDE-330019-19.A114 330019-19	£1.66	£1.99
3 - SCREW BDE-330019-19.A115 330019-19	£1.66	£1.99
4 - SCREW.TEMP BDE-330019-11.A92 330019-11	£1.66	£1.99
4 - SCREW.TEMP BDE-330019-11.A93 330019-11	£1.66	£1.99
5 - SCREW BDE-330019-18.A16 330019-18	£1.66	£1.99
5 - SCREW BDE-330019-50.A30 330019-50	£1.66	£1.99
6 - SCREW BDE-330019-32.A57 330019-32	£1.66	£1.99
6 - SCREW BDE-330019-32.A58 330019-32	£1.66	£1.99
8 - SUPPRESSOR BDE-N423473.A0 N423473	£2.87	£3.44
12 - FIELD CASE BDE-393239-01.A11 393239-01	£15.01	£18.01
12 - FIELD CASE BDE-393239-01.A12 393239-01	£15.01	£18.01
13 - O RING BDE-397031-00.A71 397031-00	£1.66	£1.99
13 - O RING BDE-397031-00.A72 397031-00	£1.66	£1.99
14 - GEARCASE SA BDE-N074214.A19 N074214	£45.47	£54.56
14 - GEARCASE SA BDE-N074214.A20 N074214	£45.47	£54.56
15 - GEARCASE COVER SA BDE-N074215.A1 N074215	£50.60	£60.72
16 - NO LONGER AVAILABLE BDE-000000-00.A96548 000000-00	-
16 - PINION BDE-632710-00.A3 632710-00	£17.03	£20.44
17 - NUT BDE-330015-03.A64 330015-03	£1.66	£1.99
17 - NUT BDE-330015-03.A65 330015-03	£1.66	£1.99
18 - WASHER BDE-639681-00.A12 639681-00	£1.66	£1.99
18 - WASHER BDE-639681-00.A13 639681-00	£1.66	£1.99
19 - COLLAR BDE-632702-00.A3 632702-00	£2.87	£3.44
19 - COLLAR BDE-632702-00.A4 632702-00	£2.87	£3.44
20 - BRUSH SPRING BDE-609987-00.A7 609987-00	£1.66	£1.99
20 - BRUSH SPRING BDE-609987-00.A8 609987-00	£1.66	£1.99
22 - BRUSH HOLDER SA BDE-617001-00.A36 617001-00	£8.08	£9.70
22 - BRUSH HOLDER SA BDE-N303319.A1 N303319	£8.08	£9.70
24 - HANDLE & COVER BDE-636499-00.A0 636499-00	£25.12	£30.15
24 - HANDLE & COVER BDE-636499-00.A1 636499-00	£25.12	£30.15
25 - SWITCH SA BDE-N015071.A9 N015071	£15.01	£18.01
25 - SWITCH SA BDE-N015071.A10 N015071	£15.01	£18.01
26 - CORD PROTECTOR BDE-604118-00.A27 604118-00	£2.87	£3.44
26 - CORD PROTECTOR BDE-604118-00.A28 604118-00	£2.87	£3.44
27 - CORD CLAMP BDE-604119-00.A0 604119-00	£1.66	£1.99
27 - CORD CLAMP BDE-604119-00.A1 604119-00	£1.66	£1.99
28 - CAPACITOR BDE-632218-00.A30 632218-00	£4.83	£5.80
28 - CAPACITOR BDE-632218-00.A31 632218-00	£4.83	£5.80
30 - BAFFLE FAN BDE-631350-00.A5 631350-00	£2.32	£2.78
30 - BAFFLE FAN BDE-631350-00.A6 631350-00	£2.32	£2.78
31 - SHIELD BDE-393238-00.A33 393238-00	£1.66	£1.99
31 - SHIELD BDE-393238-00.A34 393238-00	£1.66	£1.99
32 - BEARING BDE-N389509.A19 N389509	£3.92	£4.70
32 - BEARING BDE-N389509.A20 N389509	£3.92	£4.70
33 - BEARING BDE-N110359.A69 N110359	£3.75	£4.50
33 - BEARING BDE-N110359.A70 N110359	£3.75	£4.50
36 - SCREW BDE-N033051.A16 N033051	£1.66	£1.99
36 - SCREW BDE-N033051.A17 N033051	£1.66	£1.99
37 - BUTTON LOCK-OFF BDE-636503-00.A3 636503-00	£1.66	£1.99
37 - BUTTON LOCK-OFF BDE-636503-00.A4 636503-00	£1.66	£1.99
38 - SPRING BDE-636502-00.A32 636502-00	£1.66	£1.99
38 - SPRING BDE-636502-00.A33 636502-00	£1.66	£1.99
39 - COVER BDE-641929-00.A20 641929-00	£1.66	£1.99
39 - COVER BDE-641929-00.A21 641929-00	£1.66	£1.99
41 - INNER FLANGE BDE-403150-01.A64 403150-01	£4.83	£5.80
41 - INNER FLANGE BDE-403150-01.A65 403150-01	£4.83	£5.80
42 - OUTER FLANGE BDE-401678-05.A83 401678-05	£4.83	£5.80
42 - OUTER FLANGE BDE-401678-05.A84 401678-05	£4.83	£5.80
43 - SLEEVE INSULATING BDE-609970-00.A34 609970-00	£1.66	£1.99
43 - SLEEVE INSULATING BDE-609970-00.A35 609970-00	£1.66	£1.99
44 - CAP BDE-630553-00.A37 630553-00	£1.66	£1.99
44 - CAP BDE-630553-00.A38 630553-00	£1.66	£1.99
45 - SPRING BDE-638328-00.A27 638328-00	£1.66	£1.99
45 - SPRING BDE-638328-00.A28 638328-00	£1.66	£1.99
46 - RETAINER BDE-635908-00.A32 635908-00	£1.66	£1.99
46 - RETAINER BDE-635908-00.A33 635908-00	£1.66	£1.99
47 - PIN BDE-634589-00.A27 634589-00	£1.88	£2.26
47 - PIN BDE-634589-00.A28 634589-00	£1.88	£2.26
48 - O RING BDE-750831.A38 750831	£1.66	£1.99
48 - O RING BDE-750831.A39 750831	£1.66	£1.99
52 - WASHER BDE-640591-00.A14 640591-00	£1.66	£1.99
52 - WASHER BDE-640591-00.A15 640591-00	£1.66	£1.99
53 - SCREW BDE-330045-67.A7 330045-67	£16.52	£19.82
53 - SCREW BDE-330045-67.A8 330045-67	£16.52	£19.82
60 - WRENCH PIN BDE-635261-00.A48 635261-00	£4.83	£5.80
60 - WRENCH PIN BDE-635261-00.A49 635261-00	£4.83	£5.80
61 - GUARD SA BDE-N036843.A3 N036843	£16.52	£19.82
61 - GUARD SA BDE-N036843.A4 N036843	£16.52	£19.82
62 - SCREW BDE-330024-23.A1 330024-23	£1.66	£1.99
62 - SCREW BDE-330024-23.A2 330024-23	£1.66	£1.99
63 - SIDE HANDLE D28493 BDE-651858-01.A36 651858-01	£7.40	£8.88
63 - SIDE HANDLE D28493 BDE-651858-01.A37 651858-01	£7.40	£8.88
70 - TERMINAL BDE-612273-00.A7 612273-00	£1.66	£1.99
70 - TERMINAL BDE-612273-00.A8 612273-00	£1.66	£1.99
71 - TERMINAL BDE-610057-00.A15 610057-00	£1.66	£1.99
71 - TERMINAL BDE-610057-00.A16 610057-00	£1.66	£1.99
73 - TERMINAL BDE-53650-00.A32 53650-00	£1.66	£1.99
73 - TERMINAL BDE-53650-00.A33 53650-00	£1.66	£1.99
800 - GREASE 50 GMS BDE-583534-00.A59 583534-00	£148.42	£178.11
800 - GREASE 50 GMS BDE-583534-00.A60 583534-00	£148.42	£178.11
