Dewalt D28492 Type 5 Angle Grinder Spare Parts

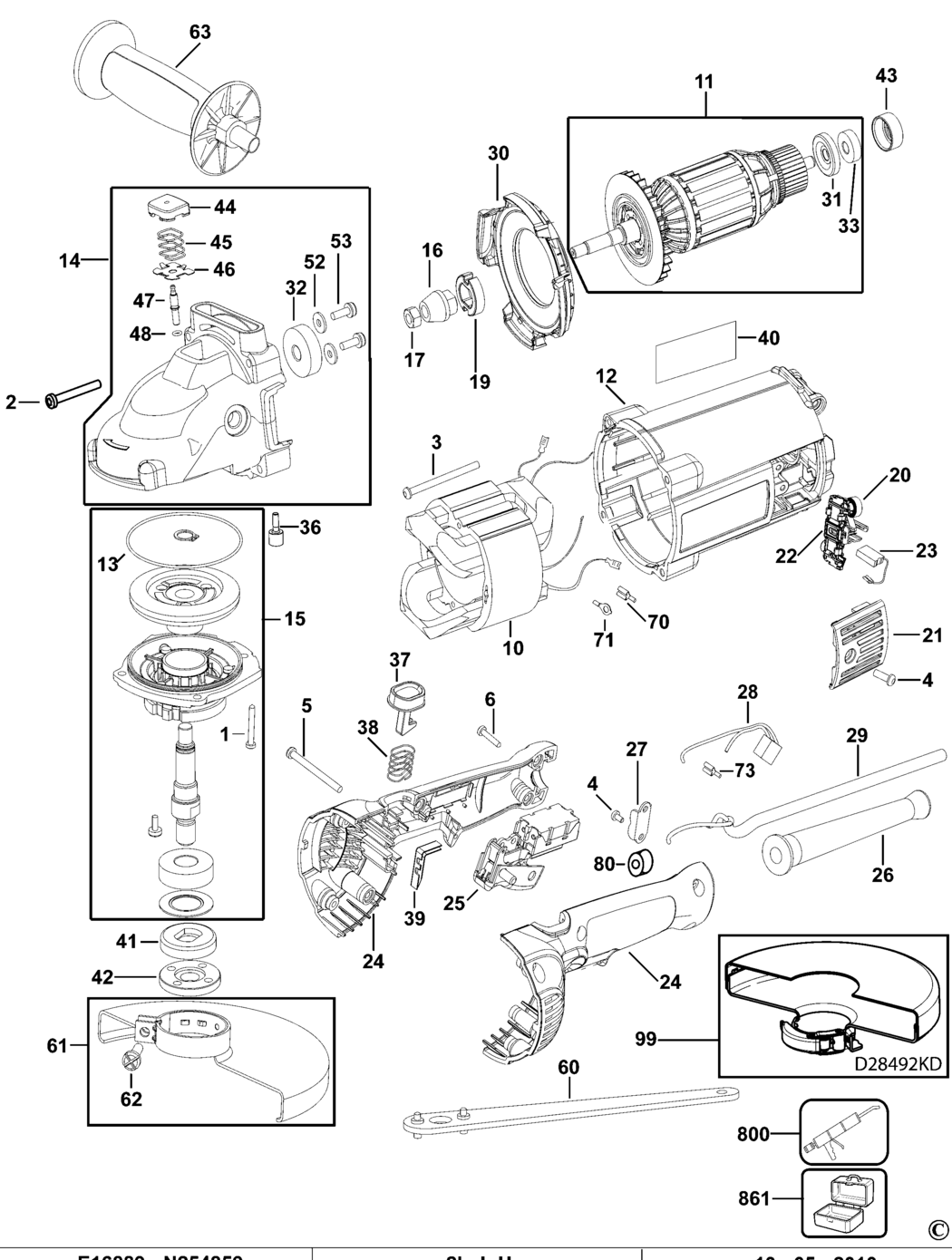

An exploded drawing and spare parts listing for the Dewalt D28492 Type 5 Angle Grinder

	Ex VAT	Inc VAT
1 - SCREW BDE-330045-14.A56 330045-14	£1.66	£1.99
2 - SCREW BDE-330019-26.A52 330019-26	£1.66	£1.99
3 - SCREW BDE-330019-19.A58 330019-19	£1.66	£1.99
4 - SCREW.TEMP BDE-330019-11.A48 330019-11	£1.66	£1.99
4 - SCREW.TEMP BDE-330019-11.A49 330019-11	£1.66	£1.99
5 - SCREW BDE-330019-18.A27 330019-18	£1.66	£1.99
5 - SCREW BDE-330019-50.A95 330019-50	£1.66	£1.99
6 - SCREW BDE-330019-32.A165 330019-32	£1.66	£1.99
8 - SUPPRESSOR BDE-647865-00.A2 647865-00	£1.66	£1.99
10 - FIELD 115V LX BDE-617004-04.A9 617004-04	£87.82	£105.39
10 - FIELD SA GB BDE-N310019.A1 N310019	£38.80	£46.56
11 - ARMATURE SA LX BDE-638001-01.A6 638001-01	£107.82	£129.39
11 - ARMATURE SA GB BDE-N467980.A2 N467980	£96.55	£115.86
12 - FIELD CASE BDE-393239-01.A54 393239-01	£14.57	£17.48
13 - O RING BDE-397031-00.A18 397031-00	£1.66	£1.99
14 - GEARCASE SA BDE-N074214.A7 N074214	£44.14	£52.97
15 - GEARCASE COVER SA BDE-N261159.A1 N261159	£44.00	£52.80
16 - PINION BDE-N289461.A0 N289461	£9.17	£11.00
17 - NUT BDE-330015-03.A15 330015-03	£1.66	£1.99
19 - COLLAR BDE-N014393.A2 N014393	-
19 - COLLAR BDE-632702-00.A22 632702-00	£2.78	£3.34
20 - BRUSH SPRING GB BDE-609987-00.A14 609987-00	£1.66	£1.99
20 - BRUSH SPRING LX BDE-645650-00.A4 645650-00	£1.66	£1.99
20 - BRUSH SPRING BDE-609987-00.A13 609987-00	£1.66	£1.99
21 - BRUSH COVER BDE-394387-01.A38 394387-01	£1.66	£1.99
22 - BRUSH HOLDER SA GB BDE-629976-00.A6 629976-00	£5.88	£7.06
22 - BRUSH HOLDER SA LX BDE-629976-00.A7 629976-00	£5.88	£7.06
23 - BRUSH 120V LX BDE-N025285.A4 N025285	£5.88	£7.06
23 - BRUSH CUT OFF GB BDE-392574-03.A4 392574-03	£5.88	£7.06
23 - BRUSH KIT 230V BDE-N495294.A0 N495294	-
24 - HANDLE & COVER BDE-636499-00.A16 636499-00	£24.39	£29.27
25 - SWITCH SA GB BDE-N035342.A3 N035342	£12.17	£14.60
25 - SWITCH SA BDE-N035342.A4 N035342	£12.17	£14.60
25 - SWITCH SA LX BDE-N035342.A5 N035342	£12.17	£14.60
26 - CORD PROTECTOR LX BDE-330005-11.A4 330005-11	£2.26	£2.71
26 - CORD PROTECTOR GB BDE-N219433.A6 N219433	£1.66	£1.99
26 - CORD PROTECTOR BDE-N219433.A7 N219433	£1.66	£1.99
27 - CORD CLAMP BDE-604119-00.A25 604119-00	£1.66	£1.99
28 - CAPACITOR BDE-632218-00.A15 632218-00	£4.69	£5.63
29 - CORDSET GB BDE-562226-67.A7 562226-67	£23.75	£28.50
29 - CORDSET LX BDE-562226-68.A1 562226-68	£34.00	£40.80
30 - BAFFLE FAN BDE-631350-00.A29 631350-00	£2.26	£2.71
31 - SHIELD BDE-393238-00.A89 393238-00	£1.66	£1.99
32 - BEARING BDE-N389509.A43 N389509	£3.80	£4.56
33 - BEARING BDE-N110359.A155 N110359	£3.75	£4.50
36 - SCREW BDE-N033051.A50 N033051	£1.66	£1.99
37 - BUTTON LOCK-OFF BDE-636503-00.A29 636503-00	£1.66	£1.99
38 - SPRING BDE-636502-00.A7 636502-00	£1.66	£1.99
39 - COVER BDE-N391190.A9 N391190	£1.66	£1.99
40 - RATING PLATE LX BDE-N254764 N254764	£1.66	£1.99
40 - RATING PLATE GB BDE-N254766 N254766	£1.66	£1.99
41 - INNER FLANGE BDE-403150-01.A59 403150-01	£4.69	£5.63
42 - OUTER FLANGE BDE-401678-05.A20 401678-05	£4.69	£5.63
43 - SLEEVE INSULATING BDE-609970-00.A53 609970-00	£1.66	£1.99
44 - CAP BDE-630553-00.A14 630553-00	£1.66	£1.99
45 - SPRING BDE-638328-00.A13 638328-00	£1.66	£1.99
46 - RETAINER BDE-635908-00.A14 635908-00	£1.66	£1.99
47 - PIN BDE-634589-00.A13 634589-00	£1.82	£2.19
48 - O RING BDE-750831.A9 750831	£1.66	£1.99
52 - WASHER BDE-640591-00.A20 640591-00	£1.66	£1.99
53 - SCREW BDE-330045-67.A36 330045-67	£16.03	£19.24
60 - WRENCH PIN BDE-635261-00.A15 635261-00	£4.69	£5.63
61 - GUARD SA BDE-N036839.A3 N036839	£18.91	£22.69
62 - SCREW BDE-330024-23.A17 330024-23	£1.66	£1.99
62 - SCREW BDE-N082712.A0 N082712	£1.66	£1.99
63 - SIDE HANDLE BDE-651858-01.A21 651858-01	£7.18	£8.62
63 - SIDE HANDLE D28492 BDE-651858-01.A22 651858-01	£7.18	£8.62
70 - TERMINAL BDE-612273-00.A38 612273-00	£1.66	£1.99
71 - TERMINAL BDE-610057-00.A37 610057-00	£1.66	£1.99
73 - TERMINAL BDE-53650-00.A16 53650-00	£1.66	£1.99
80 - SUPPRESSOR GB BDE-N423473.A5 N423473	£2.78	£3.34
99 - GUARD SA D28492KD BDE-N038672.A3 N038672	£45.14	£54.17
800 - GREASE 50 GMS BDE-583534-00.A298 583534-00	£144.10	£172.92
861 - KITBOX BDE-644490-00.A5 644490-00	£65.52	£78.62
