Dewalt D28492 Type 3 Angle Grinder Spare Parts

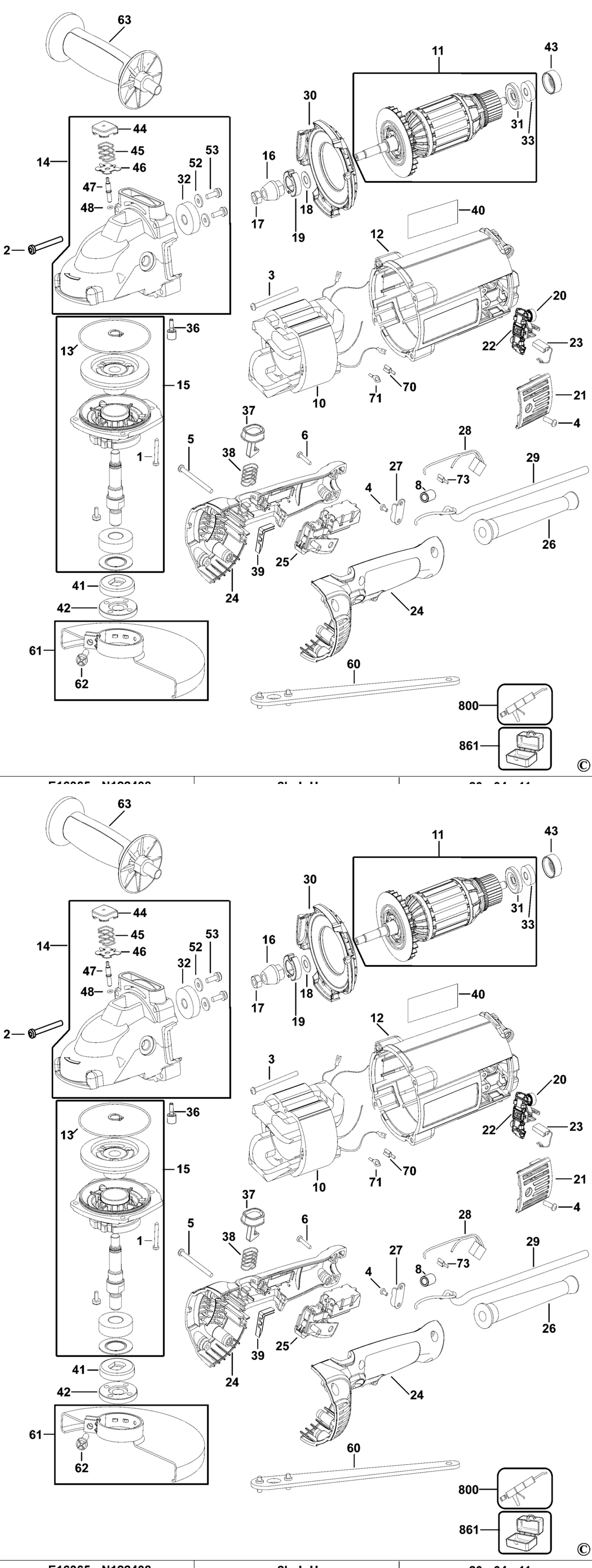

An exploded drawing and spare parts listing for the Dewalt D28492 Type 3 Angle Grinder

	Ex VAT	Inc VAT
1 - SCREW BDE-330045-14.A149 330045-14	£1.50	£1.80
1 - SCREW BDE-330045-14.A150 330045-14	£1.50	£1.80
2 - SCREW BDE-330019-26.A79 330019-26	£1.50	£1.80
2 - SCREW BDE-330019-26.A80 330019-26	£1.50	£1.80
3 - SCREW BDE-330019-19.A112 330019-19	£1.50	£1.80
3 - SCREW BDE-330019-19.A113 330019-19	£1.50	£1.80
4 - SCREW.TEMP BDE-330019-11.A90 330019-11	£1.50	£1.80
4 - SCREW.TEMP BDE-330019-11.A1 330019-11	£1.50	£1.80
5 - SCREW BDE-330019-50.A92 330019-50	£1.50	£1.80
5 - SCREW BDE-330019-18.A42 330019-18	£1.50	£1.80
6 - SCREW BDE-330019-32.A115 330019-32	£1.50	£1.80
6 - SCREW BDE-330019-32.A116 330019-32	£1.50	£1.80
12 - FIELD CASE BDE-393239-01.A31 393239-01	£14.57	£17.48
12 - FIELD CASE BDE-393239-01.A32 393239-01	£14.57	£17.48
13 - O RING BDE-397031-00.A51 397031-00	£1.50	£1.80
13 - O RING BDE-397031-00.A52 397031-00	£1.50	£1.80
14 - GEARCASE SA BDE-N074214.A1 N074214	£44.14	£52.97
14 - GEARCASE SA BDE-N074214.A2 N074214	£44.14	£52.97
15 - GEARCASE COVER SA BDE-N074213.A6 N074213	£51.90	£62.28
15 - GEARCASE COVER SA BDE-N074213.A7 N074213	£51.90	£62.28
16 - PINION BDE-629729-00.A1 629729-00	£17.48	£20.97
16 - PINION BDE-629729-00.A2 629729-00	£17.48	£20.97
17 - NUT BDE-330015-03.A40 330015-03	£1.50	£1.80
17 - NUT BDE-330015-03.A41 330015-03	£1.50	£1.80
18 - WASHER BDE-639681-00.A5 639681-00	£1.50	£1.80
18 - WASHER BDE-639681-00.A6 639681-00	£1.50	£1.80
19 - COLLAR BDE-632702-00.A13 632702-00	£2.78	£3.34
19 - COLLAR BDE-632702-00.A14 632702-00	£2.78	£3.34
20 - BRUSH SPRING BDE-609987-00.A16 609987-00	£1.50	£1.80
20 - BRUSH SPRING BDE-609987-00.A17 609987-00	£1.50	£1.80
21 - BRUSH COVER BDE-394387-01.A47 394387-01	£1.50	£1.80
21 - BRUSH COVER BDE-394387-01.A48 394387-01	£1.50	£1.80
22 - BRUSH HOLDER SA BDE-617001-00.A21 617001-00	£7.85	£9.42
22 - BRUSH HOLDER SA BDE-N303319.A4 N303319	£7.85	£9.42
24 - HANDLE & COVER BDE-636499-00.A12 636499-00	£24.39	£29.27
24 - HANDLE & COVER BDE-636499-00.A13 636499-00	£24.39	£29.27
25 - SWITCH SA BDE-N035342.A12 N035342	£12.17	£14.60
25 - SWITCH SA BDE-N035342.A13 N035342	£12.17	£14.60
26 - CORD PROTECTOR BDE-604118-00.A5 604118-00	£2.78	£3.34
26 - CORD PROTECTOR BDE-604118-00.A6 604118-00	£2.78	£3.34
27 - CORD CLAMP BDE-604119-00.A19 604119-00	£1.50	£1.80
27 - CORD CLAMP BDE-604119-00.A20 604119-00	£1.50	£1.80
28 - CAPACITOR BDE-632218-00.A5 632218-00	£4.69	£5.63
30 - BAFFLE FAN BDE-631350-00.A34 631350-00	£2.26	£2.71
30 - BAFFLE FAN BDE-631350-00.A35 631350-00	£2.26	£2.71
31 - SHIELD BDE-393238-00.A70 393238-00	£1.50	£1.80
31 - SHIELD BDE-393238-00.A71 393238-00	£1.50	£1.80
32 - BEARING BDE-N389509.A30 N389509	£3.80	£4.56
32 - BEARING BDE-N389509.A31 N389509	£3.80	£4.56
33 - BEARING BDE-N110359.A184 N110359	£3.75	£4.50
33 - BEARING BDE-N110359.A185 N110359	£3.75	£4.50
36 - SCREW BDE-N033051.A62 N033051	£1.50	£1.80
36 - SCREW BDE-N033051.A63 N033051	£1.50	£1.80
37 - BUTTON LOCK-OFF BDE-636503-00.A19 636503-00	£1.50	£1.80
37 - BUTTON LOCK-OFF BDE-636503-00.A20 636503-00	£1.50	£1.80
38 - SPRING BDE-636502-00.A16 636502-00	£1.50	£1.80
38 - SPRING BDE-636502-00.A17 636502-00	£1.50	£1.80
39 - COVER BDE-641929-00.A0 641929-00	£1.50	£1.80
39 - COVER BDE-641929-00.A1 641929-00	£1.50	£1.80
41 - INNER FLANGE BDE-403150-01.A26 403150-01	£4.69	£5.63
41 - INNER FLANGE BDE-403150-01.A27 403150-01	£4.69	£5.63
42 - OUTER FLANGE BDE-401678-05.A66 401678-05	£4.69	£5.63
42 - OUTER FLANGE BDE-401678-05.A67 401678-05	£4.69	£5.63
43 - SLEEVE INSULATING BDE-609970-00.A95 609970-00	£1.50	£1.80
43 - SLEEVE INSULATING BDE-609970-00.A96 609970-00	£1.50	£1.80
44 - CAP BDE-630553-00.A2 630553-00	£1.50	£1.80
44 - CAP BDE-630553-00.A3 630553-00	£1.50	£1.80
45 - SPRING BDE-638328-00.A7 638328-00	£1.50	£1.80
45 - SPRING BDE-638328-00.A8 638328-00	£1.50	£1.80
46 - RETAINER BDE-635908-00.A5 635908-00	£1.50	£1.80
46 - RETAINER BDE-635908-00.A6 635908-00	£1.50	£1.80
47 - PIN BDE-634589-00.A18 634589-00	£1.82	£2.19
47 - PIN BDE-634589-00.A19 634589-00	£1.82	£2.19
48 - O RING BDE-750831.A3 750831	£1.50	£1.80
48 - O RING BDE-750831.A4 750831	£1.50	£1.80
52 - WASHER BDE-640591-00.A36 640591-00	£1.50	£1.80
52 - WASHER BDE-640591-00.A37 640591-00	£1.50	£1.80
53 - SCREW BDE-330045-67.A22 330045-67	£16.03	£19.24
53 - SCREW BDE-330045-67.A23 330045-67	£16.03	£19.24
60 - WRENCH PIN BDE-635261-00.A4 635261-00	£4.69	£5.63
60 - WRENCH PIN BDE-635261-00.A5 635261-00	£4.69	£5.63
61 - GUARD SA BDE-N036839.A5 N036839	£18.91	£22.69
61 - GUARD SA BDE-N036839.A6 N036839	£18.91	£22.69
62 - SCREW BDE-330024-23.A10 330024-23	£1.50	£1.80
62 - SCREW BDE-N082712.A8 N082712	£1.50	£1.80
63 - SIDE HANDLE D28492 BDE-651858-01.A4 651858-01	£7.18	£8.62
63 - SIDE HANDLE D28492 BDE-651858-01.A5 651858-01	£7.18	£8.62
70 - TERMINAL BDE-612273-00.A24 612273-00	£1.50	£1.80
70 - TERMINAL BDE-612273-00.A25 612273-00	£1.50	£1.80
71 - TERMINAL BDE-610057-00.A22 610057-00	£1.50	£1.80
71 - TERMINAL BDE-610057-00.A23 610057-00	£1.50	£1.80
73 - TERMINAL BDE-53650-00.A5 53650-00	£1.50	£1.80
73 - TERMINAL BDE-53650-00.A6 53650-00	£1.50	£1.80
800 - GREASE 50 GMS BDE-583534-00.A223 583534-00	£144.10	£172.92
800 - GREASE 50 GMS BDE-583534-00.A224 583534-00	£144.10	£172.92
861 - KITBOX BDE-644490-00.A8 644490-00	£65.52	£78.62
861 - KITBOX BDE-644490-00.A9 644490-00	£65.52	£78.62

Attribute Name	Value
Brand	Dewalt
