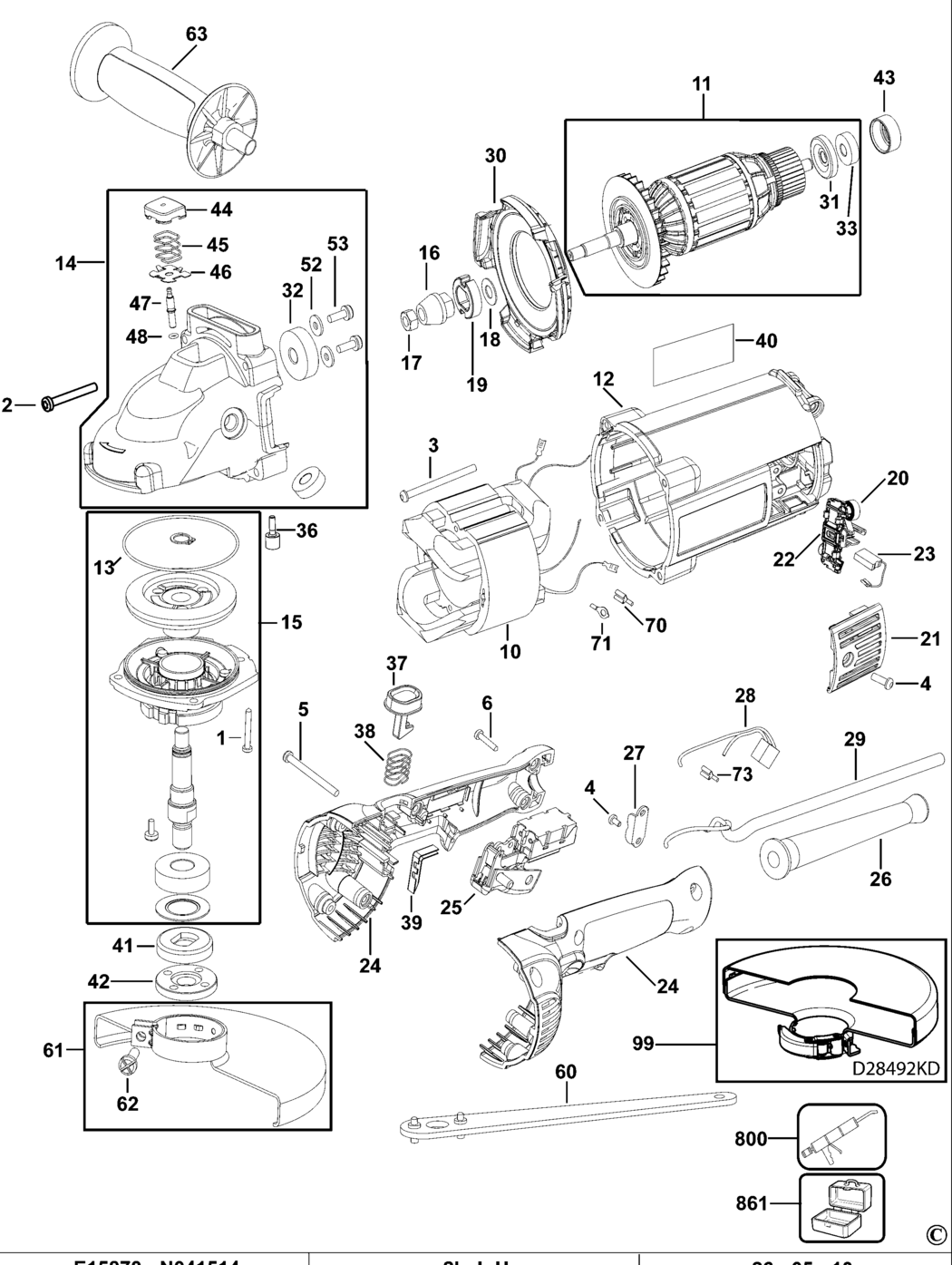

1 - SCREW
BDE-330045-14.A166
330045-14
|
£1.66
|
£1.99
|
|
|
2 - SCREW
BDE-330019-26.A63
330019-26
|
£1.66
|
£1.99
|
|
|
3 - SCREW
BDE-330019-19.A131
330019-19
|
£1.66
|
£1.99
|
|
|
4 - SCREW.TEMP
BDE-330019-11.A110
330019-11
|
£1.66
|
£1.99
|
|
|
5 - SCREW
BDE-330019-50.A52
330019-50
|
£1.66
|
£1.99
|
|
|
6 - SCREW
BDE-330019-32.A68
330019-32
|
£1.66
|
£1.99
|
|
|
10 - FIELD 230V GB
BDE-617004-06.A7
617004-06
|
£86.95
|
£104.34
|
|
|
10 - FIELD 115V LX
BDE-617004-04.A3
617004-04
|
£90.46
|
£108.55
|
|
|
11 - ARMATURE SA LX
BDE-638001-01.A0
638001-01
|
£107.82
|
£129.39
|
|
|
11 - ARMATURE 230V GB
BDE-N403185.A3
N403185
|
£102.45
|
£122.94
|
|
|
12 - FIELD CASE LX
BDE-393239-01.A19
393239-01
|
£15.01
|
£18.01
|
|
|
12 - FIELD CASE GB
BDE-393239-01.A20
393239-01
|
£15.01
|
£18.01
|
|
|
13 - O RING
BDE-397031-00.A65
397031-00
|
£1.66
|
£1.99
|
|
|
14 - GEARCASE SA
BDE-N074214.A12
N074214
|
£45.47
|
£54.56
|
|
|
15 - GEARCASE COVER SA
BDE-N074213.A5
N074213
|
£53.46
|
£64.15
|
|
|
16 - PINION
BDE-629729-00.A9
629729-00
|
£17.48
|
£20.97
|
|
|
17 - NUT
BDE-330015-03.A49
330015-03
|
£1.66
|
£1.99
|
|
|
18 - WASHER
BDE-639681-00.A8
639681-00
|
£1.66
|
£1.99
|
|
|
19 - COLLAR
BDE-632702-00.A1
632702-00
|
£2.87
|
£3.44
|
|
|
20 - BRUSH SPRING GB
BDE-609987-00.A5
609987-00
|
£1.66
|
£1.99
|
|
|
20 - BRUSH SPRING LX
BDE-645650-00.A16
645650-00
|
£1.66
|
£1.99
|
|
|
21 - BRUSH COVER GB
BDE-394387-01.A5
394387-01
|
£1.66
|
£1.99
|
|
|
21 - BRUSH COVER LX
BDE-394387-01.A6
394387-01
|
£1.66
|
£1.99
|
|
|
22 - BRUSH HOLDER SA LX
BDE-629976-00.A17
629976-00
|
£6.06
|
£7.27
|
|
|
22 - BRUSH HOLDER SA GB
BDE-617001-00.A34
617001-00
|
£8.08
|
£9.70
|
|
|
23 - BRUSH 120V LX
BDE-N025285.A1
N025285
|
£5.88
|
£7.06
|
|
|
23 - BRUSH CUT OFF GB
BDE-392574-03.A3
392574-03
|
£6.06
|
£7.27
|
|
|
24 - HANDLE & COVER LX
BDE-636499-00.A3
636499-00
|
£25.12
|
£30.15
|
|
|
24 - HANDLE & COVER GB
BDE-636499-00.A4
636499-00
|
£25.12
|
£30.15
|
|
|
25 - SWITCH SA
BDE-N035342.A17
N035342
|
£12.53
|
£15.04
|
|
|
26 - CORD PROTECTOR GB
BDE-604118-00.A18
604118-00
|
£2.87
|
£3.44
|
|
|
26 - CORD PROTECTOR LX
BDE-330005-11.A11
330005-11
|
£2.32
|
£2.78
|
|
|
27 - CORD CLAMP
BDE-604119-00.A5
604119-00
|
£1.66
|
£1.99
|
|
|
28 - CAPACITOR
BDE-632218-00.A27
632218-00
|
£4.83
|
£5.80
|
|
|
29 - CORDSET GB
BDE-562226-67.A3
562226-67
|
£23.75
|
£28.50
|
|
|
29 - CORDSET LX
BDE-562226-68.A8
562226-68
|
£35.02
|
£42.02
|
|
|
30 - BAFFLE FAN
BDE-631350-00.A2
631350-00
|
£2.32
|
£2.78
|
|
|
31 - SHIELD
BDE-393238-00.A23
393238-00
|
£1.66
|
£1.99
|
|
|
32 - BEARING
BDE-N389509.A25
N389509
|
£3.92
|
£4.70
|
|
|
33 - BEARING
BDE-N110359.A106
N110359
|
£3.75
|
£4.50
|
|
|
36 - SCREW
BDE-N033051.A3
N033051
|
£1.66
|
£1.99
|
|
|
37 - BUTTON LOCK-OFF
BDE-636503-00.A5
636503-00
|
£1.66
|
£1.99
|
|
|
38 - SPRING
BDE-636502-00.A31
636502-00
|
£1.66
|
£1.99
|
|
|
39 - COVER
BDE-641929-00.A15
641929-00
|
£1.66
|
£1.99
|
|
|
40 - RATING PLATE LX
BDE-N041519
N041519
|
-
|
|
|
|
40 - RATING PLATE GB
BDE-N041517
N041517
|
-
|
|
|
|
41 - INNER FLANGE
BDE-403150-01.A81
403150-01
|
£4.83
|
£5.80
|
|
|
42 - OUTER FLANGE
BDE-401678-05.A93
401678-05
|
£4.83
|
£5.80
|
|
|
43 - SLEEVE INSULATING
BDE-609970-00.A19
609970-00
|
£1.66
|
£1.99
|
|
|
44 - CAP
BDE-630553-00.A32
630553-00
|
£1.66
|
£1.99
|
|
|
45 - SPRING
BDE-638328-00.A24
638328-00
|
£1.66
|
£1.99
|
|
|
46 - RETAINER
BDE-635908-00.A38
635908-00
|
£1.66
|
£1.99
|
|
|
47 - PIN
BDE-634589-00.A25
634589-00
|
£1.88
|
£2.26
|
|
|
48 - O RING
BDE-750831.A32
750831
|
£1.66
|
£1.99
|
|
|
52 - WASHER
BDE-640591-00.A8
640591-00
|
£1.66
|
£1.99
|
|
|
53 - SCREW
BDE-330045-67.A1
330045-67
|
£16.52
|
£19.82
|
|
|
60 - WRENCH PIN
BDE-635261-00.A36
635261-00
|
£4.83
|
£5.80
|
|
|
61 - GUARD SA
BDE-N036839.A12
N036839
|
£19.48
|
£23.37
|
|
|
62 - SCREW
BDE-N082712.A21
N082712
|
£1.66
|
£1.99
|
|
|
63 - SIDE HANDLE D28492 GB
BDE-651858-01.A40
651858-01
|
£7.40
|
£8.88
|
|
|
63 - SIDE HANDLE D28492 LX
BDE-651858-01.A41
651858-01
|
£7.40
|
£8.88
|
|
|
70 - TERMINAL
BDE-612273-00.A1
612273-00
|
£1.66
|
£1.99
|
|
|
71 - TERMINAL
BDE-610057-00.A11
610057-00
|
£1.66
|
£1.99
|
|
|
73 - TERMINAL
BDE-53650-00.A30
53650-00
|
£1.66
|
£1.99
|
|
|
99 - GUARD SA D28492KD
BDE-N038672.A2
N038672
|
£45.14
|
£54.17
|
|
|
800 - GREASE 50 GMS
BDE-583534-00.A14
583534-00
|
£148.42
|
£178.11
|
|
|
861 - KITBOX
BDE-644490-00.A3
644490-00
|
£67.48
|
£80.98
|
|
