Dewalt D28491 Type 3 Angle Grinder Spare Parts

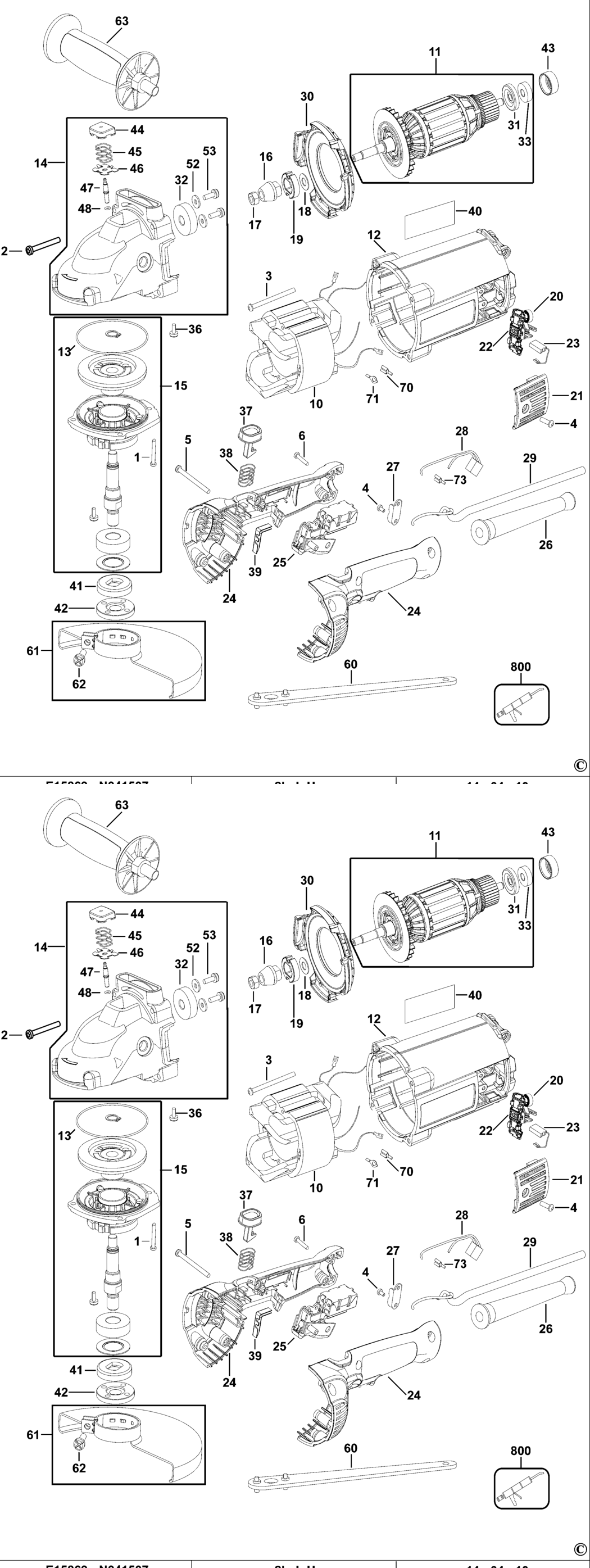

An exploded drawing and spare parts listing for the Dewalt D28491 Type 3 Angle Grinder

	Ex VAT	Inc VAT
1 - SCREW BDE-330045-14.A167 330045-14	£1.66	£1.99
2 - SCREW BDE-330019-26.A65 330019-26	£1.66	£1.99
3 - SCREW BDE-330019-19.A129 330019-19	£1.66	£1.99
4 - SCREW.TEMP BDE-330019-11.A109 330019-11	£1.66	£1.99
5 - SCREW BDE-330019-18.A9 330019-18	£1.66	£1.99
5 - SCREW BDE-330019-50.A54 330019-50	£1.66	£1.99
6 - SCREW BDE-330019-32.A66 330019-32	£1.66	£1.99
12 - FIELD CASE BDE-393239-01.A18 393239-01	£15.01	£18.01
13 - O RING BDE-397031-00.A64 397031-00	£1.66	£1.99
14 - GEARCASE SA BDE-N074214.A14 N074214	£45.47	£54.56
15 - GEARCASE COVER SA BDE-N074215.A4 N074215	£50.60	£60.72
17 - NUT BDE-330015-03.A50 330015-03	£1.66	£1.99
18 - WASHER BDE-640591-00.A11 640591-00	£1.66	£1.99
20 - BRUSH SPRING BDE-609987-00.A4 609987-00	£1.66	£1.99
22 - BRUSH HOLDER SA BDE-N303319.A2 N303319	£8.08	£9.70
22 - BRUSH HOLDER SA BDE-617001-00.A33 617001-00	£8.08	£9.70
26 - CORD PROTECTOR BDE-604118-00.A17 604118-00	£2.87	£3.44
27 - CORD CLAMP BDE-604119-00.A6 604119-00	£1.66	£1.99
28 - CAPACITOR BDE-632218-00.A28 632218-00	£4.83	£5.80
30 - BAFFLE FAN BDE-631350-00.A1 631350-00	£2.32	£2.78
31 - SHIELD BDE-393238-00.A21 393238-00	£1.66	£1.99
32 - BEARING BDE-N389509.A22 N389509	£3.92	£4.70
33 - BEARING BDE-N110359.A109 N110359	£3.75	£4.50
36 - SCREW BDE-N033051.A0 N033051	£1.66	£1.99
37 - BUTTON LOCK-OFF BDE-636503-00.A7 636503-00	£1.66	£1.99
38 - SPRING BDE-636502-00.A29 636502-00	£1.66	£1.99
39 - COVER BDE-641929-00.A14 641929-00	£1.66	£1.99
41 - INNER FLANGE BDE-403150-01.A83 403150-01	£4.83	£5.80
42 - OUTER FLANGE BDE-401678-05.A94 401678-05	£4.83	£5.80
43 - SLEEVE INSULATING BDE-609970-00.A21 609970-00	£1.66	£1.99
44 - CAP BDE-630553-00.A33 630553-00	£1.66	£1.99
45 - SPRING BDE-638328-00.A25 638328-00	£1.66	£1.99
46 - RETAINER BDE-635908-00.A37 635908-00	£1.66	£1.99
47 - PIN BDE-634589-00.A24 634589-00	£1.88	£2.26
48 - O RING BDE-750831.A34 750831	£1.66	£1.99
52 - WASHER BDE-640591-00.A10 640591-00	£1.66	£1.99
53 - SCREW BDE-330045-67.A3 330045-67	£16.52	£19.82
60 - WRENCH PIN BDE-635261-00.A37 635261-00	£4.83	£5.80
61 - GUARD SA BDE-N036843.A1 N036843	£16.52	£19.82
62 - SCREW BDE-330024-23.A5 330024-23	£1.66	£1.99
63 - SIDE HANDLE BDE-651858-01.A38 651858-01	£7.40	£8.88
70 - TERMINAL BDE-612273-00.A2 612273-00	£1.66	£1.99
71 - TERMINAL BDE-610057-00.A10 610057-00	£1.66	£1.99
800 - GREASE 50 GMS BDE-583534-00.A15 583534-00	£148.42	£178.11

Attribute Name	Value
Brand	Dewalt
