Dewalt D28490 Type 5 Angle Grinder Spare Parts

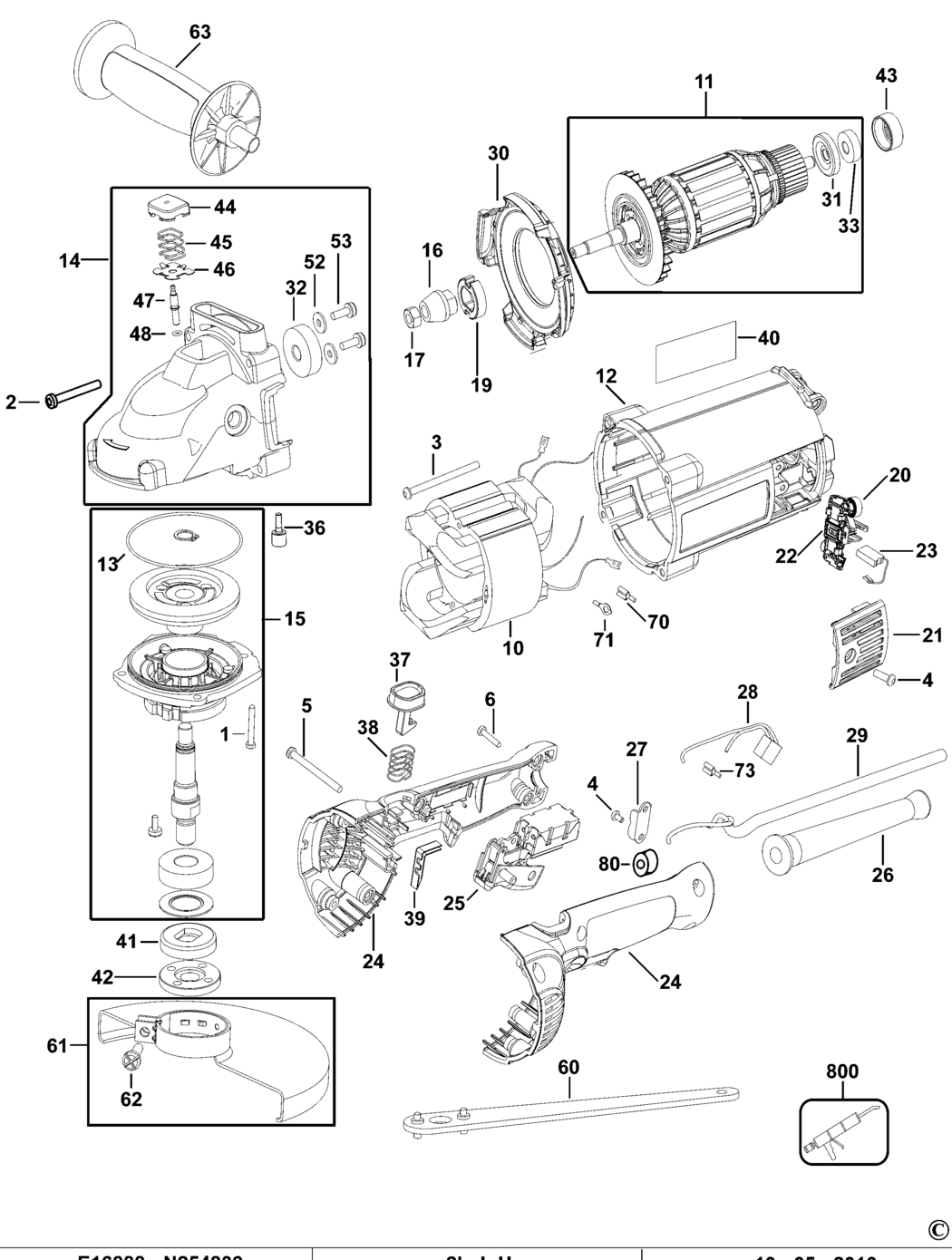

An exploded drawing and spare parts listing for the Dewalt D28490 Type 5 Angle Grinder

	Ex VAT	Inc VAT
1 - SCREW BDE-330045-14.A154 330045-14	£1.66	£1.99
2 - SCREW BDE-330019-26.A74 330019-26	£1.66	£1.99
3 - SCREW BDE-330019-19.A103 330019-19	£1.66	£1.99
4 - SCREW.TEMP BDE-330019-11.A98 330019-11	£1.66	£1.99
4 - SCREW.TEMP BDE-330019-11.A99 330019-11	£1.66	£1.99
5 - SCREW BDE-330019-18.A18 330019-18	£1.66	£1.99
5 - SCREW BDE-330019-50.A31 330019-50	£1.66	£1.99
6 - SCREW BDE-330019-32.A45 330019-32	£1.66	£1.99
10 - FIELD 115V LX BDE-617004-04.A2 617004-04	£90.46	£108.55
10 - FIELD SA GB BDE-N310019.A0 N310019	£39.97	£47.96
11 - ARMATURE SA LX BDE-638001-01.A2 638001-01	£107.82	£129.39
11 - ARMATURE 230V <2014WK11 BDE-N403185.A1 N403185	£102.45	£122.94
11 - ARMATURE SA >=2014WK11 BDE-N332479 N332479	£107.43	£128.92
11 - ARMATURE SA GB BDE-N467980.A4 N467980	£99.44	£119.33
12 - FIELD CASE BDE-393239-01.A10 393239-01	£15.01	£18.01
13 - O RING BDE-397031-00.A79 397031-00	£1.66	£1.99
14 - GEARCASE SA BDE-N074214.A21 N074214	£45.47	£54.56
15 - GEARCASE COVER SA BDE-N261159.A0 N261159	£44.00	£52.80
16 - PINION BDE-N289461.A2 N289461	£9.17	£11.00
17 - NUT BDE-330015-03.A54 330015-03	£1.66	£1.99
19 - COLLAR GB BDE-632702-00.A16 632702-00	£2.87	£3.44
19 - COLLAR LX BDE-632702-00.A17 632702-00	£2.87	£3.44
20 - BRUSH SPRING BDE-609987-00.A18 609987-00	£1.66	£1.99
20 - BRUSH SPRING BDE-609987-00.A19 609987-00	£1.66	£1.99
21 - BRUSH COVER LX BDE-394387-01.A49 394387-01	£1.66	£1.99
21 - BRUSH COVER GB BDE-394387-01.A50 394387-01	£1.66	£1.99
22 - BRUSH HOLDER SA BDE-629976-00.A13 629976-00	£6.06	£7.27
22 - BRUSH HOLDER SA LX BDE-629976-00.A14 629976-00	£6.06	£7.27
22 - BRUSH HOLDER SA GB BDE-629976-00.A15 629976-00	£6.06	£7.27
23 - BRUSH CUT OFF GB BDE-392574-03.A5 392574-03	£6.06	£7.27
23 - BRUSH KIT 230V BDE-N495294.A7 N495294	-
24 - HANDLE & COVER GB BDE-636499-01.A5 636499-01	£25.12	£30.15
24 - HANDLE & COVER LX BDE-636499-01.A6 636499-01	£25.12	£30.15
25 - SWITCH SA LX BDE-N035342.A10 N035342	£12.53	£15.04
25 - SWITCH SA GB BDE-N035342.A11 N035342	£12.53	£15.04
26 - CORD PROTECTOR LX BDE-330005-11.A0 330005-11	£2.32	£2.78
26 - CORD PROTECTOR GB BDE-N219433.A10 N219433	£1.66	£1.99
26 - CORD PROTECTOR BDE-N219433.A11 N219433	£1.66	£1.99
27 - CORD CLAMP BDE-604119-00.A18 604119-00	£1.66	£1.99
28 - CAPACITOR GB BDE-632218-00.A2 632218-00	£4.83	£5.80
29 - CORDSET LX BDE-562226-68.A0 562226-68	£35.02	£42.02
29 - CORDSET GB BDE-562226-67.A8 562226-67	£23.75	£28.50
30 - BAFFLE FAN BDE-631350-00.A33 631350-00	£2.32	£2.78
31 - SHIELD BDE-393238-00.A65 393238-00	£1.66	£1.99
32 - BEARING BDE-N389509.A27 N389509	£3.92	£4.70
33 - BEARING BDE-N110359.A180 N110359	£3.75	£4.50
36 - SCREW BDE-N033051.A69 N033051	£1.66	£1.99
37 - BUTTON LOCK-OFF BDE-636503-00.A22 636503-00	£1.66	£1.99
38 - SPRING BDE-636502-00.A14 636502-00	£1.66	£1.99
39 - COVER BDE-N391190.A1 N391190	£1.66	£1.99
40 - RATING PLATE GB BDE-N254723 N254723	£1.66	£1.99
40 - RATING PLATE LX BDE-N254724 N254724	£1.66	£1.99
41 - INNER FLANGE BDE-403150-01.A29 403150-01	£4.83	£5.80
42 - OUTER FLANGE BDE-401678-05.A61 401678-05	£4.83	£5.80
43 - SLEEVE INSULATING BDE-609970-00.A100 609970-00	£1.66	£1.99
44 - CAP BDE-630553-00.A4 630553-00	£1.66	£1.99
45 - SPRING BDE-638328-00.A5 638328-00	£1.66	£1.99
46 - RETAINER BDE-635908-00.A7 635908-00	£1.66	£1.99
47 - PIN BDE-634589-00.A15 634589-00	£1.88	£2.26
48 - O RING BDE-750831.A7 750831	£1.66	£1.99
49 - SLEEVE BEARING BDE-449852-00.A8 449852-00	-
52 - WASHER BDE-640591-00.A33 640591-00	£1.66	£1.99
53 - SCREW BDE-330045-67.A25 330045-67	£16.52	£19.82
60 - WRENCH PIN BDE-635261-00.A2 635261-00	£4.83	£5.80
61 - GUARD SA BDE-N036839.A7 N036839	£19.48	£23.37
62 - SCREW BDE-330024-23.A12 330024-23	£1.66	£1.99
62 - SCREW BDE-N082712.A10 N082712	£1.66	£1.99
63 - SIDE HANDLE BDE-651858-01.A7 651858-01	£7.40	£8.88
70 - TERMINAL BDE-612273-00.A21 612273-00	£1.66	£1.99
71 - TERMINAL BDE-610057-00.A19 610057-00	£1.66	£1.99
73 - TERMINAL BDE-53650-00.A1 53650-00	£1.66	£1.99
80 - SUPPRESSOR GB BDE-N423473.A8 N423473	£2.87	£3.44
800 - GREASE 50 GMS BDE-583534-00.A240 583534-00	£148.42	£178.11
