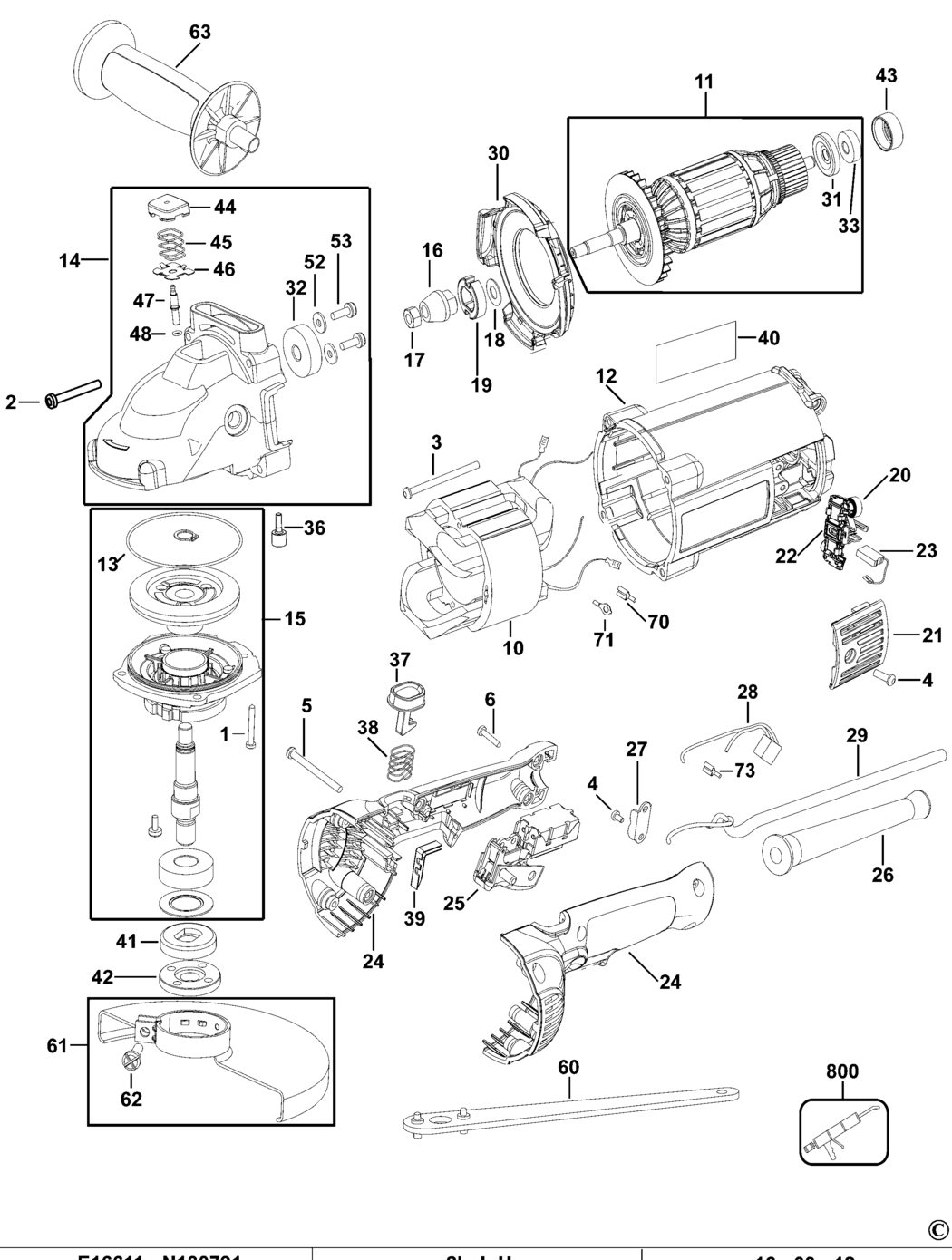

1 - SCREW
BDE-330045-14.A68
330045-14
|
£1.66
|
£1.99
|
|
|
2 - SCREW
BDE-330019-26.A25
330019-26
|
£1.66
|
£1.99
|
|
|
3 - SCREW
BDE-330019-19.A3
330019-19
|
£1.66
|
£1.99
|
|
|
4 - SCREW.TEMP
BDE-330019-11.A5
330019-11
|
£1.66
|
£1.99
|
|
|
5 - SCREW
BDE-330019-50.A88
330019-50
|
£1.66
|
£1.99
|
|
|
6 - SCREW
BDE-330019-32.A122
330019-32
|
£1.66
|
£1.99
|
|
|
10 - FIELD 230V
BDE-617004-06.A3
617004-06
|
£86.95
|
£104.34
|
|
|
11 - ARMATURE 230V
BDE-N403185.A6
N403185
|
£102.45
|
£122.94
|
|
|
12 - FIELD CASE
BDE-393239-01.A34
393239-01
|
£15.01
|
£18.01
|
|
|
13 - O RING
BDE-397031-00.A55
397031-00
|
£1.66
|
£1.99
|
|
|
14 - GEARCASE SA
BDE-N074214.A3
N074214
|
£45.47
|
£54.56
|
|
|
15 - GEARCASE COVER SA
BDE-N221032.A0
N221032
|
£53.92
|
£64.70
|
|
|
16 - PINION
BDE-629729-01.A1
629729-01
|
£15.63
|
£18.76
|
|
|
17 - NUT
BDE-330015-03.A43
330015-03
|
£1.66
|
£1.99
|
|
|
18 - WASHER
BDE-639681-00.A18
639681-00
|
£1.66
|
£1.99
|
|
|
19 - COLLAR
BDE-632702-00.A9
632702-00
|
£2.87
|
£3.44
|
|
|
20 - BRUSH SPRING
BDE-609987-00.A1
609987-00
|
£1.66
|
£1.99
|
|
|
21 - BRUSH COVER
BDE-394387-01.A14
394387-01
|
£1.66
|
£1.99
|
|
|
22 - BRUSH HOLDER SA
BDE-617001-00.A38
617001-00
|
£8.08
|
£9.70
|
|
|
23 - BRUSH CUT OFF GB
BDE-392574-03.A1
392574-03
|
£6.06
|
£7.27
|
|
|
24 - HANDLE & COVER
BDE-636499-01.A7
636499-01
|
£25.12
|
£30.15
|
|
|
25 - SWITCH SA
BDE-N035342.A19
N035342
|
£12.53
|
£15.04
|
|
|
26 - CORD PROTECTOR
BDE-604118-00.A15
604118-00
|
£2.87
|
£3.44
|
|
|
27 - CORD CLAMP
BDE-604119-00.A9
604119-00
|
£1.66
|
£1.99
|
|
|
28 - CAPACITOR GB
BDE-632218-00.A25
632218-00
|
£4.83
|
£5.80
|
|
|
29 - CORDSET GB
BDE-562226-67.A1
562226-67
|
£23.75
|
£28.50
|
|
|
30 - BAFFLE FAN
BDE-631350-00.A13
631350-00
|
£2.32
|
£2.78
|
|
|
31 - SHIELD
BDE-393238-00.A11
393238-00
|
£1.66
|
£1.99
|
|
|
32 - BEARING
BDE-N389509.A6
N389509
|
£3.92
|
£4.70
|
|
|
33 - BEARING
BDE-N110359.A34
N110359
|
£3.75
|
£4.50
|
|
|
36 - SCREW
BDE-N033051.A34
N033051
|
£1.66
|
£1.99
|
|
|
37 - BUTTON LOCK-OFF
BDE-636503-00.A13
636503-00
|
£1.66
|
£1.99
|
|
|
38 - SPRING
BDE-636502-00.A23
636502-00
|
£1.66
|
£1.99
|
|
|
39 - COVER
BDE-641929-00.A11
641929-00
|
£1.66
|
£1.99
|
|
|
41 - INNER FLANGE
BDE-403150-01.A102
403150-01
|
£4.83
|
£5.80
|
|
|
42 - OUTER FLANGE
BDE-401678-05.A113
401678-05
|
£4.83
|
£5.80
|
|
|
43 - SLEEVE INSULATING
BDE-609970-00.A13
609970-00
|
£1.66
|
£1.99
|
|
|
44 - CAP
BDE-630553-00.A28
630553-00
|
£1.66
|
£1.99
|
|
|
45 - SPRING
BDE-638328-00.A35
638328-00
|
£1.66
|
£1.99
|
|
|
46 - RETAINER
BDE-635908-00.A26
635908-00
|
£1.66
|
£1.99
|
|
|
47 - PIN
BDE-634589-00.A36
634589-00
|
£1.88
|
£2.26
|
|
|
48 - O RING
BDE-750831.A25
750831
|
£1.66
|
£1.99
|
|
|
52 - WASHER
BDE-640591-00.A4
640591-00
|
£1.66
|
£1.99
|
|
|
53 - SCREW
BDE-330045-67.A17
330045-67
|
£16.52
|
£19.82
|
|
|
60 - WRENCH PIN
BDE-635261-00.A33
635261-00
|
£4.83
|
£5.80
|
|
|
61 - GUARD SA
BDE-N036839.A13
N036839
|
£19.48
|
£23.37
|
|
|
62 - SCREW
BDE-N082712.A15
N082712
|
£1.66
|
£1.99
|
|
|
63 - SIDE HANDLE
BDE-651858-01.A26
651858-01
|
£7.40
|
£8.88
|
|
|
70 - TERMINAL
BDE-612273-00.A17
612273-00
|
£1.66
|
£1.99
|
|
|
71 - TERMINAL
BDE-610057-00.A2
610057-00
|
£1.66
|
£1.99
|
|
|
73 - TERMINAL
BDE-53650-00.A25
53650-00
|
£1.66
|
£1.99
|
|
|
800 - GREASE 50 GMS
BDE-583534-00.A136
583534-00
|
£148.42
|
£178.11
|
|
