Dewalt D28490 Type 3 Angle Grinder Spare Parts

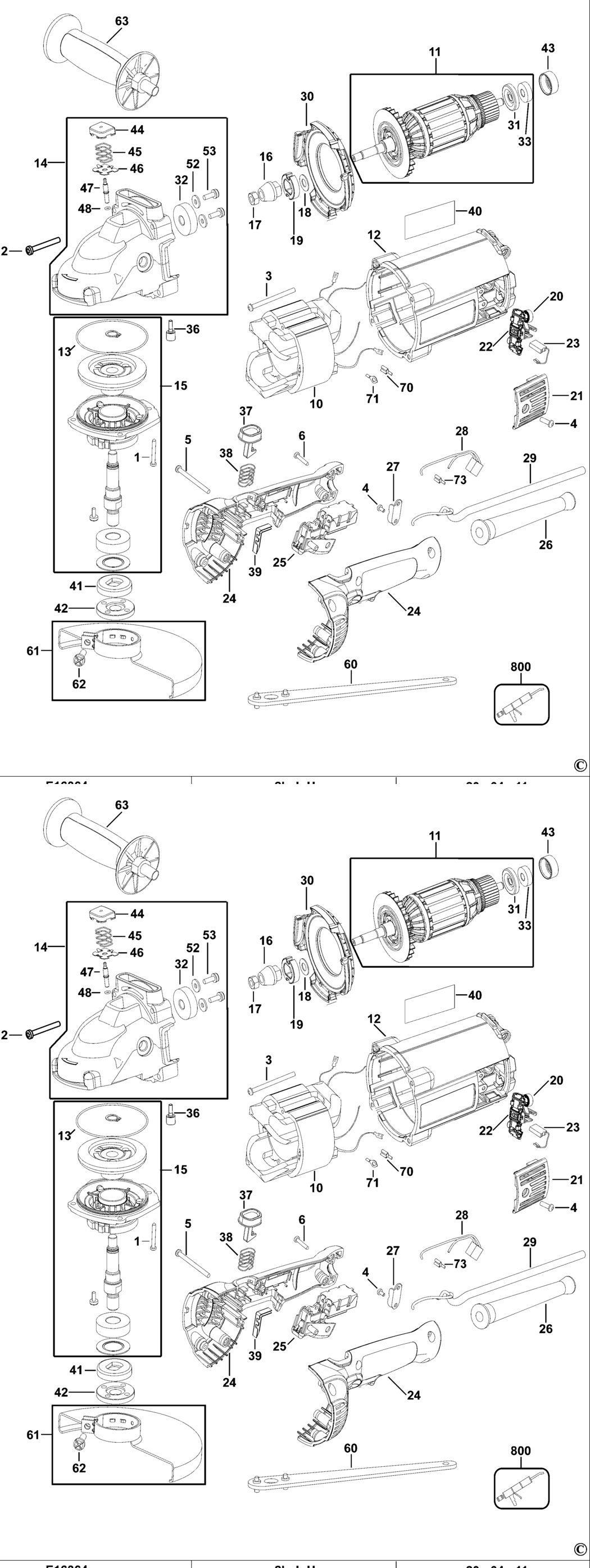

An exploded drawing and spare parts listing for the Dewalt D28490 Type 3 Angle Grinder

	Ex VAT	Inc VAT
1 - SCREW BDE-330045-14.A146 330045-14	£1.66	£1.99
1 - SCREW BDE-330045-14.A147 330045-14	£1.66	£1.99
2 - SCREW BDE-330019-26.A75 330019-26	£1.66	£1.99
2 - SCREW BDE-330019-26.A76 330019-26	£1.66	£1.99
3 - SCREW BDE-330019-19.A116 330019-19	£1.66	£1.99
3 - SCREW BDE-330019-19.A117 330019-19	£1.66	£1.99
4 - SCREW.TEMP BDE-330019-11.A94 330019-11	£1.66	£1.99
4 - SCREW.TEMP BDE-330019-11.A95 330019-11	£1.66	£1.99
5 - SCREW BDE-330019-18.A14 330019-18	£1.66	£1.99
5 - SCREW BDE-330019-18.A15 330019-18	£1.66	£1.99
6 - SCREW BDE-330019-32.A54 330019-32	£1.66	£1.99
6 - SCREW BDE-330019-32.A55 330019-32	£1.66	£1.99
12 - FIELD CASE BDE-393239-01.A13 393239-01	£15.01	£18.01
12 - FIELD CASE BDE-393239-01.A14 393239-01	£15.01	£18.01
13 - O RING BDE-397031-00.A69 397031-00	£1.66	£1.99
13 - O RING BDE-397031-00.A70 397031-00	£1.66	£1.99
14 - GEARCASE SA BDE-N074214.A16 N074214	£45.47	£54.56
14 - GEARCASE SA BDE-N074214.A17 N074214	£45.47	£54.56
15 - GEARCASE COVER SA BDE-N074213.A2 N074213	£53.46	£64.15
15 - GEARCASE COVER SA BDE-N074213.A3 N074213	£53.46	£64.15
16 - PINION BDE-629729-00.A10 629729-00	£17.48	£20.97
16 - PINION BDE-629729-00.A11 629729-00	£17.48	£20.97
17 - NUT BDE-330015-03.A62 330015-03	£1.66	£1.99
17 - NUT BDE-330015-03.A63 330015-03	£1.66	£1.99
18 - WASHER BDE-639681-00.A10 639681-00	£1.66	£1.99
18 - WASHER BDE-639681-00.A11 639681-00	£1.66	£1.99
19 - COLLAR BDE-632702-00.A5 632702-00	£2.87	£3.44
19 - COLLAR BDE-632702-00.A6 632702-00	£2.87	£3.44
20 - BRUSH SPRING BDE-609987-00.A10 609987-00	£1.66	£1.99
20 - BRUSH SPRING BDE-609987-00.A11 609987-00	£1.66	£1.99
21 - BRUSH COVER BDE-394387-01.A0 394387-01	£1.66	£1.99
21 - BRUSH COVER BDE-394387-01.A1 394387-01	£1.66	£1.99
22 - BRUSH HOLDER SA BDE-N303319.A0 N303319	£8.08	£9.70
22 - BRUSH HOLDER SA BDE-629976-00.A19 629976-00	£6.06	£7.27
26 - CORD PROTECTOR BDE-604118-00.A24 604118-00	£2.87	£3.44
26 - CORD PROTECTOR BDE-604118-00.A25 604118-00	£2.87	£3.44
27 - CORD CLAMP BDE-604119-00.A3 604119-00	£1.66	£1.99
27 - CORD CLAMP BDE-604119-00.A4 604119-00	£1.66	£1.99
30 - BAFFLE FAN BDE-631350-00.A7 631350-00	£2.32	£2.78
30 - BAFFLE FAN BDE-631350-00.A8 631350-00	£2.32	£2.78
31 - SHIELD BDE-393238-00.A30 393238-00	£1.66	£1.99
31 - SHIELD BDE-393238-00.A31 393238-00	£1.66	£1.99
32 - BEARING BDE-N389509.A17 N389509	£3.92	£4.70
32 - BEARING BDE-N389509.A18 N389509	£3.92	£4.70
33 - BEARING BDE-N110359.A66 N110359	£3.75	£4.50
33 - BEARING BDE-N110359.A67 N110359	£3.75	£4.50
36 - SCREW BDE-N033051.A14 N033051	£1.66	£1.99
36 - SCREW BDE-N033051.A15 N033051	£1.66	£1.99
37 - BUTTON LOCK-OFF BDE-636503-00.A0 636503-00	£1.66	£1.99
37 - BUTTON LOCK-OFF BDE-636503-00.A1 636503-00	£1.66	£1.99
38 - SPRING BDE-636502-00.A35 636502-00	£1.66	£1.99
38 - SPRING BDE-636502-00.A36 636502-00	£1.66	£1.99
39 - COVER BDE-641929-00.A17 641929-00	£1.66	£1.99
39 - COVER BDE-641929-00.A18 641929-00	£1.66	£1.99
41 - INNER FLANGE BDE-403150-01.A67 403150-01	£4.83	£5.80
41 - INNER FLANGE BDE-403150-01.A68 403150-01	£4.83	£5.80
42 - OUTER FLANGE BDE-401678-05.A80 401678-05	£4.83	£5.80
42 - OUTER FLANGE BDE-401678-05.A81 401678-05	£4.83	£5.80
43 - SLEEVE INSULATING BDE-609970-00.A31 609970-00	£1.66	£1.99
43 - SLEEVE INSULATING BDE-609970-00.A32 609970-00	£1.66	£1.99
44 - CAP BDE-630553-00.A35 630553-00	£1.66	£1.99
44 - CAP BDE-630553-00.A36 630553-00	£1.66	£1.99
45 - SPRING BDE-638328-00.A30 638328-00	£1.66	£1.99
45 - SPRING BDE-638328-00.A31 638328-00	£1.66	£1.99
46 - RETAINER BDE-635908-00.A34 635908-00	£1.66	£1.99
46 - RETAINER BDE-635908-00.A35 635908-00	£1.66	£1.99
47 - PIN BDE-634589-00.A30 634589-00	£1.88	£2.26
47 - PIN BDE-634589-00.A31 634589-00	£1.88	£2.26
48 - O RING BDE-750831.A35 750831	£1.66	£1.99
48 - O RING BDE-750831.A36 750831	£1.66	£1.99
52 - WASHER BDE-640591-00.A17 640591-00	£1.66	£1.99
52 - WASHER BDE-640591-00.A18 640591-00	£1.66	£1.99
53 - SCREW BDE-330045-67.A4 330045-67	£16.52	£19.82
53 - SCREW BDE-330045-67.A5 330045-67	£16.52	£19.82
60 - WRENCH PIN BDE-635261-00.A45 635261-00	£4.83	£5.80
60 - WRENCH PIN BDE-635261-00.A46 635261-00	£4.83	£5.80
61 - GUARD SA BDE-N036839.A9 N036839	£19.48	£23.37
61 - GUARD SA BDE-N036839.A10 N036839	£19.48	£23.37
62 - SCREW BDE-330024-23.A3 330024-23	£1.66	£1.99
62 - SCREW BDE-330024-23.A4 330024-23	£1.66	£1.99
63 - SIDE HANDLE BDE-651858-01.A33 651858-01	£7.40	£8.88
63 - SIDE HANDLE BDE-651858-01.A34 651858-01	£7.40	£8.88
70 - TERMINAL BDE-612273-00.A4 612273-00	£1.66	£1.99
70 - TERMINAL BDE-612273-00.A5 612273-00	£1.66	£1.99
71 - TERMINAL BDE-610057-00.A13 610057-00	£1.66	£1.99
71 - TERMINAL BDE-610057-00.A14 610057-00	£1.66	£1.99
73 - TERMINAL BDE-53650-00.A34 53650-00	£1.66	£1.99
73 - TERMINAL BDE-53650-00.A35 53650-00	£1.66	£1.99
800 - GREASE 50 GMS BDE-583534-00.A55 583534-00	£148.42	£178.11
800 - GREASE 50 GMS BDE-583534-00.A56 583534-00	£148.42	£178.11

Attribute Name	Value
Brand	Dewalt
