Dewalt D28490 Type 1 Angle Grinder Spare Parts

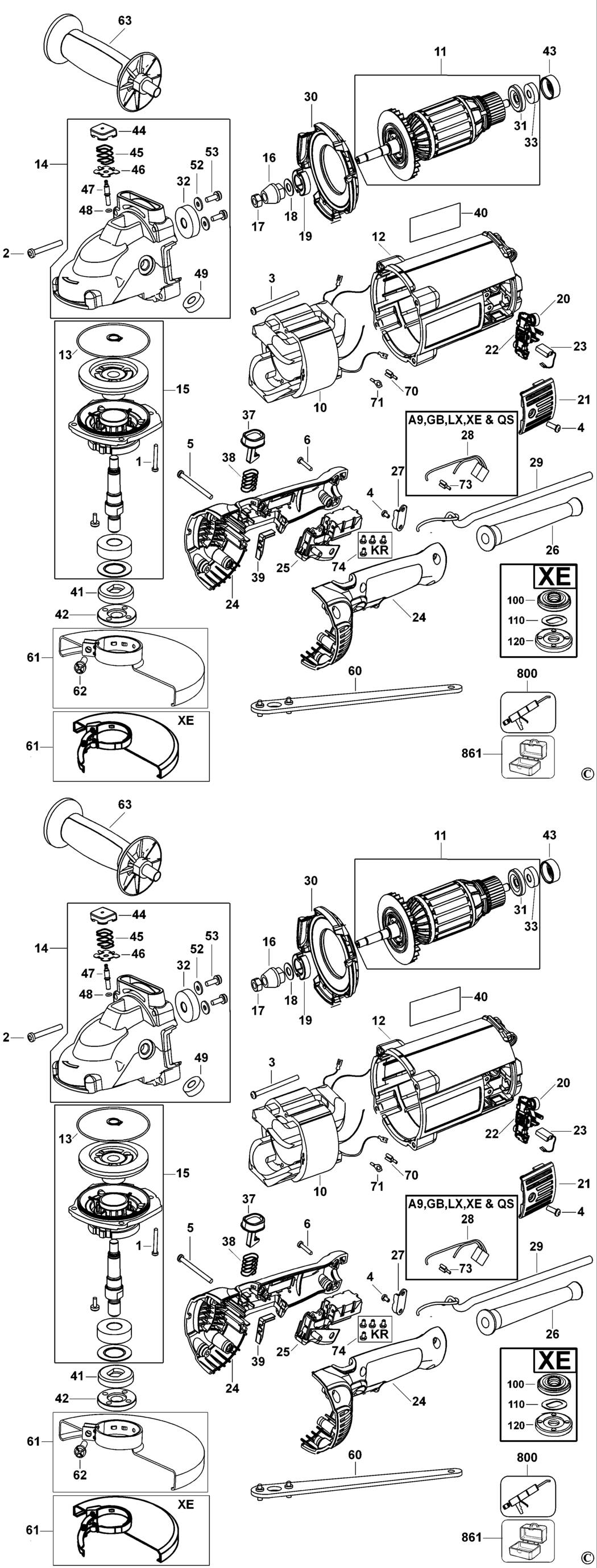

An exploded drawing and spare parts listing for the Dewalt D28490 Type 1 Angle Grinder

	Ex VAT	Inc VAT
1 - SCREW BDE-330045-14.A21 330045-14	£1.66	£1.99
1 - SCREW BDE-330045-14.A22 330045-14	£1.66	£1.99
2 - SCREW BDE-330019-26.A44 330019-26	£1.66	£1.99
2 - SCREW BDE-330019-26.A45 330019-26	£1.66	£1.99
3 - SCREW BDE-330019-19.A90 330019-19	£1.66	£1.99
3 - SCREW BDE-330019-19.A91 330019-19	£1.66	£1.99
4 - SCREW.TEMP BDE-330019-11.A73 330019-11	£1.66	£1.99
4 - SCREW.TEMP BDE-330019-11.A74 330019-11	£1.66	£1.99
5 - SCREW BDE-330019-50.A110 330019-50	£1.66	£1.99
5 - SCREW BDE-330019-50.A111 330019-50	£1.66	£1.99
6 - SCREW BDE-330019-32.A188 330019-32	£1.66	£1.99
6 - SCREW BDE-330019-32.A189 330019-32	£1.66	£1.99
10 - FIELD 115V BDE-617004-04.A6 617004-04	£90.46	£108.55
10 - FIELD 115V LX BDE-617004-04.A7 617004-04	£90.46	£108.55
10 - FIELD 230V GB BDE-617004-06.A0 617004-06	£86.95	£104.34
11 - ARMATURE SA LX BDE-638001-01.A7 638001-01	£107.82	£129.39
11 - ARMATURE 230V GB BDE-N403185.A4 N403185	£102.45	£122.94
11 - ARMATURE SA BDE-638001-01.A8 638001-01	£107.82	£129.39
12 - FIELD CASE BDE-393239-01.A39 393239-01	£15.01	£18.01
12 - FIELD CASE BDE-393239-01.A40 393239-01	£15.01	£18.01
13 - O RING BDE-397031-00.A0 397031-00	£1.66	£1.99
13 - O RING BDE-397031-00.A1 397031-00	£1.66	£1.99
14 - GEARCASE SA BDE-N074214.A9 N074214	£45.47	£54.56
14 - GEARCASE SA BDE-N074214.A10 N074214	£45.47	£54.56
15 - GEARCASE COVER SA BDE-638003-00.A1 638003-00	£71.44	£85.73
15 - GEARCASE COVER SA BDE-638003-00.A2 638003-00	£71.44	£85.73
16 - PINION BDE-629729-00.A4 629729-00	£17.48	£20.97
16 - PINION BDE-629729-00.A5 629729-00	£17.48	£20.97
17 - NUT BDE-330015-03.A5 330015-03	£1.66	£1.99
17 - NUT BDE-330015-03.A6 330015-03	£1.66	£1.99
18 - WASHER BDE-639681-00.A1 639681-00	£1.66	£1.99
18 - WASHER BDE-639681-00.A2 639681-00	£1.66	£1.99
19 - COLLAR BDE-632702-00.A20 632702-00	£2.87	£3.44
19 - COLLAR BDE-632702-00.A21 632702-00	£2.87	£3.44
20 - BRUSH SPRING BDE-645650-00.A0 645650-00	£1.66	£1.99
20 - BRUSH SPRING BDE-645650-00.A1 645650-00	£1.66	£1.99
21 - BRUSH COVER BDE-394387-01.A32 394387-01	£1.66	£1.99
21 - BRUSH COVER BDE-394387-01.A33 394387-01	£1.66	£1.99
22 - BRUSH HOLDER BDE-645649-00.A2 645649-00	£10.57	£12.68
22 - BRUSH HOLDER SA BDE-629976-00.A0 629976-00	£6.06	£7.27
22 - BRUSH HOLDER SA LX BDE-629976-00.A1 629976-00	£6.06	£7.27
22 - BRUSH HOLDER GB BDE-645649-00.A1 645649-00	£10.57	£12.68
23 - BRUSH PAIR 230V GB BDE-585041-00.A11 585041-00	£8.08	£9.70
23 - BRUSH KIT 230V BDE-N495294.A3 N495294	-
23 - NO LONGER AVAILABLE LX BDE-000000-00.A62183 000000-00	-
23 - BRUSH 115V BDE-392460-01 392460-01	-
24 - HANDLE & COVER BDE-636499-00.A22 636499-00	£25.12	£30.15
24 - HANDLE & COVER BDE-636499-00.A23 636499-00	£25.12	£30.15
25 - SWITCH BDE-636500-00.A1 636500-00	£19.48	£23.37
26 - CORD PROTECTOR GB BDE-604118-00.A0 604118-00	£2.87	£3.44
26 - CORD PROTECTOR BDE-330005-11.A1 330005-11	£2.32	£2.78
26 - CORD PROTECTOR LX BDE-330005-11.A2 330005-11	£2.32	£2.78
27 - CORD CLAMP BDE-604119-00.A37 604119-00	£1.66	£1.99
27 - CORD CLAMP BDE-604119-00.A38 604119-00	£1.66	£1.99
28 - CAPACITOR BDE-632218-00.A11 632218-00	£4.83	£5.80
29 - CORDSET LX BDE-562226-68.A6 562226-68	£35.02	£42.02
29 - CORDSET BDE-562226-67.A5 562226-67	£23.75	£28.50
29 - CORDSET BDE-562226-68.A5 562226-68	£35.02	£42.02
29 - CORDSET GB BDE-562226-67.A6 562226-67	£23.75	£28.50
29 - CORDSET (EURO) BDE-562226-65.A0 562226-65	£19.48	£23.37
30 - BAFFLE FAN BDE-631350-00.A20 631350-00	£2.32	£2.78
30 - BAFFLE FAN BDE-631350-00.A21 631350-00	£2.32	£2.78
31 - SHIELD BDE-393238-00.A84 393238-00	£1.66	£1.99
31 - SHIELD BDE-393238-00.A85 393238-00	£1.66	£1.99
32 - BEARING BDE-N389509.A46 N389509	£3.92	£4.70
32 - BEARING BDE-N389509.A47 N389509	£3.92	£4.70
33 - BEARING BDE-330003-60.A39 330003-60	£2.87	£3.44
33 - BEARING BDE-330003-60.A40 330003-60	£2.87	£3.44
37 - BUTTON LOCK-OFF BDE-636503-00.A33 636503-00	£1.66	£1.99
37 - BUTTON LOCK-OFF BDE-636503-00.A34 636503-00	£1.66	£1.99
38 - SPRING BDE-636502-00.A2 636502-00	£1.66	£1.99
38 - SPRING BDE-636502-00.A3 636502-00	£1.66	£1.99
39 - COVER BDE-641929-00.A4 641929-00	£1.66	£1.99
39 - COVER BDE-641929-00.A5 641929-00	£1.66	£1.99
40 - NO LONGER AVAILABLE GB BDE-000000-00.A62184 000000-00	-
40 - RATING PLATE BDE-640920-00 640920-00	-
40 - RATING PLATE BDE-644235-00 644235-00	-
40 - RATING PLATE BDE-644236-00 644236-00	-
40 - NO LONGER AVAILABLE LX BDE-000000-00.A62185 000000-00	-
41 - INNER FLANGE BDE-403150-01.A45 403150-01	£4.83	£5.80
41 - INNER FLANGE BDE-403150-01.A46 403150-01	£4.83	£5.80
42 - OUTER FLANGE BDE-401678-05.A0 401678-05	£4.83	£5.80
42 - OUTER FLANGE BDE-401678-05.A1 401678-05	£4.83	£5.80
43 - SLEEVE INSULATING BDE-609970-00.A47 609970-00	£1.66	£1.99
43 - SLEEVE INSULATING BDE-609970-00.A48 609970-00	£1.66	£1.99
44 - CAP BDE-630553-00.A9 630553-00	£1.66	£1.99
44 - CAP BDE-630553-00.A10 630553-00	£1.66	£1.99
45 - SPRING BDE-638328-00.A11 638328-00	£1.66	£1.99
45 - SPRING BDE-638328-00.A12 638328-00	£1.66	£1.99
46 - RETAINER BDE-635908-00.A9 635908-00	£1.66	£1.99
46 - RETAINER BDE-635908-00.A10 635908-00	£1.66	£1.99
47 - PIN BDE-634589-00.A0 634589-00	£1.88	£2.26
47 - PIN BDE-634589-00.A1 634589-00	£1.88	£2.26
48 - O RING BDE-750831.A19 750831	£1.66	£1.99
48 - O RING BDE-750831.A20 750831	£1.66	£1.99
49 - SLEEVE BEARING BDE-499852-00 499852-00	-
52 - WASHER BDE-640591-00.A31 640591-00	£1.66	£1.99
52 - WASHER BDE-640591-00.A32 640591-00	£1.66	£1.99
53 - SCREW BDE-330045-67.A34 330045-67	£16.52	£19.82
53 - SCREW BDE-330045-67.A35 330045-67	£16.52	£19.82
60 - WRENCH PIN BDE-635261-00.A12 635261-00	£4.83	£5.80
60 - WRENCH PIN BDE-635261-00.A13 635261-00	£4.83	£5.80
61 - GUARD SA BDE-627378-00 627378-00	£19.48	£23.37
61 - GUARD SA BDE-N036839.A0 N036839	£19.48	£23.37
62 - SCREW BDE-330024-23.A15 330024-23	£1.66	£1.99
62 - SCREW BDE-330024-23.A16 330024-23	£1.66	£1.99
63 - SIDE HANDLE BDE-651858-01.A8 651858-01	£7.40	£8.88
63 - SIDE HANDLE BDE-651858-01.A9 651858-01	£7.40	£8.88
70 - TERMINAL BDE-612273-00.A39 612273-00	£1.66	£1.99
70 - TERMINAL BDE-612273-00.A40 612273-00	£1.66	£1.99
71 - TERMINAL BDE-610057-00.A28 610057-00	£1.66	£1.99
71 - TERMINAL BDE-610057-00.A29 610057-00	£1.66	£1.99
73 - TERMINAL BDE-53650-00.A9 53650-00	£1.66	£1.99
800 - GREASE 50 GMS BDE-583534-00.A281 583534-00	£148.42	£178.11
800 - GREASE 50 GMS BDE-583534-00.A282 583534-00	£148.42	£178.11
