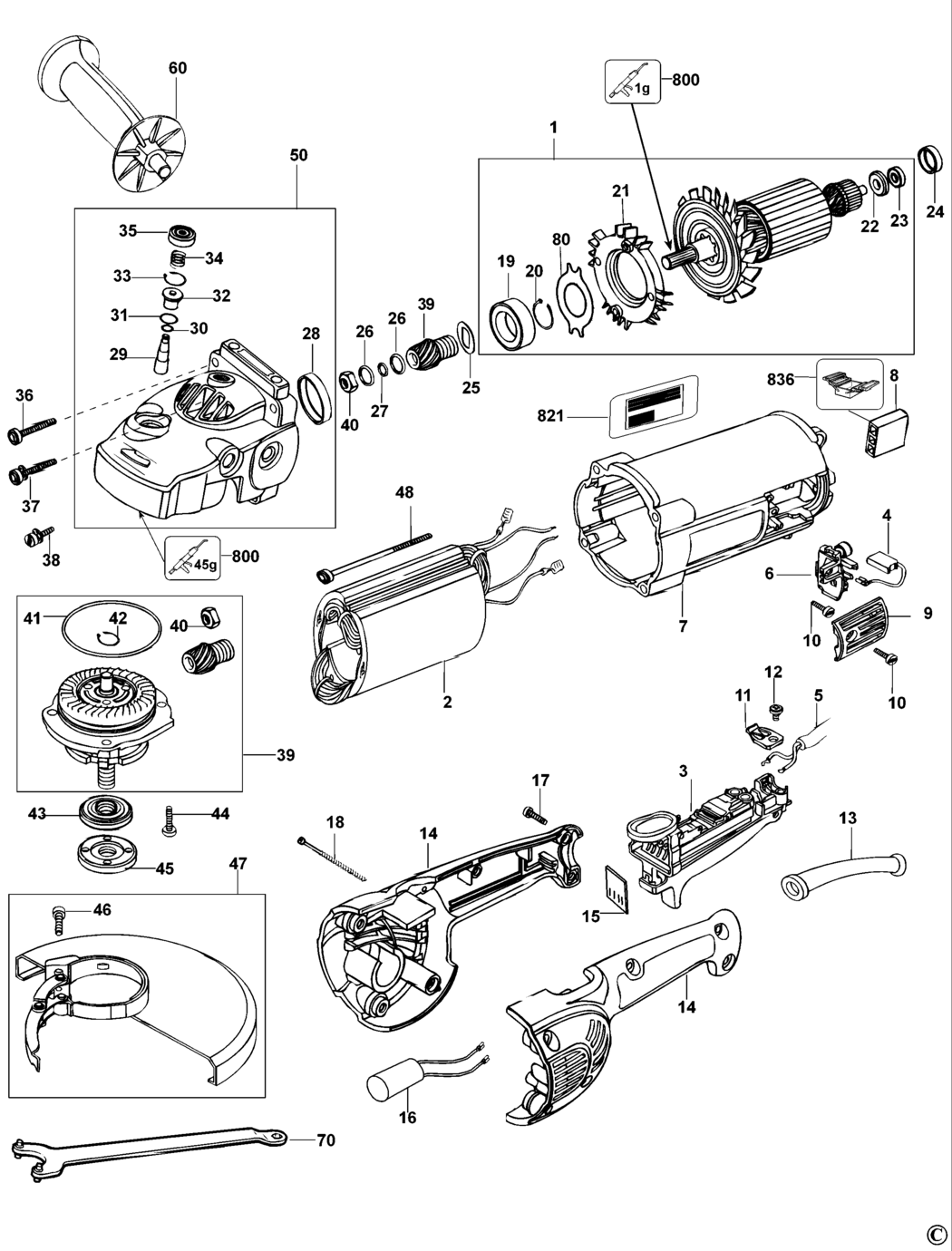

1 - ARMATURE 115V LX
BDE-583530-01.A0
583530-01
|
-
|
|
|
|
1 - ARMATURE 230V GB
BDE-583530-06.A6
583530-06
|
-
|
|
|
|
2 - NO LONGER AVAILABLE LX
BDE-000000-00.A60956
000000-00
|
-
|
|
|
|
2 - FIELD 230V GB
BDE-1005544-05.A8
1005544-05
|
£96.55
|
£115.86
|
|
|
3 - SWITCH SA GB
BDE-393438-00.A8
393438-00
|
£46.49
|
£55.79
|
|
|
3 - SWITCH SA LX
BDE-393438-00.A9
393438-00
|
£46.49
|
£55.79
|
|
|
4 - BRUSH PAIR 230V GB
BDE-585041-00.A12
585041-00
|
£8.08
|
£9.70
|
|
|
4 - BRUSH PAIR 115V LX
BDE-585041-01.A0
585041-01
|
-
|
|
|
|
5 - CABLE 240V GB
BDE-330060-75.A0
330060-75
|
-
|
|
|
|
5 - CABLE 115V LX
BDE-562226-16.A7
562226-16
|
£36.42
|
£43.70
|
|
|
6 - BRUSH HOLDER SA
BDE-617001-00.A23
617001-00
|
£8.08
|
£9.70
|
|
|
7 - FIELD CASE
BDE-393239-01.A37
393239-01
|
£15.01
|
£18.01
|
|
|
8 - CONNECTOR
BDE-604389-00.A24
604389-00
|
£1.66
|
£1.99
|
|
|
9 - BRUSH COVER
BDE-394387-01.A35
394387-01
|
£1.66
|
£1.99
|
|
|
10 - SCREW.TEMP
BDE-330019-11.A77
330019-11
|
£1.66
|
£1.99
|
|
|
11 - CORD CLAMP
BDE-398217-00.A19
398217-00
|
£1.66
|
£1.99
|
|
|
12 - SCREW
BDE-330019-03.A132
330019-03
|
£1.66
|
£1.99
|
|
|
13 - CORD PROTECTOR
BDE-947964-01.A87
947964-01
|
£3.92
|
£4.70
|
|
|
14 - HANDLE SA
BDE-395185-00.A28
395185-00
|
£14.57
|
£17.48
|
|
|
15 - SEAL
BDE-398720-00.A0
398720-00
|
£1.66
|
£1.99
|
|
|
16 - CAPACITOR GB
BDE-397257-01.A14
397257-01
|
£9.69
|
£11.63
|
|
|
16 - NO LONGER AVAILABLE LX
BDE-000000-00.A60957
000000-00
|
-
|
|
|
|
17 - SCREW
BDE-330019-32.A181
330019-32
|
£1.66
|
£1.99
|
|
|
18 - SCREW
BDE-330019-50.A114
330019-50
|
£1.66
|
£1.99
|
|
|
19 - BEARING
BDE-330003-13.A38
330003-13
|
£3.92
|
£4.70
|
|
|
20 - RETAINER
BDE-398605-00.A46
398605-00
|
£1.66
|
£1.99
|
|
|
21 - NO LONGER AVAILABLE
BDE-000000-00.A60958
000000-00
|
-
|
|
|
|
22 - SHIELD
BDE-393238-00.A88
393238-00
|
£1.66
|
£1.99
|
|
|
23 - BEARING
BDE-330003-60.A42
330003-60
|
£2.87
|
£3.44
|
|
|
24 - SLEEVE INSULATING
BDE-609970-00.A52
609970-00
|
£1.66
|
£1.99
|
|
|
25 - WASHER
BDE-608568-00.A9
608568-00
|
£1.66
|
£1.99
|
|
|
26 - WASHER
BDE-607502-00.A36
607502-00
|
£1.66
|
£1.99
|
|
|
27 - WASHER SPRING
BDE-614045-00.A9
614045-00
|
£1.66
|
£1.99
|
|
|
28 - SLEEVE
BDE-609971-00.A27
609971-00
|
£1.66
|
£1.99
|
|
|
29 - REPAIR KIT
BDE-496443-00.A55
496443-00
|
£4.69
|
£5.63
|
|
|
30 - O RING
BDE-603608-00.A22
603608-00
|
£1.66
|
£1.99
|
|
|
31 - RING
BDE-050049-00.A31
050049-00
|
£1.66
|
£1.99
|
|
|
32 - REPAIR KIT
BDE-496443-00.A54
496443-00
|
£4.69
|
£5.63
|
|
|
33 - RETAINER
BDE-603470-00.A20
603470-00
|
£1.66
|
£1.99
|
|
|
34 - SPRING
BDE-395029-00.A24
395029-00
|
£1.66
|
£1.99
|
|
|
35 - CAP
BDE-610999-00.A24
610999-00
|
£1.66
|
£1.99
|
|
|
36 - SCREW
BDE-330019-26.A42
330019-26
|
£1.66
|
£1.99
|
|
|
37 - SCREW
BDE-330045-59.A26
330045-59
|
£1.66
|
£1.99
|
|
|
38 - SCREW
BDE-330045-58.A11
330045-58
|
£1.66
|
£1.99
|
|
|
39 - NO LONGER AVAILABLE
BDE-000000-00.A60959
000000-00
|
-
|
|
|
|
40 - LOCK NUT
BDE-609125-00.A36
609125-00
|
£1.66
|
£1.99
|
|
|
41 - O RING
BDE-397031-00.A4
397031-00
|
£1.66
|
£1.99
|
|
|
42 - RETAINER
BDE-034109-00.A14
034109-00
|
£1.66
|
£1.99
|
|
|
43 - INNER FLANGE
BDE-403150-01.A50
403150-01
|
£4.83
|
£5.80
|
|
|
44 - SCREW
BDE-330045-15.A154
330045-15
|
£1.66
|
£1.99
|
|
|
45 - OUTER FLANGE
BDE-401678-05.A5
401678-05
|
£4.83
|
£5.80
|
|
|
46 - SCREW
BDE-606863-00.A28
606863-00
|
£1.66
|
£1.99
|
|
|
47 - GUARD
BDE-N037746.A0
N037746
|
£12.53
|
£15.04
|
|
|
48 - SCREW
BDE-330019-19.A95
330019-19
|
£1.66
|
£1.99
|
|
|
50 - GEARCASE
BDE-N075439.A21
N075439
|
£53.92
|
£64.70
|
|
|
60 - SIDE HANDLE
BDE-613777-00.A34
613777-00
|
£26.47
|
£31.76
|
|
|
70 - WRENCH PIN
BDE-938733.A43
938733
|
£7.40
|
£8.88
|
|
|
80 - INSERT
BDE-613366-00.A0
613366-00
|
£1.66
|
£1.99
|
|
|
800 - GREASE 50 GMS
BDE-583534-00.A283
583534-00
|
£148.42
|
£178.11
|
|
|
836 - S.T.TERMINAL EXTRACTOR
BDE-559638-99.A29
559638-99
|
£53.46
|
£64.15
|
|
