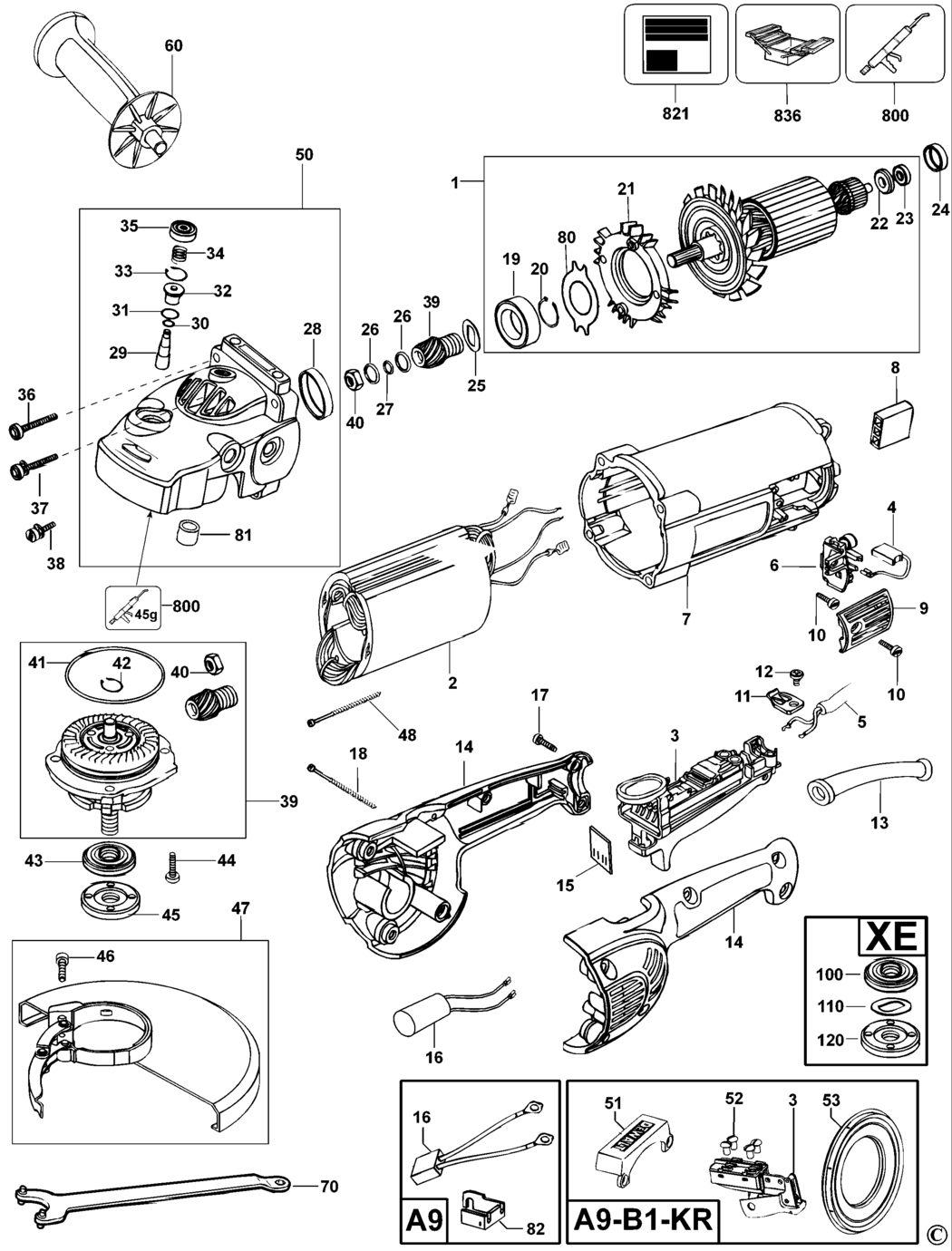

1 - ARMATURE 115V LX
BDE-583530-01.A2
583530-01
|
-
|
|
|
|
1 - ARMATURE 230V GB
BDE-583530-06.A2
583530-06
|
-
|
|
|
|
2 - NO LONGER AVAILABLE LX
BDE-000000-00.A25136
000000-00
|
-
|
|
|
|
2 - FIELD 230V GB
BDE-1005544-05.A2
1005544-05
|
£96.55
|
£115.86
|
|
|
3 - SWITCH SA LX
BDE-393438-00.A2
393438-00
|
£46.49
|
£55.79
|
|
|
3 - SWITCH SA GB
BDE-393438-00.A3
393438-00
|
£46.49
|
£55.79
|
|
|
4 - BRUSH PAIR 230V GB
BDE-585041-00.A7
585041-00
|
£8.08
|
£9.70
|
|
|
4 - BRUSH PAIR 115V LX
BDE-585041-01.A4
585041-01
|
-
|
|
|
|
5 - CABLE 115V LX
BDE-562226-16.A5
562226-16
|
£36.42
|
£43.70
|
|
|
5 - CABLE 240V GB
BDE-330060-75.A10
330060-75
|
-
|
|
|
|
6 - BRUSH HOLDER SA
BDE-617001-00.A10
617001-00
|
£8.08
|
£9.70
|
|
|
7 - FIELD CASE GB
BDE-393239-01.A26
393239-01
|
£15.01
|
£18.01
|
|
|
7 - FIELD CASE LX
BDE-393239-01.A27
393239-01
|
£15.01
|
£18.01
|
|
|
9 - BRUSH COVER LX
BDE-394387-01.A61
394387-01
|
£1.66
|
£1.99
|
|
|
9 - BRUSH COVER GB
BDE-394387-01.A62
394387-01
|
£1.66
|
£1.99
|
|
|
11 - CORD CLAMP GB
BDE-398217-00.A31
398217-00
|
£1.66
|
£1.99
|
|
|
11 - CORD CLAMP LX
BDE-398217-00.A32
398217-00
|
£1.66
|
£1.99
|
|
|
12 - SCREW GB
BDE-330019-03.A46
330019-03
|
£1.66
|
£1.99
|
|
|
12 - SCREW LX
BDE-330019-03.A47
330019-03
|
£1.66
|
£1.99
|
|
|
13 - CORD PROTECTOR LX
BDE-947964-01.A45
947964-01
|
£3.92
|
£4.70
|
|
|
13 - CORD PROTECTOR GB
BDE-947964-01.A46
947964-01
|
£3.92
|
£4.70
|
|
|
14 - HANDLE SA LX
BDE-395185-00.A16
395185-00
|
£14.57
|
£17.48
|
|
|
14 - HANDLE SA GB
BDE-395185-00.A17
395185-00
|
£14.57
|
£17.48
|
|
|
16 - NO LONGER AVAILABLE LX
BDE-000000-00.A25138
000000-00
|
-
|
|
|
|
16 - CAPACITOR GB
BDE-397257-01.A6
397257-01
|
£9.69
|
£11.63
|
|
|
17 - SCREW
BDE-330019-32.A98
330019-32
|
£1.66
|
£1.99
|
|
|
18 - SCREW LX
BDE-330019-50.A63
330019-50
|
£1.66
|
£1.99
|
|
|
18 - SCREW GB
BDE-330019-50.A64
330019-50
|
£1.66
|
£1.99
|
|
|
19 - BEARING
BDE-330003-13.A25
330003-13
|
£3.92
|
£4.70
|
|
|
20 - RETAINER
BDE-398605-00.A18
398605-00
|
£1.66
|
£1.99
|
|
|
21 - NO LONGER AVAILABLE GB
BDE-000000-00.A25139
000000-00
|
-
|
|
|
|
21 - NO LONGER AVAILABLE LX
BDE-000000-00.A25140
000000-00
|
-
|
|
|
|
22 - SHIELD
BDE-393238-00.A46
393238-00
|
£1.66
|
£1.99
|
|
|
23 - BEARING
BDE-330003-60.A56
330003-60
|
£2.87
|
£3.44
|
|
|
24 - SLEEVE INSULATING
BDE-609970-00.A68
609970-00
|
£1.66
|
£1.99
|
|
|
25 - WASHER
BDE-608568-00.A28
608568-00
|
£1.66
|
£1.99
|
|
|
26 - WASHER
BDE-607502-00.A25
607502-00
|
£1.66
|
£1.99
|
|
|
27 - WASHER SPRING
BDE-614045-00.A22
614045-00
|
£1.66
|
£1.99
|
|
|
28 - SLEEVE
BDE-609971-00.A22
609971-00
|
£1.66
|
£1.99
|
|
|
29 - REPAIR KIT
BDE-496443-00.A22
496443-00
|
£4.69
|
£5.63
|
|
|
30 - O RING
BDE-603608-00.A5
603608-00
|
£1.66
|
£1.99
|
|
|
31 - RING
BDE-050049-00.A2
050049-00
|
£1.66
|
£1.99
|
|
|
32 - REPAIR KIT
BDE-496443-00.A21
496443-00
|
£4.69
|
£5.63
|
|
|
33 - RETAINER
BDE-603470-00.A27
603470-00
|
£1.66
|
£1.99
|
|
|
34 - SPRING
BDE-395029-00.A15
395029-00
|
£1.66
|
£1.99
|
|
|
35 - CAP
BDE-610999-00.A16
610999-00
|
£1.66
|
£1.99
|
|
|
36 - SCREW
BDE-330019-26.A19
330019-26
|
£1.66
|
£1.99
|
|
|
37 - SCREW
BDE-330045-59.A17
330045-59
|
£1.66
|
£1.99
|
|
|
38 - SCREW
BDE-330045-58.A21
330045-58
|
£1.66
|
£1.99
|
|
|
39 - GEARCASE COVER SA
BDE-583532-00.A11
583532-00
|
-
|
|
|
|
40 - LOCK NUT
BDE-609125-00.A12
609125-00
|
£1.66
|
£1.99
|
|
|
41 - O RING
BDE-397031-00.A50
397031-00
|
£1.66
|
£1.99
|
|
|
43 - INNER FLANGE LX
BDE-403150-01.A9
403150-01
|
£4.83
|
£5.80
|
|
|
43 - INNER FLANGE GB
BDE-403150-01.A10
403150-01
|
£4.83
|
£5.80
|
|
|
44 - SCREW
BDE-330045-15.A70
330045-15
|
£1.66
|
£1.99
|
|
|
45 - OUTER FLANGE LX
BDE-401678-05.A34
401678-05
|
£4.83
|
£5.80
|
|
|
45 - OUTER FLANGE GB
BDE-401678-05.A35
401678-05
|
£4.83
|
£5.80
|
|
|
46 - SCREW
BDE-606863-00.A34
606863-00
|
£1.66
|
£1.99
|
|
|
47 - GUARD SA
BDE-N036837.A15
N036837
|
£20.50
|
£24.60
|
|
|
48 - SCREW
BDE-330019-19.A39
330019-19
|
£1.66
|
£1.99
|
|
|
50 - GEARCASE LX
BDE-N075439.A15
N075439
|
£53.92
|
£64.70
|
|
|
50 - GEARCASE GB
BDE-N075439.A16
N075439
|
£53.92
|
£64.70
|
|
|
60 - SIDE HANDLE GB
BDE-613777-00.A13
613777-00
|
£26.47
|
£31.76
|
|
|
60 - SIDE HANDLE LX
BDE-613777-00.A14
613777-00
|
£26.47
|
£31.76
|
|
|
70 - WRENCH PIN
BDE-938733.A91
938733
|
£7.40
|
£8.88
|
|
|
80 - INSERT
BDE-613366-00.A13
613366-00
|
£1.66
|
£1.99
|
|
|
81 - BEARING NEEDLE
BDE-330004-06.A28
330004-06
|
£1.66
|
£1.99
|
|
|
800 - GREASE 50 GMS
BDE-583534-00.A179
583534-00
|
£148.42
|
£178.11
|
|
|
821 - NO LONGER AVAILABLE GB
BDE-000000-00.A25141
000000-00
|
-
|
|
|
|
821 - NO LONGER AVAILABLE LX
BDE-000000-00.A25142
000000-00
|
-
|
|
|
|
836 - S.T.TERMINAL EXTRACTOR
BDE-559638-99.A1
559638-99
|
£53.46
|
£64.15
|
|
