Dewalt D28413 Type 4 Angle Grinder Spare Parts

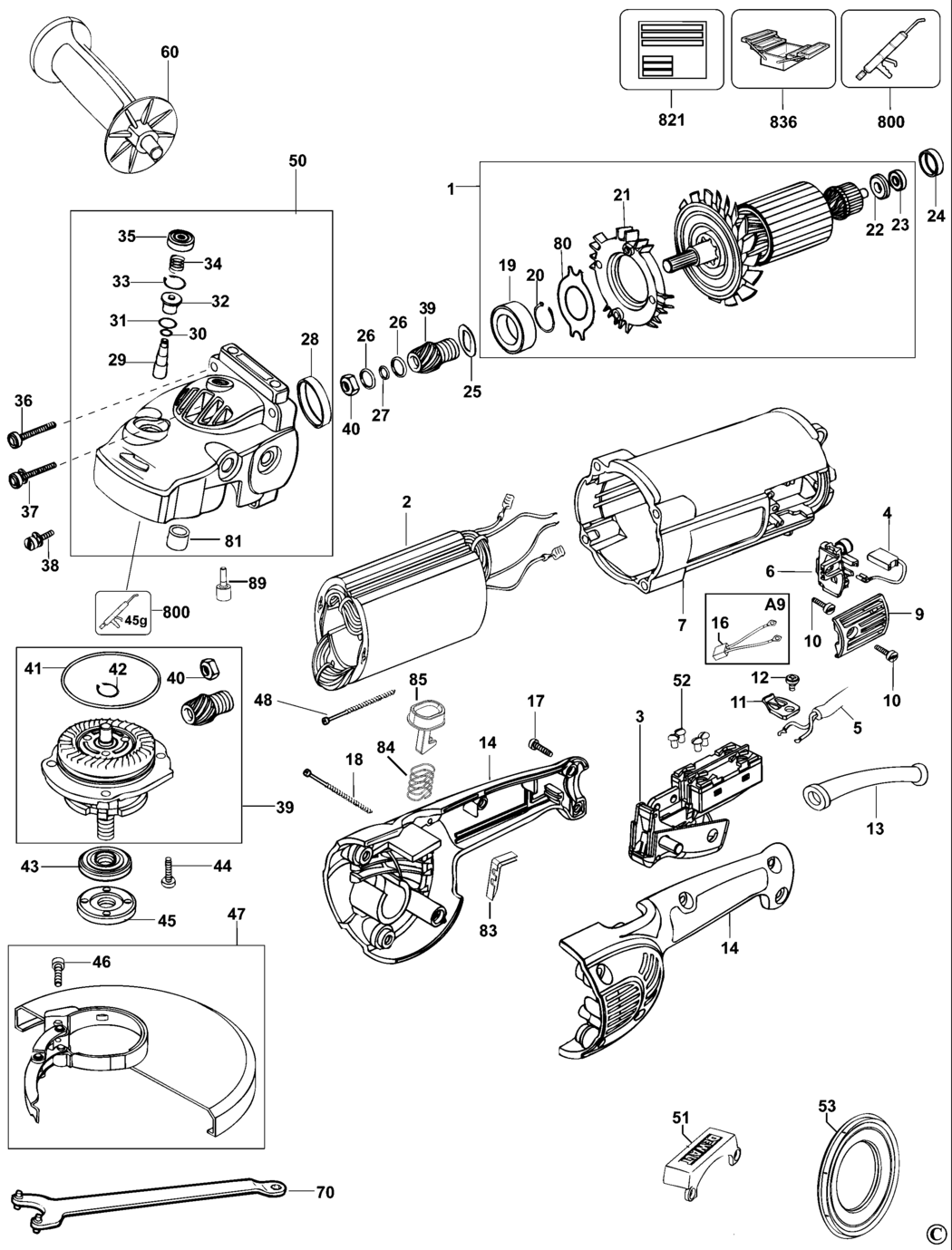

An exploded drawing and spare parts listing for the Dewalt D28413 Type 4 Angle Grinder

	Ex VAT	Inc VAT
3 - SWITCH SA BDE-N035342.A1 N035342	£12.17	£14.60
3 - SWITCH SA BDE-N015071.A4 N015071	£14.57	£17.48
4 - BRUSH KIT 230V BDE-N495294.A2 N495294	-
6 - BRUSH HOLDER SA BDE-617001-00.A25 617001-00	£7.85	£9.42
6 - BRUSH HOLDER SA BDE-617001-00.A26 617001-00	£7.85	£9.42
6 - CORD CLAMP BDE-604119-00.A33 604119-00	£1.66	£1.99
7 - FIELD CASE BDE-393239-00.A3 393239-00	£18.91	£22.69
9 - BRUSH COVER BDE-394387-00.A8 394387-00	£1.66	£1.99
10 - SCREW.TEMP BDE-330019-11.A67 330019-11	£1.66	£1.99
11 - CORD CLAMP BDE-604119-00.A34 604119-00	£1.66	£1.99
12 - SCREW.TEMP BDE-330019-11.A68 330019-11	£1.66	£1.99
14 - HANDLE & COVER BDE-636499-00.A25 636499-00	£24.39	£29.27
17 - SCREW BDE-330019-32.A170 330019-32	£1.66	£1.99
17 - SCREW BDE-330019-32.A171 330019-32	£1.66	£1.99
18 - SCREW BDE-330019-50.A104 330019-50	£1.66	£1.99
19 - BEARING BDE-605040-27.A7 605040-27	£4.69	£5.63
19 - BEARING BDE-605040-27.A8 605040-27	£4.69	£5.63
20 - RETAINER BDE-398605-00.A50 398605-00	£1.66	£1.99
20 - RETAINER BDE-398605-00.A51 398605-00	£1.66	£1.99
21 - SPACER BDE-614708-00.A3 614708-00	£5.72	£6.87
22 - SHIELD BDE-393238-00.A78 393238-00	£1.66	£1.99
22 - SHIELD BDE-393238-00.A79 393238-00	£1.66	£1.99
23 - BEARING BDE-N110359.A143 N110359	£3.75	£4.50
23 - BEARING BDE-N110359.A144 N110359	£3.75	£4.50
24 - SLEEVE INSULATING BDE-609970-00.A43 609970-00	£1.66	£1.99
24 - SLEEVE INSULATING BDE-609970-00.A44 609970-00	£1.66	£1.99
25 - WASHER BDE-608568-00.A0 608568-00	£1.66	£1.99
25 - WASHER BDE-608568-00.A1 608568-00	£1.66	£1.99
26 - WASHER BDE-607502-00.A41 607502-00	£1.66	£1.99
26 - WASHER BDE-607502-00.A42 607502-00	£1.66	£1.99
27 - WASHER SPRING BDE-614045-00.A6 614045-00	£1.66	£1.99
27 - WASHER SPRING BDE-614045-00.A7 614045-00	£1.66	£1.99
28 - SLEEVE BDE-609971-00.A31 609971-00	£1.66	£1.99
28 - SLEEVE BDE-609971-00.A32 609971-00	£1.66	£1.99
29 - REPAIR KIT BDE-496443-00.A46 496443-00	£4.69	£5.63
29 - LOCK PIN BDE-611212-00.A5 611212-00	£1.82	£2.19
30 - O RING BDE-603608-00.A20 603608-00	£1.66	£1.99
30 - O RING BDE-603608-00.A21 603608-00	£1.66	£1.99
31 - RING BDE-050049-00.A39 050049-00	£1.66	£1.99
31 - RING BDE-050049-00.A40 050049-00	£1.66	£1.99
32 - SLEEVE BDE-611213-00.A2 611213-00	£4.69	£5.63
32 - REPAIR KIT BDE-496443-00.A45 496443-00	£4.69	£5.63
33 - RETAINER BDE-603470-00.A14 603470-00	£1.66	£1.99
33 - RETAINER BDE-603470-00.A15 603470-00	£1.66	£1.99
34 - SPRING BDE-395029-00.A29 395029-00	£1.66	£1.99
34 - SPRING BDE-395029-00.A30 395029-00	£1.66	£1.99
35 - CAP BDE-610999-00.A29 610999-00	£1.66	£1.99
35 - CAP BDE-610999-00.A30 610999-00	£1.66	£1.99
36 - SCREW BDE-330019-26.A36 330019-26	£1.66	£1.99
36 - SCREW BDE-330019-26.A37 330019-26	£1.66	£1.99
37 - SCREW BDE-330045-70.A1 330045-70	-
38 - SCREW BDE-330045-67.A31 330045-67	£16.03	£19.24
39 - NO LONGER AVAILABLE BDE-000000-00.A63494 000000-00	-
40 - LOCK NUT BDE-609125-00.A45 609125-00	£1.66	£1.99
40 - LOCK NUT BDE-609125-00.A46 609125-00	£1.66	£1.99
41 - O RING BDE-397031-00.A9 397031-00	£1.66	£1.99
41 - O RING BDE-397031-00.A10 397031-00	£1.66	£1.99
42 - RETAINER BDE-034109-00.A4 034109-00	£1.66	£1.99
42 - RETAINER BDE-034109-00.A5 034109-00	£1.66	£1.99
43 - INNER FLANGE BDE-403150-01.A40 403150-01	£4.69	£5.63
43 - INNER FLANGE BDE-403150-01.A41 403150-01	£4.69	£5.63
44 - SCREW BDE-330045-14.A8 330045-14	£1.66	£1.99
44 - SCREW BDE-330045-15.A168 330045-15	£1.66	£1.99
45 - OUTER FLANGE BDE-401678-05.A16 401678-05	£4.69	£5.63
45 - OUTER FLANGE BDE-401678-05.A17 401678-05	£4.69	£5.63
46 - SCREW BDE-606863-00.A22 606863-00	£1.66	£1.99
46 - SCREW BDE-606863-00.A23 606863-00	£1.66	£1.99
47 - GUARD SA BDE-N036831.A0 N036831	£17.48	£20.97
48 - SCREW BDE-330019-19.A81 330019-19	£1.66	£1.99
48 - SCREW BDE-330019-19.A82 330019-19	£1.66	£1.99
51 - BUMPER BDE-620579-00.A1 620579-00	£5.72	£6.87
52 - SCREW BDE-384127-01.A75 384127-01	£1.66	£1.99
53 - BAFFLE BDE-614542-00.A22 614542-00	£1.66	£1.99
53 - BAFFLE BDE-614542-00.A23 614542-00	£1.66	£1.99
60 - SIDE HANDLE BDE-651858-00.A1 651858-00	-
70 - WRENCH PIN BDE-938733.A36 938733	£7.18	£8.62
70 - WRENCH PIN BDE-938733.A37 938733	£7.18	£8.62
80 - INSERT BDE-613366-00.A8 613366-00	£1.66	£1.99
80 - INSERT BDE-613366-00.A9 613366-00	£1.66	£1.99
81 - BEARING NEEDLE BDE-330004-06.A1 330004-06	£1.66	£1.99
81 - BEARING NEEDLE BDE-330004-06.A2 330004-06	£1.66	£1.99
83 - COVER BDE-641929-00.A9 641929-00	£1.66	£1.99
84 - SPRING BDE-636502-00.A4 636502-00	£1.66	£1.99
85 - BUTTON LOCK-OFF BDE-636503-00.A32 636503-00	£1.66	£1.99
89 - SCREW BDE-N033051.A46 N033051	£1.66	£1.99
800 - GREASE 50 GMS BDE-583534-00.A271 583534-00	£144.10	£172.92
800 - GREASE 50 GMS BDE-583534-00.A272 583534-00	£144.10	£172.92
836 - S.T.TERMINAL EXTRACTOR BDE-559638-99.A33 559638-99	£24.39	£29.27
836 - S.T.TERMINAL EXTRACTOR BDE-559638-99.A34 559638-99	£24.39	£29.27

Attribute Name	Value
Brand	Dewalt
