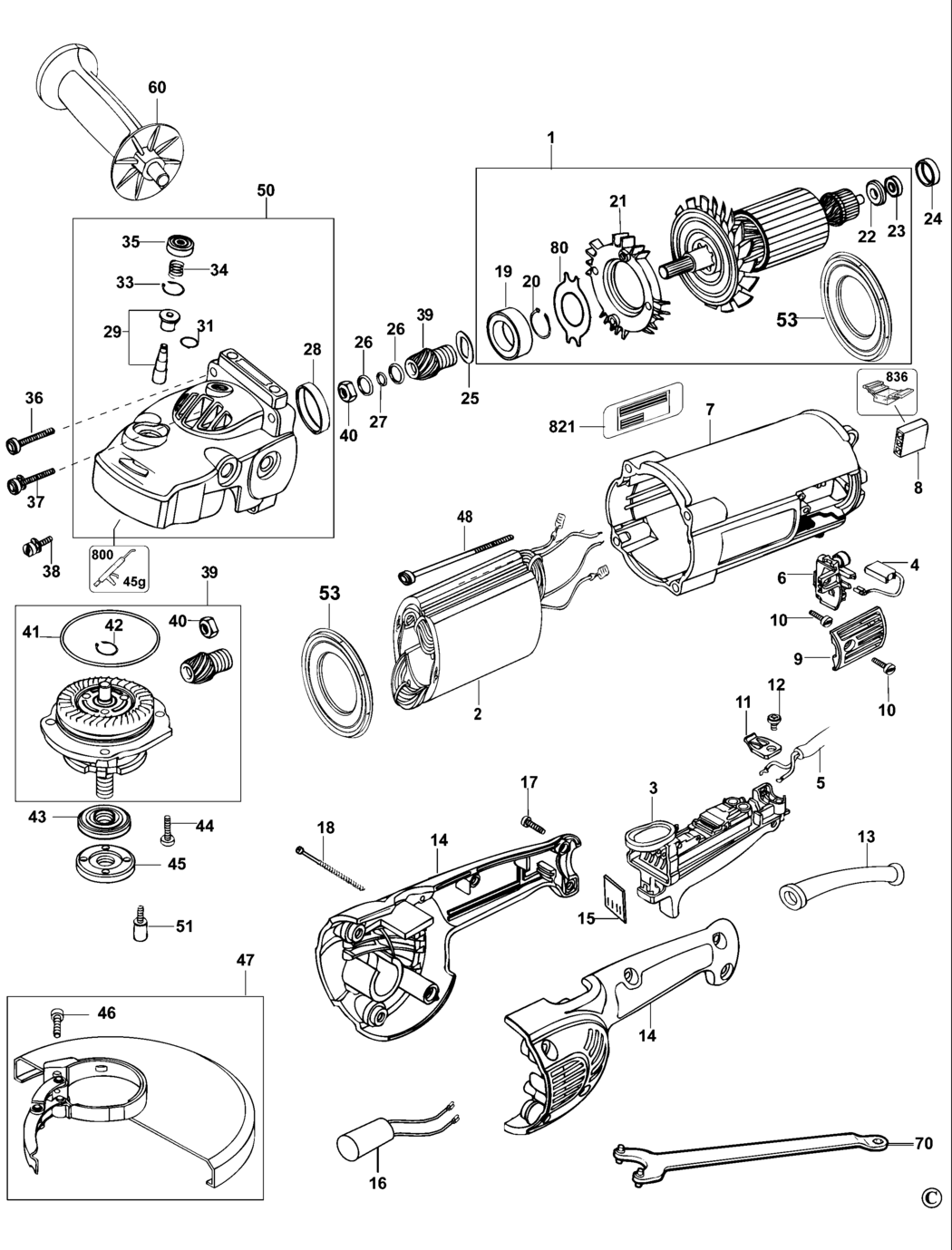

An exploded drawing and spare parts listing for the Dewalt D28400 Type 3 Angle Grinder
Ex VAT Inc VAT
1 - ARMATURE 230V BDE-583530-06.A11 583530-06 -
2 - FIELD 230V BDE-1005544-05.A11 1005544-05 £96.55 £115.86
6 - BRUSH HOLDER SA BDE-629976-00.A4 629976-00 £5.88 £7.06
7 - FIELD CASE BDE-393239-01.A51 393239-01 £14.57 £17.48
8 - CONNECTOR BDE-604389-00.A25 604389-00 £1.50 £1.80
9 - BRUSH COVER BDE-394387-01.A37 394387-01 £1.50 £1.80
10 - SCREW.TEMP BDE-330019-11.A46 330019-11 £1.50 £1.80
11 - CORD CLAMP BDE-398217-00.A21 398217-00 £1.50 £1.80
12 - SCREW BDE-330019-03.A167 330019-03 £1.50 £1.80
13 - CORD PROTECTOR BDE-947964-01.A96 947964-01 £3.80 £4.56
14 - HANDLE SA BDE-395185-00.A26 395185-00 £14.57 £17.48
15 - SEAL BDE-398720-00.A7 398720-00 £1.42 £1.70
16 - CAPACITOR BDE-397257-01.A15 397257-01 £9.41 £11.29
17 - SCREW BDE-330019-32.A146 330019-32 £1.50 £1.80
18 - SCREW BDE-330019-50.A98 330019-50 £1.50 £1.80
19 - BEARING BDE-330003-13.A29 330003-13 £3.80 £4.56
20 - RETAINER BDE-398605-00.A58 398605-00 £1.50 £1.80
21 - SPACER BDE-614708-00.A7 614708-00 £5.72 £6.87
22 - SHIELD BDE-393238-00.A92 393238-00 £1.50 £1.80
23 - BEARING BDE-330003-60.A5 330003-60 £2.78 £3.34
24 - SLEEVE INSULATING BDE-609970-00.A57 609970-00 £1.50 £1.80
25 - WASHER BDE-608568-00.A13 608568-00 £1.42 £1.70
26 - WASHER BDE-607502-00.A48 607502-00 £1.50 £1.80
27 - WASHER SPRING BDE-614045-00.A13 614045-00 £1.42 £1.70
28 - SLEEVE BDE-609971-00.A25 609971-00 £1.50 £1.80
29 - REPAIR KIT BDE-496443-00.A58 496443-00 £4.69 £5.63
31 - RING BDE-050049-00.A27 050049-00 £1.50 £1.80
33 - RETAINER BDE-603470-00.A23 603470-00 £1.50 £1.80
34 - SPRING BDE-395029-00.A35 395029-00 £1.50 £1.80
35 - CAP BDE-610999-00.A35 610999-00 £1.50 £1.80
36 - SCREW BDE-330019-26.A50 330019-26 £1.50 £1.80
37 - SCREW BDE-330045-59.A28 330045-59 £1.42 £1.70
38 - SCREW BDE-330045-58.A10 330045-58 £1.42 £1.70
39 - GEARCASE COVER SA BDE-N075444.A7 N075444 £69.63 £83.56
40 - LOCK NUT BDE-609125-00.A47 609125-00 £1.42 £1.70
41 - O RING BDE-397031-00.A15 397031-00 £1.50 £1.80
42 - RETAINER BDE-034109-00.A3 034109-00 £1.42 £1.70
43 - INNER FLANGE BDE-403150-01.A62 403150-01 £4.69 £5.63
44 - SCREW BDE-330045-15.A128 330045-15 £1.50 £1.80
45 - OUTER FLANGE BDE-401678-05.A22 401678-05 £4.69 £5.63
46 - SCREW BDE-606863-00.A29 606863-00 £1.50 £1.80
47 - GUARD SA BDE-N036837.A11 N036837 £19.90 £23.88
48 - SCREW BDE-330019-19.A53 330019-19 £1.50 £1.80
50 - GEARCASE BDE-N075439.A20 N075439 £53.92 £64.70
51 - SCREW BDE-N033051.A47 N033051 £1.50 £1.80
53 - BAFFLE BDE-614542-00.A31 614542-00 £1.50 £1.80
60 - SIDE HANDLE BDE-577401-00.A1 577401-00 £9.17 £11.00
70 - WRENCH PIN BDE-938733.A45 938733 £7.18 £8.62
80 - INSERT BDE-613366-00.A11 613366-00 £1.42 £1.70
800 - GREASE 50 GMS BDE-583534-00.A290 583534-00 £144.10 £172.92
836 - S.T.TERMINAL EXTRACTOR BDE-559638-99.A42 559638-99 £24.39 £29.27
