Dewalt D27902M Type 1 Vacuum Extractor Spare Parts

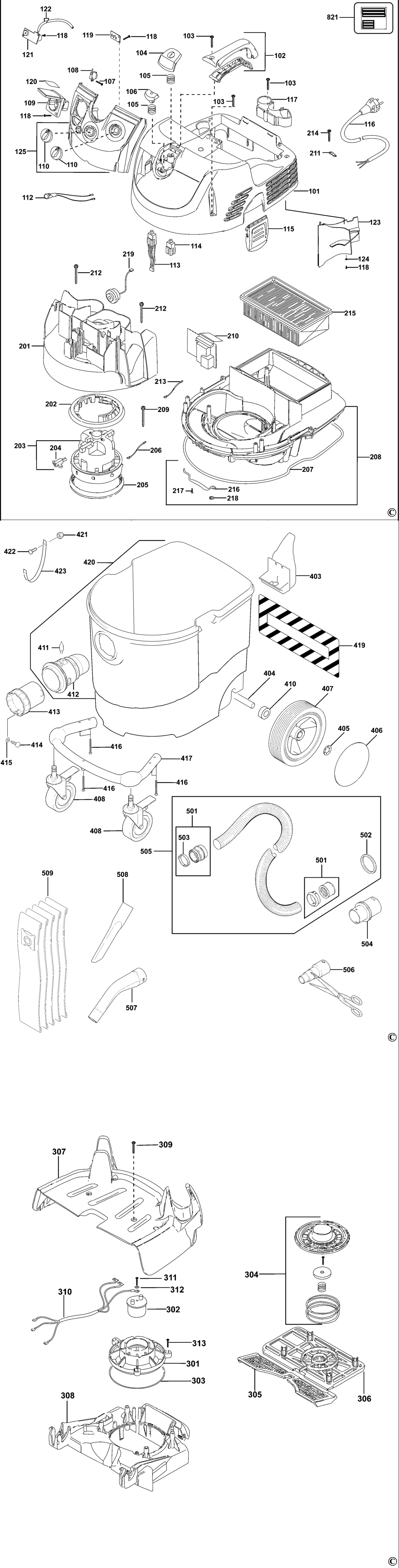

An exploded drawing and spare parts listing for the Dewalt D27902M Type 1 Vacuum Extractor

	Ex VAT	Inc VAT
101 - COVER SA BDE-1003241-00.A1 1003241-00	£105.49	£126.59
102 - HANDLE SA BDE-1003242-00.A0 1003242-00	£18.42	£22.10
103 - SCREW BDE-1003286-00.A1 1003286-00	£1.66	£1.99
104 - BUTTON BDE-1003259-00.A1 1003259-00	£7.01	£8.41
105 - SPRING BDE-1003262-00.A1 1003262-00	£7.18	£8.62
106 - BUTTON BDE-1003260-00.A0 1003260-00	£7.64	£9.17
107 - SCREW BDE-597071-00.A1 597071-00	£1.66	£1.99
108 - MICRO SWITCH BDE-597078-00.A2 597078-00	£16.03	£19.24
109 - SOCKET BDE-597076-00 597076-00	£50.60	£60.72
109 - SOCKET BDE-597077-00.A0 597077-00	£85.60	£102.72
110 - KNOB BDE-1003258-00.A1 1003258-00	£3.22	£3.86
112 - LAMPHOLDER SA BDE-597075-00.A1 597075-00	£11.87	£14.24
113 - SWITCH BDE-1003273-00.A1 1003273-00	£24.39	£29.27
114 - SWITCH BDE-597064-00.A2 597064-00	-
115 - RETAINER BDE-1003250-00.A1 1003250-00	£7.01	£8.41
116 - CORDSET (M/PLUG) QS BDE-1003279-00 1003279-00	£87.82	£105.39
116 - CORDSET (M/PLUG) GB BDE-1003280-00.A0 1003280-00	£123.43	£148.12
116 - CORDSET (M/PLUG) BDE-1003275-00.A0 1003275-00	£69.63	£83.56
117 - BRACKET BDE-597070-00.A1 597070-00	£7.64	£9.17
118 - SCREW BDE-597081-00.A2 597081-00	£1.66	£1.99
119 - ELECTRONIC BDE-1003246-00.A0 1003246-00	£63.87	£76.64
120 - IDENTITY LABEL BDE-597080-00.A0 597080-00	£7.64	£9.17
120 - IDENTITY LABEL BDE-597079-00 597079-00	£7.64	£9.17
121 - SWITCH BDE-1004555-03 1004555-03	£204.32	£245.18
122 - CABLE BDE-1004555-12 1004555-12	£7.01	£8.41
123 - FLAP BDE-1004555-07 1004555-07	£11.87	£14.24
124 - WASHER BDE-1004555-18 1004555-18	£1.66	£1.99
125 - PANEL BDE-1004555-04 1004555-04	£105.49	£126.59
201 - HOUSING BDE-1003243-00.A1 1003243-00	£131.95	£158.34
201 - MOTOR COVER BDE-1004555-02 1004555-02	£170.23	£204.28
202 - SEAL BDE-1003264-00.A0 1003264-00	£12.17	£14.60
203 - MOTOR SA 230V BDE-1003270-00.A0 1003270-00	£218.32	£261.98
203 - MOTOR SA 120V BDE-1003271-00.A1 1003271-00	£293.97	£352.76
204 - BRUSH PAIR 230V BDE-1003272-00.A0 1003272-00	£18.91	£22.69
204 - BRUSH PAIR 115V BDE-1003360-00.A1 1003360-00	£18.42	£22.10
205 - SEAL BDE-1003265-00.A1 1003265-00	£9.41	£11.29
206 - LEADWIRE BDE-1003277-00.A0 1003277-00	£1.66	£1.99
206 - LEADWIRE BDE-1003281-00.A1 1003281-00	£10.57	£12.68
207 - RUBBER SEAL BDE-1003266-00.A0 1003266-00	£11.87	£14.24
208 - COVER BDE-1004555-00 1004555-00	£161.75	£194.10
209 - INSERT BDE-1003256-00.A1 1003256-00	£7.01	£8.41
210 - ELECTRONIC 230V BDE-1003244-00.A0 1003244-00	£293.97	£352.76
210 - ELECTRONIC 120V BDE-1003247-00.A1 1003247-00	£293.97	£352.76
211 - NO LONGER AVAILABLE BDE-000000-00.A63684 000000-00	-
212 - SCREW BDE-1003287-00.A1 1003287-00	£1.66	£1.99
213 - LEADWIRE BDE-1003278-00.A1 1003278-00	£1.66	£1.99
214 - SCREW BDE-1003289-00.A1 1003289-00	£1.66	£1.99
215 - FILTER BDE-1003284-00.A0 1003284-00	-
216 - SPRING BDE-1003261-00.A1 1003261-00	£15.63	£18.76
217 - SCREW BDE-597105-00.A1 597105-00	£1.66	£1.99
218 - NUT BDE-1003268-00.A0 1003268-00	£1.66	£1.99
219 - SPEAKER BDE-1004555-13 1004555-13	£25.05	£30.06
301 - HOLDER BDE-1003252-00.A1 1003252-00	£14.19	£17.03
302 - MAGNET BDE-1003282-00.A0 1003282-00	£84.42	£101.30
302 - MAGNET BDE-1003283-00.A1 1003283-00	£82.30	£98.76
303 - O RING BDE-1003269-00.A1 1003269-00	£4.58	£5.49
304 - VALVE BDE-1003239-00.A1 1003239-00	£87.82	£105.39
305 - SEAL BDE-1003263-00.A1 1003263-00	£18.91	£22.69
306 - SPRING GUIDE BDE-1003251-00.A0 1003251-00	£15.63	£18.76
307 - COVER-TOP BDE-1003253-00.A0 1003253-00	£37.82	£45.38
308 - COVER BDE-1003254-00.A1 1003254-00	£29.32	£35.18
309 - SCREW BDE-1003290-00.A0 1003290-00	£2.71	£3.25
310 - SET OF LEAD WIRES BDE-1003276-00.A1 1003276-00	£18.42	£22.10
311 - SCREW BDE-1003285-00.A1 1003285-00	£1.66	£1.99
312 - WASHER BDE-1003291-00.A1 1003291-00	£1.66	£1.99
313 - SCREW BDE-1003288-00.A0 1003288-00	£1.66	£1.99
403 - BRACKET BDE-597112-00.A1 597112-00	£7.64	£9.17
404 - AXLE BDE-1003255-00.A0 1003255-00	£11.87	£14.24
405 - RETAINER BDE-1003267-00.A2 1003267-00	£1.66	£1.99
406 - END CAP BDE-597115-00.A1 597115-00	£9.17	£11.00
407 - WHEEL BDE-597116-00.A1 597116-00	£23.75	£28.50
408 - CASTOR BDE-597117-00.A1 597117-00	£59.41	£71.29
410 - SPACER BDE-1003257-00.A0 1003257-00	£4.58	£5.49
411 - CLIP BDE-1004555-09 1004555-09	£3.70	£4.44
412 - SOCKET BDE-1004555-06 1004555-06	£33.13	£39.76
413 - OUTLET BDE-1004555-11 1004555-11	£44.00	£52.80
414 - SCREW BDE-1004555-14.A0 1004555-14	£1.66	£1.99
415 - SCREW BDE-1004555-19 1004555-19	£1.66	£1.99
416 - SCREW BDE-1004555-15.A0 1004555-15	£1.66	£1.99
417 - FRAME BDE-1004555-08 1004555-08	£59.41	£71.29
419 - LABEL BDE-1004555-10 1004555-10	£9.17	£11.00
420 - TANK BDE-1004555-01 1004555-01	£238.94	£286.73
421 - SCREW BDE-1004555-17 1004555-17	£1.66	£1.99
422 - SCREW BDE-1004555-16 1004555-16	-
423 - STRAP BDE-1004555-05 1004555-05	£9.17	£11.00
501 - SERVICE KIT BDE-597119-00.A2 597119-00	£47.08	£56.49
502 - SEAL BDE-597122-00.A1 597122-00	£4.58	£5.49
503 - RING BDE-597120-00.A1 597120-00	£1.66	£1.99
504 - CONNECTOR BDE-597127-00.A2 597127-00	£25.70	£30.84
505 - HOSE SA BDE-597121-00.A2 597121-00	£76.16	£91.39
506 - ADAPTOR BDE-597124-00.A2 597124-00	£24.39	£29.27
507 - TOOL GEN PURPOSE BDE-597128-00.A1 597128-00	£18.91	£22.69
508 - TOOL CREVICE BDE-597125-00.A1 597125-00	£9.41	£11.29
509 - BAG FILTER BDE-1003245-00.A1 1003245-00	£55.30	£66.36

Attribute Name	Value
Brand	Dewalt
