Dewalt D27111 Type 2 Crosscut Mitre Saw Spare Parts

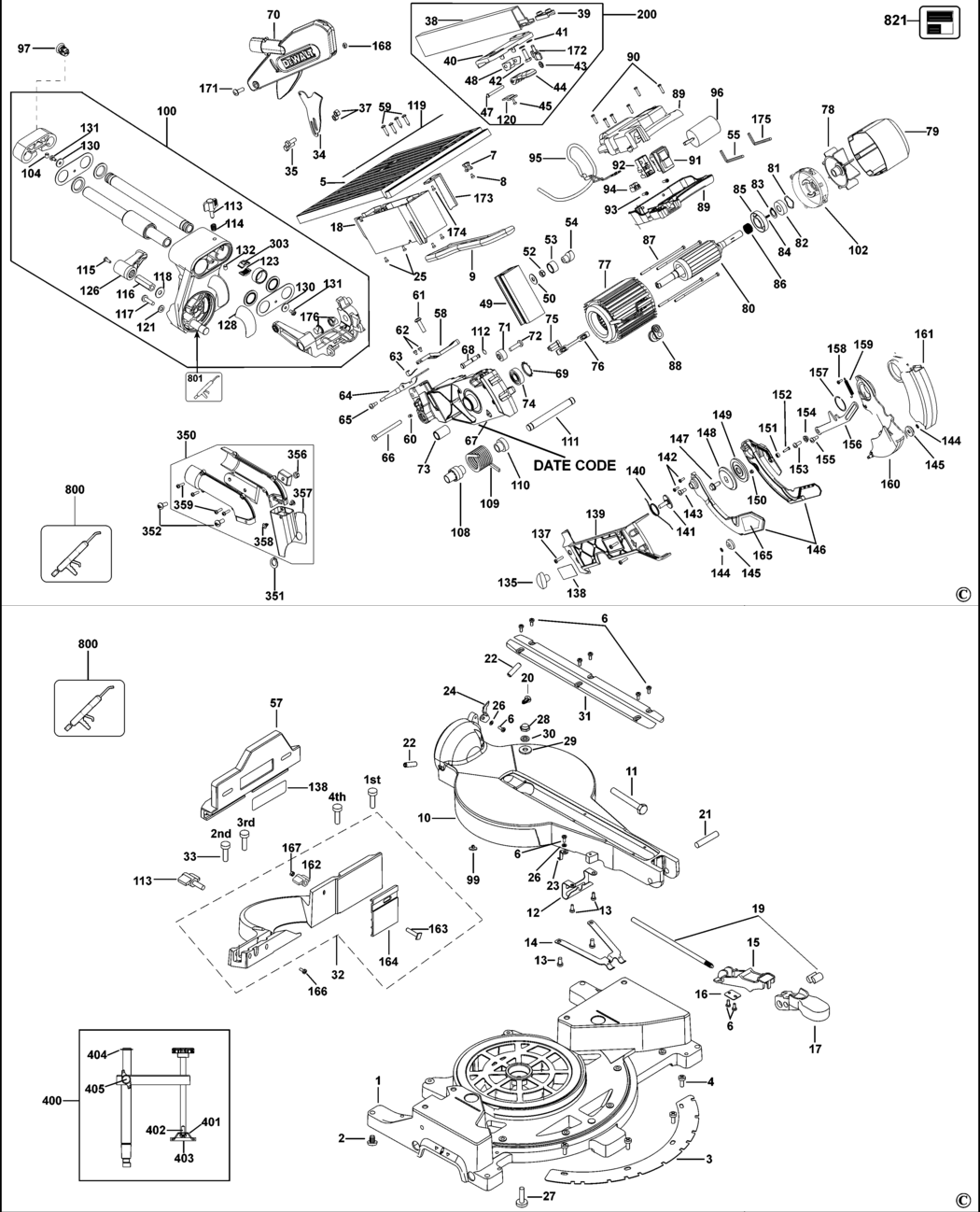

An exploded drawing and spare parts listing for the Dewalt D27111 Type 2 Crosscut Mitre Saw

	Ex VAT	Inc VAT
1 - BASE SA BDE-869349-00.A10 869349-00	£122.90	£147.48
2 - FOOT BDE-153612-00.A21 153612-00	£1.66	£1.99
3 - DETENT BDE-397041-00.A12 397041-00	£45.47	£54.56
4 - SCREW BDE-604987-00.A15 604987-00	£1.66	£1.99
5 - TABLE BDE-N114229.A2 N114229	£135.41	£162.49
6 - SCREW BDE-330045-05.A66 330045-05	£1.66	£1.99
7 - HOLDER BDE-391358-01.A47 391358-01	£1.66	£1.99
8 - SCREW BDE-860094-02.A48 860094-02	£1.66	£1.99
9 - PUSHROD BDE-860610-01.A89 860610-01	£8.08	£9.70
10 - TABLE SA BDE-869350-00.A4 869350-00	£161.89	£194.27
11 - BOLT BDE-638875-00.A4 638875-00	£1.66	£1.99
12 - PLATE BDE-397062-00.A2 397062-00	£7.40	£8.88
13 - SCREW BDE-330045-55.A86 330045-55	£1.66	£1.99
14 - SPRING BDE-397070-00.A18 397070-00	£3.92	£4.70
15 - ACTUATOR BDE-397073-00.A2 397073-00	£3.39	£4.07
16 - CLAMP BDE-397075-00.A12 397075-00	£4.83	£5.80
17 - LEVER BDE-397065-00.A2 397065-00	£6.06	£7.27
18 - BRACKET BDE-635045-00.A0 635045-00	£11.18	£13.41
19 - LOCK SA BDE-629395-00.A2 629395-00	£19.48	£23.37
20 - COVER BDE-638835-00.A2 638835-00	£1.66	£1.99
21 - PIN BDE-397063-00.A12 397063-00	£1.66	£1.99
22 - SCREW BDE-153576-03.A11 153576-03	£1.66	£1.99
23 - POINTER BDE-397048-00.A12 397048-00	£1.66	£1.99
24 - POINTER BDE-397090-00.A6 397090-00	£1.66	£1.99
25 - SCREW BDE-330045-05.A65 330045-05	£1.66	£1.99
26 - WASHER BDE-249233-00.A70 249233-00	£1.66	£1.99
27 - SCREW BDE-612008-00.A30 612008-00	£1.66	£1.99
28 - NUT BDE-860092-05.A46 860092-05	£1.66	£1.99
29 - WASHER BDE-153781-00.A21 153781-00	£1.66	£1.99
30 - WASHER BDE-613270-00.A15 613270-00	£1.66	£1.99
31 - PLATE BDE-N714363.A2 N714363	£7.40	£8.88
32 - FENCE SA BDE-641363-00.A7 641363-00	£90.46	£108.55
33 - SCREW BDE-330045-33.A14 330045-33	£1.66	£1.99
34 - GUARD KIT BDE-N102812.A0 N102812	£62.77	£75.32
35 - SCREW BDE-330045-32.A48 330045-32	£1.66	£1.99
37 - NUT BDE-860083-04.A130 860083-04	£1.66	£1.99
38 - FENCE BDE-637806-00.A3 637806-00	£35.02	£42.02
39 - PLATE BDE-637805-00.A3 637805-00	£9.69	£11.63
40 - BRACKET BDE-634738-00.A3 634738-00	£8.08	£9.70
41 - WASHER M8 BDE-860073-03.A671 860073-03	£1.66	£1.99
42 - SCREW BDE-612008-00.A28 612008-00	£1.66	£1.99
43 - WASHER CLAMP BDE-392948-00.A1 392948-00	£1.66	£1.99
44 - LEVER LOCK BDE-605794-00.A18 605794-00	£18.00	£21.60
45 - SCREW BDE-860094-02.A49 860094-02	£1.66	£1.99
47 - CLEVIS PIN BDE-605795-00.A2 605795-00	£1.66	£1.99
48 - BRACKET BDE-605796-00.A18 605796-00	£1.66	£1.99
49 - SUPPORT BDE-636091-00.A2 636091-00	£20.50	£24.60
50 - WASHER BDE-153781-00.A19 153781-00	£1.66	£1.99
52 - NUT BDE-860092-05.A45 860092-05	£1.66	£1.99
53 - BUSHING BDE-606362-01.A2 606362-01	£1.66	£1.99
54 - KNOB BDE-941756-00.A148 941756-00	£1.66	£1.99
55 - WRENCH SPECIAL BDE-385567-01.A17 385567-01	-
55 - HEX KEY 5 MM BDE-930574-00.A75 930574-00	£1.66	£1.99
57 - FENCE BDE-640349-00.A7 640349-00	£25.12	£30.15
58 - LEVER LOCK BDE-637338-00.A0 637338-00	£1.66	£1.99
59 - SCREW BDE-860084-24.A2 860084-24	£1.66	£1.99
60 - SCREW BDE-150075-00.A56 150075-00	£1.66	£1.99
61 - SCREW BDE-330045-34.A3 330045-34	£1.66	£1.99
62 - SCREW BDE-860094-02.A50 860094-02	£1.66	£1.99
63 - SPRING BDE-637289-00.A3 637289-00	£1.66	£1.99
64 - LEVER BDE-637193-00.A1 637193-00	£4.83	£5.80
65 - SCREW BDE-153639-00.A22 153639-00	£1.66	£1.99
66 - SCREW BDE-949702-19.A21 949702-19	£1.66	£1.99
67 - ARM BDE-634719-00.A1 634719-00	£86.95	£104.34
68 - LOCKING PIN BDE-649653-00.A1 649653-00	£6.06	£7.27
69 - RING BDE-860806-00.A13 860806-00	£1.66	£1.99
70 - GUARD KIT BDE-N102812.A1 N102812	£62.77	£75.32
71 - BUSH BDE-385756-01.A6 385756-01	£1.66	£1.99
72 - SCREW BDE-330045-33.A15 330045-33	£1.66	£1.99
73 - SPACER BDE-641029-00.A1 641029-00	£3.92	£4.70
74 - BEARING BDE-868768-07.A46 868768-07	£8.08	£9.70
75 - CONNECTOR BDE-640248-00.A1 640248-00	£1.66	£1.99
76 - BRACKET BDE-637550-00.A1 637550-00	£1.66	£1.99
77 - STATOR 230V BDE-868412-07.A0 868412-07	£346.79	£416.15
78 - FAN BDE-945841-00.A47 945841-00	£2.87	£3.44
79 - FAN COVER BDE-642100-00.A1 642100-00	£6.06	£7.27
80 - ROTOR BDE-868411-03.A0 868411-03	£102.45	£122.94
81 - RING BDE-860080-02.A39 860080-02	£1.66	£1.99
82 - BEARING BDE-330003-13.A33 330003-13	£3.92	£4.70
83 - CIRCLIP BDE-861349-00.A12 861349-00	£1.66	£1.99
84 - SPRING BDE-648132-00.A0 648132-00	£1.66	£1.99
85 - BRAKE BDE-861336-02.A6 861336-02	£9.69	£11.63
86 - SPRING BDE-861338-00.A6 861338-00	£1.66	£1.99
87 - BOLT BDE-860446-01.A0 860446-01	£1.66	£1.99
88 - CLIP CABLE BDE-637486-00.A1 637486-00	£1.66	£1.99
89 - SERVICE KIT BDE-869283-00.A0 869283-00	£26.47	£31.76
90 - SCREW BDE-330019-13.A144 330019-13	£1.66	£1.99
91 - SWITCH BDE-640985-00.A1 640985-00	£20.50	£24.60
92 - COVER BDE-868320-00.A14 868320-00	£6.06	£7.27
93 - SCREW BDE-330019-13.A145 330019-13	£1.66	£1.99
94 - TERMINAL BLOCK BDE-326057-00.A37 326057-00	£1.66	£1.99
96 - CAPACITOR BDE-641082-00.A1 641082-00	£11.18	£13.41
97 - BUSHING BDE-615851-00.A14 615851-00	£1.66	£1.99
99 - PAD BDE-640146-00.A2 640146-00	£1.66	£1.99
100 - RAIL SA BDE-N176001.A0 N176001	£427.34	£512.81
102 - HOUSING SA BDE-861345-00.A6 861345-00	£18.00	£21.60
104 - GRUB SCREW BDE-330022-17.A11 330022-17	£1.66	£1.99
108 - SPACER BDE-639383-00.A3 639383-00	£2.87	£3.44
109 - SPRING TORSION BDE-N476325.A0 N476325	£19.48	£23.37
110 - SPACER BDE-146732-00.A22 146732-00	£1.66	£1.99
111 - PIVOT SHAFT BDE-397128-00.A17 397128-00	£6.06	£7.27
112 - O RING BDE-943030-00.A7 943030-00	£1.66	£1.99
113 - KNOB BDE-147107-06.A17 147107-06	£3.92	£4.70
114 - SPRING BDE-606014-00.A11 606014-00	£1.66	£1.99
115 - SCREW BDE-330045-14.A45 330045-14	£1.66	£1.99
116 - NUT BDE-397089-00.A9 397089-00	£11.18	£13.41
117 - SCREW BDE-612008-00.A29 612008-00	£1.66	£1.99
118 - WASHER BDE-153781-00.A20 153781-00	£1.66	£1.99
119 - SCALE BDE-637807-00.A2 637807-00	£2.87	£3.44
120 - POINTER BDE-605798-00.A2 605798-00	£1.66	£1.99
121 - WASHER BDE-613270-00.A16 613270-00	£1.66	£1.99
123 - GUIDE BDE-397118-00.A2 397118-00	£3.39	£4.07
126 - HANDLE BDE-397080-00.A6 397080-00	£3.92	£4.70
128 - SCALE BDE-637334-00.A3 637334-00	£2.32	£2.78
130 - WASHER BDE-153586-00.A34 153586-00	£1.66	£1.99
131 - SCREW BDE-616001-00.A25 616001-00	£1.66	£1.99
132 - THRUST PLATE BDE-613497-00.A23 613497-00	£1.66	£1.99
135 - KNOB BDE-941756-00.A147 941756-00	£1.66	£1.99
137 - SCREW BDE-330045-15.A134 330045-15	£1.66	£1.99
138 - WARNING LABEL BDE-621135-00.A7 621135-00	£1.66	£1.99
139 - COVER BDE-635047-00.A1 635047-00	£12.53	£15.04
140 - SPRING BDE-637288-00.A1 637288-00	£1.66	£1.99
141 - SCREW.SPECIAL BDE-625857-00.A2 625857-00	£1.66	£1.99
142 - SCREW BDE-860094-05.A22 860094-05	£1.66	£1.99
143 - SCREW BDE-153639-00.A20 153639-00	£1.66	£1.99
144 - LOCKING RING BDE-604728-00.A29 604728-00	£1.66	£1.99
145 - ROLLER BDE-146774-00.A51 146774-00	£1.88	£2.26
146 - LOWER GUARD SA BDE-637998-00.A1 637998-00	£42.48	£50.98
147 - BLADE BOLT BDE-647776-00.A28 647776-00	£1.66	£1.99
148 - CLAMP OUTER BDE-604765-00.A31 604765-00	£6.06	£7.27
149 - WASHER INNER CLAMP BDE-616319-00.A4 616319-00	£16.52	£19.82
150 - NUT BDE-861340-00.A3 861340-00	£1.66	£1.99
151 - SPACER BDE-605040-51.A1 605040-51	£3.92	£4.70
152 - SCREW BDE-330024-49.A1 330024-49	£1.66	£1.99
153 - SCREW.SPECIAL BDE-330045-23.A129 330045-23	£1.66	£1.99
154 - SLEEVE BDE-146740-02.A12 146740-02	£1.66	£1.99
155 - SCREW BDE-153639-00.A21 153639-00	£1.66	£1.99
156 - CAM BDE-637192-00.A2 637192-00	£7.40	£8.88
157 - CIRCLIP BDE-629745-00.A8 629745-00	£1.66	£1.99
158 - SCREW BDE-330045-05.A62 330045-05	£1.66	£1.99
159 - SPRING BDE-640503-00.A3 640503-00	£1.66	£1.99
160 - GUARD BDE-634726-00.A0 634726-00	£35.02	£42.02
161 - GUARD BDE-635046-00.A2 635046-00	£12.53	£15.04
162 - WING NUT BDE-720929-00.A4 720929-00	£1.66	£1.99
163 - BOLT BDE-640959-00.A0 640959-00	£3.39	£4.07
164 - FENCE BDE-634736-00.A0 634736-00	£11.18	£13.41
165 - LABEL BDE-645156-00.A3 645156-00	£2.87	£3.44
166 - SCREW BDE-860094-02.A52 860094-02	£1.66	£1.99
167 - NUT BDE-860092-00.A82 860092-00	£1.66	£1.99
168 - WING NUT BDE-720929-00.A3 720929-00	£1.66	£1.99
171 - SCREW BDE-931997-00.A19 931997-00	£1.66	£1.99
172 - KNOB BDE-862427-00.A0 862427-00	£1.66	£1.99
173 - BRACKET BDE-634734-00.A3 634734-00	£3.39	£4.07
174 - SCREW BDE-860094-02.A53 860094-02	£1.66	£1.99
175 - KEY BDE-385567-04.A5 385567-04	£2.32	£2.78
176 - BUSHING BDE-645746-00.A6 645746-00	£1.66	£1.99
200 - FENCE SA BDE-869231-04.A3 869231-04	£67.48	£80.98
303 - GUIDE BDE-397118-00.A1 397118-00	£3.39	£4.07
350 - DUST PORT BDE-654313-00.A1 654313-00	£16.52	£19.82
351 - RETAINER BDE-654787-00.A2 654787-00	£1.66	£1.99
352 - SCREW.SPECIAL BDE-330045-23.A130 330045-23	£1.66	£1.99
356 - NUT M6 BDE-860083-12.A76 860083-12	£1.66	£1.99
357 - SUPPORT BDE-654312-00.A2 654312-00	£11.18	£13.41
358 - RIVET BDE-607491-00.A13 607491-00	£1.66	£1.99
359 - SCREW BDE-330013-02.A2 330013-02	£1.66	£1.99
400 - CLAMP SA BDE-N165958.A4 N165958	£30.98	£37.18
401 - SUPPORT BDE-630068-00.A9 630068-00	£1.66	£1.99
402 - CLAMP BDE-630067-00.A1 630067-00	£8.08	£9.70
403 - GRIP BDE-630085-00.A12 630085-00	£1.66	£1.99
404 - RETAINER BDE-389750-00.A3 389750-00	£1.66	£1.99
405 - KNOB LOWER BDE-147107-02.A36 147107-02	£2.32	£2.78
800 - GREASE BDE-5140061-28.A52 5140061-28	£53.46	£64.15
801 - GREASE BDE-93488-00.A75 93488-00	£18.00	£21.60
