Dewalt D27105 Type 2 Combination Saw Spare Parts

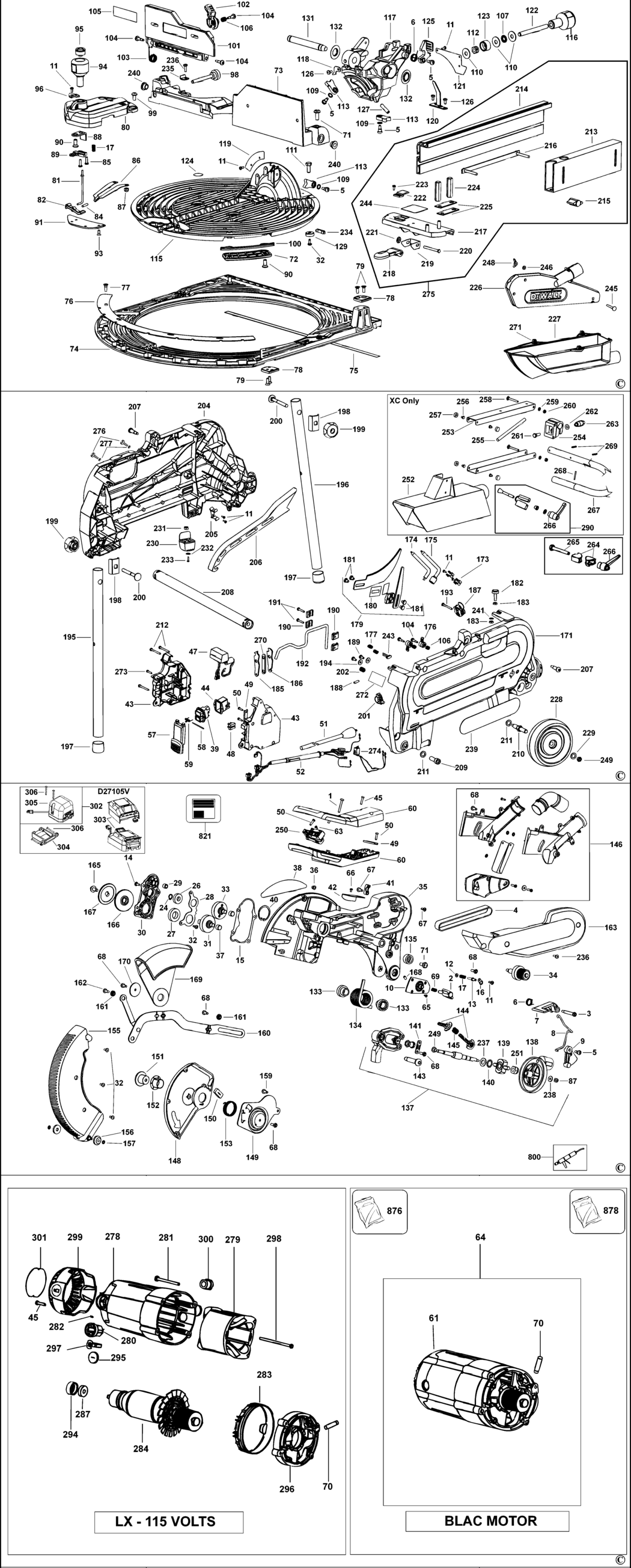

An exploded drawing and spare parts listing for the Dewalt D27105 Type 2 Combination Saw

	Ex VAT	Inc VAT
1 - SCREW BDE-98094-35.A14 98094-35	£1.66	£1.99
2 - KNOB BDE-147107-06.A15 147107-06	£3.92	£4.70
3 - BOLT BDE-152852-00.A20 152852-00	£1.88	£2.26
4 - BELT BDE-N453995.A10 N453995	£19.48	£23.37
5 - SCREW BDE-153639-00.A3 153639-00	£1.66	£1.99
6 - SPRING TORSION BDE-398472-00.A4 398472-00	£2.32	£2.78
7 - LEVER BDE-605603-00.A3 605603-00	£1.66	£1.99
8 - LINKAGE SA BDE-606278-00.A13 606278-00	£1.66	£1.99
9 - PLATE BDE-606279-00.A0 606279-00	£1.66	£1.99
10 - PLATE BDE-607221-00.A2 607221-00	£7.85	£9.42
11 - SCREW BDE-330045-05.A24 330045-05	£1.66	£1.99
12 - WASHER FELT BDE-618480-00.A3 618480-00	£1.66	£1.99
13 - LOCKING PIN BDE-153561-00.A19 153561-00	£1.66	£1.99
14 - SCREW BDE-385915-01.A15 385915-01	£1.66	£1.99
15 - GASKET BDE-391315-00.A10 391315-00	£2.87	£3.44
16 - PLATE BDE-393071-00.A26 393071-00	£1.66	£1.99
17 - SPRING BDE-868082-00.A26 868082-00	£1.66	£1.99
26 - BEARING BDE-605040-59.A14 605040-59	£3.39	£4.07
27 - BEARING BALL BDE-330003-66.A31 330003-66	£15.01	£18.01
28 - BEARING PLATE BDE-627904-00.A0 627904-00	£3.39	£4.07
29 - BEARING NEEDLE BDE-391616-00.A32 391616-00	£4.83	£5.80
30 - GEARCASE COVER + 29 BDE-621759-00.A9 621759-00	£42.48	£50.98
31 - SPINDLE & GEAR SA BDE-869219-06.A9 869219-06	£42.48	£50.98
32 - SCREW BDE-330045-49.A53 330045-49	£1.66	£1.99
33 - SPINDLE & GEAR SA BDE-869219-07.A4 869219-07	£42.48	£50.98
34 - PINION SA BDE-N027131SV.A16 N027131SV	£119.24	£143.09
35 - ARM + 36373839 BDE-612349-00.A1 612349-00	£209.59	£251.51
36 - INSERT BDE-148608-00.A22 148608-00	£1.66	£1.99
37 - BEARING BDE-386780-00.A11 386780-00	£2.32	£2.78
38 - IDENTITY LABEL BDE-621329-00.A5 621329-00	£3.39	£4.07
39 - SWITCH See SB 161 GB BDE-637691-00.A2 637691-00	£42.48	£50.98
39 - SWITCH See SB 161 LX BDE-638639-00.A1 638639-00	£44.14	£52.97
40 - RETAINER BDE-616726-00.A5 616726-00	£1.66	£1.99
41 - CORD CLAMP BDE-612350-00.A6 612350-00	£1.66	£1.99
42 - COVER BDE-613781-00.A0 613781-00	£1.66	£1.99
43 - HOUSING SWITCH BDE-605786-01.A3 605786-01	£35.02	£42.02
44 - BOOT BDE-638634-00.A10 638634-00	£9.69	£11.63
45 - SCREW BDE-330019-13.A201 330019-13	£1.66	£1.99
47 - NO LONGER AVAILABLE BDE-000000-00.A62440 000000-00	-
48 - TERMINAL BLOCK BDE-326057-00.A43 326057-00	£1.66	£1.99
49 - CORD CLAMP BDE-607858-00.A3 607858-00	£1.66	£1.99
50 - SCREW BDE-330013-22.A0 330013-22	-
51 - CORDSET LX BDE-330061-22.A5 330061-22	£38.48	£46.17
51 - CORDSET GB BDE-330060-85.A13 330060-85	£20.50	£24.60
52 - CABLE SA LX BDE-639912-00.A1 639912-00	£30.08	£36.10
52 - CABLE SA GB BDE-639901-00.A0 639901-00	£17.48	£20.97
57 - SWITCH COVER BDE-N377629.A7 N377629	£3.39	£4.07
58 - PIN BDE-607854-00.A3 607854-00	£1.66	£1.99
59 - SPRING TORSION BDE-613782-01.A13 613782-01	£1.66	£1.99
60 - HANDLE SA BDE-607855-00.A10 607855-00	£20.50	£24.60
61 - COVER BDE-399125-00.A0 399125-00	£5.88	£7.06
63 - SCREW BDE-384127-01.A71 384127-01	£1.66	£1.99
64 - MOTOR SA GB BDE-N071751.A1 N071751	£319.22	£383.07
65 - SCREW BDE-860091-04.A4 860091-04	£1.66	£1.99
66 - SCREW BDE-860094-03.A225 860094-03	£1.66	£1.99
67 - SCREW BDE-330045-15.A150 330045-15	£1.66	£1.99
68 - SCREW.SPECIAL BDE-330045-23.A111 330045-23	£1.66	£1.99
69 - SPRING BDE-606014-00.A12 606014-00	£1.66	£1.99
70 - SCREW BDE-394034-00.A38 394034-00	£1.66	£1.99
71 - SCREW BDE-330045-32.A60 330045-32	£1.66	£1.99
72 - PLATE BDE-621647-00.A6 621647-00	£3.39	£4.07
73 - FENCE BDE-N162216.A11 N162216	£128.92	£154.70
74 - TABLE BDE-869233-00.A0 869233-00	£252.46	£302.95
75 - SCALE BDE-614822-00.A6 614822-00	£6.06	£7.27
76 - DETENT BDE-398999-00.A6 398999-00	£26.47	£31.76
77 - SCREW BDE-615876-00.A8 615876-00	£1.66	£1.99
78 - PLATE BDE-607103-00.A5 607103-00	£4.83	£5.80
79 - SCREW BDE-98104-16.A2 98104-16	£1.66	£1.99
80 - NOSE BDE-N162168.A2 N162168	£56.97	£68.36
81 - ROD BDE-605799-00.A13 605799-00	£1.66	£1.99
82 - ACTUATOR BDE-399162-00.A11 399162-00	£1.66	£1.99
84 - PIN BDE-399009-00.A7 399009-00	£1.66	£1.99
85 - SCREW.TEMP BDE-860094-00.A35 860094-00	£1.66	£1.99
86 - DETENT BDE-606898-00.A11 606898-00	£3.92	£4.70
87 - NUT BDE-860092-02.A24 860092-02	£1.66	£1.99
88 - PLATE BDE-606900-00.A8 606900-00	£1.66	£1.99
89 - PAD BDE-606896-00.A11 606896-00	£1.66	£1.99
90 - SCREW BDE-617561-00.A0 617561-00	£1.66	£1.99
91 - COVER BDE-606897-00.A2 606897-00	£3.92	£4.70
93 - SCREW BDE-860205-01.A0 860205-01	£1.66	£1.99
94 - KNOB BDE-399004-00.A7 399004-00	£7.40	£8.88
95 - BUTTON BDE-605785-00.A11 605785-00	£1.66	£1.99
96 - POINTER BDE-611991-00.A8 611991-00	£1.66	£1.99
98 - KNOB BDE-606198-00.A6 606198-00	£2.32	£2.78
99 - SCREW BDE-N409486.A3 N409486	£1.66	£1.99
100 - PAD BDE-607129-00.A8 607129-00	£3.39	£4.07
101 - BACK FENCE BDE-N190890.A8 N190890	£53.46	£64.15
102 - KNOB BDE-610251-00.A6 610251-00	£1.66	£1.99
103 - SPRING BDE-610250-00.A7 610250-00	£1.66	£1.99
104 - SCREW BDE-N399933.A12 N399933	£1.66	£1.99
105 - WARNING LABEL BDE-610710-00.A15 610710-00	£1.66	£1.99
106 - SPRING BDE-941586-00.A29 941586-00	£1.66	£1.99
107 - BEARING THRUST BDE-153451-00.A2 153451-00	£1.88	£2.26
109 - WASHER BDE-153655-00.A34 153655-00	£1.66	£1.99
110 - WASHER BDE-153781-00.A32 153781-00	£1.66	£1.99
111 - SCREW BDE-153797-03.A2 153797-03	£1.66	£1.99
112 - NUT BDE-330021-10.A7 330021-10	£1.66	£1.99
113 - PAWL BDE-391347-00.A9 391347-00	£1.66	£1.99
115 - ROTARY TABLE + 122 124 BDE-869233-02.A13 869233-02	£310.60	£372.72
116 - KNOB BDE-399004-01.A6 399004-01	£7.40	£8.88
117 - TRUNNION BDE-605653-00.A0 605653-00	£86.95	£104.34
118 - POINTER BDE-606152-00.A0 606152-00	£1.88	£2.26
119 - BEVEL SCALE BDE-618660-00.A0 618660-00	£3.39	£4.07
120 - POINTER BDE-606192-00.A6 606192-00	£2.87	£3.44
121 - BEVEL SCALE BDE-606193-00.A7 606193-00	£3.92	£4.70
122 - STUD BDE-606359-00.A13 606359-00	£3.39	£4.07
123 - SPACER BDE-606362-00.A5 606362-00	£1.66	£1.99
124 - WARNING LABEL BDE-610707-00.A9 610707-00	£1.66	£1.99
125 - LATCH BDE-613709-00.A6 613709-00	£1.66	£1.99
126 - SCREW BDE-860094-06.A25 860094-06	£1.66	£1.99
127 - SCREW BDE-153576-03.A9 153576-03	£1.66	£1.99
129 - ADJUSTER BDE-615589-00.A6 615589-00	£2.32	£2.78
131 - PIVOT SHAFT BDE-615777-00.A13 615777-00	£6.06	£7.27
132 - WASHER BDE-148296-00.A78 148296-00	£1.66	£1.99
133 - SPACER BDE-146732-00.A34 146732-00	£1.66	£1.99
134 - SPRING BDE-619571-00.A7 619571-00	£18.00	£21.60
135 - BUSHING BDE-146753-00.A22 146753-00	£1.66	£1.99
137 - ADJUSTER HEIGHT BDE-609837-00.A0 609837-00	£86.95	£104.34
138 - CRANK BDE-606689-00.A8 606689-00	£12.53	£15.04
139 - CARRIER BDE-607754-00.A0 607754-00	£3.92	£4.70
140 - BALL STEEL BDE-604107-00.A17 604107-00	£1.66	£1.99
141 - CLAMP BDE-609840-00.A13 609840-00	£1.66	£1.99
143 - BOLT BDE-610254-00.A8 610254-00	£8.08	£9.70
144 - PIN BDE-614072-00.A0 614072-00	£1.66	£1.99
145 - SPRING BDE-606688-00.A5 606688-00	£1.66	£1.99
146 - DUST PORT BDE-N166053.A8 N166053	£38.48	£46.17
148 - PLATE BDE-615459-00.A6 615459-00	£19.48	£23.37
149 - BACKPLATE BDE-N041976.A8 N041976	£12.53	£15.04
150 - BUMPER BDE-609514-00.A2 609514-00	£1.66	£1.99
151 - RETAINING PLATE BDE-146750-03.A18 146750-03	£2.87	£3.44
152 - SLEEVE BDE-609314-00.A11 609314-00	£1.66	£1.99
153 - SPRING TORSION BDE-609496-00.A0 609496-00	£1.66	£1.99
155 - GUARD BDE-N298999.A2 N298999	£20.50	£24.60
156 - ROLLER BDE-146774-00.A41 146774-00	£1.88	£2.26
157 - LOCKING RING BDE-604728-00.A35 604728-00	£1.66	£1.99
159 - SCREW BDE-394589-01.A27 394589-01	£1.66	£1.99
160 - LEVER SA BDE-N225776.A11 N225776	-
161 - SLEEVE BDE-146740-02.A11 146740-02	£1.66	£1.99
162 - SCREW BDE-605590-00.A9 605590-00	£1.66	£1.99
163 - BELT COVER BDE-610556-01.A7 610556-01	£16.52	£19.82
165 - BLADE BOLT BDE-869245-00.A55 869245-00	£3.54	£4.25
166 - WASHER INNER CLAMP BDE-616319-00.A3 616319-00	£16.52	£19.82
167 - CLAMP OUTER BDE-604765-00.A40 604765-00	£6.06	£7.27
168 - SCREW BDE-150075-00.A39 150075-00	£1.66	£1.99
169 - GUARD BDE-605593-00.A2 605593-00	-
170 - WASHER BDE-607536-00.A9 607536-00	£4.83	£5.80
171 - FRAME RH BDE-655037-00.A1 655037-00	-
171 - FSO KIT BDE-656421-00.A11 656421-00	£245.11	£294.13
173 - HOLDER BDE-391358-01.A36 391358-01	£1.66	£1.99
174 - WRENCH SPECIAL BDE-385567-01.A7 385567-01	-
175 - WRENCH SPECIAL BDE-608563-01.A27 608563-01	£7.40	£8.88
176 - RETAINER BDE-615993-00.A1 615993-00	£1.66	£1.99
177 - SPRING BDE-946866-00.A24 946866-00	£1.66	£1.99
179 - GUARD KIT LX BDE-N181532.A12 N181532	£110.62	£132.74
179 - GUARD KIT GB BDE-N181532.A13 N181532	£110.62	£132.74
180 - SHIM BDE-609497-00.A4 609497-00	£1.66	£1.99
181 - SCREW BDE-607181-00.A9 607181-00	£1.66	£1.99
182 - BUMPER BDE-616634-00.A13 616634-00	£4.16	£4.99
183 - NUT BDE-860083-15.A16 860083-15	£1.66	£1.99
185 - LOCK BDE-606233-00.A3 606233-00	£4.83	£5.80
186 - LOCK BDE-606232-00.A10 606232-00	£4.83	£5.80
187 - CORD CLAMP BDE-605601-00.A4 605601-00	£1.66	£1.99
188 - PIN BDE-607132-00.A8 607132-00	£1.66	£1.99
189 - SCREW BDE-330045-55.A5 330045-55	£1.66	£1.99
190 - BEARING BLOCK BDE-153379-00.A3 153379-00	£1.88	£2.26
191 - SCREW BDE-610574-00.A4 610574-00	£1.66	£1.99
192 - ROD BDE-611094-00.A3 611094-00	£8.08	£9.70
193 - SCREW BDE-861090-00.A23 861090-00	£1.66	£1.99
194 - WASHER BDE-860073-14.A26 860073-14	£1.66	£1.99
195 - FRONT LEG BDE-613233-00.A2 613233-00	£19.48	£23.37
196 - REAR LEG BDE-655033-00.A9 655033-00	£16.52	£19.82
197 - FOOT BDE-861073-00.A33 861073-00	£11.18	£13.41
198 - CLAMP BDE-N013623.A5 N013623	£6.06	£7.27
199 - KNOB BDE-618362-00.A10 618362-00	£6.06	£7.27
200 - CARRIAGE BOLT BDE-98131-90.A6 98131-90	£1.66	£1.99
201 - CABLE CLAMP BDE-861091-00.A9 861091-00	£1.66	£1.99
202 - SPRING BDE-860112-11.A84 860112-11	£1.66	£1.99
204 - FSO KIT BDE-656421-01.A0 656421-01	£165.92	£199.11
204 - FRAME LH BDE-655032-00.A2 655032-00	£148.42	£178.11
205 - CLIP BDE-615994-00.A17 615994-00	£1.66	£1.99
206 - PUSHROD BDE-860610-01.A40 860610-01	£8.08	£9.70
207 - BOLT BDE-616592-00.A0 616592-00	£8.08	£9.70
208 - TUBE BDE-604537-00.A13 604537-00	£18.00	£21.60
209 - SCREW BDE-942447-00.A20 942447-00	£1.66	£1.99
210 - AXLE STUB BDE-611623-00.A3 611623-00	£12.53	£15.04
211 - WASHER BDE-98197-08.A32 98197-08	£1.66	£1.99
212 - SCREW BDE-330045-50.A18 330045-50	£1.66	£1.99
213 - FENCE BDE-605789-00.A3 605789-00	£15.01	£18.01
214 - FENCE BDE-386616-00.A4 386616-00	£19.48	£23.37
215 - KNOB BDE-147107-00.A8 147107-00	£1.88	£2.26
216 - PLATE BDE-611712-00.A0 611712-00	£2.87	£3.44
217 - BRACKET BDE-611921-00.A3 611921-00	£19.48	£23.37
218 - LEVER LOCK BDE-605794-00.A4 605794-00	£18.00	£21.60
219 - BRACKET BDE-605796-00.A4 605796-00	£1.66	£1.99
220 - CLEVIS PIN BDE-605795-00.A16 605795-00	£1.66	£1.99
221 - WASHER CLAMP BDE-392948-00.A18 392948-00	£1.66	£1.99
222 - POINTER BDE-605798-00.A16 605798-00	£1.66	£1.99
223 - SCREW BDE-330045-05.A154 330045-05	£1.66	£1.99
224 - NUT BDE-612284-00.A9 612284-00	£1.66	£1.99
225 - WASHER BDE-605790-00.A9 605790-00	£1.66	£1.99
226 - GUARD KIT GB BDE-N181532.A10 N181532	£110.62	£132.74
226 - GUARD KIT LX BDE-N181532.A11 N181532	£110.62	£132.74
227 - GUARD BDE-N060425.A7 N060425	£20.50	£24.60
228 - WHEEL BDE-612441-00.A11 612441-00	£30.98	£37.18
229 - WASHER BDE-941602-00.A11 941602-00	£1.66	£1.99
230 - FOOT BDE-N219072.A12 N219072	£3.39	£4.07
231 - NUT BDE-860083-14.A108 860083-14	£1.66	£1.99
232 - WASHER M8 BDE-860073-03.A189 860073-03	£1.66	£1.99
233 - SCREW BDE-860085-20.A36 860085-20	£1.66	£1.99
234 - SHOE BDE-621653-00.A11 621653-00	£2.32	£2.78
235 - CLAMP BDE-610252-00.A7 610252-00	£2.32	£2.78
236 - SCREW BDE-330045-14.A134 330045-14	£1.66	£1.99
237 - WASHER BDE-623499-00.A1 623499-00	£2.32	£2.78
238 - WASHER BDE-860075-00.A111 860075-00	£1.66	£1.99
239 - IDENTITY LABEL BDE-617108-00.A1 617108-00	£9.69	£11.63
240 - BUSHING BDE-607182-00.A2 607182-00	£1.66	£1.99
241 - WASHER BDE-860078-02.A40 860078-02	£1.66	£1.99
243 - SPRING CLIP BDE-620327-00.A5 620327-00	£1.66	£1.99
244 - IDENTITY LABEL BDE-624373-00.A5 624373-00	£1.66	£1.99
245 - SCREW BDE-931997-00.A8 931997-00	£1.66	£1.99
246 - WASHER BDE-720959-00.A230 720959-00	£1.66	£1.99
248 - WING NUT BDE-720929-00.A11 720929-00	£1.66	£1.99
249 - NUT BDE-860092-05.A75 860092-05	£1.66	£1.99
250 - SWITCH LX BDE-394375-02P.A2 394375-02P	£15.01	£18.01
250 - SWITCH GB BDE-394375-02P.A3 394375-02P	£15.01	£18.01
251 - NUT BDE-330021-08.A9 330021-08	£1.66	£1.99
270 - SPACER BDE-626334-00.A5 626334-00	£1.66	£1.99
271 - FASTENER BDE-868303-00.A16 868303-00	£3.92	£4.70
272 - LABEL BDE-626191-00.A2 626191-00	£1.66	£1.99
273 - SCREW BDE-146679-00.A5 146679-00	£1.66	£1.99
274 - CABLE SA GB BDE-627449-01.A1 627449-01	£2.78	£3.34
275 - FENCE BDE-611713-01.A12 611713-01	£102.45	£122.94
276 - SCREW BDE-949701-05.A4 949701-05	£1.66	£1.99
277 - NUT BDE-860083-15.A17 860083-15	£1.66	£1.99
278 - FIELDCASE LX BDE-621067-01.A1 621067-01	£25.70	£30.84
279 - FIELD 115V LX BDE-627856-00.A1 627856-00	£74.15	£88.98
280 - BRUSH HOLDER LX BDE-622440-00.A8 622440-00	£3.92	£4.70
281 - SCREW LX BDE-98094-55.A59 98094-55	£1.66	£1.99
282 - SCREW LX BDE-330022-16.A11 330022-16	£1.66	£1.99
283 - BAFFLE FAN LX BDE-391375-00.A41 391375-00	-
284 - MOTOR SA 115V LX BDE-N098056.A1 N098056	-
287 - BEARING LX BDE-330003-60.A169 330003-60	£2.87	£3.44
294 - SLEEVE INSULATING LX BDE-650234-00.A12 650234-00	£1.66	£1.99
295 - BRUSH CAP LX BDE-622441-00.A10 622441-00	£1.66	£1.99
296 - MOUNTING BRACKET LX BDE-391282-00.A26 391282-00	£16.52	£19.82
297 - BRUSH PAIR SA LX BDE-N088936.A8 N088936	£8.08	£9.70
298 - SCREW LX BDE-330019-34.A8 330019-34	£1.66	£1.99
299 - END CAP LX BDE-621118-00.A8 621118-00	£4.83	£5.80
300 - BUSHING LX BDE-605155-00.A45 605155-00	£1.66	£1.99
301 - NO LONGER AVAILABLE LX BDE-000000-00.A127990 000000-00	-
302 - LASER HEAD SA D27105V BDE-635797-00.A0 635797-00	£84.42	£101.30
303 - SA POWER SUPPLY D27105V BDE-627631-00.A3 627631-00	£51.90	£62.28
304 - WINDOW D27105V BDE-615498-00.A3 615498-00	-
305 - LASER HEAD SA D27105V BDE-635797-00.A1 635797-00	£84.42	£101.30
306 - SCREW D27105V BDE-860094-03.A128 860094-03	£1.66	£1.99
800 - GREASE BDE-5140061-28.A14 5140061-28	£53.46	£64.15
821 - RATING PLATE GB BDE-647903-01 647903-01	£7.18	£8.62
821 - RATING PLATE LX BDE-647903-03 647903-03	£3.80	£4.56
876 - MOTOR SA Ref to SB164 GB BDE-N071751.A2 N071751	£319.22	£383.07
878 - MOTOR SA Ref to SB164 GB BDE-N071753.A0 N071753	£319.22	£383.07

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt D27105 Type 2 Combination Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
