Dewalt D26430 Type 1 Sander Spare Parts

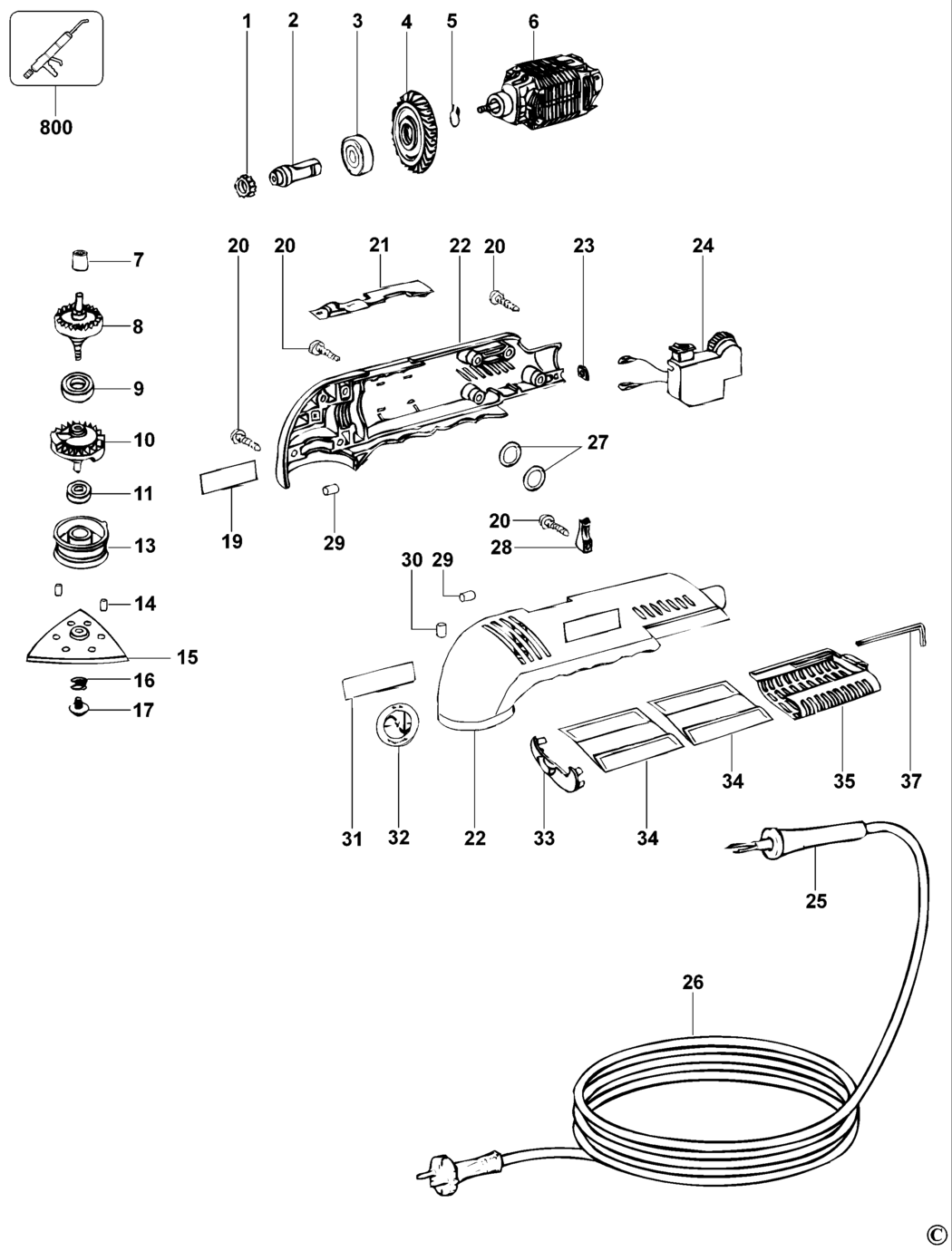

An exploded drawing and spare parts listing for the Dewalt D26430 Type 1 Sander

	Ex VAT	Inc VAT
1 - PINION BDE-596566-00 596566-00	£1.50	£1.80
2 - SPINDLE BDE-596567-00 596567-00	£37.35	£44.82
3 - BEARING BDE-596568-00.A0 596568-00	£55.30	£66.36
4 - FAN BDE-596569-00 596569-00	£7.85	£9.42
5 - CIRCLIP BDE-596570-00 596570-00	£7.85	£9.42
6 - MOTOR SA 230V BDE-596571-00 596571-00	£125.16	£150.19
7 - BEARING NEEDLE BDE-596572-00 596572-00	£25.70	£30.84
8 - GEARSHAFT SA BDE-596573-00 596573-00	£55.30	£66.36
9 - BEARING BDE-596574-00 596574-00	£7.18	£8.62
10 - FAN SA BDE-596575-00 596575-00	£25.70	£30.84
11 - BEARING BDE-596576-00 596576-00	£30.08	£36.10
13 - PLATE SA BDE-596577-00 596577-00	£55.30	£66.36
14 - PIN BDE-596578-00 596578-00	£7.85	£9.42
15 - BASEPLATE BDE-596579-00.A0 596579-00	£25.70	£30.84
16 - SPRING BDE-596580-00 596580-00	£7.85	£9.42
17 - SCREW BDE-596581-00 596581-00	£7.85	£9.42
19 - RATING PLATE GB BDE-596596-00 596596-00	-
19 - RATING PLATE GB BDE-N045121 N045121	£1.50	£1.80
20 - SCREW BDE-596101-00.A6 596101-00	£1.50	£1.80
21 - SLIDER BDE-596583-00 596583-00	£3.30	£3.96
22 - CLAMSHELL BDE-596584-00 596584-00	£47.08	£56.49
23 - NUT BDE-596585-00 596585-00	£1.50	£1.80
24 - ELECTRONIC 230V BDE-596586-00 596586-00	£55.30	£66.36
25 - CORD PROTECTOR BDE-596587-00.A0 596587-00	£5.88	£7.06
26 - CORDSET GB BDE-596599-00 596599-00	£55.30	£66.36
27 - O RING BDE-596588-00 596588-00	£3.30	£3.96
28 - CORD CLAMP BDE-596128-00.A5 596128-00	£3.30	£3.96
29 - DAMPER BDE-596589-00 596589-00	£1.50	£1.80
30 - DAMPER BDE-596590-00 596590-00	£1.50	£1.80
31 - BRAND LABEL BDE-596600-00.A0 596600-00	£1.50	£1.80
32 - LABEL ELECTRONIC BDE-596601-00 596601-00	£1.50	£1.80
33 - END CAP BDE-596591-00 596591-00	£10.85	£13.02
34 - FILTER BDE-596592-00 596592-00	£9.41	£11.29
35 - EXTRACTOR BDE-596593-00 596593-00	£18.91	£22.69
37 - HEX KEY BDE-596594-00 596594-00	£9.41	£11.29
800 - GREASE 50 GMS BDE-596595-00 596595-00	£60.94	£73.13

Attribute Name	Value
Brand	Dewalt
