Dewalt D25304K Type 1 Rotary Hammer Spare Parts

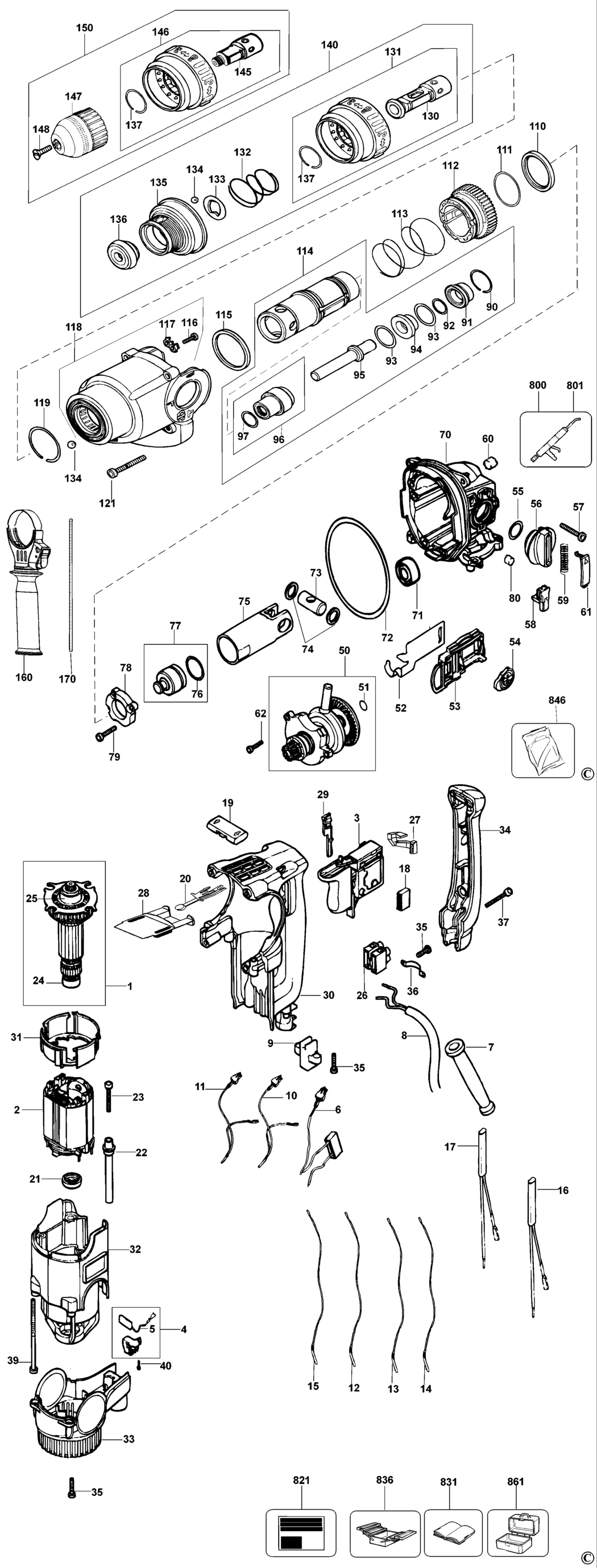

An exploded drawing and spare parts listing for the Dewalt D25304K Type 1 Rotary Hammer

	Ex VAT	Inc VAT
1 - ARMATURE 230V GB BDE-584430-00.A0 584430-00	£58.69	£70.43
1 - NO LONGER AVAILABLE LX BDE-000000-00.A124744 000000-00	-
2 - FIELD 230V GB BDE-576690-05.A35 576690-05	£30.08	£36.10
2 - FIELD 115V LX BDE-576690-06.A0 576690-06	£30.08	£36.10
3 - NO LONGER AVAILABLE GB BDE-000000-00.A124745 000000-00	-
3 - SWITCH 115V LX BDE-583748-04.A5 583748-04	£51.90	£62.28
3 - SWITCH GB BDE-583748-08.A3 583748-08	£30.08	£36.10
4 - BRUSH HOLDER 230V GB BDE-577805-03.A5 577805-03	-
4 - BRUSH HOLDER 115V LX BDE-577805-04.A10 577805-04	£19.90	£23.88
5 - BRUSH KIT GB BDE-584429-00.A0 584429-00	£19.90	£23.88
5 - BRUSH KIT LX BDE-584429-01.A14 584429-01	£19.90	£23.88
6 - NO LONGER AVAILABLE GB BDE-000000-00.A124746 000000-00	-
6 - NO LONGER AVAILABLE LX BDE-000000-00.A124747 000000-00	-
7 - CORD PROTECTOR BDE-584090-00.A74 584090-00	£1.50	£1.80
8 - CORDSET (M/PLUG) GB GB BDE-582319-04.A8 582319-04	£29.32	£35.18
8 - CORDSET (M/PLUG) LX BDE-582319-05.A14 582319-05	£36.42	£43.70
9 - PLUG BDE-578222-00.A14 578222-00	£1.50	£1.80
10 - NO LONGER AVAILABLE BDE-000000-00.A124748 000000-00	-
11 - LEAD WHITE BDE-582064-24.A4 582064-24	£1.82	£2.19
12 - NO LONGER AVAILABLE GB BDE-000000-00.A124749 000000-00	-
12 - LEAD VIOLET LX BDE-582064-15.A5 582064-15	£1.50	£1.80
13 - NO LONGER AVAILABLE GB BDE-000000-00.A124750 000000-00	-
13 - LEAD WHITE LX BDE-582064-19.A9 582064-19	£1.78	£2.13
14 - NO LONGER AVAILABLE GB BDE-000000-00.A124751 000000-00	-
14 - LEAD BLUE LX BDE-582064-16.A10 582064-16	£1.50	£1.80
15 - NO LONGER AVAILABLE GB BDE-000000-00.A124752 000000-00	-
15 - LEAD BLACK LX BDE-582064-20.A4 582064-20	£1.50	£1.80
16 - NO LONGER AVAILABLE GB BDE-000000-00.A124753 000000-00	-
16 - LEAD RED LX BDE-582064-14.A5 582064-14	£5.88	£7.06
17 - NO LONGER AVAILABLE GB BDE-000000-00.A124754 000000-00	-
17 - LEAD YELLOW LX BDE-582064-13.A4 582064-13	£5.88	£7.06
18 - BUMPER BDE-930026-01.A215 930026-01	£1.50	£1.80
19 - SLIDER BDE-578218-00.A21 578218-00	£2.78	£3.34
20 - LEVER BDE-578220-00.A10 578220-00	£1.50	£1.80
21 - SLEEVE BDE-870052.A47 870052	£1.50	£1.80
22 - BUSH BDE-579720-00.A25 579720-00	£1.50	£1.80
23 - SCREW BDE-326519-03.A36 326519-03	£1.50	£1.80
24 - BEARING BDE-330003-19.A2 330003-19	£2.78	£3.34
25 - BEARING BDE-330003-64.A78 330003-64	£4.69	£5.63
26 - CONNECTOR BDE-323534-00.A100 323534-00	£1.50	£1.80
27 - NO LONGER AVAILABLE GB BDE-000000-00.A124755 000000-00	-
28 - INSERT BDE-582877-00.A10 582877-00	£1.50	£1.80
29 - INSERT LX BDE-584551-00.A31 584551-00	£2.26	£2.71
29 - INSERT GB BDE-584080-00.A0 584080-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A124756 000000-00	-
31 - BAFFLE FAN BDE-581808-00.A17 581808-00	£1.50	£1.80
32 - FIELD CASE BDE-577993-00.A21 577993-00	£10.85	£13.02
33 - END CAP SA BDE-584041-00.A14 584041-00	£9.17	£11.00
34 - NO LONGER AVAILABLE BDE-000000-00.A124757 000000-00	-
35 - SCREW BDE-330065-08.A423 330065-08	£1.50	£1.80
36 - CORD CLAMP BDE-821070.A104 821070	£1.50	£1.80
37 - SCREW BDE-330065-13.A9 330065-13	£1.50	£1.80
39 - SCREW BDE-330065-26.A27 330065-26	£1.50	£1.80
40 - SCREW BDE-330065-25.A20 330065-25	£1.50	£1.80
50 - NO LONGER AVAILABLE BDE-000000-00.A124758 000000-00	-
51 - O RING BDE-580908-00.A14 580908-00	£1.50	£1.80
52 - PLATE BDE-578271-00.A26 578271-00	£3.80	£4.56
53 - HOLDER BDE-579564-00.A26 579564-00	£1.50	£1.80
54 - SELECTOR BDE-579552-00.A14 579552-00	£4.69	£5.63
55 - O RING BDE-584638-00.A10 584638-00	£1.50	£1.80
56 - LEVER BDE-587269-00.A17 587269-00	£1.50	£1.80
57 - SCREW BDE-324007-14.A2 324007-14	-
58 - LOCK BUTTON BDE-579184-00.A17 579184-00	£1.50	£1.80
59 - SPRING BDE-579179-00.A14 579179-00	£1.50	£1.80
60 - FILTER BDE-582865-00.A43 582865-00	£1.50	£1.80
61 - COVER BDE-579185-00.A14 579185-00	£1.82	£2.19
62 - SCREW BDE-583981-00.A52 583981-00	£1.50	£1.80
70 - GEARCASE SA BDE-584432-00.A0 584432-00	-
71 - BEARING BDE-330003-81.A18 330003-81	£4.69	£5.63
72 - SEAL BDE-578229-00.A22 578229-00	£1.50	£1.80
73 - BEARING BLOCK BDE-577801-00.A22 577801-00	£5.88	£7.06
74 - WASHER SHIM BDE-577802-00.A69 577802-00	£2.21	£2.65
75 - PISTON BDE-584420-00.A23 584420-00	£30.08	£36.10
76 - O RING BDE-579699-00.A5 579699-00	£1.50	£1.80
77 - NO LONGER AVAILABLE BDE-000000-00.A124759 000000-00	-
78 - BEARING BUSH BDE-N042808.A11 N042808	£5.88	£7.06
79 - SCREW BDE-324006-15.A61 324006-15	£1.50	£1.80
80 - FILTER BDE-587252-00.A14 587252-00	£1.50	£1.80
90 - CLIP BDE-577793-00.A56 577793-00	£1.50	£1.80
91 - BUSH BDE-584426-00.A66 584426-00	£16.03	£19.24
92 - O RING BDE-580990-00.A7 580990-00	£1.50	£1.80
93 - O RING BDE-577135-00.A44 577135-00	£3.30	£3.96
94 - DAMPER BDE-584425-00.A0 584425-00	£16.03	£19.24
95 - BEAT PIECE BDE-584424-01.A16 584424-01	£10.85	£13.02
96 - BEARING & SEAL BDE-584423-01.A17 584423-01	£19.90	£23.88
97 - SEAL BDE-577139-00.A48 577139-00	£1.50	£1.80
110 - WASHER BDE-577797-00.A42 577797-00	£1.50	£1.80
111 - O RING BDE-577744-00.A46 577744-00	£1.82	£2.19
112 - CLUTCH SA BDE-587482-00.A4 587482-00	£41.24	£49.49
113 - SPRING BDE-579178-00.A35 579178-00	£1.50	£1.80
114 - CYLINDER SA BDE-584422-01.A11 584422-01	£110.62	£132.74
115 - WASHER BDE-577814-00.A60 577814-00	£2.26	£2.71
116 - SCREW BDE-330065-05.A13 330065-05	£1.50	£1.80
117 - LOCKING DEVICE BDE-580291-00.A5 580291-00	£2.26	£2.71
118 - COVER GEARCASE BDE-584433-01.A1 584433-01	£30.08	£36.10
119 - RING BDE-577795-00.A21 577795-00	£1.50	£1.80
121 - SCREW BDE-330065-13.A10 330065-13	£1.50	£1.80
130 - SPINDLE BDE-N031254.A18 N031254	£25.05	£30.06
131 - SLEEVE SA BDE-584431-00.A22 584431-00	£37.35	£44.82
132 - SPRING BDE-871690.A164 871690	£1.66	£1.99
133 - WASHER BDE-578387-00.A137 578387-00	£1.66	£1.99
134 - BALL 7MM BDE-583890-00.A78 583890-00	£1.66	£1.99
135 - TUBE BDE-N504215.A39 N504215	£7.18	£8.62
136 - CAP BDE-323489-00.A221 323489-00	£1.66	£1.99
137 - RING BDE-579212-00.A93 579212-00	£1.66	£1.99
140 - HOLDER TOOL BDE-N591846.A19 N591846	£60.94	£73.13
145 - SPINDLE BDE-584676-00.A18 584676-00	£34.00	£40.80
146 - SPINDLE SA BDE-584556-00.A11 584556-00	£55.30	£66.36
147 - CHUCK KEYLESS BDE-582512-02.A3 582512-02	£24.39	£29.27
148 - SCREW BDE-605256-02.A170 605256-02	£1.50	£1.80
150 - CHUCK & SPINDLE SA BDE-N591847.A16 N591847	£51.90	£62.28
160 - SIDE HANDLE BDE-589467-00.A25 589467-00	-
170 - DEPTH STOP BDE-798846-02.A6 798846-02	£1.66	£1.99
800 - GREASE 90 GMS BDE-870889-02.A616 870889-02	£7.85	£9.42
801 - GREASE 10 GMS BDE-487130-04.A12 487130-04	£3.80	£4.56
821 - RATING PLATE LX BDE-569037-00.A169 569037-00	£3.80	£4.56
821 - RATING PLATE GB BDE-569037-00.A170 569037-00	£3.80	£4.56
836 - S.T.TERMINAL EXTRACTOR BDE-559638-99.A48 559638-99	£24.39	£29.27
846 - SERVICE KIT 115V LX BDE-585149-00.A5 585149-00	£55.30	£66.36
846 - SERVICE KIT 230V GB BDE-585146-00.A4 585146-00	£55.30	£66.36
