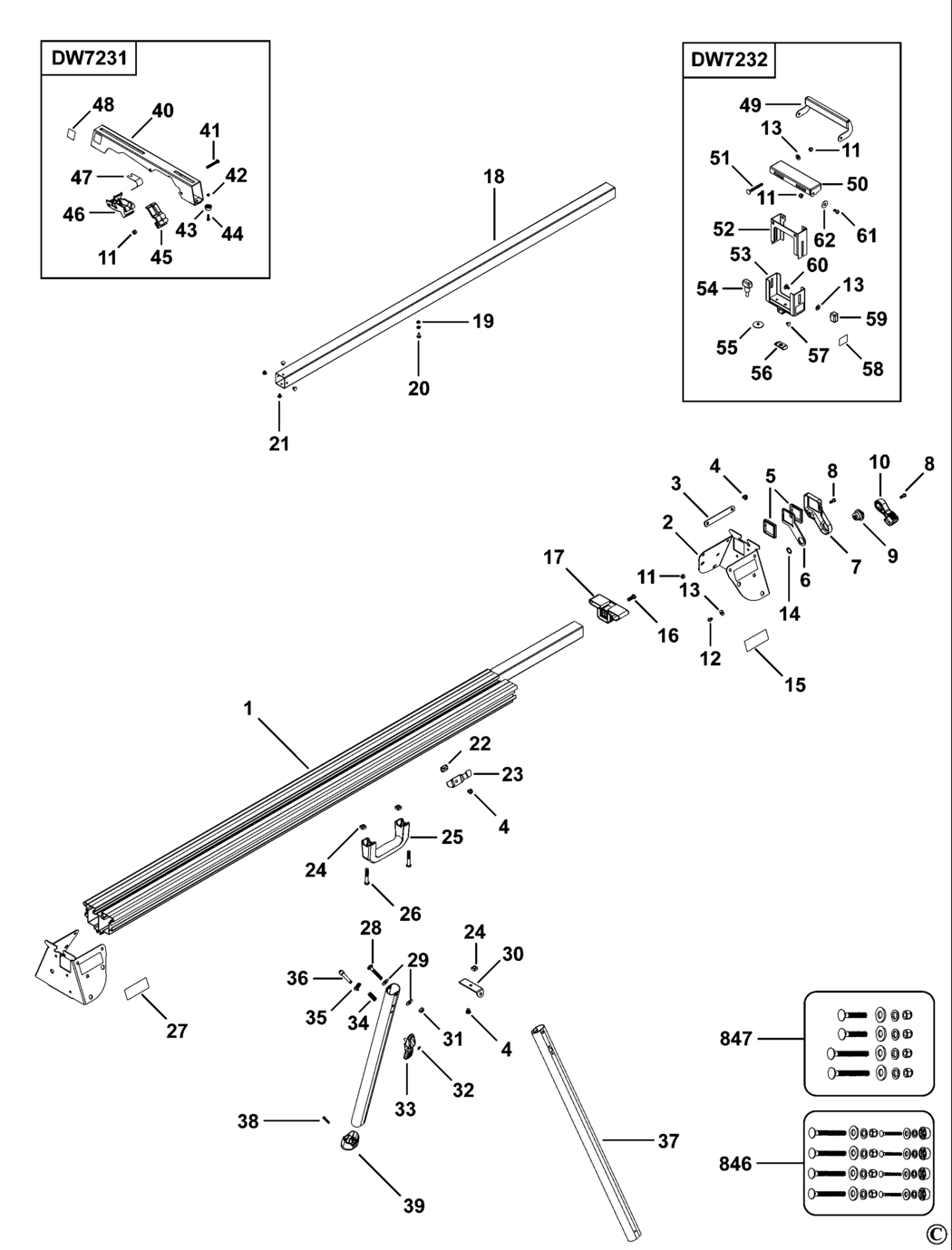

1 - BEAM
BDE-N087123.A2
N087123
|
-
|
|
|
|
2 - SUPPORT BRACKET
BDE-N086901.A2
N086901
|
£44.00
|
£52.80
|
|
|
3 - PLATE
BDE-N087205.A8
N087205
|
£4.69
|
£5.63
|
|
|
4 - SCREW
BDE-330045-31.A3
330045-31
|
£1.50
|
£1.80
|
|
|
5 - GUIDE
BDE-N087198.A5
N087198
|
£2.78
|
£3.34
|
|
|
6 - PLATE LOCK
BDE-N439896.A9
N439896
|
£4.69
|
£5.63
|
|
|
7 - COVERPLATE
BDE-N087195.A5
N087195
|
-
|
|
|
|
8 - SCREW
BDE-N087285.A5
N087285
|
£1.50
|
£1.80
|
|
|
9 - CAM
BDE-N069535.A6
N069535
|
£18.91
|
£22.69
|
|
|
10 - LEVER LOCK
BDE-N069240.A10
N069240
|
£10.85
|
£13.02
|
|
|
11 - NUT
BDE-330021-01.A45
330021-01
|
£1.50
|
£1.80
|
|
|
12 - SCREW
BDE-N087318.A6
N087318
|
£1.50
|
£1.80
|
|
|
13 - WASHER
BDE-N087248.A6
N087248
|
£1.50
|
£1.80
|
|
|
14 - WASHER SPRING
BDE-N087200.A5
N087200
|
£1.50
|
£1.80
|
|
|
16 - SCREW
BDE-N086604.A12
N086604
|
£1.50
|
£1.80
|
|
|
17 - END CAP
BDE-N576964.A6
N576964
|
£17.48
|
£20.97
|
|
|
18 - EXTENSION
BDE-N087325.A1
N087325
|
£125.16
|
£150.19
|
|
|
19 - WASHER LOCK
BDE-N087321.A8
N087321
|
£1.50
|
£1.80
|
|
|
20 - SCREW
BDE-N087258.A3
N087258
|
£1.50
|
£1.80
|
|
|
21 - PAD
BDE-N087257.A4
N087257
|
£1.50
|
£1.80
|
|
|
22 - NUT
BDE-N087250.A6
N087250
|
£1.50
|
£1.80
|
|
|
23 - BRACKET
BDE-N087127.A6
N087127
|
£7.18
|
£8.62
|
|
|
24 - NUT
BDE-N087199.A11
N087199
|
£1.50
|
£1.80
|
|
|
25 - HANDLE
BDE-N087125.A7
N087125
|
£14.57
|
£17.48
|
|
|
26 - SCREW
BDE-N593762.A3
N593762
|
£2.26
|
£2.71
|
|
|
27 - BRAND LABEL
BDE-606774-00.A10
606774-00
|
£2.78
|
£3.34
|
|
|
28 - CARRIAGE BOLT
BDE-658122-00.A10
658122-00
|
£2.78
|
£3.34
|
|
|
29 - WASHER PLASTIC
BDE-657479-00.A11
657479-00
|
£1.50
|
£1.80
|
|
|
30 - SUPPORT BRACKET
BDE-N087284.A4
N087284
|
£7.18
|
£8.62
|
|
|
31 - NUT
BDE-330021-02.A18
330021-02
|
£1.50
|
£1.80
|
|
|
32 - RING
BDE-658121-00.A6
658121-00
|
£1.50
|
£1.80
|
|
|
33 - LEVER LOCK
BDE-N041876.A8
N041876
|
£17.48
|
£20.97
|
|
|
34 - SPRING COMPRESSION
BDE-658120-00.A15
658120-00
|
£1.50
|
£1.80
|
|
|
35 - WASHER PLASTIC
BDE-657478-00.A7
657478-00
|
£1.50
|
£1.80
|
|
|
36 - LOCK PIN
BDE-657816-00.A6
657816-00
|
£3.80
|
£4.56
|
|
|
37 - LEG
BDE-N087320.A1
N087320
|
£41.24
|
£49.49
|
|
|
38 - SCREW
BDE-330019-32.A151
330019-32
|
£1.50
|
£1.80
|
|
|
39 - FOOT
BDE-N074647.A6
N074647
|
£7.18
|
£8.62
|
|
|
40 - MOUNTING BRACKET
BDE-N087331.A11
N087331
|
£38.80
|
£46.56
|
|
|
41 - SCREW
BDE-N087342.A4
N087342
|
£1.50
|
£1.80
|
|
|
42 - STOP NUT
BDE-330021-00.A15
330021-00
|
£1.50
|
£1.80
|
|
|
43 - FOOT
BDE-N057926.A23
N057926
|
£9.41
|
£11.29
|
|
|
44 - SCREW
BDE-330045-06.A143
330045-06
|
£1.50
|
£1.80
|
|
|
45 - CLIP
BDE-N087369.A16
N087369
|
£5.88
|
£7.06
|
|
|
46 - LEVER RELEASE
BDE-N087367.A4
N087367
|
£10.85
|
£13.02
|
|
|
47 - LEAF SPRING
BDE-N087366.A13
N087366
|
£3.80
|
£4.56
|
|
|
48 - RATING PLATE
BDE-N084922.A1
N084922
|
-
|
|
|
|
49 - STOP
BDE-N087387.A12
N087387
|
£14.57
|
£17.48
|
|
|
50 - SUPPORT
BDE-N087381.A12
N087381
|
£17.48
|
£20.97
|
|
|
51 - CARRIAGE BOLT
BDE-N087382.A3
N087382
|
£1.50
|
£1.80
|
|
|
52 - SUPPORT BRACKET
BDE-N087377.A3
N087377
|
£18.91
|
£22.69
|
|
|
53 - BASE BRACKET
BDE-N087402.A3
N087402
|
£37.35
|
£44.82
|
|
|
54 - KNOB
BDE-N087376.A15
N087376
|
£5.88
|
£7.06
|
|
|
55 - PLASTIC INSERT
BDE-N087374.A14
N087374
|
£1.50
|
£1.80
|
|
|
56 - BAR LOCKING
BDE-N087375.A3
N087375
|
£3.30
|
£3.96
|
|
|
57 - PLASTIC INSERT
BDE-N087373.A3
N087373
|
£1.50
|
£1.80
|
|
|
58 - RATING PLATE
BDE-N084924.A0
N084924
|
-
|
|
|
|
59 - KNOB
BDE-N087378.A19
N087378
|
£3.80
|
£4.56
|
|
|
60 - SCREW
BDE-N087380.A3
N087380
|
£1.50
|
£1.80
|
|
|
61 - SCREW
BDE-N087390.A3
N087390
|
£1.50
|
£1.80
|
|
|
62 - WASHER PLASTIC
BDE-N087392.A13
N087392
|
£3.80
|
£4.56
|
|
|
846 - PARTS PACK
BDE-N088854.A7
N088854
|
£19.90
|
£23.88
|
|
|
847 - PARTS PACK
BDE-N087409.A4
N087409
|
-
|
|
|
