Bosch ---- / 0607550593 / --- Spare Parts

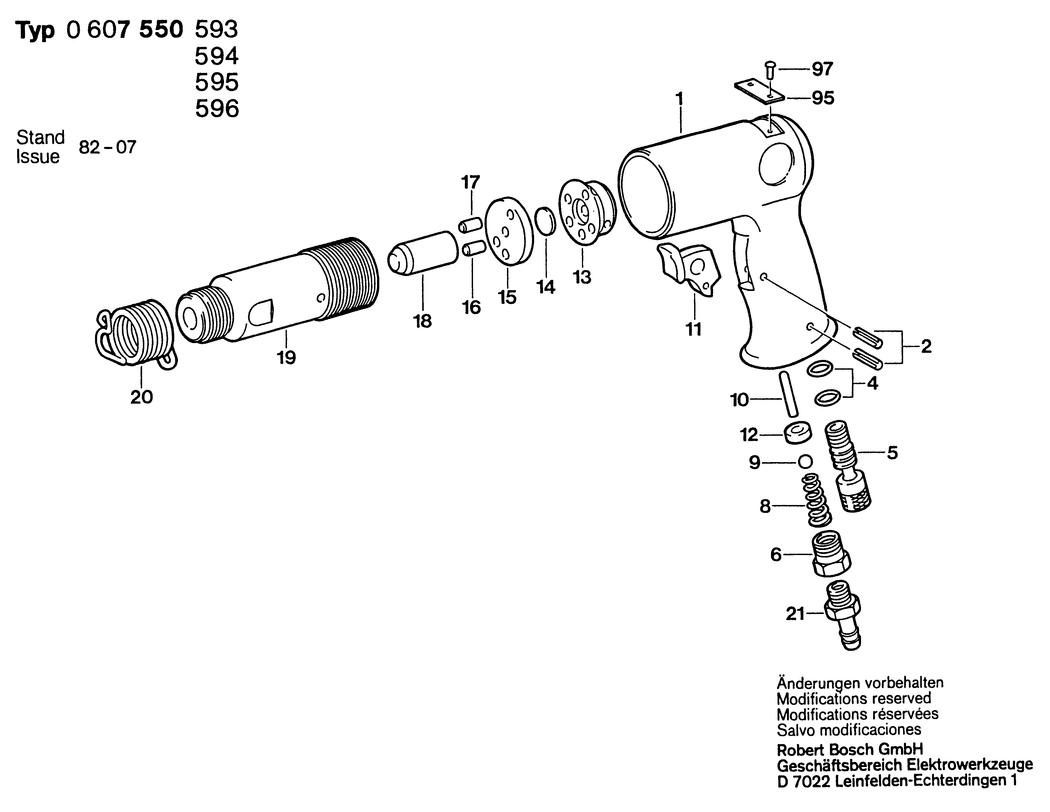

An exploded drawing and listing for the Bosch ---- / 0607550593 / ---

	Ex VAT	Inc VAT
1 - COMPRESSION SPRING BSD-1609201318.A4 1609201318	-
2 - CLAMPING SLEEVE BSD-1609390319.A1 1609390319	-
4 - O-RING BSD-1609390320.A0 1609390320	-
5 - THROTTLE SCREW BSD-1609390321.A1 1609390321	-
6 - COMPRESSION SPRING BSD-1609390322.A0 1609390322	-
8 - COMPRESSION SPRING BSD-1609390323.A1 1609390323	-
9 - BALL BSD-1609390324.A0 1609390324	-
10 - VALVE NEEDLE BSD-1609390325.A1 1609390325	-
11 - VALVE PLATE BSD-1609390326.A0 1609390326	-
12 - VALVE PLATE BSD-1609390327.A1 1609390327	-
13 - VALVE BODY BSD-1609390328.A0 1609390328	-
14 - ADAPTOR PLATE BSD-1609390329.A1 1609390329	-
15 - VALVE PLATE BSD-1609390330.A0 1609390330	-
16 - GUIDE PIN BSD-1609390331.A1 1609390331	-
17 - GUIDE PIN BSD-1609390332.A0 1609390332	-
18 - IMPACT MECHANISM HOUSING BSD-1609390333.A1 1609390333	-
19 - IMPACT MECHANISM HOUSING BSD-1609390334.A0 1609390334	-
20 - HOLDING SPRING BSD-1609390336.A1 1609390336	-
21 - HOSE FITTING BSD-1609390313.A0 1609390313	-
95 - NAMEPLATE BSD-1601107011.A0 1601107011	-
97 - ROUND-HEAD GROOVED PIN DIN 1476-2x3-St BSD-2917721031.A99 2917721031	£1.75	£2.10

Attribute Name	Value
Brand	Bosch
