Bosch ---- / 0607550180 / --- Spare Parts

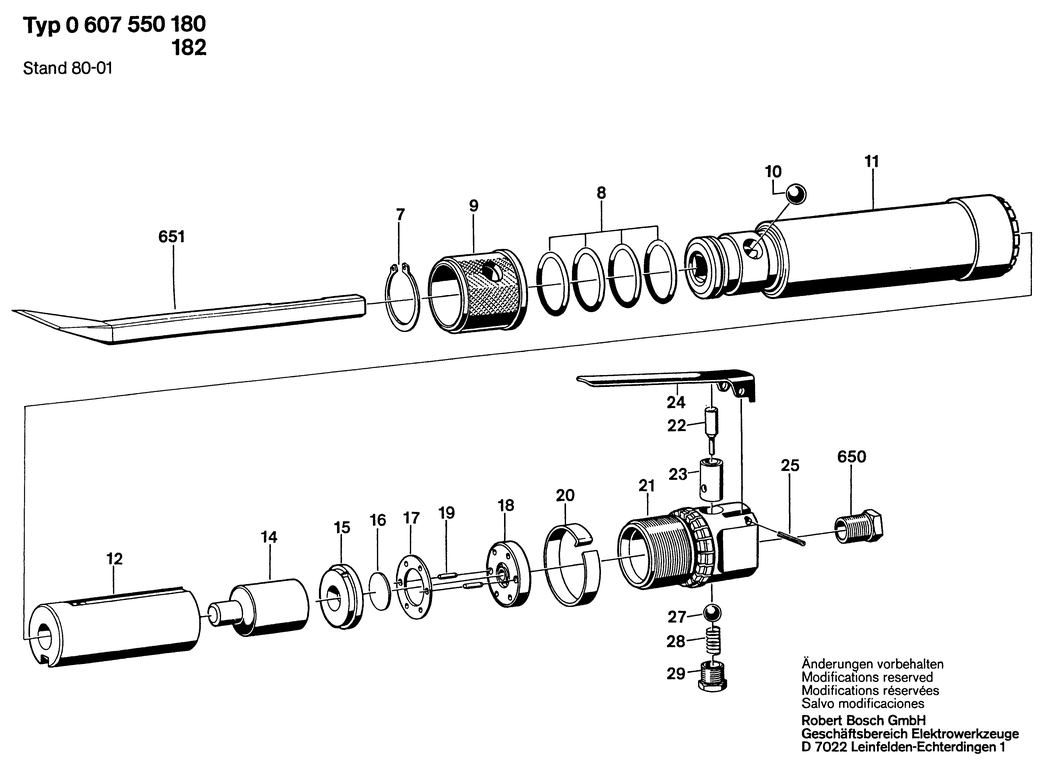

An exploded drawing and listing for the Bosch ---- / 0607550180 / ---

	Ex VAT	Inc VAT
7 - SPRING RETAINING RING DIN 471 30x1.5 MM BSD-2916650017.A25 2916650017	£1.75	£2.10
8 - SEAL RING BSD-1609300762.A2 1609300762	-
9 - GUIDE SLEEVE BSD-1609300748.A2 1609300748	-
10 - BALL 11.1 MMIIIDIN5401ST BSD-1903230532.A2 1903230532	-
11 - MOTOR HOUSING BSD-1609300749.A0 1609300749	-
12 - CYLINDER HOUSING BSD-1609300747.A0 1609300747	-
14 - STRIKER BSD-1609300746.A2 1609300746	-
15 - VALVE PLATE BSD-1609300742.A2 1609300742	-
16 - PLAIN WASHER BSD-1609300743.A0 1609300743	-
17 - PERFORATED PANEL BSD-1609300744.A2 1609300744	-
18 - VALVE PLATE BSD-1609300745.A0 1609300745	-
19 - HOLDING PIN BSD-1609300758.A2 1609300758	-
20 - RETAINING RING BSD-1609300413.A0 1609300413	-
21 - MOTOR HOUSING BSD-1609300741.A0 1609300741	-
22 - STOP BOLT BSD-1609300739.A0 1609300739	-
23 - GUIDE BUSHING BSD-1609300738.A2 1609300738	-
24 - CONTROL LEVER BSD-1609300707.A0 1609300707	-
25 - SLOTTED SPRING PIN BSD-1609300763.A2 1609300763	-
27 - BALL DIN 5401-9.5MM-III-ST BSD-1903230528.A44 1903230528	£1.75	£2.10
28 - COMPRESSION SPRING BSD-1609300571.A2 1609300571	-
29 - SCREW PLUG BSD-1609300740.A2 1609300740	-
650 - FITTING BSD-1609300760.A2 1609300760	-
651 - COLD CHISEL BSD-1608690012.A1 1608690012	-

Attribute Name	Value
Brand	Bosch
