Dewalt D25980 Type 3 Demolition Hammer Spare Parts

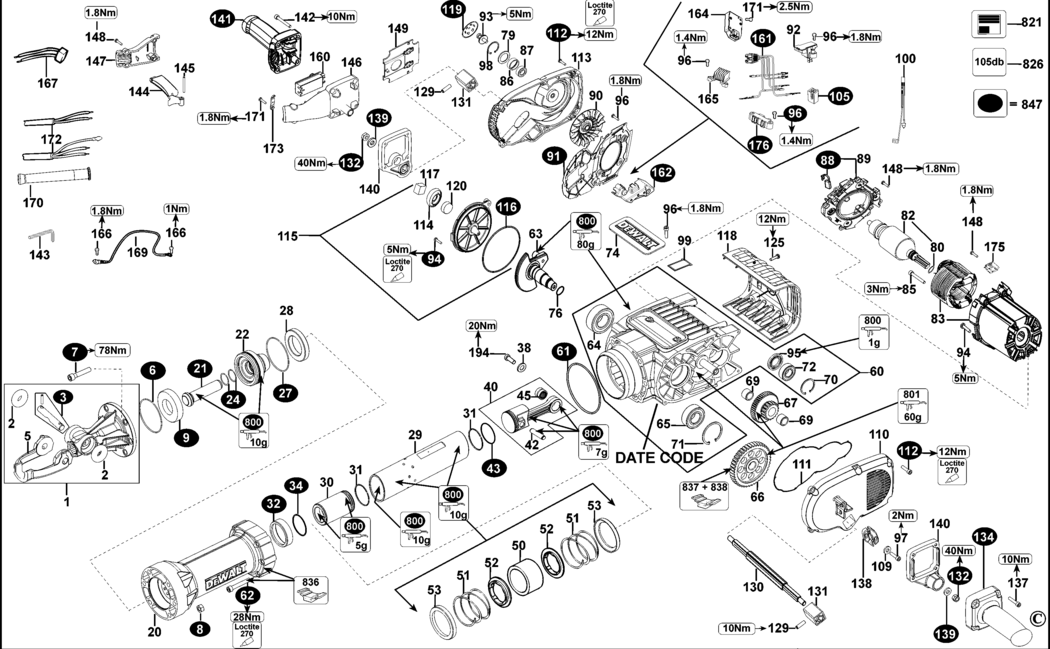

An exploded drawing and spare parts listing for the Dewalt D25980 Type 3 Demolition Hammer

	Ex VAT	Inc VAT
1 - HOLDER SA BDE-N500401.A2 N500401	£710.28	£852.34
1 - HOLDER SA BDE-494568-00.A2 494568-00	£371.62	£445.95
2 - DAMPER BDE-478063-00.A0 478063-00	£5.88	£7.06
3 - REPAIR KIT BDE-494547-00 494547-00	£30.08	£36.10
3 - REPAIR KIT BDE-N500415.A0 N500415	£41.24	£49.49
5 - RETAINER BDE-494570-00.A0 494570-00	£183.42	£220.10
6 - O RING BDE-478116-00.A4 478116-00	£1.66	£1.99
7 - BOLT BDE-949886-34.A4 949886-34	£1.66	£1.99
8 - NUT BDE-496261-00.A4 496261-00	£1.66	£1.99
9 - FELT SEAL BDE-490534-00.A4 490534-00	£4.69	£5.63
20 - HOUSING FRONT BDE-494566-00.A2 494566-00	£174.63	£209.56
21 - BEAT PIECE BDE-494567-00.A0 494567-00	£71.44	£85.73
22 - GUIDE SA BDE-494562-00.A4 494562-00	£96.55	£115.86
24 - O RING BDE-584706-00.A7 584706-00	£3.30	£3.96
27 - O RING BDE-478119-00.A0 478119-00	£1.66	£1.99
28 - DAMPER BDE-478071-00.A4 478071-00	£7.85	£9.42
29 - CYLINDER BDE-494571-00.A4 494571-00	£218.32	£261.98
30 - RAM BDE-1005669-00.A0 1005669-00	£144.10	£172.92
31 - PISTON RING BDE-494543-00.A4 494543-00	£30.08	£36.10
32 - RING BDE-494560-00.A0 494560-00	£19.90	£23.88
34 - O RING BDE-494354-00.A4 494354-00	£3.30	£3.96
38 - WASHER BDE-493421-00.A0 493421-00	£3.30	£3.96
40 - PISTON KIT BDE-496978-00.A4 496978-00	£119.32	£143.19
42 - PIN BDE-494559-00.A4 494559-00	£14.57	£17.48
43 - O RING BDE-494355-01.A0 494355-01	£1.66	£1.99
45 - BEARING NEEDLE BDE-494558-00.A0 494558-00	£19.90	£23.88
50 - CONNTERWEIGHT BDE-494565-00.A0 494565-00	£59.41	£71.29
51 - SPRING BDE-478080-00.A0 478080-00	£44.14	£52.97
52 - GUIDE BDE-478081-00.A4 478081-00	£2.78	£3.34
53 - GUIDE BDE-478082-00.A0 478082-00	£2.78	£3.34
60 - HOUSING SA BDE-N040341.A0 N040341	£96.55	£115.86
61 - O RING BDE-478120-00.A4 478120-00	£1.66	£1.99
62 - SCREW BDE-949886-35.A0 949886-35	£3.30	£3.96
63 - CRANKSHAFT BDE-494572-01.A0 494572-01	£119.32	£143.19
64 - BEARING BALL BDE-577745-04.A4 577745-04	£17.48	£20.97
65 - BEARING BALL BDE-577745-03.A0 577745-03	£7.85	£9.42
66 - GEAR BDE-494576-00.A0 494576-00	£84.42	£101.30
67 - GEAR SA BDE-494573-00.A6 494573-00	£104.31	£125.17
69 - BEARING SET BDE-494549-00.A0 494549-00	£37.35	£44.82
70 - RETAINER BDE-616726-00.A2 616726-00	£1.66	£1.99
71 - CIRCLIP BDE-324821-05.A4 324821-05	£1.66	£1.99
72 - BEARING BDE-330003-69.A9 330003-69	£9.41	£11.29
74 - NAMEPLATE BDE-487668-00.A0 487668-00	£7.18	£8.62
76 - O RING BDE-492448-00.A4 492448-00	£1.66	£1.99
79 - WASHER BDE-491851-00.A0 491851-00	£1.66	£1.99
80 - RING BDE-577746-01.A6 577746-01	£1.66	£1.99
82 - ARMATURE 120V LX BDE-494578-00.A2 494578-00	£125.16	£150.19
82 - ARMATURE 230V GB BDE-494578-01.A0 494578-01	£125.16	£150.19
83 - FIELD SA 230V GB BDE-496846-01.A0 496846-01	£144.10	£172.92
83 - FIELD SA 115V LX BDE-496846-00.A2 496846-00	£135.36	£162.43
85 - SCREW BDE-330019-33.A3 330019-33	£1.66	£1.99
86 - SLEEVE BDE-325279-00.A26 325279-00	-
86 - SLEEVE BDE-N236019.A4 N236019	£7.18	£8.62
87 - BEARING BDE-577745-00.A94 577745-00	£7.85	£9.42
88 - BRUSH PAIR 115V LX BDE-1005550-03.A8 1005550-03	£24.39	£29.27
88 - BRUSH PAIR 230V GB BDE-1005550-02.A1 1005550-02	£34.00	£40.80
89 - BRUSH PLATE SA LX BDE-N184443.A0 N184443	£44.14	£52.97
89 - BRUSH PLATE SA GB BDE-N184443.A1 N184443	£44.14	£52.97
89 - BRUSH PLATE SA LX BDE-N184444.A3 N184444	£55.30	£66.36
90 - FAN SA BDE-491666-00.A0 491666-00	£24.39	£29.27
91 - BAFFLE BDE-491639-00.A0 491639-00	£7.85	£9.42
92 - PICK UP BDE-491640-00.A4 491640-00	£24.39	£29.27
93 - SCREW BDE-324119-02.A51 324119-02	£1.66	£1.99
94 - SCREW TORX BDE-324007-11.A82 324007-11	£1.66	£1.99
95 - SEAL BDE-1006625-00.A0 1006625-00	£7.18	£8.62
96 - SCREW BDE-330065-06.A70 330065-06	£1.66	£1.99
97 - SCREW BDE-N445171.A17 N445171	£1.66	£1.99
97 - SCREW BDE-324006-14.A26 324006-14	£1.66	£1.99
98 - CIRCLIP BDE-496097-00.A0 496097-00	£1.66	£1.99
99 - COVER BRUSH BDE-491772-00.A4 491772-00	£1.66	£1.99
100 - FILTER BDE-327517-01.A6 327517-01	£10.85	£13.02
105 - SOCKET BDE-491651-00.A4 491651-00	£1.66	£1.99
109 - WASHER BDE-860075-01.A6 860075-01	£1.66	£1.99
110 - COVER GEARCASE BDE-478096-00.A4 478096-00	£25.70	£30.84
111 - SEAL BDE-478097-00.A0 478097-00	£9.41	£11.29
112 - SCREW BDE-493968-00.A0 493968-00	£1.66	£1.99
113 - MOTOR COVER BDE-478098-00.A4 478098-00	£16.03	£19.24
114 - CAP BDE-487438-00.A6 487438-00	£1.66	£1.99
115 - COVER BDE-491368-00.A4 491368-00	£12.17	£14.60
116 - O RING BDE-478122-00.A0 478122-00	£1.66	£1.99
117 - RUBBER PAD BDE-494786-00.A0 494786-00	£1.66	£1.99
118 - COVER REAR BDE-479964-00.A0 479964-00	£12.17	£14.60
119 - END CAP BDE-492668-00.A4 492668-00	£3.30	£3.96
120 - FILTER BDE-487229-00.A13 487229-00	£1.66	£1.99
125 - SCREW BDE-330045-24.A5 330045-24	£1.66	£1.99
129 - SCREW BDE-153576-00.A10 153576-00	£1.66	£1.99
130 - REPAIR KIT BDE-N141636.A1 N141636	£218.32	£261.98
131 - SPRING SA BDE-478101-00.A0 478101-00	£24.39	£29.27
132 - NUT BDE-494471-00.A0 494471-00	£1.66	£1.99
134 - HANDLE BDE-N167287.A0 N167287	£41.24	£49.49
137 - SCREW BDE-949886-37.A0 949886-37	£1.66	£1.99
138 - STOP RUBBER BDE-478104-00.A4 478104-00	£3.80	£4.56
139 - WASHER CLAMP BDE-495104-00.A4 495104-00	£1.66	£1.99
140 - REPAIR KIT BDE-N141636.A0 N141636	£218.32	£261.98
141 - HANDLE RH BDE-N167282.A4 N167282	£30.08	£36.10
142 - SCREW BDE-949886-36.A4 949886-36	£1.66	£1.99
143 - HEX KEY 5 MM BDE-930574-00.A31 930574-00	£1.66	£1.99
144 - TRIGGER BDE-478107-00.A0 478107-00	£3.30	£3.96
145 - PIN BDE-377374.A1 377374	£1.66	£1.99
146 - HOUSING SWITCH GB BDE-N167284.A0 N167284	£18.91	£22.69
146 - HOUSING SWITCH LX BDE-N167284.A1 N167284	£18.91	£22.69
147 - SWITCH COVER BDE-N167324.A4 N167324	£5.88	£7.06
148 - SCREW BDE-330065-08.A75 330065-08	£1.66	£1.99
149 - PROTECTOR BDE-N167286.A4 N167286	£2.78	£3.34
160 - SWITCH BDE-326087-04.A0 326087-04	£30.08	£36.10
161 - SET OF LEAD WIRES BDE-494552-00.A4 494552-00	£30.08	£36.10
162 - COVER BDE-495975-00.A4 495975-00	£3.80	£4.56
164 - GACC MODULE 230V GB BDE-N127691.A0 N127691	£74.15	£88.98
164 - GACC MODULE 115V LX BDE-N127692.A2 N127692	£80.98	£97.18
165 - HEATSINK BDE-490796-00.A4 490796-00	£2.78	£3.34
167 - CAPACITOR GB BDE-807285-16.A5 807285-16	£7.18	£8.62
167 - CAPACITOR LX BDE-807285-16.A6 807285-16	£7.18	£8.62
170 - CORD PROTECTOR BDE-947964-00.A45 947964-00	£10.85	£13.02
170 - CORD PROTECTOR LX BDE-947964-01.A0 947964-01	£3.80	£4.56
170 - CORD PROTECTOR GB BDE-947964-00.A46 947964-00	£10.85	£13.02
171 - SCREW BDE-324006-02.A11 324006-02	£1.66	£1.99
172 - CORDSET LX BDE-562226-69.A3 562226-69	£58.69	£70.43
172 - NO LONGER AVAILABLE GB BDE-000000-00.A30247 000000-00	-
173 - CORD CLAMP LX BDE-821070.A620 821070	£1.66	£1.99
173 - CORD CLAMP GB BDE-821070.A621 821070	£1.66	£1.99
173 - CORD CLAMP BDE-821070.A622 821070	£1.66	£1.99
175 - SOCKET BDE-490914-00.A0 490914-00	£1.66	£1.99
176 - PLUG BDE-491650-00.A0 491650-00	£1.66	£1.99
194 - SCREW BDE-494356-00.A6 494356-00	£1.66	£1.99
800 - GREASE 150 GMS 145gms BDE-578970-06.A23 578970-06	£55.32	£66.38
801 - GREASE 90 GMS BDE-870889-02.A153 870889-02	£14.58	£17.50
821 - RATING PLATE GB BDE-N117118 N117118	£10.85	£13.02
821 - RATING PLATE LX BDE-N117119 N117119	£10.85	£13.02
826 - LABEL BDE-487395-01.A14 487395-01	£1.66	£1.99
836 - S.T.REMOVAL TOOL BDE-559667-99.A0 559667-99	£71.44	£85.73
837 - S.T.REMOVAL TOOL BDE-559668-99.A4 559668-99	£34.00	£40.80
838 - S.T.PISTON JAMMER BDE-559669-99.A0 559669-99	£24.39	£29.27
847 - 300HR 230V SERVICE KIT W/OUT MOTOR GB BDE-1005620-02.A2 1005620-02	£157.18	£188.61
847 - 300HR 120V SERVICE KIT W/OUT MOTOR LX BDE-1005620-03.A0 1005620-03	£157.18	£188.61

Attribute Name	Value
Brand	Dewalt
