Dewalt D25961K Type 1 Demolition Hammer Spare Parts

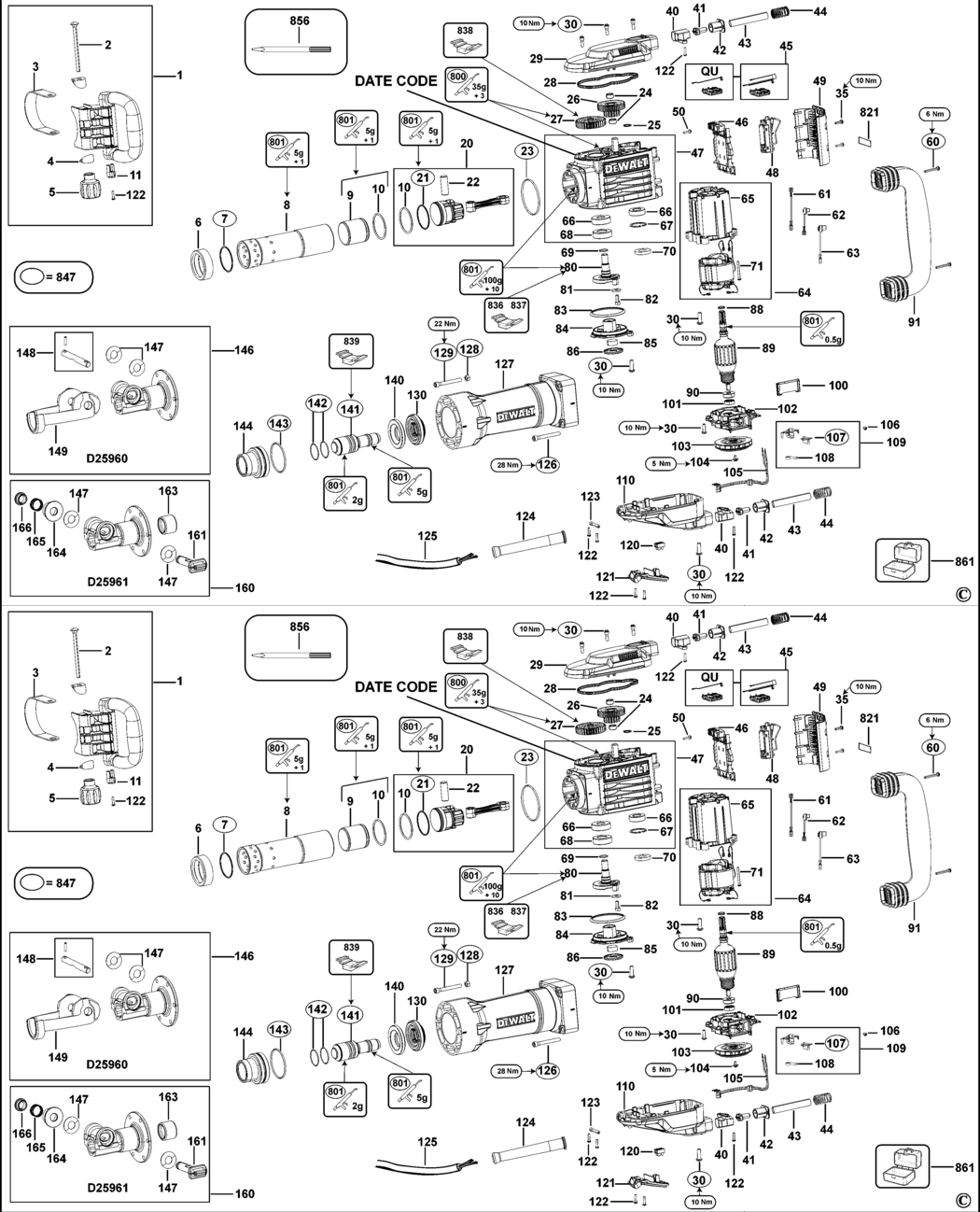

An exploded drawing and spare parts listing for the Dewalt D25961K Type 1 Demolition Hammer

	Ex VAT	Inc VAT
1 - HANDLE SA BDE-N087487.A1 N087487	£110.62	£132.74
2 - BOLT BDE-N044219.A1 N044219	£2.78	£3.34
3 - CLAMP BDE-N044098.A0 N044098	£18.91	£22.69
4 - INSERT BDE-N044099.A1 N044099	£2.26	£2.71
5 - HANDLE BDE-N086186.A0 N086186	£7.85	£9.42
6 - RING BDE-N087359.A1 N087359	£18.91	£22.69
7 - O RING BDE-N069978.A1 N069978	£5.88	£7.06
8 - CYLINDER BDE-N087327.A0 N087327	£165.92	£199.11
9 - RAM BDE-N087416.A1 N087416	£110.62	£132.74
10 - PISTON RING BDE-N088404.A0 N088404	£44.14	£52.97
11 - CAP BDE-N044100.A0 N044100	£2.78	£3.34
20 - FSO REPAIR KIT <052012 BDE-N161207.A1 N161207	£126.63	£151.96
20 - PISTON KIT >052012 BDE-N164668.A0 N164668	£119.32	£143.19
21 - O RING BDE-N056464.A0 N056464	£5.88	£7.06
22 - BOLT BDE-N087484.A0 N087484	£24.39	£29.27
23 - O RING BDE-N050696.A1 N050696	£3.30	£3.96
24 - BEARING SET BDE-494549-00.A6 494549-00	£37.35	£44.82
25 - CIRCLIP BDE-N071623.A1 N071623	£1.50	£1.80
26 - GEAR SA BDE-494573-00.A5 494573-00	£104.31	£125.17
27 - GEAR BDE-N087483.A1 N087483	£74.15	£88.98
28 - SEAL BDE-N043534.A1 N043534	£10.85	£13.02
29 - COVER BDE-N026222.A1 N026222	£34.00	£40.80
30 - SCREW BDE-493968-00.A1 493968-00	£1.50	£1.80
35 - SCREW.SPECIAL BDE-330045-23.A28 330045-23	£1.50	£1.80
40 - BUSH BDE-N043530.A0 N043530	£3.80	£4.56
41 - STOP BDE-N043533.A0 N043533	£10.85	£13.02
42 - GUIDE BUSH BDE-N043529.A1 N043529	£3.80	£4.56
43 - TUBE METAL BDE-N043532.A1 N043532	£5.88	£7.06
44 - SPRING BDE-N069674.A0 N069674	£1.50	£1.80
46 - HOUSING SWITCH BDE-N043527.A0 N043527	£9.41	£11.29
47 - HOUSING SA BDE-N088431.A1 N088431	£301.55	£361.86
49 - COVER REAR BDE-N031170.A1 N031170	£14.57	£17.48
50 - SCREW BDE-326619-00.A21 326619-00	£1.50	£1.80
60 - SCREW BDE-1005672-01.A0 1005672-01	£3.30	£3.96
61 - LEAD WHITE BDE-N106177.A1 N106177	£3.80	£4.56
62 - LEAD BLUE BDE-N103817.A0 N103817	£3.30	£3.96
63 - LEAD YELLOW BDE-N106096.A0 N106096	£5.88	£7.06
65 - HOUSING MOTOR BDE-N020776.A0 N020776	£24.39	£29.27
66 - BEARING BDE-330003-69.A1 330003-69	£9.41	£11.29
67 - RETAINER BDE-616726-00.A21 616726-00	£1.50	£1.80
68 - BEARING BALL BDE-577745-03.A6 577745-03	£7.85	£9.42
69 - O RING BDE-N049232.A1 N049232	£1.50	£1.80
70 - FELT BDE-N050316.A0 N050316	£1.50	£1.80
71 - SCREW BDE-330019-27.A3 330019-27	-
80 - CRANKSHAFT >052012 BDE-N164667.A1 N164667	£144.10	£172.92
80 - FSO REPAIR KIT <052012 BDE-N161207.A0 N161207	£126.63	£151.96
81 - WASHER BDE-330016-21.A1 330016-21	£1.50	£1.80
82 - SCREW BDE-494356-00.A5 494356-00	£1.50	£1.80
83 - O RING BDE-N075322.A1 N075322	£1.50	£1.80
84 - COVER BDE-N030647.A0 N030647	£14.57	£17.48
85 - FILTER BDE-487229-00.A6 487229-00	£1.50	£1.80
86 - CAP BDE-487438-00.A5 487438-00	£1.50	£1.80
88 - RING BDE-577746-01.A0 577746-01	£1.50	£1.80
90 - BEARING BDE-577745-00.A29 577745-00	£7.85	£9.42
91 - HANDLE BDE-N031103.A1 N031103	£38.80	£46.56
100 - BRUSH COVER BDE-N038446.A0 N038446	£2.78	£3.34
101 - SLEEVE INSULATING BDE-N167638.A1 N167638	£7.85	£9.42
102 - BRUSHPLATE BDE-N020777.A1 N020777	£12.17	£14.60
103 - FAN SA BDE-586611-00.A8 586611-00	£14.57	£17.48
104 - SCREW BDE-324119-02.A81 324119-02	£1.50	£1.80
106 - SCREW BDE-330065-06.A260 330065-06	£1.50	£1.80
108 - BRUSH SPRING BDE-487377-00.A13 487377-00	£2.26	£2.71
121 - COVER BDE-N030582.A0 N030582	£9.41	£11.29
122 - SCREW BDE-330065-08.A315 330065-08	£1.50	£1.80
126 - SCREW BDE-949886-40.A0 949886-40	£1.50	£1.80
127 - HOUSING FRONT BDE-N161206.A1 N161206	£218.32	£261.98
128 - NUT BDE-N074448.A2 N074448	£1.50	£1.80
129 - SCREW BDE-949886-39.A1 949886-39	£1.50	£1.80
130 - DAMPER BDE-N100041.A1 N100041	£12.17	£14.60
140 - WASHER BDE-N087384.A0 N087384	£45.14	£54.17
141 - BEAT PIECE BDE-N092853 N092853	£113.07	£135.68
142 - O RING BDE-487213-00.A0 487213-00	£7.18	£8.62
143 - O RING BDE-N069976.A0 N069976	£1.50	£1.80
144 - PLEASE SEE REPAIR INSTRUCTION BDE-000000-20.A2 000000-20	-
147 - DAMPER BDE-N098357.A1 N098357	£3.30	£3.96
160 - HOLDER TOOL BDE-N142418 N142418	£465.78	£558.94
161 - RETAINER BDE-N028180 N028180	£47.08	£56.49
161 - SERVICE KIT BDE-N361859 N361859	£47.08	£56.49
163 - BUSH BDE-N028245 N028245	£18.91	£22.69
164 - BUSH BDE-N028182.A0 N028182	£10.85	£13.02
164 - BUSH BDE-N028181.A1 N028181	£12.17	£14.60
165 - SPRING BDE-N069982 N069982	£2.26	£2.71
166 - BUSH BDE-N028182.A1 N028182	£10.85	£13.02
166 - BUSH BDE-N028181.A0 N028181	£12.17	£14.60
800 - GREASE 90 GMS BDE-870889-02.A365 870889-02	£7.85	£9.42
801 - GREASE 150 GMS BDE-578970-06.A0 578970-06	£55.32	£66.38
836 - SERVICE TOOL BDE-1003944-99.A1 1003944-99	£157.18	£188.61
837 - SERVICE TOOL BDE-1003945-99.A0 1003945-99	£41.24	£49.49
838 - SERVICE TOOL BDE-1003946-98.A1 1003946-98	£58.69	£70.43
839 - SERVICE TOOL BDE-1003947-99.A0 1003947-99	£125.16	£150.19
856 - BIT BDE-N074468 N074468	£65.52	£78.62
861 - KITBOX BDE-N074467.A0 N074467	£209.59	£251.51
