Dewalt D25940K Type 2 Demolition Hammer Spare Parts

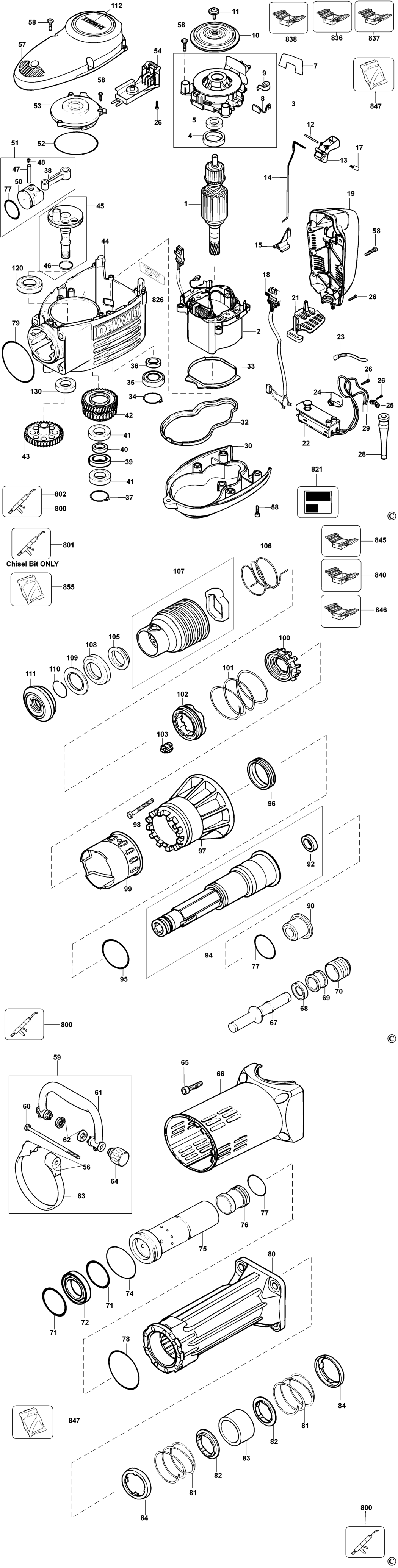

An exploded drawing and spare parts listing for the Dewalt D25940K Type 2 Demolition Hammer

	Ex VAT	Inc VAT
1 - ARMATURE 230V GB BDE-579837-02.A5 579837-02	£135.36	£162.43
1 - ARMATURE 120V LX BDE-579837-03.A2 579837-03	£125.16	£150.19
2 - NO LONGER AVAILABLE LX BDE-000000-00.A59287 000000-00	-
2 - FIELD 230V GB BDE-579827-00.A1 579827-00	-
3 - BRUSH HOLDER 230V GB BDE-487266-02.A1 487266-02	£45.14	£54.17
3 - BRUSH HOLDER 115V LX BDE-NA299449.A3 NA299449	£45.14	£54.17
4 - SLEEVE INSULATING BDE-590191-00.A2 590191-00	£1.66	£1.99
5 - BEARING BDE-577745-00.A63 577745-00	£7.85	£9.42
7 - SEAL BDE-1007800-00.A5 1007800-00	£1.66	£1.99
8 - BRUSH PAIR 115V LX BDE-588698-01.A1 588698-01	-
8 - BRUSH PAIR 230V GB BDE-588698-00.A2 588698-00	£24.39	£29.27
9 - BRUSH SPRING BDE-487377-00.A1 487377-00	£2.26	£2.71
10 - FAN SA BDE-487252-00.A4 487252-00	-
11 - SCREW BDE-324119-02.A14 324119-02	£1.66	£1.99
12 - PIN BDE-377374.A3 377374	£1.66	£1.99
13 - TRIGGER BDE-487276-00.A5 487276-00	£1.66	£1.99
14 - ROD BDE-N893314.A1 N893314	£5.88	£7.06
15 - ACTUATOR BDE-487286-00.A4 487286-00	£2.26	£2.71
17 - DETENT BDE-326467-00.A84 326467-00	£1.66	£1.99
18 - NO LONGER AVAILABLE BDE-000000-00.A59288 000000-00	-
19 - HANDLE & COVER BDE-487387-00.A0 487387-00	-
21 - COVER BDE-487388-00.A3 487388-00	£1.66	£1.99
22 - SWITCH BDE-N485853.A1 N485853	£24.39	£29.27
23 - CABLE TIE BDE-579093-00.A1 579093-00	£1.66	£1.99
24 - BRACKET BDE-487378-00.A4 487378-00	£1.66	£1.99
25 - CORD CLAMP BDE-821070.A689 821070	£1.66	£1.99
26 - SCREW BDE-330065-08.A120 330065-08	£1.66	£1.99
28 - CORD PROTECTOR BDE-323091-01.A83 323091-01	£1.66	£1.99
29 - CORDSET LX BDE-324438-72.A4 324438-72	£19.90	£23.88
29 - CORDSET GB BDE-582319-02.A11 582319-02	£25.70	£30.84
30 - COVER GEARCASE BDE-487385-00.A0 487385-00	-
32 - SEAL BDE-487224-00.A1 487224-00	£5.88	£7.06
33 - SEAL BDE-576387-00.A1 576387-00	£4.69	£5.63
34 - CIRCLIP BDE-324821-04.A6 324821-04	£1.66	£1.99
35 - BEARING BDE-N570313.A7 N570313	£4.69	£5.63
36 - SEAL BDE-487209-01.A1 487209-01	£25.70	£30.84
37 - CIRCLIP BDE-324821-03.A4 324821-03	£1.66	£1.99
38 - CON ROD BDE-N533907.A1 N533907	£10.85	£13.02
39 - SPACER BDE-578452-00.A4 578452-00	£2.78	£3.34
40 - SPACER BDE-578451-00.A6 578451-00	£1.66	£1.99
41 - BEARING BDE-605040-26.A7 605040-26	£4.69	£5.63
42 - GEAR SA BDE-582108-00.A1 582108-00	£74.15	£88.98
43 - GEAR BDE-582109-00.A2 582109-00	£60.94	£73.13
44 - GEARBOX SA BDE-582110-00.A1 582110-00	£245.11	£294.13
45 - CRANKSHAFT BDE-582111-00.A2 582111-00	£74.15	£88.98
46 - RING BDE-576451-00.A1 576451-00	£1.66	£1.99
47 - PIN BDE-582387-00.A0 582387-00	£17.48	£20.97
48 - PIN BDE-581656-00.A12 581656-00	£1.66	£1.99
50 - PISTON BDE-582112-00.A1 582112-00	£12.17	£14.60
51 - PISTON KIT BDE-582113-01.A1 582113-01	£41.24	£49.49
52 - O RING BDE-323711-47.A0 323711-47	£1.66	£1.99
53 - COVER SA BDE-N147098.A2 N147098	£7.85	£9.42
54 - ELECTRONIC 230V GB BDE-584376-06.A0 584376-06	-
54 - ELECTRONIC 115V LX BDE-584376-07.A3 584376-07	-
56 - WASHER CLAMP BDE-487284-00.A3 487284-00	£3.30	£3.96
57 - MOTOR COVER BDE-487386-00.A0 487386-00	£10.85	£13.02
58 - SCREW TORX BDE-324007-11.A14 324007-11	£1.66	£1.99
59 - HANDLE SIDE SA BDE-584240-01.A1 584240-01	£45.14	£54.17
60 - BOLT BDE-487343-00.A3 487343-00	£3.80	£4.56
61 - HANDLE BDE-487277-00.A0 487277-00	£18.91	£22.69
62 - WASHER BDE-487278-00.A5 487278-00	£1.66	£1.99
63 - CLAMP BDE-487393-00.A1 487393-00	£7.85	£9.42
64 - KNOB SA BDE-487291-00.A9 487291-00	£5.88	£7.06
65 - SCREW BDE-949886-32.A15 949886-32	£1.66	£1.99
66 - COVER HOUSING BDE-487283-00.A0 487283-00	£17.48	£20.97
67 - BEAT PIECE BDE-582369-00.A1 582369-00	£41.24	£49.49
68 - BUSH BDE-582388-00.A2 582388-00	£17.48	£20.97
69 - DAMPER BDE-487321-00.A1 487321-00	-
70 - BUSH BDE-582114-00.A1 582114-00	£37.35	£44.82
71 - O RING BDE-487298-00.A8 487298-00	£3.80	£4.56
72 - BUSH BDE-487376-00.A0 487376-00	£2.71	£3.25
74 - O RING BDE-323711-46.A3 323711-46	£1.66	£1.99
75 - CYLINDER BDE-N075953.A2 N075953	£126.63	£151.96
76 - RAM BDE-582115-00.A2 582115-00	£55.30	£66.36
77 - O RING BDE-487287-00.A8 487287-00	£9.41	£11.29
78 - O RING BDE-323711-56.A8 323711-56	£1.66	£1.99
79 - O RING BDE-323711-55.A7 323711-55	£1.66	£1.99
80 - HOUSING FRONT BDE-582372-00.A2 582372-00	£71.44	£85.73
81 - SPRING BDE-487317-00.A2 487317-00	£3.80	£4.56
82 - GUIDE BDE-578784-00.A3 578784-00	£1.66	£1.99
83 - COUNTERWEIGHT BDE-582373-00.A1 582373-00	£41.24	£49.49
84 - SPRING GUIDE BDE-487316-00.A1 487316-00	£1.66	£1.99
90 - BEARING BDE-582374-00.A2 582374-00	£37.35	£44.82
92 - SEAL BDE-N014013.A2 N014013	£14.57	£17.48
93 - NO LONGER AVAILABLE BDE-000000-00.A59289 000000-00	-
94 - SPINDLE SA BDE-582277-00.A1 582277-00	£192.14	£230.57
95 - O RING BDE-323711-41.A5 323711-41	£1.66	£1.99
96 - DAMPER BDE-487302-00.A1 487302-00	£1.66	£1.99
97 - FLANGE BDE-582375-00.A1 582375-00	£135.36	£162.43
98 - SCREW BDE-918825-02.A12 918825-02	£1.66	£1.99
99 - SLEEVE BDE-487372-00.A2 487372-00	£7.85	£9.42
100 - SLEEVE SA BDE-487366-00.A0 487366-00	£12.17	£14.60
101 - SPRING BDE-487370-00.A0 487370-00	£1.66	£1.99
102 - BUSHING BDE-487365-00.A2 487365-00	£2.26	£2.71
103 - LOCKING DEVICE BDE-487369-00.A2 487369-00	£45.14	£54.17
105 - DAMPER BDE-582383-00.A1 582383-00	£24.39	£29.27
106 - SPRING BDE-487309-00.A1 487309-00	£4.69	£5.63
107 - SLEEVE SA BDE-N542444.A0 N542444	£30.08	£36.10
108 - DAMPER BDE-487373-00.A0 487373-00	£3.30	£3.96
109 - WASHER BDE-487301-00.A1 487301-00	£10.85	£13.02
110 - RING BDE-579399-00.A1 579399-00	£1.66	£1.99
111 - RUBBER SEAL BDE-487375-00.A2 487375-00	£7.85	£9.42
112 - LABEL BDE-487392-00.A7 487392-00	£2.26	£2.71
120 - BEARING BDE-330003-68.A2 330003-68	£9.41	£11.29
130 - BEARING BDE-330003-69.A15 330003-69	£9.41	£11.29
800 - GREASE 150 GMS 145gms BDE-578970-06.A17 578970-06	£55.32	£66.38
801 - BIT GREASE 50G BDE-328771-07.A6 328771-07	£7.18	£8.62
802 - GREASE 90 GMS BDE-870889-02.A280 870889-02	£7.85	£9.42
821 - RATING PLATE BDE-569037-00.A64 569037-00	£3.80	£4.56
826 - LABEL BDE-487395-01.A10 487395-01	£1.66	£1.99
836 - S.T.SUPPORT JIG BDE-559617-99.A8 559617-99	£99.47	£119.36
837 - S.T.SUPPORT JIG BDE-559618-99.A2 559618-99	£135.36	£162.43
838 - SERVICE TOOL BDE-559621-99.A7 559621-99	£16.03	£19.24
840 - S.T.CIRCLIP REMOVER BDE-559629-99.A2 559629-99	£165.92	£199.11
845 - SERVICE TOOLING KIT BDE-559630-99.A1 559630-99	£125.16	£150.19
846 - S.T.MANDREL BDE-559628-99.A1 559628-99	£24.39	£29.27
847 - NO LONGER AVAILABLE LX BDE-000000-00.A59290 000000-00	-
847 - SERVICE KIT 230V GB BDE-588713-00.A0 588713-00	£59.41	£71.29
847 - SERVICE KIT GB BDE-588720-02.A1 588720-02	£122.02	£146.42
847 - SERVICE KIT 115V LX BDE-588720-03.A0 588720-03	£85.60	£102.72
855 - NO LONGER AVAILABLE BDE-000000-00.A59291 000000-00	-
861 - KITBOX BDE-487353-03.A2 487353-03	£71.44	£85.73

Attribute Name	Value
Brand	Dewalt
