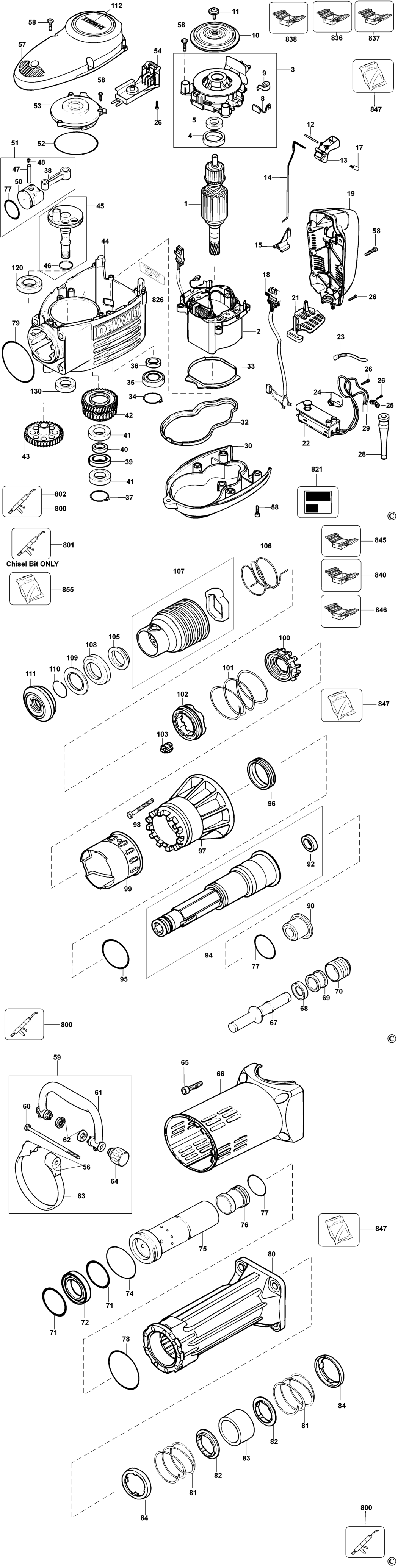

1 - ARMATURE 230V GB
BDE-579837-02.A0
579837-02
|
£135.36
|
£162.43
|
|
|
1 - ARMATURE 120V LX
BDE-579837-03.A7
579837-03
|
£125.16
|
£150.19
|
|
|
2 - NO LONGER AVAILABLE LX
BDE-000000-00.A124146
000000-00
|
-
|
|
|
|
2 - FIELD 230V GB
BDE-579827-00.A2
579827-00
|
-
|
|
|
|
3 - BRUSH HOLDER 230V GB
BDE-487266-02.A4
487266-02
|
£45.14
|
£54.17
|
|
|
3 - BRUSH HOLDER 115V LX
BDE-NA299449.A0
NA299449
|
£45.14
|
£54.17
|
|
|
4 - SLEEVE INSULATING
BDE-590191-00.A33
590191-00
|
£1.66
|
£1.99
|
|
|
5 - BEARING
BDE-577745-00.A41
577745-00
|
£7.85
|
£9.42
|
|
|
8 - BRUSH PAIR 230V GB
BDE-588698-00.A0
588698-00
|
£24.39
|
£29.27
|
|
|
8 - BRUSH PAIR 115V LX
BDE-588698-01.A3
588698-01
|
-
|
|
|
|
9 - BRUSH SPRING
BDE-487377-00.A19
487377-00
|
£2.26
|
£2.71
|
|
|
10 - FAN SA
BDE-487252-00.A0
487252-00
|
-
|
|
|
|
11 - SCREW
BDE-324119-02.A95
324119-02
|
£1.66
|
£1.99
|
|
|
12 - PIN
BDE-377374.A6
377374
|
£1.66
|
£1.99
|
|
|
13 - TRIGGER
BDE-487276-00.A2
487276-00
|
£1.66
|
£1.99
|
|
|
14 - ROD
BDE-N893314.A5
N893314
|
£5.88
|
£7.06
|
|
|
15 - ACTUATOR
BDE-487286-00.A0
487286-00
|
£2.26
|
£2.71
|
|
|
17 - DETENT
BDE-326467-00.A216
326467-00
|
£1.66
|
£1.99
|
|
|
18 - NO LONGER AVAILABLE
BDE-000000-00.A124147
000000-00
|
-
|
|
|
|
19 - HANDLE & COVER
BDE-487387-00.A1
487387-00
|
-
|
|
|
|
21 - COVER
BDE-487388-00.A0
487388-00
|
£1.66
|
£1.99
|
|
|
22 - SWITCH
BDE-N485853.A3
N485853
|
£24.39
|
£29.27
|
|
|
23 - CABLE TIE
BDE-579093-00.A16
579093-00
|
£1.66
|
£1.99
|
|
|
24 - BRACKET
BDE-487378-00.A0
487378-00
|
£1.66
|
£1.99
|
|
|
25 - CORD CLAMP
BDE-821070.A71
821070
|
£1.66
|
£1.99
|
|
|
26 - SCREW
BDE-330065-08.A418
330065-08
|
£1.66
|
£1.99
|
|
|
28 - CORD PROTECTOR
BDE-323091-01.A0
323091-01
|
£1.66
|
£1.99
|
|
|
29 - CORDSET GB
BDE-582319-02.A9
582319-02
|
£25.70
|
£30.84
|
|
|
29 - CORDSET LX
BDE-324438-72.A13
324438-72
|
£19.90
|
£23.88
|
|
|
30 - COVER GEARCASE
BDE-487385-00.A1
487385-00
|
-
|
|
|
|
32 - SEAL
BDE-487224-00.A8
487224-00
|
£5.88
|
£7.06
|
|
|
33 - SEAL
BDE-576387-00.A3
576387-00
|
£4.69
|
£5.63
|
|
|
34 - CIRCLIP
BDE-324821-04.A13
324821-04
|
£1.66
|
£1.99
|
|
|
35 - BEARING
BDE-N570313.A11
N570313
|
£4.69
|
£5.63
|
|
|
36 - SEAL
BDE-487209-01.A8
487209-01
|
£25.70
|
£30.84
|
|
|
37 - CIRCLIP
BDE-324821-03.A0
324821-03
|
£1.66
|
£1.99
|
|
|
38 - CON ROD
BDE-N533907.A3
N533907
|
£10.85
|
£13.02
|
|
|
39 - SPACER
BDE-578452-00.A10
578452-00
|
£2.78
|
£3.34
|
|
|
40 - SPACER
BDE-578451-00.A0
578451-00
|
£1.66
|
£1.99
|
|
|
41 - BEARING
BDE-605040-26.A11
605040-26
|
£4.69
|
£5.63
|
|
|
42 - GEAR SA
BDE-582108-00.A3
582108-00
|
£74.15
|
£88.98
|
|
|
43 - GEAR
BDE-582109-00.A0
582109-00
|
£60.94
|
£73.13
|
|
|
44 - GEARBOX SA
BDE-582110-00.A3
582110-00
|
£245.11
|
£294.13
|
|
|
45 - CRANKSHAFT
BDE-582111-00.A0
582111-00
|
£74.15
|
£88.98
|
|
|
46 - RING
BDE-576451-00.A0
576451-00
|
£1.66
|
£1.99
|
|
|
47 - PIN
BDE-582387-00.A3
582387-00
|
£17.48
|
£20.97
|
|
|
48 - PIN
BDE-581656-00.A3
581656-00
|
£1.66
|
£1.99
|
|
|
50 - PISTON
BDE-582112-00.A3
582112-00
|
£12.17
|
£14.60
|
|
|
51 - PISTON KIT
BDE-582113-01.A2
582113-01
|
£41.24
|
£49.49
|
|
|
52 - O RING
BDE-323711-47.A3
323711-47
|
£1.66
|
£1.99
|
|
|
53 - COVER SA
BDE-N147098.A0
N147098
|
£7.85
|
£9.42
|
|
|
54 - ELECTRONIC 230V GB
BDE-584376-06.A2
584376-06
|
-
|
|
|
|
54 - ELECTRONIC 115V LX
BDE-584376-07.A1
584376-07
|
-
|
|
|
|
56 - WASHER CLAMP
BDE-487284-00.A1
487284-00
|
£3.30
|
£3.96
|
|
|
57 - MOTOR COVER GB
BDE-487386-00.A1
487386-00
|
£10.85
|
£13.02
|
|
|
57 - MOTOR COVER LX
BDE-487386-00.A2
487386-00
|
£10.85
|
£13.02
|
|
|
58 - SCREW TORX
BDE-324007-11.A20
324007-11
|
£1.66
|
£1.99
|
|
|
59 - HANDLE SIDE SA
BDE-584240-01.A0
584240-01
|
£45.14
|
£54.17
|
|
|
60 - BOLT
BDE-487343-00.A6
487343-00
|
£3.80
|
£4.56
|
|
|
61 - HANDLE
BDE-487277-00.A4
487277-00
|
£18.91
|
£22.69
|
|
|
62 - WASHER
BDE-487278-00.A1
487278-00
|
£1.66
|
£1.99
|
|
|
63 - CLAMP
BDE-487393-00.A2
487393-00
|
£7.85
|
£9.42
|
|
|
64 - KNOB SA
BDE-487291-00.A6
487291-00
|
£5.88
|
£7.06
|
|
|
65 - SCREW
BDE-949886-32.A17
949886-32
|
£1.66
|
£1.99
|
|
|
66 - COVER HOUSING
BDE-487283-00.A1
487283-00
|
£17.48
|
£20.97
|
|
|
67 - BEAT PIECE
BDE-582369-00.A2
582369-00
|
£41.24
|
£49.49
|
|
|
68 - BUSH
BDE-582388-00.A3
582388-00
|
£17.48
|
£20.97
|
|
|
69 - DAMPER
BDE-487321-00.A0
487321-00
|
-
|
|
|
|
70 - BUSH
BDE-582114-00.A0
582114-00
|
£37.35
|
£44.82
|
|
|
71 - O RING
BDE-487298-00.A5
487298-00
|
£3.80
|
£4.56
|
|
|
72 - BUSH
BDE-487376-00.A1
487376-00
|
£2.71
|
£3.25
|
|
|
74 - O RING
BDE-323711-46.A2
323711-46
|
£1.66
|
£1.99
|
|
|
75 - CYLINDER
BDE-N075953.A1
N075953
|
£126.63
|
£151.96
|
|
|
76 - RAM
BDE-582115-00.A3
582115-00
|
£55.30
|
£66.36
|
|
|
77 - O RING
BDE-487287-00.A10
487287-00
|
£9.41
|
£11.29
|
|
|
78 - O RING
BDE-323711-56.A9
323711-56
|
£1.66
|
£1.99
|
|
|
79 - O RING
BDE-323711-55.A4
323711-55
|
£1.66
|
£1.99
|
|
|
80 - HOUSING FRONT
BDE-582372-00.A1
582372-00
|
£71.44
|
£85.73
|
|
|
81 - SPRING
BDE-487317-00.A3
487317-00
|
£3.80
|
£4.56
|
|
|
82 - GUIDE
BDE-578784-00.A2
578784-00
|
£1.66
|
£1.99
|
|
|
83 - COUNTERWEIGHT
BDE-582373-00.A2
582373-00
|
£41.24
|
£49.49
|
|
|
84 - SPRING GUIDE
BDE-487316-00.A0
487316-00
|
£1.66
|
£1.99
|
|
|
90 - BEARING
BDE-582374-00.A1
582374-00
|
£37.35
|
£44.82
|
|
|
92 - SEAL
BDE-N014013.A1
N014013
|
£14.57
|
£17.48
|
|
|
93 - NO LONGER AVAILABLE
BDE-000000-00.A58308
000000-00
|
-
|
|
|
|
94 - SPINDLE SA
BDE-582277-00.A0
582277-00
|
£192.14
|
£230.57
|
|
|
95 - O RING
BDE-323711-41.A9
323711-41
|
£1.66
|
£1.99
|
|
|
96 - DAMPER
BDE-487302-00.A0
487302-00
|
£1.66
|
£1.99
|
|
|
97 - FLANGE
BDE-582375-00.A2
582375-00
|
£135.36
|
£162.43
|
|
|
98 - SCREW
BDE-918825-02.A8
918825-02
|
£1.66
|
£1.99
|
|
|
99 - SLEEVE
BDE-487372-00.A1
487372-00
|
£7.85
|
£9.42
|
|
|
100 - SLEEVE SA
BDE-487366-00.A1
487366-00
|
£12.17
|
£14.60
|
|
|
101 - SPRING
BDE-487370-00.A1
487370-00
|
£1.66
|
£1.99
|
|
|
102 - BUSHING
BDE-487365-00.A1
487365-00
|
£2.26
|
£2.71
|
|
|
103 - LOCKING DEVICE
BDE-487369-00.A1
487369-00
|
£45.14
|
£54.17
|
|
|
105 - DAMPER
BDE-582383-00.A2
582383-00
|
£24.39
|
£29.27
|
|
|
106 - SPRING
BDE-487309-00.A2
487309-00
|
£4.69
|
£5.63
|
|
|
107 - SLEEVE SA
BDE-N542444.A1
N542444
|
£30.08
|
£36.10
|
|
|
108 - DAMPER
BDE-487373-00.A1
487373-00
|
£3.30
|
£3.96
|
|
|
109 - WASHER
BDE-487301-00.A2
487301-00
|
£10.85
|
£13.02
|
|
|
110 - RING
BDE-579399-00.A0
579399-00
|
£1.66
|
£1.99
|
|
|
111 - RUBBER SEAL
BDE-487375-00.A1
487375-00
|
£7.85
|
£9.42
|
|
|
112 - LABEL
BDE-487392-00.A4
487392-00
|
£2.26
|
£2.71
|
|
|
120 - BEARING
BDE-330003-68.A5
330003-68
|
£9.41
|
£11.29
|
|
|
130 - BEARING
BDE-330003-69.A12
330003-69
|
£9.41
|
£11.29
|
|
|
800 - GREASE 150 GMS 145gms
BDE-578970-06.A13
578970-06
|
£55.32
|
£66.38
|
|
|
801 - BIT GREASE 50G
BDE-328771-07.A10
328771-07
|
£7.18
|
£8.62
|
|
|
802 - GREASE 90 GMS
BDE-870889-02.A307
870889-02
|
£7.85
|
£9.42
|
|
|
821 - RATING PLATE
BDE-569037-00.A45
569037-00
|
£3.80
|
£4.56
|
|
|
826 - NO LONGER AVAILABLE
BDE-000000-00.A58309
000000-00
|
-
|
|
|
|
836 - S.T.SUPPORT JIG
BDE-559617-99.A4
559617-99
|
£99.47
|
£119.36
|
|
|
837 - S.T.SUPPORT JIG
BDE-559618-99.A6
559618-99
|
£135.36
|
£162.43
|
|
|
838 - SERVICE TOOL
BDE-559621-99.A4
559621-99
|
£16.03
|
£19.24
|
|
|
840 - S.T.CIRCLIP REMOVER
BDE-559629-99.A3
559629-99
|
£165.92
|
£199.11
|
|
|
845 - SERVICE TOOLING KIT
BDE-559630-99.A0
559630-99
|
£125.16
|
£150.19
|
|
|
846 - S.T.MANDREL
BDE-559628-99.A0
559628-99
|
£24.39
|
£29.27
|
|
|
847 - SERVICE KIT 230V GB
BDE-588713-00.A1
588713-00
|
£59.41
|
£71.29
|
|
|
847 - SERVICE KIT GB
BDE-588720-02.A0
588720-02
|
£122.02
|
£146.42
|
|
|
847 - NO LONGER AVAILABLE LX
BDE-000000-00.A58334
000000-00
|
-
|
|
|
|
847 - SERVICE KIT 115V LX
BDE-588720-03.A1
588720-03
|
£85.60
|
£102.72
|
|
|
855 - NO LONGER AVAILABLE
BDE-000000-00.A58335
000000-00
|
-
|
|
|
|
861 - KITBOX
BDE-487353-03.A3
487353-03
|
£71.44
|
£85.73
|
|
