Bosch PBH 200 / 0603245232 / CH 220 Volt Spare Parts

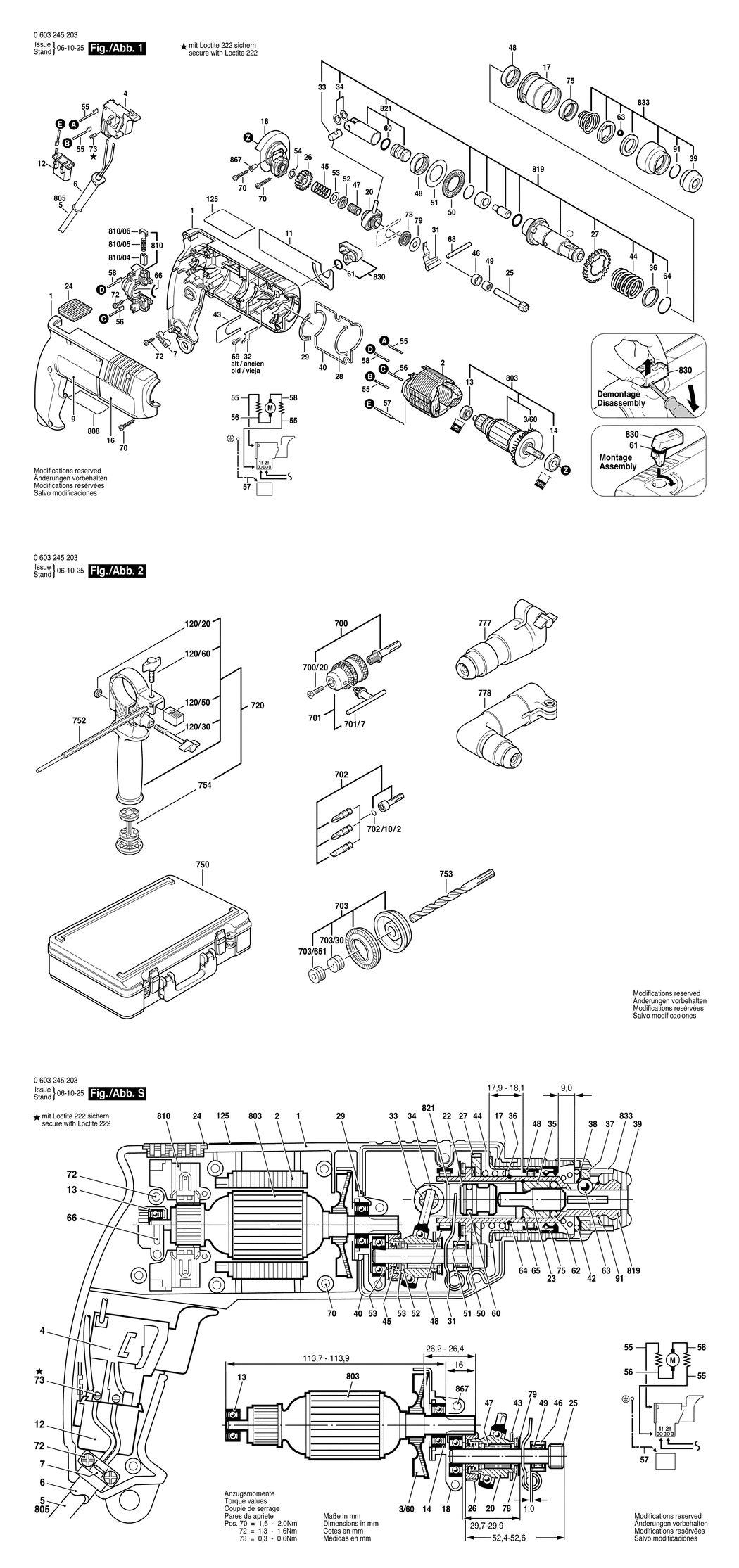

An exploded drawing and listing for the Bosch PBH 200 / 0603245232 / CH 220 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-1615104002.A32 1615104002	-
2 - FIELD 240V BSD-2604220411.A22 2604220411	£21.68	£26.01
3/60 - FAN BSD-2606610022.A12 2606610022	£4.26	£5.11
4 - ON-OFF SWITCH BSD-1617200047.A9 1617200047	£21.68	£26.01
5 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H07 RN-F BSD-1604460448.A2 1604460448	£18.96	£22.75
6 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A447 2600703011	£2.80	£3.36
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A812 2600703012	£2.80	£3.36
7 - CABLE CLIP BSD-2601035001.A2760 2601035001	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1611110402.A1 1611110402	-
11 - MANUFACTURER'S NAMEPLATE BSD-1611110370.A23 1611110370	-
12 - SUPPRESSION FILTER BSD-1607328040.A84 1607328040	£6.52	£7.83
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905032.A188 1610905032	£5.30	£6.36
14 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A445 1610905048	£8.67	£10.41
16 - REFERENCE PLATE BSD-1611110404.A3 1611110404	-
17 - GUIDE SLEEVE BSD-1615819013.A26 1615819013	£6.61	£7.93
18 - FLANGED BEARING BSD-1615700027.A42 1615700027	-
20 - DRIVE BEARING BSD-1615819012.A22 1615819012	-
24 - PROTECTIVE GRILLE BSD-1612388019.A44 1612388019	-
25 - TOOTHED SHAFT Z=9 BSD-1613160008.A17 1613160008	-
26 - CYLINDRICAL GEAR Z=31 BSD-1616317600.A38 1616317600	£2.52	£3.02
27 - CYLINDRICAL GEAR Z=48 BSD-1616317034.A22 1616317034	-
28 - SEAL RING BSD-1611015034.A32 1611015034	-
29 - SEAL RING BSD-1611015035.A21 1611015035	-
31 - PRESSURE LEVER BSD-1611329009.A18 1611329009	-
33 - PISTON PIN BSD-1613103006.A57 1613103006	-
34 - SHIM WASHER 1.2 MM BSD-1610100608.A8 1610100608	£1.75	£2.10
36 - SUPPORTING DISC BSD-1610102024.A27 1610102024	-
39 - PROTECTIVE CAP L=17 MM. SDS-PLUS BSD-1610508008.A311 1610508008	£2.16	£2.59
40 - SEALING FRAME BSD-1611015033.A21 1611015033	-
43 - HOLDING PLATE BSD-1611031005.A39 1611031005	-
44 - COMPRESSION SPRING BSD-1614634002.A12 1614634002	-
45 - COMPRESSION SPRING BSD-1614610005.A37 1614610005	-
46 - RETAINING SNAP RING BSD-1610200014.A45 1610200014	-
47 - NEEDLE-ROLLER ASSEMBLY BSD-1610913008.A15 1610913008	-
48 - NEEDLE BEARING BSD-1610910071.A46 1610910071	£6.52	£7.83
49 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A21 2600917003	£2.80	£3.36
50 - ROLLER-CAGE ASSEMBLY BSD-1610920002.A32 1610920002	£3.72	£4.47
51 - SUPPORT DISC 1.0 MM BSD-1610102617.A23 1610102617	£2.16	£2.59
52 - THRUST NEEDLE RIM BSD-1610920005.A35 1610920005	-
53 - SUPPORT DISC BSD-1610100602.A46 1610100602	-
54 - SHIM 0.6 MM BSD-1610100604.A7 1610100604	-
54 - SHIM 0.8 MM BSD-1610100605.A52 1610100605	-
54 - SHIM 1.0 MM BSD-1610100606.A7 1610100606	-
54 - SHIM 1.2 MM BSD-1610100607.A46 1610100607	-
55 - CABLE L=173 MM BSD-2604448060.A170 2604448060	-
56 - PVC-INSULATED CABLE L=66 MM BSD-1614448019.A17 1614448019	-
58 - PVC-INSULATED CABLE L=83 MM BSD-1614448020.A3 1614448020	-
60 - O-RING 13.0x2.5 MM BSD-1610210086.A42 1610210086	-
61 - O-RING 10.5x2.7 MM BSD-1610210046.A227 1610210046	£2.16	£2.59
63 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A873 1903230013	£2.16	£2.59
64 - RETAINING RING BSD-1614601007.A22 1614601007	-
66 - DAMPING RUBBER BSD-1610026001.A12 1610026001	£1.75	£2.10
68 - STRAIGHT PIN DIN 6325-5M6x45 BSD-2917550133.A23 2917550133	£2.33	£2.80
70 - TAPPING SCREW DIN 7981-ST3.9x25-C-Z BSD-2912401022.A33 2912401022	£1.75	£2.10
72 - TAPPING SCREW DIN7981-ST3.9x16-C-Z BSD-2912401019.A211 2912401019	£1.75	£2.10
73 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2168 2603410001	£1.75	£2.10
75 - SHAFT SEAL BSD-1610283019.A117 1610283019	£7.36	£8.83
78 - ROLLER-CAGE ASSEMBLY BSD-1610920006.A19 1610920006	£2.52	£3.02
79 - SUPPORT DISC BSD-1610100609.A46 1610100609	-
91 - RETAINING RING DIN 7993-A22 BSD-2916540012.A458 2916540012	-
120/20 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A191 2915011007	-
120/30 - WING SCREW M6x(15)55 BSD-1613480007.A104 1613480007	£1.75	£2.10
120/50 - CLAMPING PLATE M6 BSD-2608040014.A35 2608040014	-
120/60 - WING SCREW M6x20 MM BSD-1613480008.A333 1613480008	£1.75	£2.10
125 - REFERENCE PLATE BSD-1611110376.A9 1611110376	-
700 - DRILL CHUCK SHANK BSD-1617000132.A148 1617000132	£16.84	£20.21
700/20 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A126 2603421226	£1.75	£2.10
701 - KEY CHUCK R/L dia13 MM. 1/2-20 UNF BSD-1608571062.A6 1608571062	£17.49	£20.99
701/7 - CHUCK WRENCH SG2. SW4 BSD-1607950044.A67 1607950044	£6.12	£7.34
702 - PARTS SET BSD-1617000133.A51 1617000133	-
702/10/2 - RETAINING RING BSD-2604601004.A63 2604601004	£1.75	£2.10
703 - DUST TRAY BSD-1615439003.A119 1615439003	-
703/30 - RUBBER BUSHING dia5-7 MM BSD-1610312001.A76 1610312001	-
703/651 - RUBBER BUSHING dia8-10 MM BSD-1610312002.A63 1610312002	-
720 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A71 1619P10682	£12.49	£14.99
752 - DEPTH-GAUGE SW 6x210 MM BSD-1613001005.A247 1613001005	-
753 - ROTARY HAMMER BIT dia6x50 MM BSD-1618596166.A13 1618596166	-
754 - DRILL HOLDER BSD-2607000122.A55 2607000122	-
777 - CHISEL ATTACHMENT BSD-2607018296.A7 2607018296	£52.49	£62.99
778 - ANGLE DRILL HEAD BSD-1618580000.A120 1618580000	£239.08	£286.90
803 - ARMATURE WITH FAN 220-230V BSD-1614010085.A11 1614010085	-
808 - NAMEPLATE BSD-160111A3H3.A3428 160111A3H3	£2.61	£3.13
810 - BRUSH PLATE BSD-2609992600.A2 2609992600	-
810/04 - CARBON-BRUSH SET BSD-2607014001.A68 2607014001	-
810/05 - COMPRESSION SPRING BSD-2604611026.A168 2604611026	-
810/06 - RATCHET CAP BSD-2601322013.A426 2601322013	£1.75	£2.10
819 - RATCHET SLEEVE BSD-1617000936.A20 1617000936	-
821 - PARTS SET BSD-1617000215.A11 1617000215	-
830 - CLAMP HANDLE BSD-1617000177.A13 1617000177	-
833 - PROTECTION SLEEVE BSD-1617000163.A269 1617000163	£7.36	£8.83
867 - TUBULAR RIVET DIN 7340-A5x0.5x8-ST BSD-2917161108.A6 2917161108	£1.75	£2.10
