Bosch PBH 160 R / 0603304732 / CH 230 Volt Spare Parts

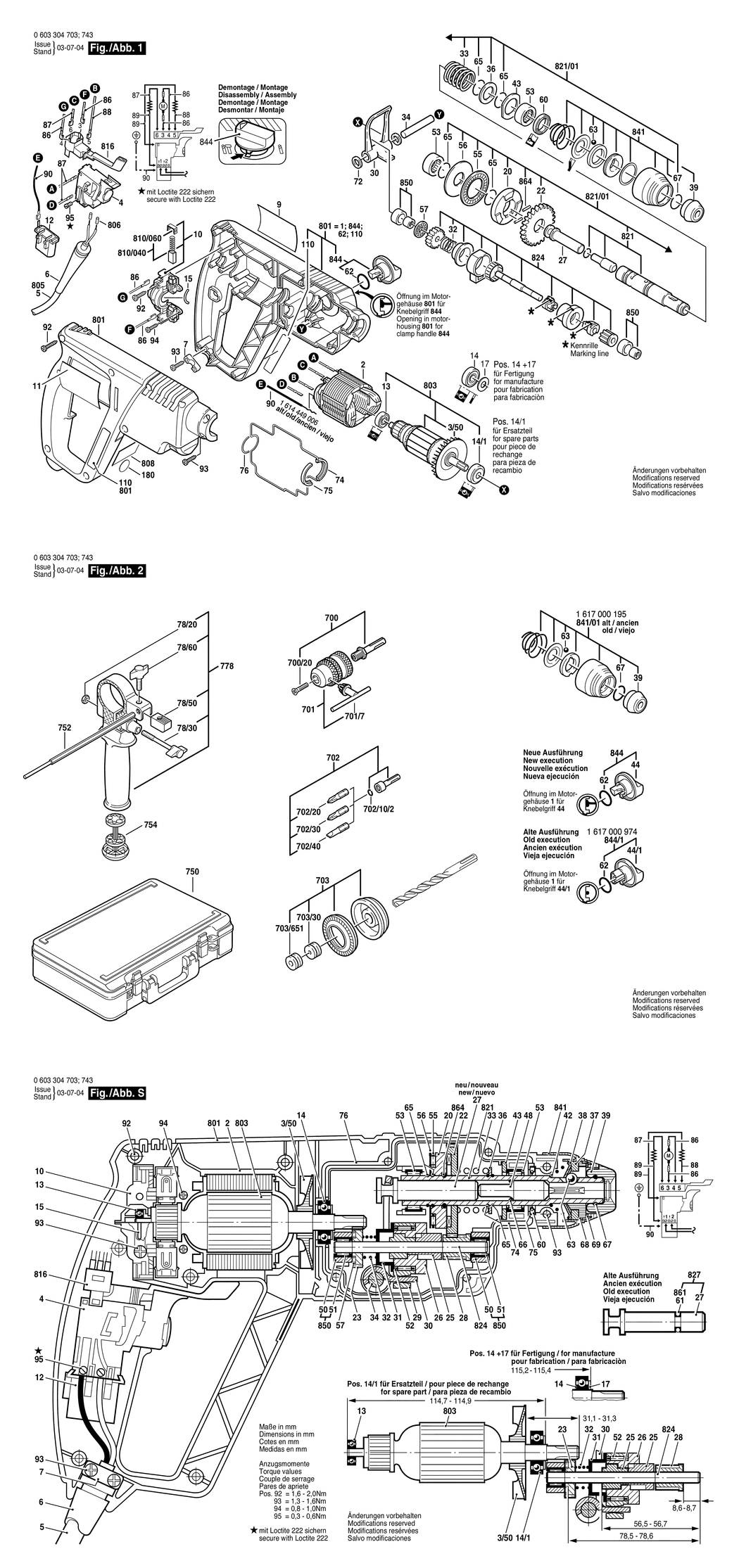

An exploded drawing and listing for the Bosch PBH 160 R / 0603304732 / CH 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 220-240V BSD-2604220515.A47 2604220515	£21.68	£26.01
3/50 - FAN BSD-2606610022.A106 2606610022	£4.26	£5.11
4 - SWITCH BSD-2607200357.A5 2607200357	-
5 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H07 RN-F BSD-1604460448.A12 1604460448	£18.96	£22.75
6 - GROMMET dia7.3-dia8.6x76 MM BSD-2600703018.A13 2600703018	£2.61	£3.13
7 - CABLE CLIP BSD-1611035005.A312 1611035005	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-1601118139.A4 1601118139	£3.80	£4.56
10 - BRUSH PLATE BSD-2605807060.A176 2605807060	-
11 - REFERENCE PLATE BSD-1601118140.A2 1601118140	£4.26	£5.11
12 - SUPPRESSION FILTER BSD-1607328040.A19 1607328040	£6.52	£7.83
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A388 1610905025	£6.52	£7.83
14/1 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A159 1610905048	£8.67	£10.41
15 - DAMPING RUBBER BSD-1610026001.A89 1610026001	£1.75	£2.10
20 - CATCH DISK BSD-1616409012.A16 1616409012	£5.87	£7.04
22 - CYLINDRICAL GEAR Z=51 BSD-1616317608.A16 1616317608	£6.52	£7.83
27 - STRIKER BSD-1618710068.A65 1618710068	£7.78	£9.33
30 - DRIVE LEVER BSD-1611911000.A20 1611911000	-
32 - COMPRESSION SPRING BSD-1614632001.A15 1614632001	-
33 - COMPRESSION SPRING BSD-1614634008.A4 1614634008	£1.95	£2.34
34 - BEARING PIN BSD-1613100021.A87 1613100021	£2.33	£2.80
36 - SUPPORTING DISC BSD-1610190021.A12 1610190021	£2.16	£2.59
39 - PROTECTIVE CAP BSD-1610508021.A18 1610508021	£1.95	£2.34
43 - SUPPORTING DISC BSD-1610190020.A65 1610190020	£1.95	£2.34
44 - CLAMP HANDLE BSD-1612026075.A11 1612026075	£3.34	£4.01
53 - NEEDLE BEARING BSD-1610910077.A24 1610910077	£4.26	£5.11
55 - ROLLER THRUST BEARING BSD-1610920012.A20 1610920012	£3.34	£4.01
56 - SUPPORT DISC 1.0 MM BSD-1610102030.A61 1610102030	£2.61	£3.13
57 - ROLLER THRUST BEARING BSD-1610920009.A78 1610920009	£3.34	£4.01
60 - SEAL RING BSD-1610280006.A71 1610280006	£3.34	£4.01
62 - O-RING 18.0x2.5 MM BSD-1610210125.A6 1610210125	£1.95	£2.34
63 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A19 1903230013	£2.16	£2.59
65 - RETAINING RING BSD-1614601018.A72 1614601018	£1.66	£1.99
67 - SPRING RETAINING RING BSD-1614601077.A47 1614601077	£1.75	£2.10
72 - SHIM WASHER 1.0 MM BSD-1610100007.A4 1610100007	£1.75	£2.10
74 - SEALING FRAME BSD-1611015040.A31 1611015040	-
75 - SEALING FRAME BSD-1611015041.A7 1611015041	£1.95	£2.34
76 - SEALING FRAME BSD-1611015042.A39 1611015042	-
78/20 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A842 2915011007	-
78/30 - WING SCREW M6x(15)55 BSD-1613480007.A410 1613480007	£1.75	£2.10
78/50 - CLAMPING PLATE M6 BSD-2608040014.A268 2608040014	-
78/60 - WING SCREW M6x20 MM BSD-1613480008.A0 1613480008	£1.75	£2.10
86 - CONNECTING CABLE L=85 MM BSD-2604448147.A41 2604448147	£1.75	£2.10
87 - CONNECTING CABLE L=115MM BSD-2604448096.A66 2604448096	-
88 - CONNECTING CABLE L=88 MM BSD-2604448034.A265 2604448034	£1.75	£2.10
89 - CABLE L=173 MM BSD-2604448060.A151 2604448060	-
90 - EARTH CONDUCTOR BSD-2604448170.A4 2604448170	-
92 - TAPPING SCREW DIN7981-ST3.9x22-C-Z BSD-2912401021.A113 2912401021	£1.75	£2.10
93 - TAPPING SCREW DIN7981-ST3.9x16-C-Z BSD-2912401019.A152 2912401019	£1.75	£2.10
94 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1312 2603490017	£2.16	£2.59
95 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1148 2603410001	£1.75	£2.10
110 - REFERENCE PLATE BSD-1601118B75.A10 1601118B75	£1.95	£2.34
700 - DRILL CHUCK SHANK 1/2 BSD-1617000154.A123 1617000154	£31.64	£37.97
700/20 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A34 2603421226	£1.75	£2.10
701 - CHUCK BSD-1608571088.A7 1608571088	£27.23	£32.68
701/7 - CHUCK WRENCH SG2 BSD-2607950007.A1295 2607950007	£6.52	£7.83
702 - PARTS SET BSD-1617000133.A11 1617000133	-
702/10/2 - RETAINING RING BSD-2604601004.A520 2604601004	£1.75	£2.10
702/20 - SCREWDRIVER BLADE NR.2.1/4 BSD-1608521004.A2 1608521004	-
702/30 - SCREWDRIVER BIT BSD-2607000248.A4 2607000248	-
702/40 - SCREWDRIVER BLADE GR.1.0x6. 1/4 BSD-1608511020.A92 1608511020	-
703 - DUST TRAY BSD-1615439003.A40 1615439003	-
703/30 - RUBBER BUSHING dia5-7 MM BSD-1610312001.A137 1610312001	-
703/651 - RUBBER BUSHING dia8-10 MM BSD-1610312002.A2 1610312002	-
750 - CARRYING CASE BSD-2605438387.A8 2605438387	-
752 - DEPTH-GAUGE SW 6x210 MM BSD-1613001005.A12 1613001005	-
754 - DRILL HOLDER BSD-2607000122.A204 2607000122	-
754 - DRILL HOLDER BSD-2607018117.A3 2607018117	-
778 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A309 1619P10682	£12.49	£14.99
778 - AUXILIARY HANDLE dia 43 MM BSD-1612025034.A22 1612025034	-
801 - HOUSING SECTION BSD-1617000362.A20 1617000362	-
803 - ARMATURE 220-230V BSD-1614010144.A23 1614010144	-
808 - NAMEPLATE BSD-160111A3H5.A271 160111A3H5	£2.61	£3.13
810/040 - CARBON-BRUSH SET BSD-1617014136.A46 1617014136	£12.04	£14.45
810/060 - RATCHET CAP BSD-2601322017.A110 2601322017	£1.75	£2.10
810/060 - RATCHET CAP BSD-2601322013.A262 2601322013	£1.75	£2.10
816 - CHANGE-OVER SWITCH BSD-2607200231.A299 2607200231	£16.41	£19.69
821 - HAMMER PIPE BSD-1617000320.A62 1617000320	-
821/01 - HAMMER PIPE BSD-1617000349.A15 1617000349	-
824 - JACK SHAFT BSD-1617000972.A17 1617000972	-
841 - PROTECTION SLEEVE BSD-1617000303.A2 1617000303	£14.91	£17.89
844 - CLAMP HANDLE BSD-1617000322.A2 1617000322	£3.72	£4.47
844/1 - CLAMP HANDLE BSD-1617000974.A0 1617000974	-
850 - BUSHING BSD-1617000975.A78 1617000975	£6.61	£7.93
864 - STRAIGHT PIN DIN6325-2.5x12-RIKO BSD-1613100019.A116 1613100019	£1.75	£2.10
