Bosch PHO 150 / 0603258003 / EU 220 Volt Spare Parts

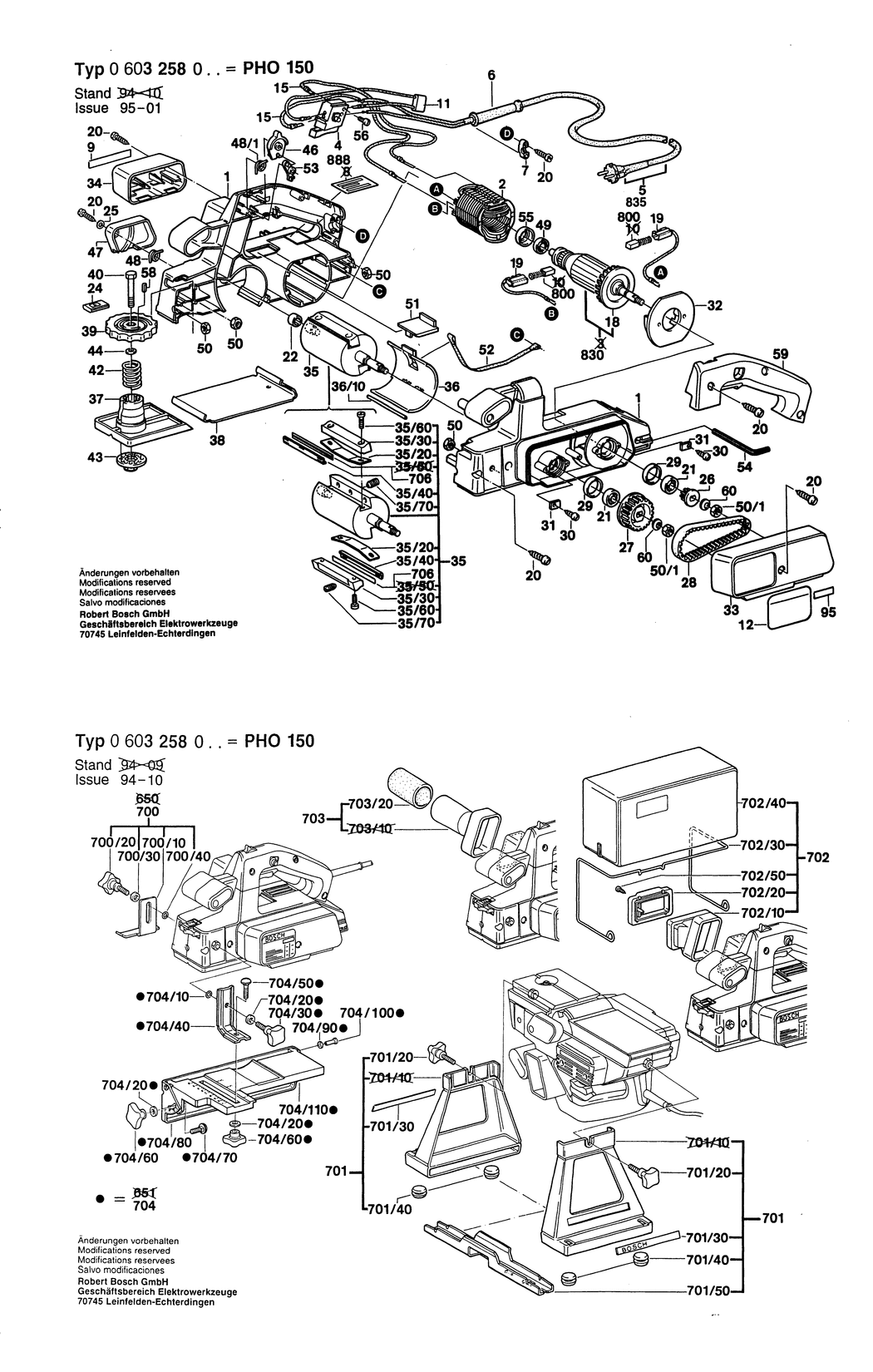

An exploded drawing and listing for the Bosch PHO 150 / 0603258003 / EU 220 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104214.A10 2605104214	-
2 - FIELD 240V BSD-1604220194.A15 1604220194	£23.86	£28.63
4 - SWITCH BSD-2607200084.A64 2607200084	£10.10	£12.12
6 - GROMMET dia6.4-dia7.5x75 MM BSD-1600703016.A132 1600703016	£1.75	£2.10
7 - CABLE CLIP BSD-2601035001.A2153 2601035001	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601110481.A312 1601110481	£2.16	£2.59
11 - SUPPRESSION FILTER BSD-1607328028.A310 1607328028	£5.30	£6.36
12 - STICKER BSD-1601110183.A0 1601110183	-
15 - CONNECTING CABLE BSD-1604448004.A4 1604448004	-
18 - FAN BSD-2606610049.A21 2606610049	£2.16	£2.59
19 - BRUSH HOLDER BSD-2604449027.A84 2604449027	£1.75	£2.10
20 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A1030 2910211019	£1.75	£2.10
21 - GROOVE BALL BEARING 8x22x7 BSD-2600905052.A901 2600905052	£7.36	£8.83
22 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A287 2600910001	£4.26	£5.11
24 - SCALE WINDOW BSD-1601099010.A39 1601099010	-
25 - SHIM 0.5 MM BSD-2600100588.A140 2600100588	£1.75	£2.10
26 - TOOTHED BELT WHEEL Z=19 BSD-1606625026.A47 1606625026	-
27 - TOOTHED BELT WHEEL Z=43 BSD-1606625025.A1 1606625025	-
28 - TOOTHED BELT 14 MM BSD-1604736004.A0 1604736004	-
29 - INTERMEDIATE RING BSD-1600206024.A49 1600206024	£1.75	£2.10
30 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A186 2910211005	£1.75	£2.10
31 - TAB WASHER BSD-1600190016.A21 1600190016	-
32 - AIR-DEFLECTOR RING BSD-1600591006.A0 1600591006	-
33 - GEAR COVER BSD-1605510140.A1 1605510140	-
34 - COVERING HOOD BSD-1605510141.A21 1605510141	-
35 - PLANER HEAD BSD-2603204900.A29 2603204900	-
35/20 - LEAF SPRING BSD-1601234002.A1 1601234002	-
35/30 - PRESSURE BAR BSD-2608040025.A1 2608040025	£37.32	£44.79
35/40 - SUPPORT CLAMP BSD-1601330010.A0 1601330010	-
35/60 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A616 2910021125	£1.75	£2.10
35/70 - SET SCREW M 6x12 DIN 915-45H BSD-2912081193.A1 2912081193	-
36 - PROTECTIVE COVER BSD-1605510142.A1 1605510142	-
36/10 - SLOTTED SPRING PIN BSD-1600410003.A7 1600410003	-
37 - ADJUSTING SLIDE BSD-1605190031.A10 1605190031	-
38 - BASE PLATE BSD-1608000091.A0 1608000091	£4.75	£5.70
39 - GRADUATED DIAL BSD-1606621003.A0 1606621003	-
40 - HEX SCREW BSD-3603450005.A40 3603450005	-
42 - COMPRESSION SPRING BSD-1604619017.A13 1604619017	£2.16	£2.59
43 - ADJUSTING NUT BSD-3603342003.A46 3603342003	£1.75	£2.10
44 - SHIM 0.5 MM BSD-1600100617.A44 1600100617	£1.75	£2.10
47 - PROTECTIVE COVER BSD-1605510139.A39 1605510139	-
48 - COMPRESSION SPRING BSD-1604651007.A1 1604651007	-
49 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A414 1610905025	£6.52	£7.83
50 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A434 2915011007	-
50/1 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A435 2915011007	-
51 - ADJUSTING SLIDE BSD-1601099011.A1 1601099011	-
52 - RUBBER BAND BSD-1601006006.A40 1601006006	-
54 - OFFSET SCREWDRIVER DIN 911. SW3 BSD-1907950004.A33 1907950004	£5.58	£6.70
55 - INTERMEDIATE RING BSD-1600502011.A379 1600502011	£2.61	£3.13
56 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1669 2603410001	£1.75	£2.10
58 - SLOTTED SPRING PIN 3x5 DIN 1481 BSD-2917760073.A32 2917760073	-
59 - HANDLE COVER BSD-1605500124.A11 1605500124	-
60 - SPRING WASHER DIN 137-A 6-ST BSD-2916060007.A5 2916060007	£1.75	£2.10
700 - DEPTH-GAUGE BSD-1608132006.A29 1608132006	£3.49	£4.19
700/10 - STOP BRACKET BSD-1601331039.A0 1601331039	-
700/20 - WING SCREW M 6x16 MM BSD-2603480003.A0 2603480003	£2.61	£3.13
700/30 - PLAIN WASHER DIN 125-A 6.4-ST BSD-2916011014.A530 2916011014	£1.75	£2.10
700/40 - O-RING 4.0x1.5 MM BSD-1610210043.A73 1610210043	£1.75	£2.10
701 - BASE BSD-0603095002.A0 0603095002	-
701/20 - WING SCREW M 6x16 MM BSD-2603480003.A1 2603480003	£2.61	£3.13
701/30 - MANUFACTURER'S NAMEPLATE BSD-1601110005.A133 1601110005	-
701/40 - RUBBER RING BSD-1602380012.A17 1602380012	£1.32	£1.58
701/50 - GUIDE RAIL BSD-1608000104.A17 1608000104	-
702 - CHIPS BAG BSD-1605411022.A47 1605411022	£17.49	£20.99
702/10 - FITTING BSD-1605190030.A0 1605190030	-
702/20 - CLAMPING PIECE BSD-1605703073.A0 1605703073	-
702/30 - RETAINING BRACKET BSD-2608045003.A29 2608045003	-
702/40 - CHIPS BAG BSD-1605411022.A46 1605411022	£17.49	£20.99
702/50 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A807 2603490017	£2.16	£2.59
703 - CONNECTING PIPE dia 35 MM BSD-1607000154.A29 1607000154	-
704 - WIDTH STOP BSD-1608132007.A0 1608132007	-
704/10 - O-RING 4.0x1.5 MM BSD-1610210043.A72 1610210043	£1.75	£2.10
704/20 - PLAIN WASHER DIN 125-A 6.4-ST BSD-2916011014.A529 2916011014	£1.75	£2.10
704/30 - WING SCREW M 6x16 MM BSD-2603480003.A2 2603480003	£2.61	£3.13
704/40 - STOP BRACKET BSD-1601332018.A0 1601332018	£3.72	£4.47
704/50 - ROUND-HEAD BOLT DIN 603-M6x25 BSD-2910281203.A163 2910281203	£2.61	£3.13
704/60 - WING NUT M6 BSD-1603339006.A222 1603339006	£2.52	£3.02
704/70 - ROUND-HEAD BOLT M6x15 DIN 603 BSD-2910281196.A116 2910281196	-
704/80 - STOP PLATE BSD-1608000092.A49 1608000092	-
704/90 - PLAIN WASHER DIN 125-A4.3-ST BSD-2916011010.A371 2916011010	£1.75	£2.10
704/100 - TUBULAR RIVET B 4x0.5x15 DIN 734 BSD-2917190492.A49 2917190492	-
704/110 - STOP BRACKET BSD-1608000093.A0 1608000093	-
706 - PLANING KNIFE BSD-2607000096.A51 2607000096	£7.57	£9.08
800 - CARBON BRUSH BSD-1607014117.A105 1607014117	£10.10	£12.12
830 - ARMATURE 220V BSD-1604010236.A0 1604010236	-
835 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1607000386.A420 1607000386	£21.52	£25.83
888 - NAMEPLATE BSD-160111A3H3.A4459 160111A3H3	£2.61	£3.13
