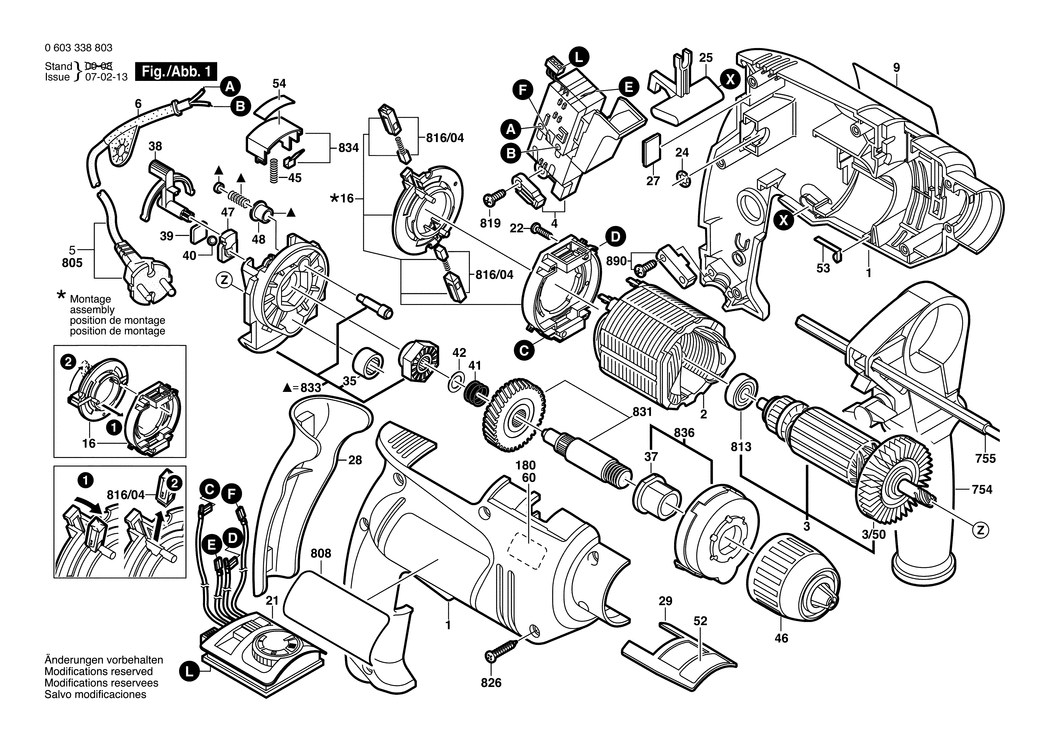

1 - HOUSING SECTION
BSD-2605104562.A0
2605104562
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220688.A37
2604220688
|
£28.59
|
£34.31
|
|
|
3 - ARMATURE 220-240V
BSD-2604011154.A88
2604011154
|
£30.28
|
£36.33
|
|
|
3/50 - FAN
BSD-2606610029.A372
2606610029
|
£2.74
|
£3.29
|
|
|
4 - SWITCH
BSD-2607200501.A6
2607200501
|
£10.82
|
£12.99
|
|
|
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1604460432.A0
1604460432
|
£11.87
|
£14.24
|
|
|
6 - GROMMET dia6.2-dia6.9x90 MM
BSD-2600707066.A288
2600707066
|
£2.60
|
£3.12
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601119311.A5
2601119311
|
-
|
|
|
|
16 - BRUSH PLATE
BSD-2604337059.A105
2604337059
|
£11.87
|
£14.24
|
|
|
21 - SPEED GOVERNOR
BSD-2607230050.A6
2607230050
|
-
|
|
|
|
22 - TAPPING SCREW DIN 7981-ST2.2x9.5-C-H
BSD-2910611002.A111
2910611002
|
£1.75
|
£2.10
|
|
|
24 - O-RING 5.0x1.5 MM
BSD-1900210000.A140
1900210000
|
£1.84
|
£2.21
|
|
|
25 - CHANGE-OVER SWITCH
BSD-2602098008.A87
2602098008
|
£1.84
|
£2.21
|
|
|
27 - DAMPING ELEMENT
BSD-2603239024.A104
2603239024
|
£1.75
|
£2.10
|
|
|
28 - HANDLE COVER
BSD-2608040109.A29
2608040109
|
£4.26
|
£5.11
|
|
|
29 - INSERT PIECE
BSD-2605510160.A36
2605510160
|
-
|
|
|
|
35 - NEEDLE BEARING
BSD-2600914019.A202
2600914019
|
£5.57
|
£6.68
|
|
|
37 - POROUS BEARING
BSD-2600301052.A127
2600301052
|
-
|
|
|
|
38 - INDEXING DISK
BSD-2601990010.A134
2601990010
|
-
|
|
|
|
39 - PRESSURE PLATE
BSD-2601074004.A83
2601074004
|
£1.75
|
£2.10
|
|
|
40 - BALL DIN 5401-5 G28
BSD-1903230009.A960
1903230009
|
£1.84
|
£2.21
|
|
|
41 - COMPRESSION SPRING
BSD-2604616006.A341
2604616006
|
£1.84
|
£2.21
|
|
|
42 - SHIM 0.3 MM
BSD-2600101047.A311
2600101047
|
£1.84
|
£2.21
|
|
|
45 - COMPRESSION SPRING
BSD-2604610047.A68
2604610047
|
£1.84
|
£2.21
|
|
|
46 - KEYLESS CHUCK
BSD-2608572173.A5
2608572173
|
-
|
|
|
|
47 - FRAME
BSD-2608040120.A84
2608040120
|
£2.61
|
£3.13
|
|
|
48 - SLEEVE
BSD-2600390031.A78
2600390031
|
-
|
|
|
|
52 - REFERENCE PLATE
BSD-2601119419.A33
2601119419
|
£3.72
|
£4.47
|
|
|
53 - CONTACT STRAP
BSD-2601329043.A106
2601329043
|
£1.38
|
£1.66
|
|
|
54 - REFERENCE PLATE
BSD-2601119602.A70
2601119602
|
£3.91
|
£4.69
|
|
|
754 - AUXILIARY HANDLE 1/2
BSD-2602025102.A30
2602025102
|
£10.86
|
£13.03
|
|
|
755 - DEPTH-GAUGE
BSD-2603001019.A129
2603001019
|
£2.63
|
£3.16
|
|
|
808 - NAMEPLATE
BSD-2601119646.A1
2601119646
|
-
|
|
|
|
813 - BALL BEARING 7x19x6
BSD-2600905032.A2274
2600905032
|
£5.57
|
£6.68
|
|
|
816/04 - BRUSH HOLDER
BSD-1607000CJ1.A117
1607000CJ1
|
-
|
|
|
|
819 - TAPPING SCREW DIN 7981-ST2.9x13-C-H
BSD-2910611006.A265
2910611006
|
£1.84
|
£2.21
|
|
|
826 - TAPPING SCREW DIN 7981-ST3.9x19-C-H
BSD-2910611020.A110
2910611020
|
£1.84
|
£2.21
|
|
|
831 - DRILLING SPINDLE 1/2
BSD-2606135929.A69
2606135929
|
-
|
|
|
|
833 - BEARING BRACKET
BSD-2605807932.A69
2605807932
|
-
|
|
|
|
834 - PUSH-BUTTON
BSD-2603231040.A123
2603231040
|
-
|
|
|
|
836 - GEAR COVER
BSD-2605808922.A125
2605808922
|
£11.37
|
£13.64
|
|
|
890 - FASTENING PARTS KIT
BSD-2607001305.A291
2607001305
|
£4.48
|
£5.37
|
|
|
891 - CROSS RECESSED-HEAD SCREW M3x5
BSD-2603410046.A41
2603410046
|
£2.27
|
£2.72
|
|
