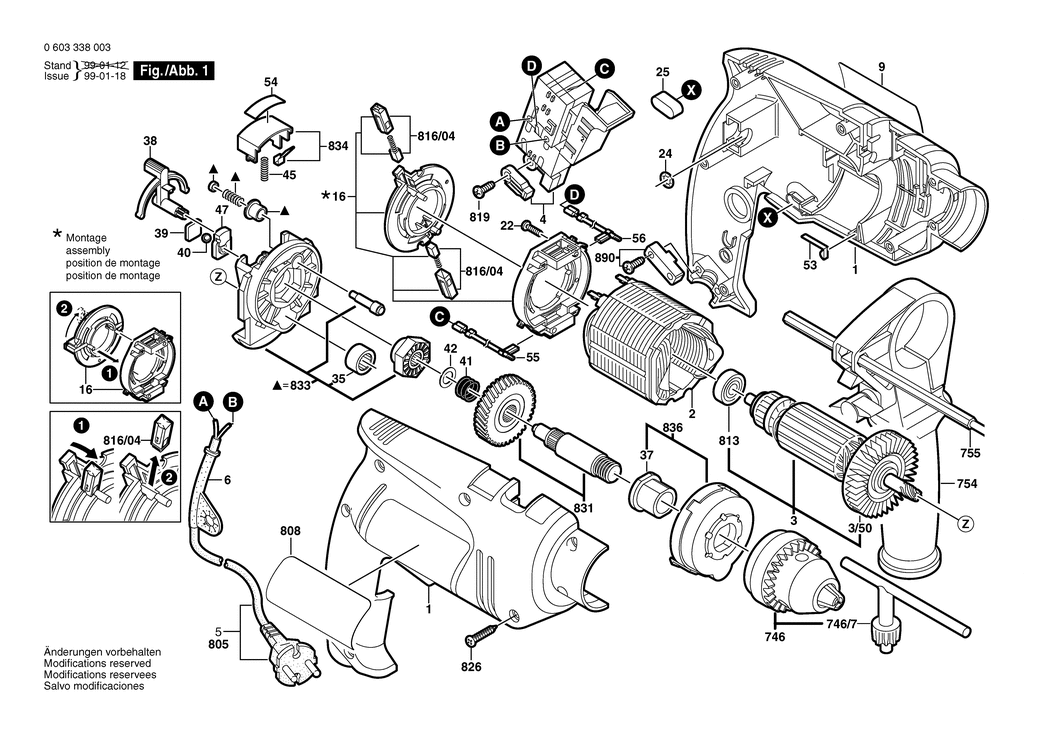

1 - HOUSING SECTION
BSD-2605104560.A1
2605104560
|
£14.72
|
£17.67
|
|
|
2 - FIELD 220-240V
BSD-2604220688.A103
2604220688
|
£28.59
|
£34.31
|
|
|
3 - ARMATURE 220-240V
BSD-2604011154.A35
2604011154
|
£30.28
|
£36.33
|
|
|
3/50 - FAN
BSD-2606610029.A285
2606610029
|
£2.74
|
£3.29
|
|
|
4 - SWITCH
BSD-2607200509.A0
2607200509
|
-
|
|
|
|
5 - POWER SUPPLY CORD I/BR 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460283.A15
2604460283
|
£12.64
|
£15.17
|
|
|
6 - GROMMET dia6.2-dia6.9x90 MM
BSD-2600707066.A204
2600707066
|
£2.60
|
£3.12
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601119309.A0
2601119309
|
-
|
|
|
|
16 - BRUSH PLATE
BSD-2604337059.A51
2604337059
|
£11.87
|
£14.24
|
|
|
22 - TAPPING SCREW DIN 7981-ST2.2x9.5-C-H
BSD-2910611002.A52
2910611002
|
£1.75
|
£2.10
|
|
|
24 - O-RING 5.0x1.5 MM
BSD-1900210000.A343
1900210000
|
£1.84
|
£2.21
|
|
|
25 - PLUG
BSD-2601099077.A13
2601099077
|
-
|
|
|
|
35 - NEEDLE BEARING
BSD-2600914019.A147
2600914019
|
£5.57
|
£6.68
|
|
|
37 - POROUS BEARING
BSD-2600301052.A88
2600301052
|
-
|
|
|
|
38 - INDEXING DISK
BSD-2601990010.A79
2601990010
|
-
|
|
|
|
39 - PRESSURE PLATE
BSD-2601074004.A63
2601074004
|
£1.75
|
£2.10
|
|
|
40 - BALL DIN 5401-5 G28
BSD-1903230009.A757
1903230009
|
£1.84
|
£2.21
|
|
|
41 - COMPRESSION SPRING
BSD-2604616006.A309
2604616006
|
£1.84
|
£2.21
|
|
|
42 - SHIM 0.3 MM
BSD-2600101047.A264
2600101047
|
£1.84
|
£2.21
|
|
|
45 - COMPRESSION SPRING
BSD-2604610047.A8
2604610047
|
£1.84
|
£2.21
|
|
|
47 - FRAME
BSD-2608040120.A122
2608040120
|
£2.61
|
£3.13
|
|
|
53 - CONTACT STRAP
BSD-2601329043.A179
2601329043
|
£1.38
|
£1.66
|
|
|
54 - REFERENCE PLATE
BSD-2601119602.A31
2601119602
|
£3.91
|
£4.69
|
|
|
55 - PVC-INSULATED CABLE L=95 MM
BSD-1614431025.A146
1614431025
|
£2.61
|
£3.13
|
|
|
56 - PVC-INSULATED CABLE L=120 MM
BSD-2604448228.A52
2604448228
|
£2.16
|
£2.59
|
|
|
746 - KEY CHUCK 1/2
BSD-2608571056.A24
2608571056
|
£18.37
|
£22.04
|
|
|
746/7 - CHUCK WRENCH SG2
BSD-2607950007.A310
2607950007
|
£6.85
|
£8.22
|
|
|
754 - AUXILIARY HANDLE 1/2
BSD-2602025102.A33
2602025102
|
£10.86
|
£13.03
|
|
|
755 - DEPTH-GAUGE
BSD-2603001019.A110
2603001019
|
£2.63
|
£3.16
|
|
|
808 - NAMEPLATE
BSD-2601119619.A0
2601119619
|
-
|
|
|
|
813 - BALL BEARING 7x19x6
BSD-2600905032.A1888
2600905032
|
£5.57
|
£6.68
|
|
|
816/04 - BRUSH HOLDER
BSD-1607000CJ1.A107
1607000CJ1
|
-
|
|
|
|
819 - TAPPING SCREW DIN 7981-ST2.9x13-C-H
BSD-2910611006.A361
2910611006
|
£1.84
|
£2.21
|
|
|
826 - TAPPING SCREW DIN 7981-ST3.9x19-C-H
BSD-2910611020.A162
2910611020
|
£1.84
|
£2.21
|
|
|
831 - DRILLING SPINDLE 1/2
BSD-2606135929.A39
2606135929
|
-
|
|
|
|
833 - BEARING BRACKET
BSD-2605807932.A41
2605807932
|
-
|
|
|
|
834 - PUSH-BUTTON
BSD-2603231040.A66
2603231040
|
-
|
|
|
|
836 - GEAR COVER
BSD-2605808922.A80
2605808922
|
£11.37
|
£13.64
|
|
|
890 - FASTENING PARTS KIT
BSD-2607001305.A229
2607001305
|
£4.48
|
£5.37
|
|
