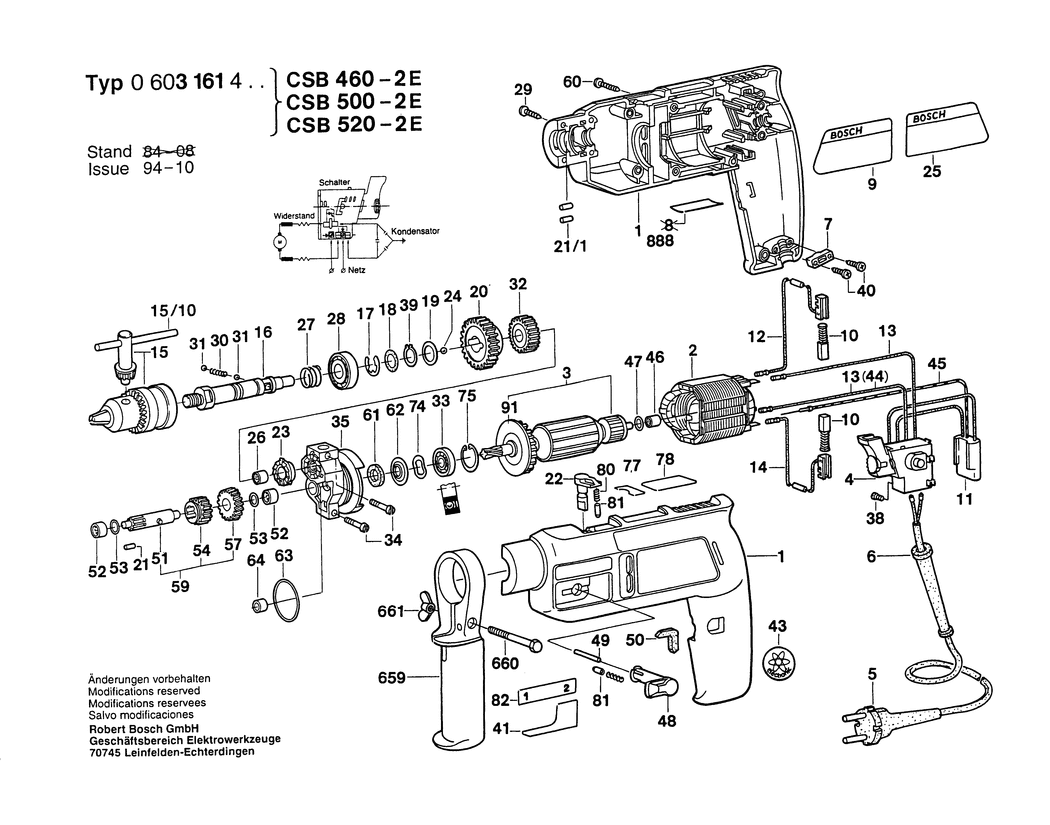

1 - HOUSING SECTION
BSD-2605104961.A7
2605104961
|
-
|
|
|
|
2 - FIELD 240V
BSD-2604220411.A0
2604220411
|
£22.76
|
£27.31
|
|
|
3 - ARMATURE 230-240V
BSD-2604010553.A1
2604010553
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200173.A11
2607200173
|
-
|
|
|
|
5 - ELEC. CABLE W/CONNECTION CH 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460053.A136
2604460053
|
-
|
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A226
2600707059
|
£3.91
|
£4.69
|
|
|
6 - GROMMET dia8.8 MM
BSD-2600707061.A124
2600707061
|
£2.80
|
£3.36
|
|
|
6 - GROMMET dia11.6-dia12.5x84 MM
BSD-2600707060.A182
2600707060
|
£2.61
|
£3.13
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2033
2601035001
|
£1.84
|
£2.21
|
|
|
9 - STICKER
BSD-2601110151.A5
2601110151
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601110261.A4
2601110261
|
-
|
|
|
|
9 - STICKER
BSD-2601110659.A4
2601110659
|
-
|
|
|
|
10 - CARBON-BRUSH SET
BSD-2604321904.A218
2604321904
|
£10.61
|
£12.73
|
|
|
11 - SUPPRESSION FILTER
BSD-2607329096.A103
2607329096
|
£7.72
|
£9.27
|
|
|
12 - SUPPRESSOR BOX
BSD-2604465099.A67
2604465099
|
-
|
|
|
|
13 - CONNECTING CABLE L=184 MM
BSD-2604448001.A46
2604448001
|
£2.05
|
£2.46
|
|
|
14 - SUPPRESSOR BOX
BSD-2604465099.A68
2604465099
|
-
|
|
|
|
15 - KEY CHUCK dia1.5-13 MM. 1/2
BSD-1608571055.A1
1608571055
|
-
|
|
|
|
15 - CHUCK dia1.5-13 MM. 1/2
BSD-1608571069.A305
1608571069
|
£25.05
|
£30.06
|
|
|
15/10 - CHUCK WRENCH SG2
BSD-2607950007.A270
2607950007
|
£6.85
|
£8.22
|
|
|
16 - DRILLING SPINDLE 1/2-20 UNF-2
BSD-2606135005.A6
2606135005
|
-
|
|
|
|
17 - LOCKING WASHER 1.0 MM
BSD-2600118003.A50
2600118003
|
-
|
|
|
|
17 - LOCKING WASHER 0.8 MM
BSD-2600118002.A39
2600118002
|
£1.84
|
£2.21
|
|
|
17 - LOCKING WASHER 0.6 MM
BSD-2600118001.A208
2600118001
|
£1.75
|
£2.10
|
|
|
17 - LOCKING WASHER 0.3 MM
BSD-2600118006.A134
2600118006
|
-
|
|
|
|
18 - O-RING 15x2 MM
BSD-1900210012.A24
1900210012
|
£1.84
|
£2.21
|
|
|
19 - SHIM 1.0 MM
BSD-2600101515.A146
2600101515
|
£2.05
|
£2.46
|
|
|
20 - CYLINDRICAL GEAR Z=48
BSD-2606317014.A1
2606317014
|
-
|
|
|
|
21 - O-RING 28x3 MM
BSD-1900210129.A58
1900210129
|
£2.74
|
£3.29
|
|
|
22 - ROTARY KNOB
BSD-2602026031.A11
2602026031
|
-
|
|
|
|
23 - LOCATING WASHER
BSD-2606490031.A8
2606490031
|
-
|
|
|
|
24 - BALL DIN 5401-5 G28
BSD-1903230009.A715
1903230009
|
£1.84
|
£2.21
|
|
|
25 - STICKER
BSD-2601110615.A1
2601110615
|
-
|
|
|
|
25 - STICKER
BSD-2601110260.A1
2601110260
|
-
|
|
|
|
25 - STICKER
BSD-2601110661.A1
2601110661
|
-
|
|
|
|
26 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A163
2600917003
|
£2.94
|
£3.53
|
|
|
27 - COMPRESSION SPRING
BSD-2604617000.A22
2604617000
|
£2.61
|
£3.13
|
|
|
28 - GROOVE BALL BEARING 15x32x9
BSD-1900905122.A136
1900905122
|
£10.61
|
£12.73
|
|
|
29 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A424
2603490018
|
£1.75
|
£2.10
|
|
|
30 - COMPRESSION SPRING
BSD-2604610007.A63
2604610007
|
-
|
|
|
|
31 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A758
1903230007
|
£1.84
|
£2.21
|
|
|
32 - CYLINDRICAL GEAR Z=35
BSD-2606317015.A30
2606317015
|
-
|
|
|
|
33 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A229
2600905021
|
£8.67
|
£10.41
|
|
|
34 - SOCKET HEAD CAP SCREW
BSD-2603410031.A2
2603410031
|
-
|
|
|
|
35 - BEARING BRACKET
BSD-2605807902.A28
2605807902
|
-
|
|
|
|
38 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1543
2603410001
|
£1.84
|
£2.21
|
|
|
39 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A170
2916650006
|
£1.75
|
£2.10
|
|
|
40 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A519
2910611019
|
£2.94
|
£3.53
|
|
|
41 - STICKER
BSD-2601110146.A5
2601110146
|
-
|
|
|
|
43 - STICKER
BSD-2601110041.A61
2601110041
|
-
|
|
|
|
44 - CONNECTING CABLE L=154 MM
BSD-2604448000.A194
2604448000
|
-
|
|
|
|
45 - CABLE
BSD-2604448003.A0
2604448003
|
-
|
|
|
|
46 - NEEDLE BEARING
BSD-1600910012.A66
1600910012
|
£2.80
|
£3.36
|
|
|
46 - NEEDLE BEARING
BSD-2600910005.A55
2600910005
|
-
|
|
|
|
47 - O-RING 8.0x2.5 MM
BSD-1610210014.A260
1610210014
|
-
|
|
|
|
48 - ROTARY KNOB
BSD-2602026032.A0
2602026032
|
-
|
|
|
|
49 - STRAIGHT PIN
BSD-2603101002.A19
2603101002
|
-
|
|
|
|
50 - DAMPING PLATE
BSD-2601022000.A383
2601022000
|
£1.75
|
£2.10
|
|
|
51 - TOOTHED SHAFT Z= 9
BSD-2606309007.A8
2606309007
|
-
|
|
|
|
52 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A18
2600914010
|
£2.94
|
£3.53
|
|
|
53 - SHIM 0.3 MM
BSD-2600100570.A114
2600100570
|
£1.84
|
£2.21
|
|
|
53 - SHIM 0.3 MM
BSD-2600100607.A9
2600100607
|
£1.75
|
£2.10
|
|
|
54 - CYLINDRICAL GEAR Z=22
BSD-2606317026.A24
2606317026
|
-
|
|
|
|
57 - CYLINDRICAL GEAR Z=21
BSD-2606320006.A1
2606320006
|
-
|
|
|
|
59 - TOOTHED SHAFT Z= 21/22/9
BSD-2606309904.A9
2606309904
|
-
|
|
|
|
60 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A238
2912401020
|
£2.16
|
£2.59
|
|
|
61 - FELT WASHER
BSD-2600108002.A73
2600108002
|
£2.27
|
£2.72
|
|
|
61 - FELT WASHER
BSD-2600108077.A505
2600108077
|
£1.84
|
£2.21
|
|
|
62 - CUPPED WASHER
BSD-2600500002.A518
2600500002
|
£1.75
|
£2.10
|
|
|
63 - O-RING 35.0x2.0 MM
BSD-2600210026.A1
2600210026
|
£2.27
|
£2.72
|
|
|
64 - RECEPTACLE
BSD-2600400008.A586
2600400008
|
£1.75
|
£2.10
|
|
|
74 - SHIM
BSD-2600150005.A1
2600150005
|
£1.75
|
£2.10
|
|
|
75 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A281
2916660008
|
£2.16
|
£2.59
|
|
|
77 - STICKER
BSD-2601110174.A11
2601110174
|
-
|
|
|
|
78 - STICKER
BSD-2601110150.A0
2601110150
|
-
|
|
|
|
80 - RATCHET CAP
BSD-2600590006.A229
2600590006
|
£1.84
|
£2.21
|
|
|
81 - RATCHET CAP
BSD-2600590006.A230
2600590006
|
£1.84
|
£2.21
|
|
|
82 - STICKER
BSD-2601110155.A0
2601110155
|
-
|
|
|
|
91 - FAN
BSD-2606610047.A101
2606610047
|
-
|
|
|
|
659 - AUXILIARY HANDLE dia43 MM
BSD-2602025032.A48
2602025032
|
-
|
|
|
|
660 - HEX SCREW M6x45 DIN 931-8.8
BSD-2911001211.A32
2911001211
|
-
|
|
|
|
661 - WING NUT M6 DIN 315-G-GTW-40
BSD-2915191006.A14
2915191006
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A4588
160111A3H3
|
£2.74
|
£3.29
|
|
