Bosch PKS 54 / 0603223050 / I 220 Volt Spare Parts

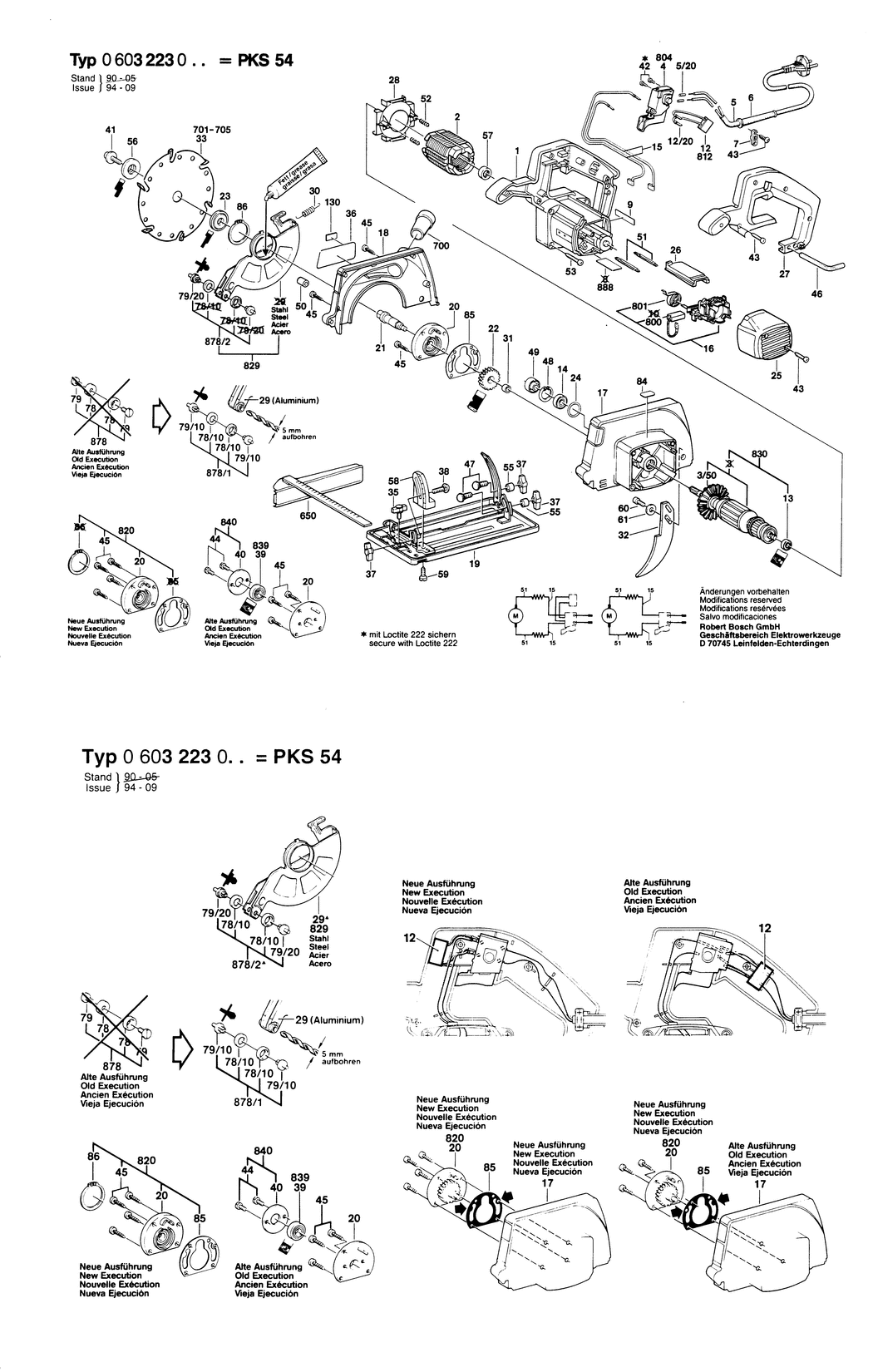

An exploded drawing and listing for the Bosch PKS 54 / 0603223050 / I 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1605108135.A21 1605108135	-
2 - FIELD 220V BSD-1604220231.A18 1604220231	-
3/50 - FAN BSD-1606610122.A130 1606610122	£2.80	£3.36
4 - ON-OFF SWITCH BSD-1607000231.A118 1607000231	£18.96	£22.75
5 - POWER SUPPLY CORD IT 2.75m 2x1.0mm H05VV-F BSD-1604460145.A9 1604460145	-
5/20 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A92 1900452012	£1.75	£2.10
6 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703013.A392 2600703013	£2.61	£3.13
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A832 2600703012	£2.80	£3.36
7 - CABLE CLIP BSD-2601035001.A2873 2601035001	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-2601110601.A26 2601110601	-
12 - SUPPRESSION FILTER BSD-1607328028.A154 1607328028	£5.30	£6.36
12/20 - BLADE TERMINAL BSD-2601355007.A12 2601355007	-
13 - BALL BEARING 7x19x6 BSD-2600905032.A1466 2600905032	£5.30	£6.36
14 - GROOVE BALL BEARING 9x26x8 BSD-1610905009.A31 1610905009	£14.72	£17.67
15 - SUPPRESSOR BOX BSD-1604503014.A55 1604503014	-
16 - BRUSH HOLDER BSD-1604336016.A11 1604336016	-
17 - GEAR HOUSING BSD-1605806418.A0 1605806418	-
18 - COVERING HOOD BSD-1605510161.A8 1605510161	-
19 - BASE PLATE 145x290 MM BSD-1608000106.A34 1608000106	-
20 - PARTS SET BSD-1607000218.A22 1607000218	-
21 - DRIVE SHAFT M6. dia12 MM BSD-1603124114.A35 1603124114	£8.49	£10.19
22 - CYLINDRICAL GEAR Z=35 BSD-1606320079.A27 1606320079	-
23 - CLAMPING-FLANGE BSD-1605703097.A24 1605703097	-
24 - O-RING 24.0x1.5 MM BSD-1610210013.A17 1610210013	£2.16	£2.59
25 - SEALING CAP BSD-1605500135.A21 1605500135	-
26 - COVER STRIP BSD-1601099015.A7 1601099015	-
27 - HANDLE COVER BSD-1605500137.A1 1605500137	-
28 - AIR-DEFLECTOR RING BSD-1600591007.A4 1600591007	£2.61	£3.13
29 - PIVOTING BLADE GUARD BSD-1605510169.A0 1605510169	-
30 - EXTENSION SPRING BSD-1604650010.A28 1604650010	£1.75	£2.10
31 - SINTERED-METAL BUSHING J6G7x10R6x6DIN1850 BSD-1900301007.A27 1900301007	£3.72	£4.47
32 - RIVING KNIFE BSD-1600025017.A23 1600025017	£3.80	£4.56
35 - WING SCREW M6 BSD-1603480018.A109 1603480018	£2.16	£2.59
36 - MANUFACTURER'S NAMEPLATE BSD-1601110492.A8 1601110492	-
37 - WING NUT M6 BSD-1603339006.A349 1603339006	£2.52	£3.02
38 - ROUND-HEAD BOLT DIN 603-M6x20 BSD-2910281201.A5 2910281201	£1.75	£2.10
39 - GROOVE BALL BEARING 6001-ZJ/C3 DIN 625 BSD-1900905107.A8 1900905107	-
40 - CONICAL SPRING WASHER BSD-1600132003.A4 1600132003	-
41 - HEX SOCKET HEAD CAP SCREW M6x14 MM BSD-1603414007.A151 1603414007	£2.29	£2.75
42 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2213 2603410001	£1.75	£2.10
43 - TAPPING SCREW DIN7981-ST3.9x16-C-Z BSD-2912401019.A222 2912401019	£1.75	£2.10
44 - SOCKET HEAD CAP SCREW DIN 84-AM4x5-8.8 BSD-2910021115.A3 2910021115	-
45 - THREAD-FORMING TAP. SCREW DIN 7500-M 4x12 BSD-2914491409.A90 2914491409	£1.66	£1.99
46 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A656 1907950006	£4.26	£5.11
47 - ROUND-HEAD BOLT DIN 603-M6x25 BSD-2910281203.A172 2910281203	£2.61	£3.13
48 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A47 2916660008	£2.16	£2.59
49 - SEAL BUSHING BSD-1600328029.A0 1600328029	-
50 - RUBBER BUFFER BSD-1600305001.A64 1600305001	£1.75	£2.10
51 - BLADE TERMINAL BSD-1604477005.A23 1604477005	£2.61	£3.13
52 - COMPRESSION SPRING BSD-1604611028.A4 1604611028	-
53 - THREAD-FORMING TAP. SCREW TT M5x30 MM BSD-1603435022.A67 1603435022	£1.75	£2.10
55 - SPACER BUSHING BSD-1600309010.A50 1600309010	£2.61	£3.13
56 - CONICAL SPRING WASHER BSD-1605703108.A111 1605703108	£2.80	£3.36
57 - INTERMEDIATE RING BSD-1600502011.A382 1600502011	£2.61	£3.13
58 - MITER SQUARE BSD-1608190010.A34 1608190010	£2.52	£3.02
59 - TAPPING SCREW DIN 7971-BZ3.9x9.5 BSD-2910211017.A84 2910211017	-
60 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x12-8.8 BSD-2910141193.A5 2910141193	-
61 - PLAIN WASHER DIN 433-6.4-ST 50 BSD-2916011013.A36 2916011013	£1.75	£2.10
85 - SEALING DISK BSD-1600139008.A3 1600139008	-
86 - SPRING RETAINING RING DIN 471-40x1.75-FST BSD-2916650020.A14 2916650020	-
650 - PARALLEL-GUIDE BSD-2608005036.A34 2608005036	£8.67	£10.41
700 - FITTING dia 25x35 MM BSD-1600499005.A4 1600499005	£3.49	£4.19
701 - CIRCULAR SAW BLADE dia 16 x dia 160 MM. Z=20 BSD-2608640140.A6 2608640140	-
705 - CIRCULAR SAW BLADE BSD-2608640597.A12 2608640597	£20.22	£24.26
800 - CARBON-BRUSH SET BSD-1607014129.A110 1607014129	-
801 - SPIRAL SPRING BSD-2604652008.A122 2604652008	-
804 - ON-OFF SWITCH BSD-1607000231.A117 1607000231	£18.96	£22.75
812 - SUPPRESSION FILTER BSD-1607328028.A153 1607328028	£5.30	£6.36
820 - PARTS SET BSD-1607000218.A23 1607000218	-
829 - PIVOTING BLADE GUARD BSD-1605510170.A4 1605510170	-
830 - ARMATURE 230V BSD-1604010314.A5 1604010314	-
839 - GROOVE BALL BEARING 6001-ZJ/C3 DIN 625 BSD-1900905107.A9 1900905107	-
840 - PARTS SET BSD-1607000219.A3 1607000219	-
878 - PARTS SET BSD-1607000191.A4 1607000191	-
878/1 - PARTS SET BSD-1607000192.A0 1607000192	-
878/2 - PARTS SET BSD-1607000205.A4 1607000205	-
888 - NAMEPLATE BSD-160111A3H3.A3552 160111A3H3	£2.61	£3.13
899 - GREASE TUBE 225 ML BSD-1605430003.A247 1605430003	£33.74	£40.49
