Bosch PBS 60 AE / 0603275632 / CH 230 Volt Spare Parts

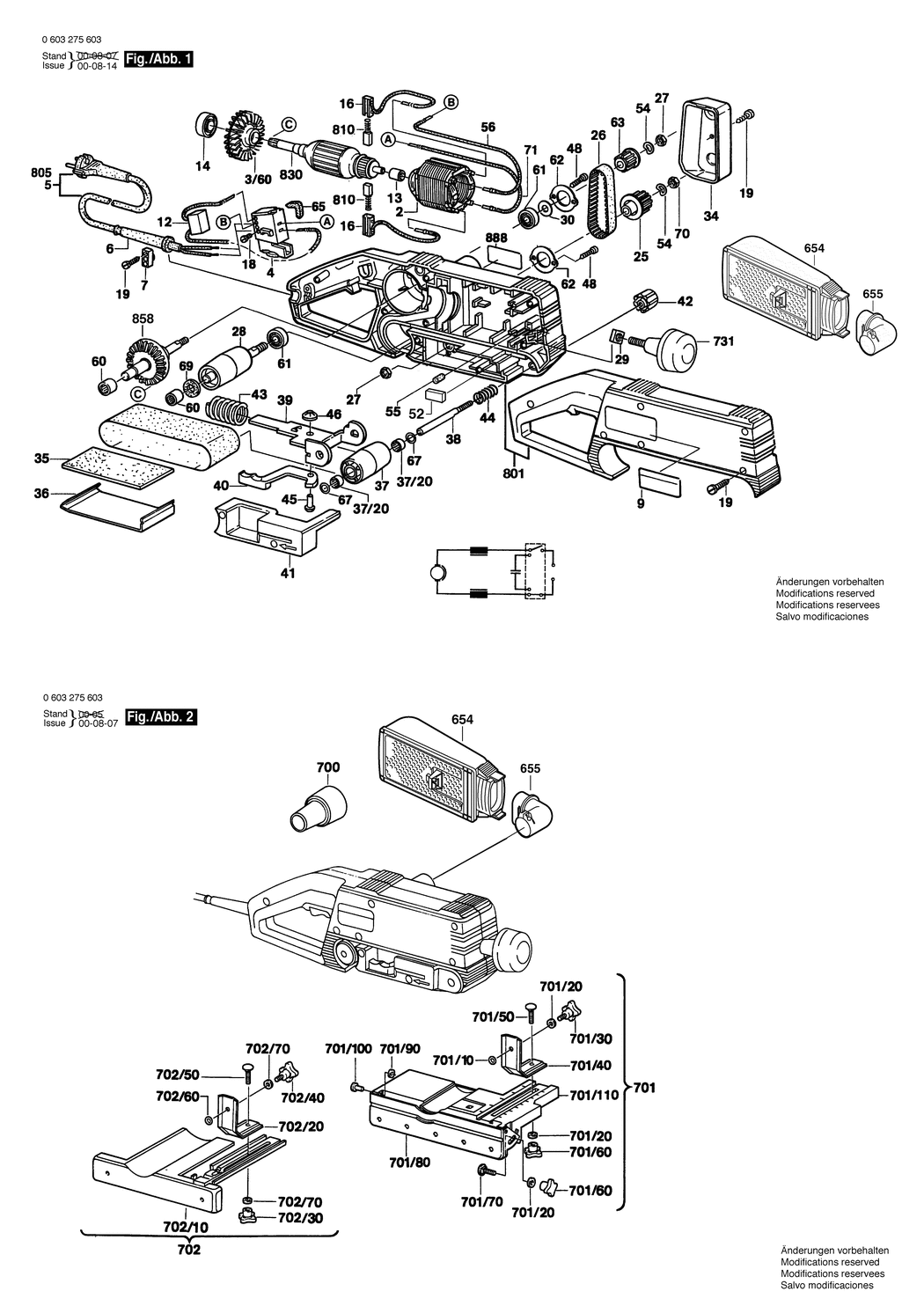

An exploded drawing and listing for the Bosch PBS 60 AE / 0603275632 / CH 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 220-240V BSD-2604220456.A43 2604220456	£18.96	£22.75
3/60 - FAN BSD-2606610024.A11 2606610024	-
4 - ON-OFF SWITCH BSD-2607200358.A20 2607200358	-
5 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05 VV-F BSD-1604460427.A37 1604460427	£12.04	£14.45
6 - GROMMET dia7 MM BSD-2600703007.A137 2600703007	-
7 - CABLE CLIP BSD-2601035001.A552 2601035001	£1.75	£2.10
9 - STICKER BSD-2601119325.A6 2601119325	-
12 - SUPPRESSION FILTER BSD-1607328028.A698 1607328028	£5.30	£6.36
13 - NEEDLE BEARING BSD-2600910005.A89 2600910005	-
14 - GROOVE BALL BEARING 9x24x7 BSD-1610905011.A21 1610905011	£14.91	£17.89
16 - CARB BRUSH HOLD W-SUPR BSD-2604465085.A25 2604465085	-
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A494 2603410001	£1.75	£2.10
19 - SCREW 4x16 BSD-2603490022.A1334 2603490022	£1.75	£2.10
25 - TOOTHED BELT WHEEL Z=27 BSD-1606625030.A13 1606625030	-
26 - TOOTHED BELT Z=59 BSD-1604736006.A0 1604736006	£10.10	£12.12
27 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1223 2915011007	-
28 - ROLLER BSD-1606625032.A13 1606625032	-
29 - SQUARE NUT M6 BSD-2603320004.A6 2603320004	£1.75	£2.10
30 - PLAIN WASHER 8-ST BSD-2916021013.A13 2916021013	£1.75	£2.10
34 - COVERING HOOD BSD-1605510159.A7 1605510159	-
35 - FELT STRIP BSD-1601005005.A13 1601005005	-
36 - SLIDE PLATE BSD-1601098007.A7 1601098007	-
37 - ROLLER BSD-1606625031.A7 1606625031	-
37/20 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A543 2600917003	£2.80	£3.36
38 - AXLE BSD-1603521028.A13 1603521028	-
39 - BEARING BRACKET BSD-1605807014.A13 1605807014	-
40 - TENSIONING LEVER BSD-1602098007.A12 1602098007	-
41 - BASE BSD-1608005005.A4 1608005005	-
42 - WING NUT BSD-2603339005.A65 2603339005	£2.80	£3.36
43 - COMPRESSION SPRING BSD-1604619018.A20 1604619018	-
44 - COMPRESSION SPRING BSD-1604612006.A1 1604612006	-
45 - BUTTON-HEAD RIVET DIN 660-5x10-Ms BSD-2917030709.A16 2917030709	-
46 - LOCKING WASHER BSD-1600146001.A68 1600146001	£1.75	£2.10
48 - TORX OVAL-HEAD SCREW 3x8 BSD-2603490016.A1 2603490016	£1.75	£2.10
52 - CERAMIC PLATE BSD-2601010059.A29 2601010059	£5.58	£6.70
54 - SPRING WASHER DIN 137-A6-FST BSD-2916061007.A10 2916061007	-
55 - RUBBER BUFFER BSD-1603100036.A81 1603100036	£1.75	£2.10
56 - CONNECTING CABLE L = 298 MM BSD-2604448032.A22 2604448032	-
60 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A893 2600910001	£4.26	£5.11
61 - GROOVE BALL BEARING 8x22x7 BSD-1900905041.A20 1900905041	£13.12	£15.75
62 - TAB WASHER BSD-1600190016.A7 1600190016	-
63 - TOOTHED BELT WHEEL Z=19 BSD-1606625026.A56 1606625026	-
65 - DAMPING PLATE BSD-2601022000.A521 2601022000	£1.75	£2.10
67 - SHIM 0.2 MM BSD-2600100621.A20 2600100621	£1.75	£2.10
69 - FELT DISC BSD-2600108008.A6 2600108008	-
70 - HEX NUT M 6 BSD-2603300003.A27 2603300003	-
71 - CONNECTING CABLE BSD-2604448150.A13 2604448150	-
654 - DUST CHAMBER BSD-2605411129.A27 2605411129	£13.12	£15.75
655 - FITTING BSD-2605702038.A14 2605702038	£5.30	£6.36
700 - FITTING dia 25x35 MM BSD-1600499005.A97 1600499005	£3.49	£4.19
701 - WIDTH STOP 45Â° BSD-2607001079.A18 2607001079	£21.87	£26.24
701/10 - O-RING 4.0x1.5 MM BSD-1610210043.A153 1610210043	£1.75	£2.10
701/20 - PLAIN WASHER DIN 125-A 6.4-ST BSD-2916011014.A76 2916011014	£1.75	£2.10
701/30 - WING SCREW M 6x16 MM BSD-2603480003.A133 2603480003	£2.61	£3.13
701/40 - STOP BRACKET BSD-1601332018.A65 1601332018	£3.72	£4.47
701/50 - ROUND-HEAD BOLT DIN 603-M6x25 BSD-2910281203.A37 2910281203	£2.61	£3.13
701/60 - WING NUT M6 BSD-1603339006.A95 1603339006	£2.52	£3.02
701/70 - ROUND-HEAD BOLT M6x15 DIN 603 BSD-2910281196.A214 2910281196	-
701/80 - STOP PLATE BSD-1608000092.A4 1608000092	-
701/90 - PLAIN WASHER DIN 125-A4.3-ST BSD-2916011010.A91 2916011010	£1.75	£2.10
701/100 - TUBULAR RIVET B 4x0.5x15 DIN 734 BSD-2917190492.A3 2917190492	-
701/110 - STOP BRACKET BSD-1608000093.A45 1608000093	-
702 - PARALLEL-GUIDE BSD-2607000102.A16 2607000102	£20.99	£25.19
702/10 - STOP BRACKET BSD-2608005015.A19 2608005015	£11.30	£13.56
702/20 - STOP BRACKET BSD-1601332018.A66 1601332018	£3.72	£4.47
702/30 - WING NUT M6 BSD-1603339006.A94 1603339006	£2.52	£3.02
702/40 - WING SCREW M 6x16 MM BSD-2603480003.A134 2603480003	£2.61	£3.13
702/50 - ROUND-HEAD BOLT M6x15 DIN 603 BSD-2910281196.A213 2910281196	-
702/60 - O-RING 4.0x1.5 MM BSD-1610210043.A155 1610210043	£1.75	£2.10
702/70 - PLAIN WASHER DIN 125-A 6.4-ST BSD-2916011014.A75 2916011014	£1.75	£2.10
731 - HANDLE M6x15 MM BSD-2602026046.A1 2602026046	-
801 - MOTOR HOUSING BSD-2605104804.A3 2605104804	-
810 - CARBON BRUSH BSD-1607014117.A48 1607014117	£10.10	£12.12
830 - ARMATURE 220-230V BSD-1604010306.A6 1604010306	-
858 - CROWN GEAR Z=45 BSD-2606333900.A9 2606333900	£21.52	£25.83
888 - NAMEPLATE BSD-160111A3H3.A1357 160111A3H3	£2.61	£3.13
