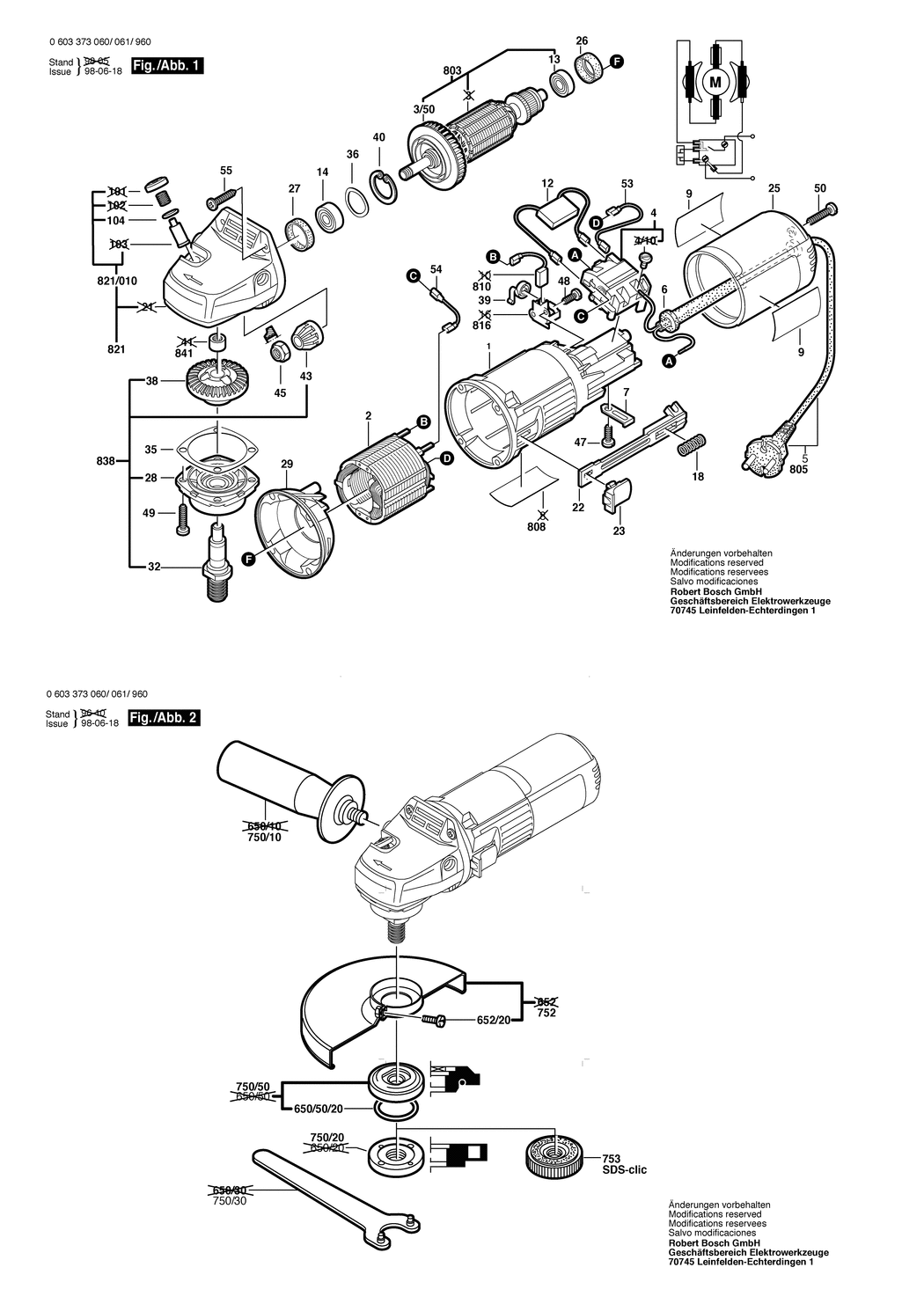

1 - MOTOR HOUSING
BSD-1605108189.A19
1605108189
|
£5.87
|
£7.04
|
|
|
2 - FIELD 220-230V
BSD-1604220272.A12
1604220272
|
-
|
|
|
|
3/50 - FAN
BSD-1606610121.A232
1606610121
|
£1.75
|
£2.10
|
|
|
4 - ON-OFF SWITCH
BSD-1607200086.A367
1607200086
|
£11.30
|
£13.56
|
|
|
4/10 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A332
2910110048
|
£1.75
|
£2.10
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A946
2600703012
|
£2.80
|
£3.36
|
|
|
6 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A356
2600703013
|
£2.61
|
£3.13
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A416
1601302017
|
£1.75
|
£2.10
|
|
|
9 - REFERENCE PLATE
BSD-1601118710.A0
1601118710
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328029.A23
1607328029
|
-
|
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A82
2600905032
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A229
1600905011
|
£5.58
|
£6.70
|
|
|
18 - COMPRESSION SPRING
BSD-1604611026.A428
1604611026
|
£1.75
|
£2.10
|
|
|
22 - ADJUSTING SLIDE
BSD-1602319002.A167
1602319002
|
£2.61
|
£3.13
|
|
|
23 - SWITCH HANDLE
BSD-1602026057.A268
1602026057
|
£1.97
|
£2.36
|
|
|
25 - HOUSING COVER
BSD-1600508005.A66
1600508005
|
£3.80
|
£4.56
|
|
|
26 - RUBBER BUSHING
BSD-1600502020.A223
1600502020
|
£2.61
|
£3.13
|
|
|
27 - RUBBER RING
BSD-1600206025.A429
1600206025
|
£2.16
|
£2.59
|
|
|
28 - BEARING FLANGE
BSD-1605805061.A48
1605805061
|
£10.10
|
£12.12
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1601328005.A249
1601328005
|
£2.61
|
£3.13
|
|
|
32 - GRINDING SPINDLE
BSD-1607000D6A.A219
1607000D6A
|
£7.36
|
£8.83
|
|
|
35 - SHIM 0.1 MM
BSD-1600136012.A15
1600136012
|
£1.75
|
£2.10
|
|
|
35 - SHIM 0.2 MM
BSD-1600136010.A15
1600136010
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.3 MM
BSD-1600136011.A308
1600136011
|
£2.16
|
£2.59
|
|
|
36 - SPRING WASHER
BSD-1600150011.A126
1600150011
|
£1.75
|
£2.10
|
|
|
38 - CROWN GEAR Z=36
BSD-1606333606.A70
1606333606
|
£11.30
|
£13.56
|
|
|
39 - SPIRAL SPRING
BSD-1604652013.A563
1604652013
|
£1.75
|
£2.10
|
|
|
40 - SPRING RETAINING RING DIN 472-25x1.2MM
BSD-2916660009.A131
2916660009
|
£2.16
|
£2.59
|
|
|
43 - BEVEL GEAR Z=11
BSD-1606333605.A27
1606333605
|
£3.72
|
£4.47
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A36
1603300016
|
£1.75
|
£2.10
|
|
|
47 - TAPPING SCREW DIN 7971-ST3.9x13-F
BSD-2910211018.A220
2910211018
|
£1.75
|
£2.10
|
|
|
48 - TAPPING SCREW DIN 7971-ST2.9x9.5-F
BSD-2910211005.A60
2910211005
|
£1.75
|
£2.10
|
|
|
49 - TAPPING SCREW DIN7981-ST3.9x19-F-Z
BSD-2912401420.A80
2912401420
|
£1.75
|
£2.10
|
|
|
50 - TAPPING SCREW DIN7981-ST3.9x19-F-Z
BSD-2912401420.A81
2912401420
|
£1.75
|
£2.10
|
|
|
53 - CONNECTING CABLE
BSD-1604448015.A4
1604448015
|
£1.75
|
£2.10
|
|
|
54 - CONNECTING CABLE
BSD-1604448016.A145
1604448016
|
£1.75
|
£2.10
|
|
|
55 - TAPPING SCREW DIN7981-ST3.9x19-F-Z
BSD-2912401420.A82
2912401420
|
£1.75
|
£2.10
|
|
|
104 - O-RING 4.5x1.0 MM
BSD-1600210044.A244
1600210044
|
£1.75
|
£2.10
|
|
|
650/50/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A477
1600210039
|
£2.16
|
£2.59
|
|
|
652/20 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8
BSD-2910022197.A236
2910022197
|
-
|
|
|
|
652/20 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8
BSD-2910141197.A75
2910141197
|
£1.75
|
£2.10
|
|
|
750/10 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A772
160202509T
|
£3.72
|
£4.47
|
|
|
750/20 - CLAMPING NUT M14
BSD-1603340040.A141
1603340040
|
£6.20
|
£7.44
|
|
|
750/30 - PIN-TYPE FACE-WRENCH
BSD-1607950043.A201
1607950043
|
£4.02
|
£4.83
|
|
|
750/50 - CLAMPING-FLANGE dia22.2x42 MM
BSD-1605703099.A333
1605703099
|
£7.45
|
£8.94
|
|
|
752 - PROTECTIVE COVER dia 115 MM(4 1/2)
BSD-2605510125.A65
2605510125
|
£27.23
|
£32.68
|
|
|
753 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A298
1603340027
|
£46.82
|
£56.18
|
|
|
803 - ARMATURE WITH FAN 220-230V
BSD-1604010429.A58
1604010429
|
-
|
|
|
|
805 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A150
1607000386
|
£21.52
|
£25.83
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A1285
160111A3H3
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014116.A135
1607014116
|
£11.30
|
£13.56
|
|
|
816 - BRUSH HOLDER
BSD-1600A003G4.A199
1600A003G4
|
£3.72
|
£4.47
|
|
|
821 - GEAR HOUSING
BSD-1605806483.A7
1605806483
|
-
|
|
|
|
821/010 - PUSH-BUTTON
BSD-1607000253.A55
1607000253
|
£2.49
|
£2.99
|
|
|
838 - CROWN GEAR
BSD-1607000943.A15
1607000943
|
£23.86
|
£28.63
|
|
|
841 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A792
1600910018
|
£5.30
|
£6.36
|
|
