Bosch PWS 6-115 / 0603401901 / EU 230 Volt Spare Parts

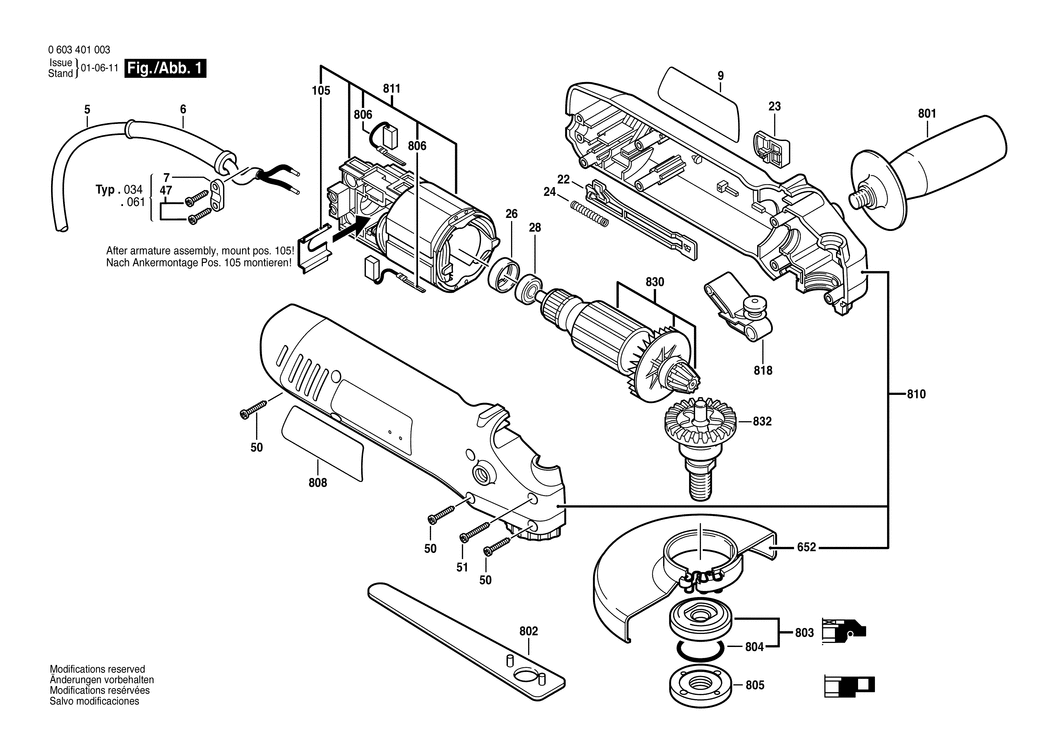

An exploded drawing and listing for the Bosch PWS 6-115 / 0603401901 / EU 230 Volt

	Ex VAT	Inc VAT
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A1344 2600703012	£2.80	£3.36
9 - MANUFACTURER'S NAMEPLATE BSD-1601118854.A10 1601118854	-
22 - ADJUSTING SLIDE BSD-1602319014.A17 1602319014	-
23 - SWITCH HANDLE BSD-1602026077.A45 1602026077	£1.75	£2.10
24 - COMPRESSION SPRING BSD-1604611026.A758 1604611026	£1.75	£2.10
26 - RUBBER BUSHING BSD-1600502020.A164 1600502020	£2.61	£3.13
28 - BALL BEARING BSD-1600905021.A32 1600905021	-
50 - TORX OVAL-HEAD SCREW 4x20 BSD-1619P00105.A66 1619P00105	£1.75	£2.10
51 - SCREW BSD-1619P00106.A27 1619P00106	£1.75	£2.10
105 - INTERMEDIATE PLATE BSD-1600591034.A59 1600591034	-
652 - PROTECTIVE GUARD BSD-2609000390.A40 2609000390	£13.12	£15.75
801 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A679 160202509T	£3.72	£4.47
802 - PIN-TYPE FACE-WRENCH BSD-1607950052.A453 1607950052	£3.72	£4.47
803 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A540 2605703014	£7.36	£8.83
804 - O-RING 20.35x1.78 MM BSD-1600210039.A1068 1600210039	£2.16	£2.59
805 - ROUND NUT M14 BSD-1603345043.A1357 1603345043	£8.67	£10.41
806 - CARBON-BRUSH SET BSD-1607000994.A4 1607000994	-
808 - NAMEPLATE BSD-160111A3H3.A2828 160111A3H3	£2.61	£3.13
810 - MOTOR HOUSING BSD-1607000371.A4 1607000371	-
811 - FIELD 230-240V BSD-1607000723.A10 1607000723	-
818 - SPINDLE HOLDER BSD-1607000993.A21 1607000993	-
830 - ARMATURE 230-240V BSD-1607000990.A38 1607000990	£21.42	£25.71
832 - GRINDING SPINDLE M14 BSD-1607000992.A3 1607000992	-

Attribute Name	Value
Brand	Bosch
