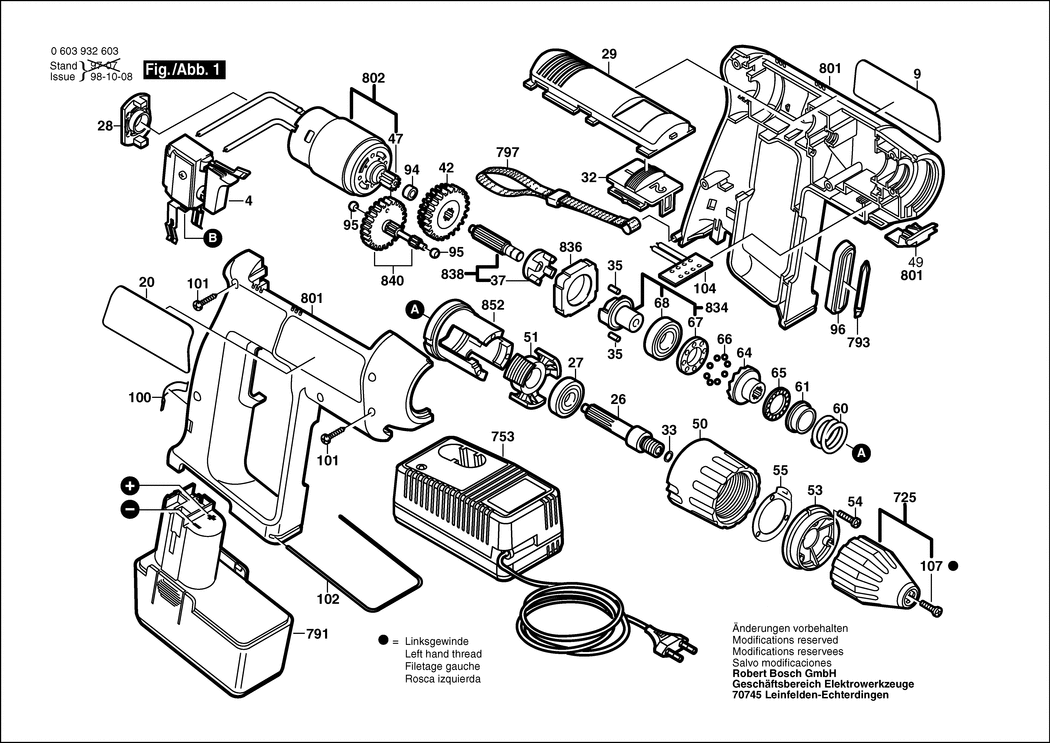

4 - ON-OFF SWITCH
BSD-2607200309.A68
2607200309
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118378.A0
2601118378
|
-
|
|
|
|
20 - REFERENCE PLATE
BSD-2601118379.A1
2601118379
|
-
|
|
|
|
26 - DRILLING SPINDLE 1/2
BSD-2606309034.A1
2606309034
|
-
|
|
|
|
27 - GROOVE BALL BEARING 10x26x8
BSD-1900905120.A240
1900905120
|
-
|
|
|
|
28 - ADAPTER
BSD-2605719006.A15
2605719006
|
-
|
|
|
|
29 - INSERT PIECE
BSD-2605510147.A20
2605510147
|
-
|
|
|
|
32 - ADJUSTING SLIDE
BSD-2601099032.A17
2601099032
|
-
|
|
|
|
33 - RETAINING RING
BSD-2604601004.A387
2604601004
|
£1.75
|
£2.10
|
|
|
35 - ROLLER BODY
BSD-2602329024.A108
2602329024
|
-
|
|
|
|
37 - CARRIER
BSD-2606440002.A3
2606440002
|
-
|
|
|
|
42 - SET OF GEARS Z=58/67
BSD-1609340007.A159
1609340007
|
£14.91
|
£17.89
|
|
|
47 - PINION Z=11
BSD-2606316112.A243
2606316112
|
£4.48
|
£5.37
|
|
|
49 - INSERT PIECE
BSD-2605510117.A5
2605510117
|
£1.75
|
£2.10
|
|
|
50 - SETTING RING
BSD-2605190032.A4
2605190032
|
-
|
|
|
|
51 - SLIDING PIECE
BSD-2608005044.A3
2608005044
|
-
|
|
|
|
53 - CLAMPING SLEEVE
BSD-2608005045.A16
2608005045
|
-
|
|
|
|
54 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A506
2603490024
|
£1.84
|
£2.21
|
|
|
55 - LOCATING WASHER
BSD-2600190056.A72
2600190056
|
-
|
|
|
|
60 - COMPRESSION SPRING
BSD-2604619004.A14
2604619004
|
-
|
|
|
|
61 - CHANGEOVER SET
BSD-2607001126.A56
2607001126
|
-
|
|
|
|
64 - COUPLING HALF
BSD-2606490047.A22
2606490047
|
-
|
|
|
|
65 - BALL CAGE
BSD-2600923001.A26
2600923001
|
-
|
|
|
|
66 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A841
1903230007
|
£1.84
|
£2.21
|
|
|
67 - COUPLING HALF
BSD-2606436001.A13
2606436001
|
-
|
|
|
|
68 - GROOVE BALL BEARING 15x32x9
BSD-1900905122.A192
1900905122
|
£10.61
|
£12.73
|
|
|
94 - SINTERED-METAL BUSHING
BSD-2600301011.A99
2600301011
|
£1.84
|
£2.21
|
|
|
95 - SINTERED-METAL BUSHING
BSD-2600302002.A150
2600302002
|
£1.84
|
£2.21
|
|
|
96 - INSERT
BSD-2600290022.A19
2600290022
|
-
|
|
|
|
100 - CLAMP SPRING
BSD-2601322016.A253
2601322016
|
£2.52
|
£3.02
|
|
|
101 - TAPPING SCREW DIN7981-ST3.9x19-F-Z
BSD-2912401420.A279
2912401420
|
£1.84
|
£2.21
|
|
|
102 - RETAINING BRACKET
BSD-2601329041.A263
2601329041
|
£2.33
|
£2.80
|
|
|
104 - CONTACT RETAINER
BSD-2608018004.A20
2608018004
|
£5.58
|
£6.70
|
|
|
107 - COUNTERSUNK-HEAD SCREW M6x38/12(dia10)
BSD-2603421218.A13
2603421218
|
-
|
|
|
|
725 - KEYLESS CHUCK dia 1.5-10 MM.1/2
BSD-2608572053.A35
2608572053
|
-
|
|
|
|
753 - FAST CHARGER USA 120/7.2-14.4V. 30 MIN.
BSD-2607224707.A3
2607224707
|
-
|
|
|
|
753 - FAST CHARGER USA 120/7.2-24V. 1h
BSD-2607224431.A26
2607224431
|
£135.25
|
£162.30
|
|
|
753 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN.
BSD-2607224701.A282
2607224701
|
£92.47
|
£110.96
|
|
|
753 - FAST CHARGER EU 230/7.2-24V. 1h
BSD-2607224425.A324
2607224425
|
£88.07
|
£105.68
|
|
|
753 - FAST CHARGER GB 230/7.2-14.4V. 30 MIN.
BSD-2607224703.A58
2607224703
|
£121.96
|
£146.35
|
|
|
753 - FAST CHARGER GB 230/7.2-24V. 1h
BSD-2607224427.A106
2607224427
|
£103.14
|
£123.77
|
|
|
753 - FAST CHARGER AUS 240/7.2-14.4V. 30 MIN.
BSD-2607224705.A41
2607224705
|
£142.02
|
£170.42
|
|
|
753 - FAST CHARGER AUS 240/7.2-14.4V. 1h
BSD-2607224443.A29
2607224443
|
-
|
|
|
|
791 - SLIDE-IN ACCU PACKAGE 7.2V.1.5Ah.NiCd
BSD-2607336141.A48
2607336141
|
-
|
|
|
|
793 - SCREWDRIVER BLADE 6 MM
BSD-1609200147.A181
1609200147
|
£3.72
|
£4.47
|
|
|
797 - CARRYING LOOP
BSD-2601398009.A126
2601398009
|
-
|
|
|
|
801 - HOUSING SECTION
BSD-2605104858.A3
2605104858
|
-
|
|
|
|
802 - DC MOTOR 7.2V
BSD-2607022922.A9
2607022922
|
-
|
|
|
|
834 - ECCENTRIC
BSD-2602210902.A4
2602210902
|
-
|
|
|
|
836 - RING
BSD-2600202025.A94
2600202025
|
-
|
|
|
|
838 - SPLINED SHAFT
BSD-2606309918.A45
2606309918
|
-
|
|
|
|
840 - TOOTHED SHAFT Z=10/19/81
BSD-1609340005.A112
1609340005
|
£17.58
|
£21.09
|
|
|
852 - GUIDE SLEEVE
BSD-2600499027.A5
2600499027
|
-
|
|
|
|
899 - . 7.2V
BSD-0603932623.A1
0603932623
|
-
|
|
|
