Bosch PSR 7.2 VES / 0603936767 / EU 7.2 Volt Spare Parts

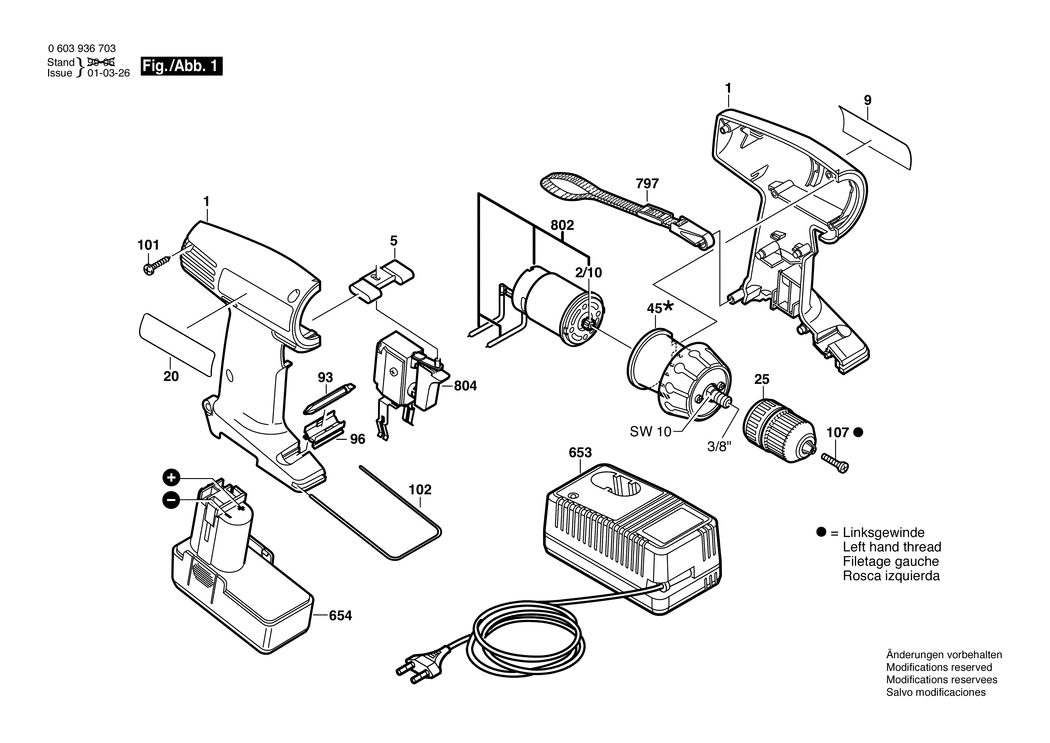

An exploded drawing and listing for the Bosch PSR 7.2 VES / 0603936767 / EU 7.2 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104509.A9 2605104509	-
2/10 - PINION Z=9 BSD-2606316158.A9 2606316158	-
5 - ADJUSTING SLIDE BSD-2601099055.A119 2601099055	-
9 - MANUFACTURER'S NAMEPLATE BSD-2601118753.A0 2601118753	-
20 - REFERENCE PLATE BSD-2601118754.A3 2601118754	-
25 - KEYLESS CHUCK BSD-2608572200.A5 2608572200	-
45 - PLANETARY GEAR TRAIN BSD-2606200054.A4 2606200054	-
93 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A295 1609200147	£3.72	£4.47
96 - SUPPORT BSD-2608040079.A2 2608040079	£1.75	£2.10
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A658 2603490018	£1.75	£2.10
102 - RETAINING BRACKET BSD-2601329041.A96 2601329041	£2.33	£2.80
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A50 2609110721	£2.16	£2.59
653 - FAST CHARGER EU 230/7.2-24V. 1h BSD-2607224425.A42 2607224425	£88.07	£105.68
654 - SLIDE-IN ACCU PACKAGE 7.2V.1.4Ah.NiCd BSD-2607335115.A1 2607335115	-
797 - CARRYING LOOP BSD-2601398009.A180 2601398009	-
802 - DC MOTOR 7.2V BSD-2607022943.A1 2607022943	-
804 - ON-OFF SWITCH BSD-2607200351.A51 2607200351	-
899 - CORDLESS SCREW DRIVER 9.6V BSD-0603940627.A8 0603940627	-
