Bosch PSB 18 VE-2 / 3603J41326 / GB 18 Volt Spare Parts

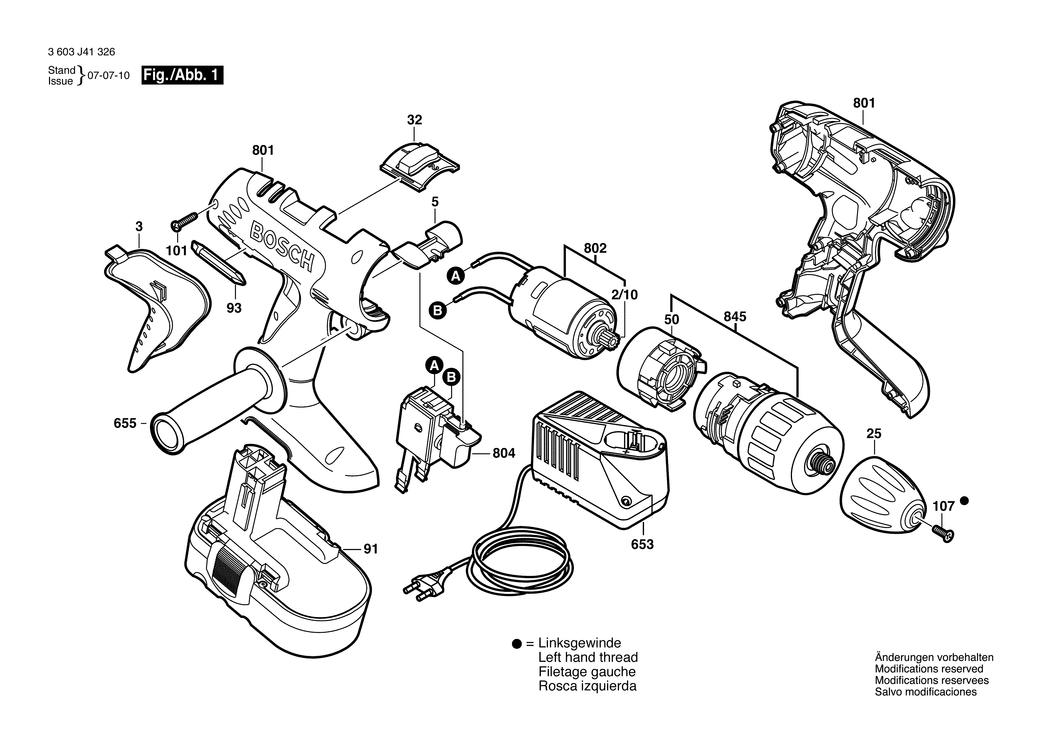

An exploded drawing and listing for the Bosch PSB 18 VE-2 / 3603J41326 / GB 18 Volt

	Ex VAT	Inc VAT
2/10 - PINION BSD-2606316188.A0 2606316188	£2.16	£2.59
3 - HANDLE COVER BSD-2608040154.A0 2608040154	£3.34	£4.01
5 - ADJUSTING SLIDE BSD-2601099096.A44 2601099096	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE PSB 18 X-CEL BSD-2601115577.A0 2601115577	-
25 - KEYLESS CHUCK BSD-2608572225.A19 2608572225	£37.72	£45.27
32 - ADJUSTING SLIDE BSD-2601099144.A0 2601099144	£1.95	£2.34
50 - INTERMEDIATE FLANGE BSD-2605719027.A66 2605719027	£2.61	£3.13
91 - SLIDE-IN ACCU PACKAGE 18V. 1.5Ah. NiCd BSD-2607335535.A13 2607335535	-
93 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A92 1609200147	£3.72	£4.47
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A333 2603490018	£1.75	£2.10
107 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A79 2603421229	£1.75	£2.10
653 - FAST CHARGER GB 230/7.2-24V. 1h BSD-2607224427.A39 2607224427	£103.14	£123.77
655 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A1025 160202509T	£3.72	£4.47
801 - HOUSING SECTION BSD-2605105936.A1 2605105936	£30.28	£36.33
802 - DC MOTOR 18V BSD-2607022991.A2 2607022991	£41.62	£49.95
804 - ON-OFF SWITCH BSD-2607200423.A3 2607200423	£45.67	£54.80
845 - PLANETARY GEAR TRAIN BSD-2606200934.A0 2606200934	£80.61	£96.73

Attribute Name	Value
Brand	Bosch
